For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

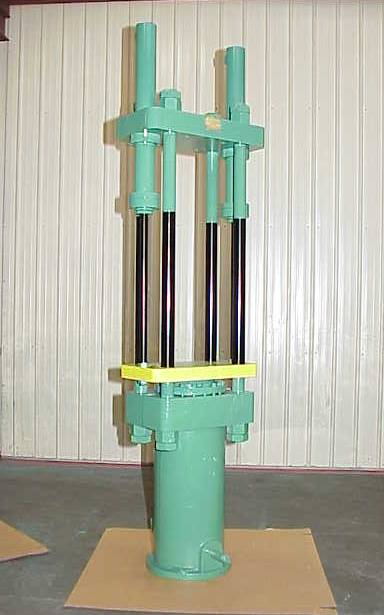

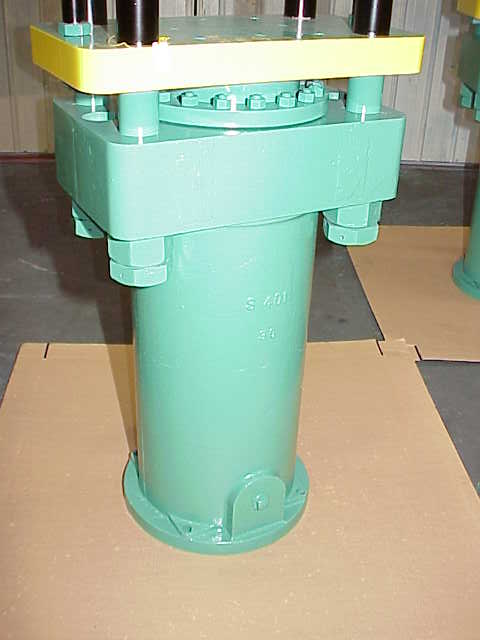

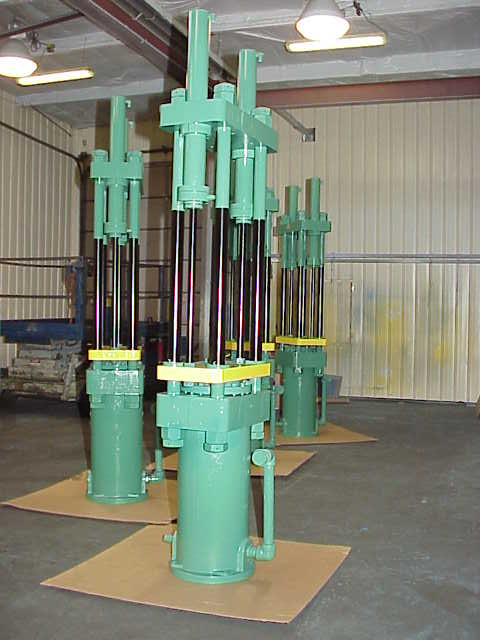

OVERALL PLATEN DIMENSIONS: 30" L to R X 16" F to B. DISTANCE BETWEEN POSTS: 17 \u00bd" L to R X 8" F to B. NOMINAL PLATEN SIZE: 16" X 16". POST DIAMETER 3". MAIN RAM: 12" DIAMETER, SINGLE ACTING, RATED AT 2000 PSI. ONE 3" NPT PORT AND ONE 2" NPT PORT, APPROX STROKE 30". DAYLIGHT 52 \u00bd". FULLY GUIDED MOVING BOLSTER WITH 3" BUSHINGS. TWO DOUBLE ACTING PUSH BACK CYLINDERS: 3 \u00bd" BORE, 1 \u00be" ROD, APPROX 30" STROKE, \u00bd" NPT PORTS. OPERATOR HEIGHT 49". OVERALL DIMENSIONS: 36" X 36" X 130" TALL. APPROX WEIGHT: 15,000 LBS. QTY 4 (ITEM #259)
Get Your Price from Icon Industries, Inc!
