Description
1,125lbf (5kN) Tinius Olsen H5K-T

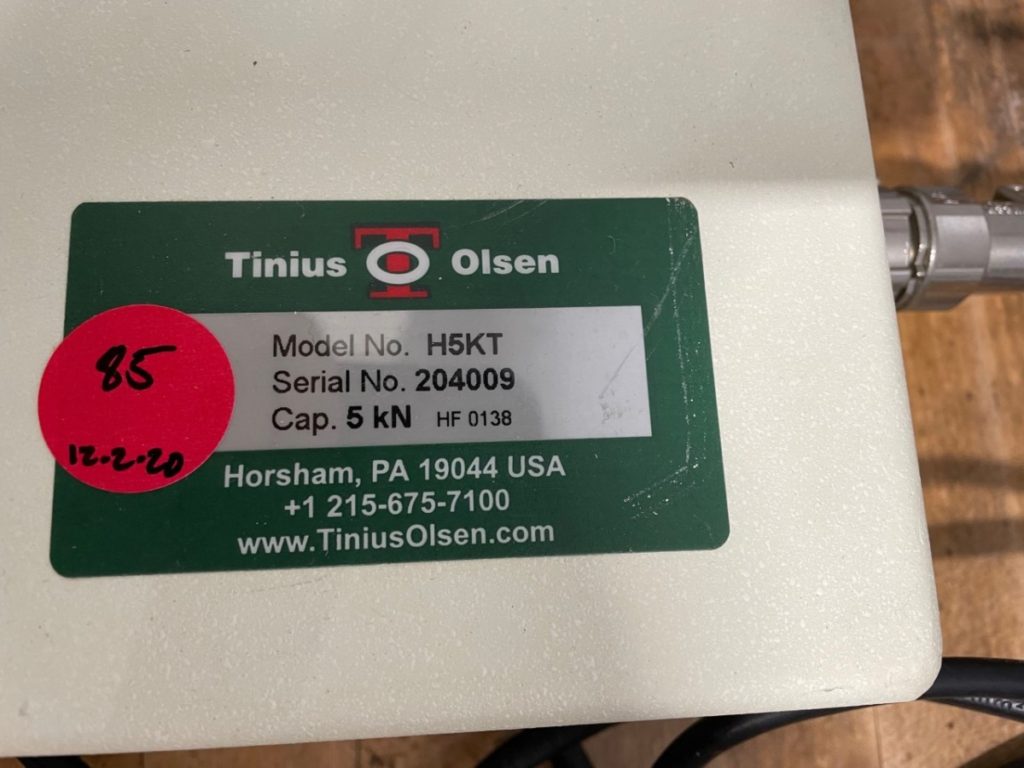

(1) USED 1,125 lbf (5kN) Capacity Tinius Olsen, Model H5K-T, Electro-Mechanical Tension and Compression Testing Machine. S/N: 204009

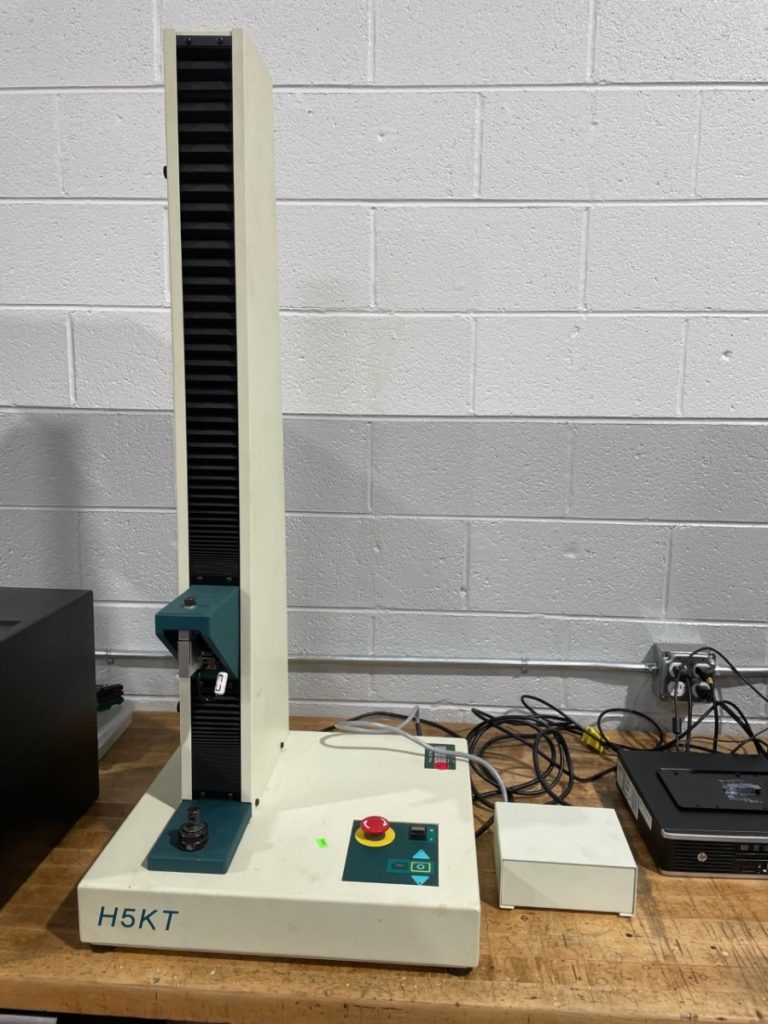

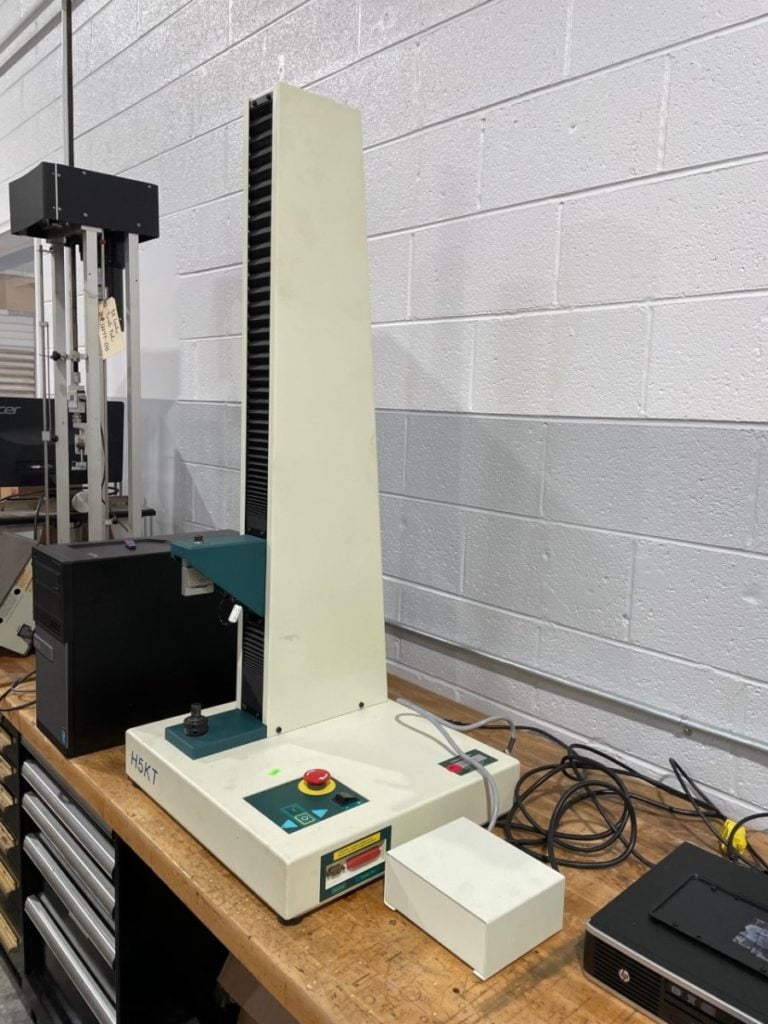

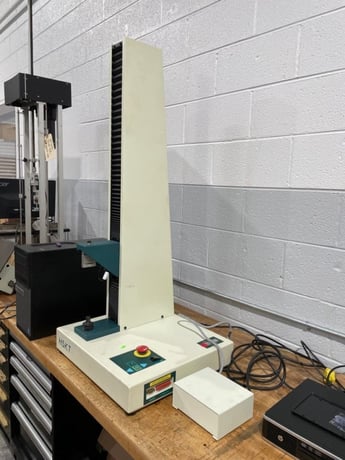

Tinius Olsen Model H5K-T
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 30"
Compression Testing Opening (Less Tooling): 30"
Testing Stroke: 30"
Testing Speed (IPM):
0.00004 to 60 up to 200 lbf.
0.00004 to 20 up to 1000 lbf.
Crosshead Adjusting Speed (IPM): 0-40
Load Frame (W x D x H): 19" x 18" x 45" Approximate Weight (lbs.): 110 Electrical Requirements (V,Hz,PH): 120, 60, 1
EQUIPPED WITH:
- Dell Computer System with Monitor, Keyboard & Mouse
- New Tinius Olsen Horizon Software

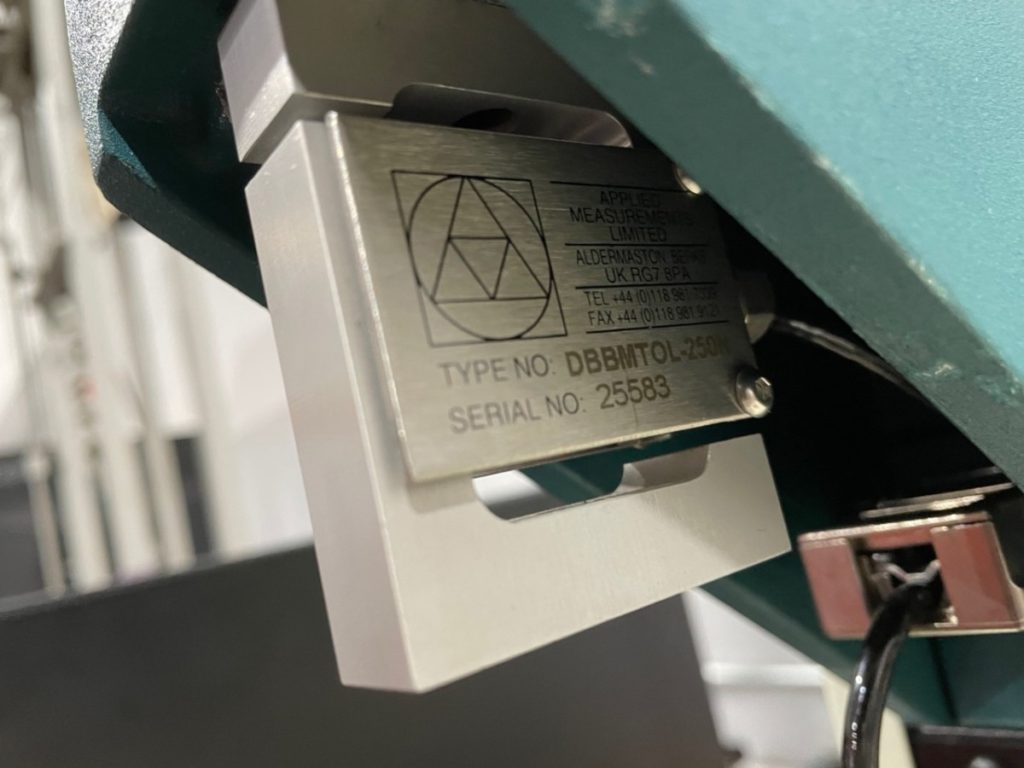

- 250N and 25N Tension & Compression Load Cells

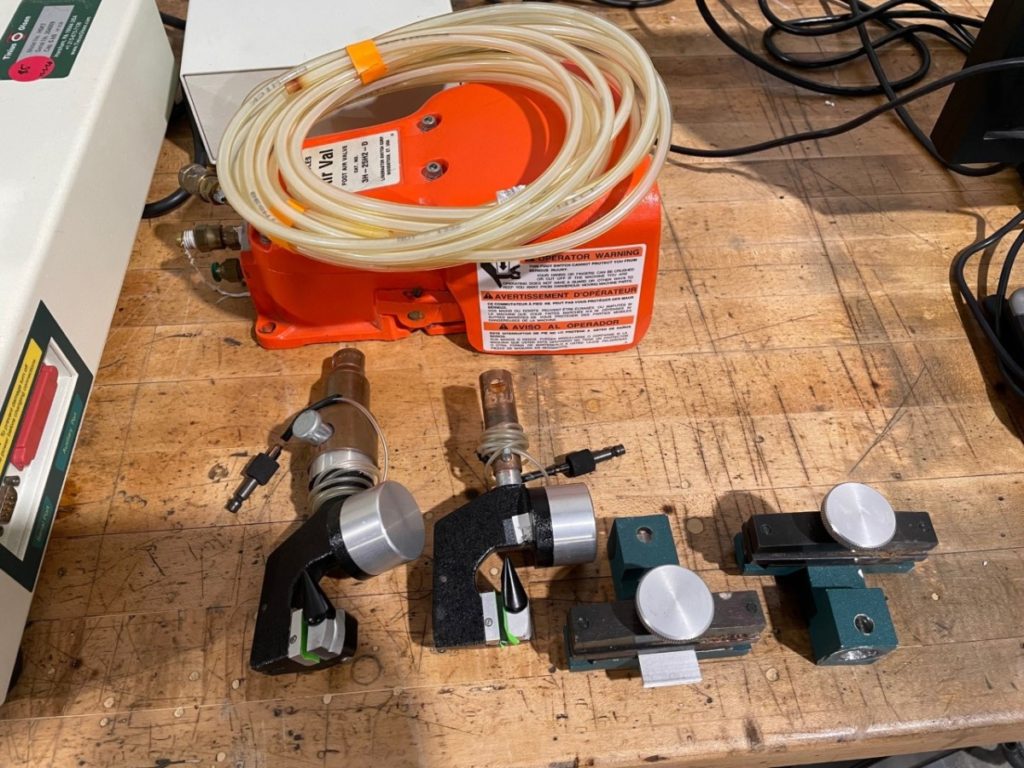

- Set of Pneumatic Capstan Grips for Wire, Chord or Yarn
- Set of Side Action Manual Clamping Grips
Note: 5kN Tension & Compression Load Cell can be purchased separately to max out frame capacity.
FOB Warren, MI
Cleaned, Serviced, Cycled & Certified
30 Day Satisfaction Guaranteed Return Privilege
| #12823-00
DOWNLOAD SPEC SHEET
Get Your Price from Frank Bacon Machinery Sales!
