For Sale by Frank Bacon Machinery Sales
Surplus Record Dealer Since 1956
Sales Team
586-75...> Show Seller's Phone Number 586-756-4280 Let the seller know you found their listing on Surplus Record!
Description
NEW 11.25K (50kN) Frank Bacon Model FB-50EM
Tension Testing Opening (Less Tooling): 50"
Compression Testing Opening (Less Tooling): 50"
Distance Between Columns/Screws: 22"
Testing Stroke: 44"
Testing Speed (IPM): .00002 – 20
Crosshead Adjusting Speed (IPM): 20
Measurable Load Range: .4-100%FS
Measured Load Accuracy: ±.5%
Strain Measuring Accuracy: ±.5%
Displacement Measurement Resolution (mm): .001
Displacement Measurement Accuracy: Greater of ±.02mm and ±.15%
Strain Rate Control Range: .00025/Sec - .0025/Sec
Strain Rate Control Accuracy: ±1%
Force Loading Speed Control Range: .001 to 10% FS/Sec
Force Loading Control Accuracy: ±1%
Displacement Rate Control Range: .01 to 500 mm/min
Displacement Rate Control Accuracy: ±1%
Overall Dimensions:
New Electronic Console (W x D x H): 27.5" x 27" x 35"
Load Frame (W x D x H): 37 x 25 x 85.5
Load Frame Weight (lbs.): 1,543
Electrical Requirements (V,Hz,PH): 230, 60, 3

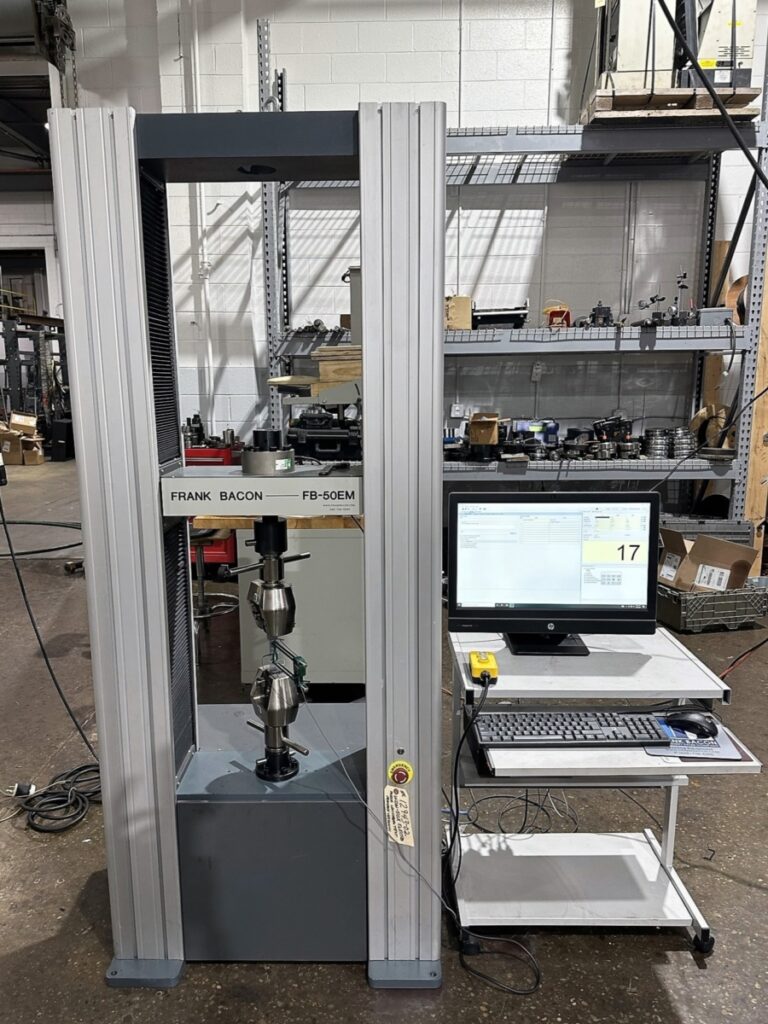

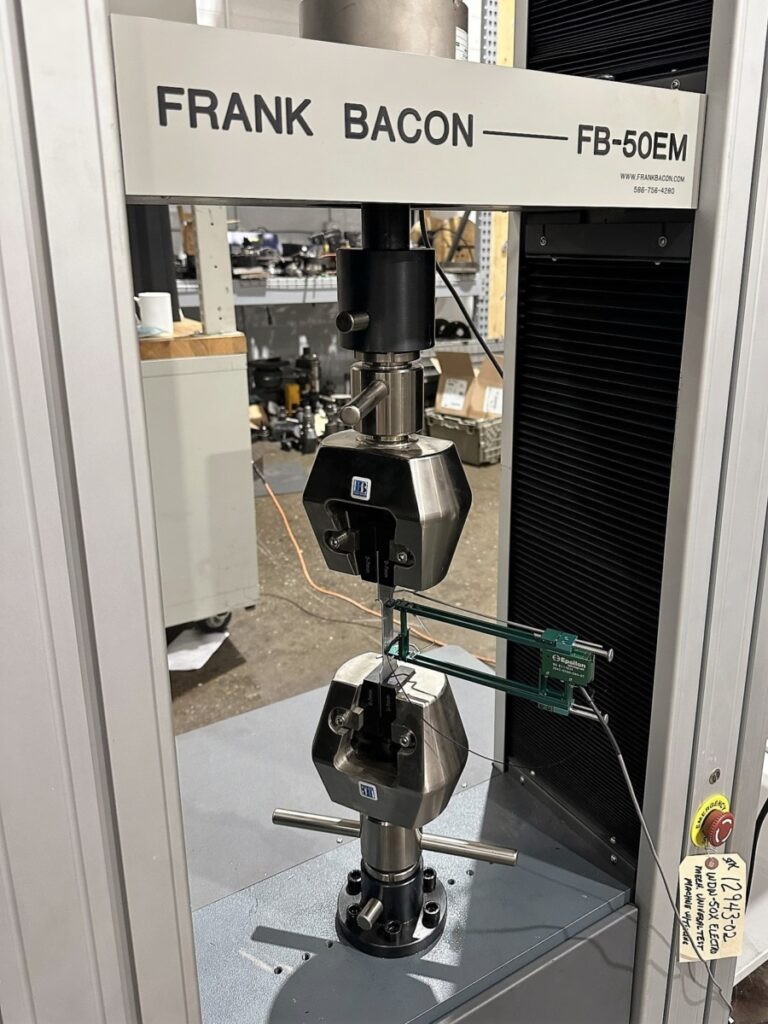

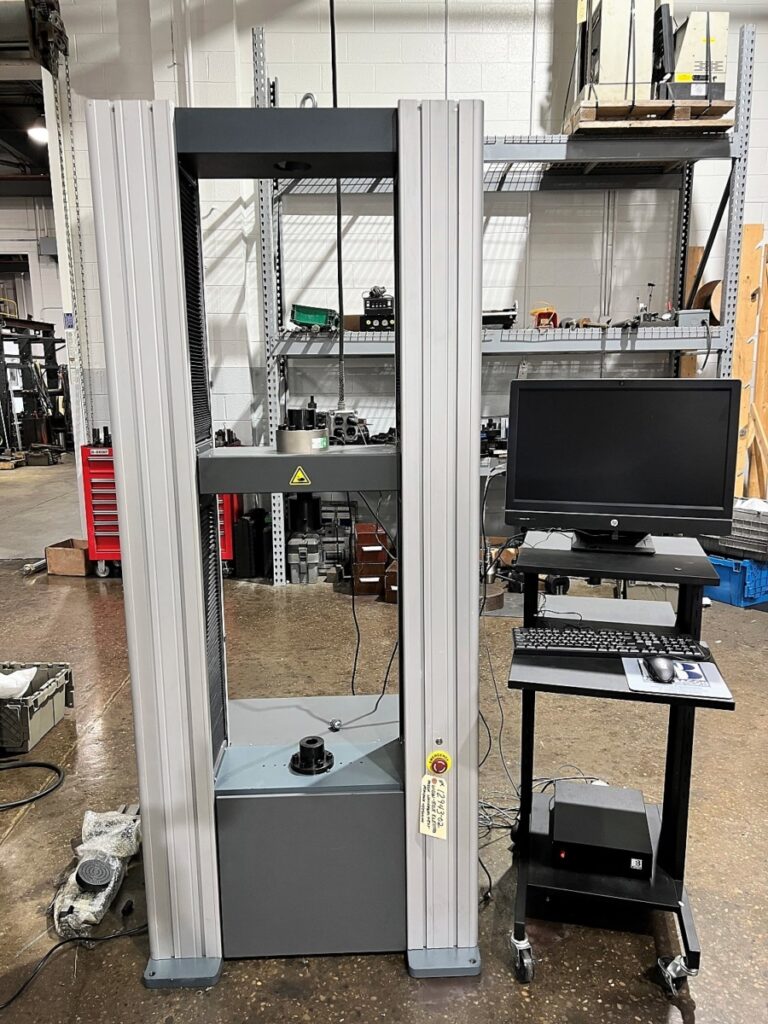

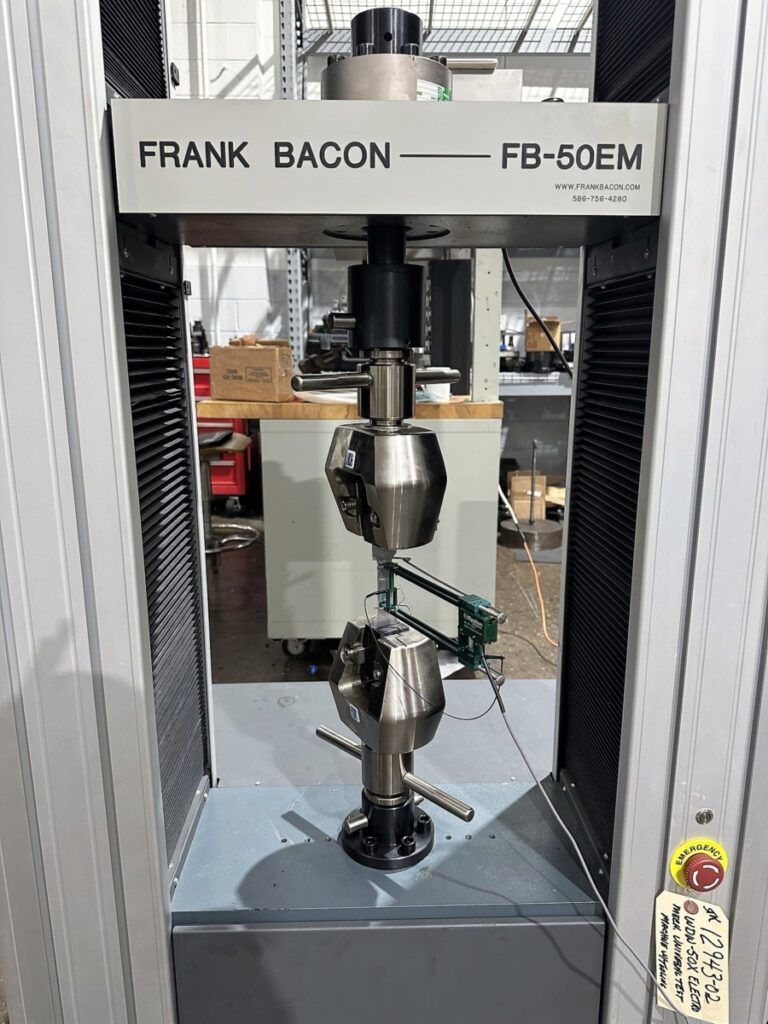

NEW 11,250 lbf (50 kN) Capacity, Frank Bacon Machinery Model, FB-50EM, Floor Standing, Research Grade Precision Two Ball Screw Dual- Space Tension and Compression Testing Machine with Precision Load Cell.
Frank Bacon Model FB-50EM
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 50"
Compression Testing Opening (Less Tooling): 50"
Distance Between Columns/Screws: 22"
Testing Stroke: 44"
Testing Speed (IPM): .00002 – 20
Crosshead Adjusting Speed (IPM): 20
Measurable Load Range: .4-100%FS
Measured Load Accuracy: ±.5%
Strain Measuring Accuracy: ±.5%
Displacement Measurement Resolution (mm): .001
Displacement Measurement Accuracy: Greater of ±.02mm and ±.15%
Strain Rate Control Range: .00025/Sec - .0025/Sec
Strain Rate Control Accuracy: ±1%
Force Loading Speed Control Range: .001 to 10% FS/Sec
Force Loading Control Accuracy: ±1%
Displacement Rate Control Range: .01 to 500 mm/min
Displacement Rate Control Accuracy: ±1%
Overall Dimensions:
New Electronic Console (W x D x H): 27.5" x 27" x 35"
Load Frame (W x D x H): 37 x 25 x 85.5
Load Frame Weight (lbs.): 1,543
Electrical Requirements (V,Hz,PH): 230, 60, 3
EQUIPPED WITH:
- Computer System with Keyboard and Mouse
- 24" LED-Backlit LCD Color Monitor
- Microsoft Windows 10 Professional, Workstation
- MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
- MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
- Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
- New Yaskawa AC Servo Motor with Incremental Encoder and Yaskawa Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
- 50kN Tension & Compression Load Cell
- Upper and Lower Quick Release Hubs for Tooling Changes
FOB Warren, MI
NEW, Calibrated and Certified
2 Year Parts and Labor Warranty 30 Day Satisfaction Guarantee Return Privilege
ISO 17025 Accredited Certification
| #FB-50EM
DOWNLOAD SPEC SHEET
Get Your Price from Frank Bacon Machinery Sales!
Buyers Who Viewed This Listing Also Viewed …
JUST ADDED!

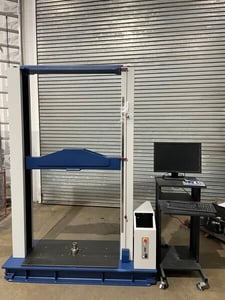

11250 lbf (50kN) Frank Bacon #FB-50EM-TT-EEW, Tensile Tester, 66" tension testing opening, 39.5" x 21.5" table, 50" testing stroke, 230 Volts, 1PH
Category: Tensile Testers
Seller: Frank Bacon Machinery Sales
Location: Warren, MI
Model: FB-50EM-TT-EEW
NEW 11,250 lbf (50kN) Frank Bacon Extra Wide Model FB-50EM-TT-EEW, NEW Frank Bacon 50kN Extra Wide :Tension Testing Opening (Less Tooling): 66"Compression Testing Opening (Less Tooling): 66"Distance Between Columns/Screws: 41"Table Size: 39.5" x 21.5"Testing Stroke: 50"Testing Speed (IPM):.00002 – 14Crosshead ...more
12000 lb. Tinius-Olsen, unvi. tester, tensile & compression, electro mechanical, 4' tension
Category: Tensile Testers
Seller: Die-Matic Tool & Machinery Inc.
Location: Meridianville, AL
Mfr: Tinius-Olsen
TINIUS OSEN UNIVERSAL TESTING MACHINE, CAPACITY: 12,000 LBS., TENSILE & COMPRESSION, ELECTRO MECHANICAL, ADMET MTEST QUATTRO PC BASED CONTROLLER, MAX PART LENGTH: 4'6" COMPRESSION, 4' TENSION, LISTING ID#25527.
11250 lb. (50kN) Instron #5569, tensile & compression testing machine, 16" x 6" table
Category: Tensile Testers
Seller: Frank Bacon Machinery Sales
Location: Warren, MI
Mfr: Instron
Model: 5569
11.25K (50kN) Instron 5569 Tension and Compression Testing Machine 50 kN Instron 5569 : Tension Testing Opening (Less Tooling): 48" Compression Testing Opening (Less Tooling): 48" Distance Between Columns/Screws: 16" Testing Stroke: 48" Table Size (W x D): 16" x 6" Testing Speed (IPM):.00002-20 Crosshead Adjusting ...more
1125 lbf (5kN) Instron #5965, Tensometer, 240 Volt, 2012
Category: Tensile Testers
Seller: Soberay & Sons Ltd
Location: Cleveland, OH
Mfr: Instron
Model: 5965
Year: 2012
Item 8028 - One (1) Used Instron Tensometer, Model 5965, rubber tensile tester, capacity 5kN (1125 lbs), System ID 5965R9369.

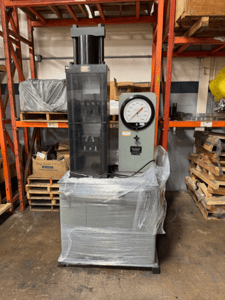

40000 lb. Louis Small #UT40TA10, Tensile Tester
