For Sale by Nidec Press & Automation
Description
Tonnage 110 tons
Stroke 3.94 inches
Shut Height 14.9 inches
SPM 250
Vari Speed (Yes/No) yes
Bed W 31.5 inches
Bed L 48 inches
Crank (Single/Double) double
Air Clutch (Yes/No) no
CNC Control yes
Type of CNC Control Minster PMC
Dimensions 155T x 113W x 70D
Weight 41000 pounds
Equipped With

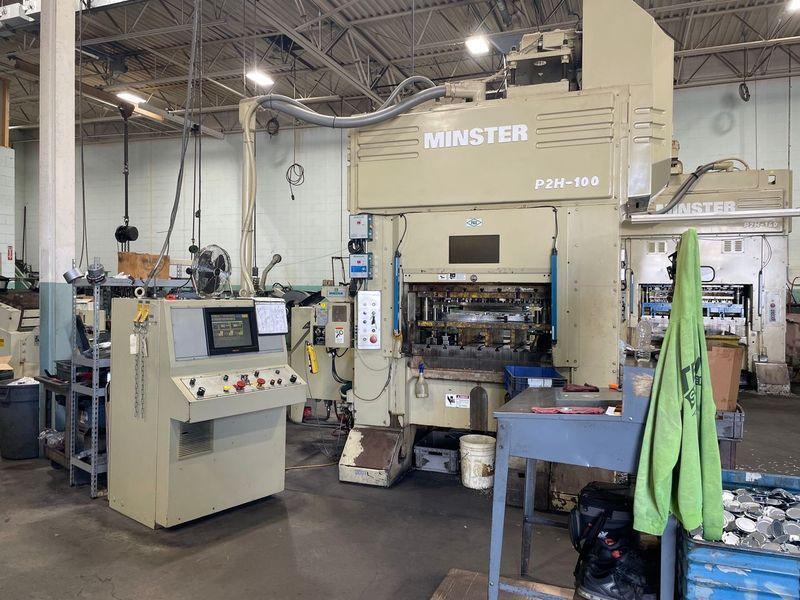

P2H Precision Straight Side Press
Specifications (INCH)
Press Specifications
Model Number........................................................ P2H-100-48×31-FW
Force × Distance off Bottom.................................. 110 ton × 0.063 in
Crankshaft Extension Location............................... Opposite Drive Side
Drive Arrangement.................................................. Flywheel
Drive Location........................................................ Right Hand Side
Lube Unit Location................................................. Opposite Drive Side
Approximate Press Weight..................................... 41,000 lb
Shutheight Indicator Readout................................. Inch
Shop Air Pressure, Minimum.................................. 85 psi
Press Slide Specifications
Stroke Length, Speed Range................................... 3.94 in, 90 - 250 spm
Shutheight Adjustment........................................... 3.94 in
Quick Access Slide Range...................................... 0.50 - 4.50 in
Area of Slide, R-L × F-B........................................ 48.0 × 26.0 in
Slide Face Machining.............................................. Standard
Press Bolster Specifications
Bolster Plate Material.............................................. Cast Iron
Bolster Plate Thickness............................................ 3.94 in
Area of Bolster, R-L × F-B..................................... 48.0 × 31.5 in
Opening in Bolster, R-L × F-B................................ 39.4 x 7.5 in
Bolster Plate Machining.......................................... Standard
Press Frame Specifications
Upright Passline Opening, F-B............................... 22.0 in
Area of Bed, R-L × F-B.......................................... 48.0 × 31.5 in
Opening in Bed, R-L × F-B.................................... 40.0 × 14.2 in
Bed Deflection at 67% of Die Area........................ 0.0013 in/ft
Shutheight, Maximum (SDAU)............................. 14.9 in, on Bolster
Approx Clearance, Mount to Bottom of Bed......... 17.0 in
Approx. Distance Mount to Top of Bolster ........... 44.7 in.
Approx. Distance Mount to Top of Bed................. 40.7 in
Approx. Floor Area, R-L × F-B.............................. 104 × 70.0 in
Approx. Overall Area, R-L × F-B........................... 87 × 70.0 in
Approx. Overall Height, from Mount..................... 155 in
