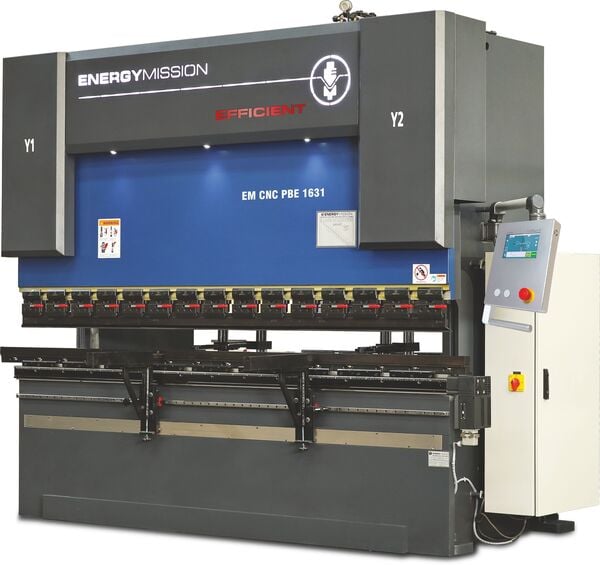

110 Ton, Energy Mission #PBE-1031, hydraulic press brake, 10' overall, 11.81" stroke, 15.75" throat, new

SALIENT FEATURES------HIGH SPEED LOW POWER

Higher productivity & lesser cycle time by High-speed beam movements

Energy Efficient - Reduce power consumption by 40% ~ 45%

High bending accuracy and repeatability

Fast up & down beam speed up to 160 mm/sec,

Pressing speed up to 10 mm/sec.

3 Axis machine with automatic, accurate & fast back gauge

CybTouch 8PS Controller from CYBELEC Switzerland

Very low noise, Silent & smooth machine operation

Rigid upper beam guide on 12-point roller bearings

The frame is machined on FLOOR BORING MACHINE ensuring single reference accurate machining

Stable hydraulic oil temperature ensures consistent accuracy

ACCURACIES Press Beam Depth Accuracy: ± 0.01mm

Press Beam Depth Repeatability: ± 0.01mm

Back Gauge Accuracy: ± 0.1mm

Back Gauge Repeatability: 0.1mm

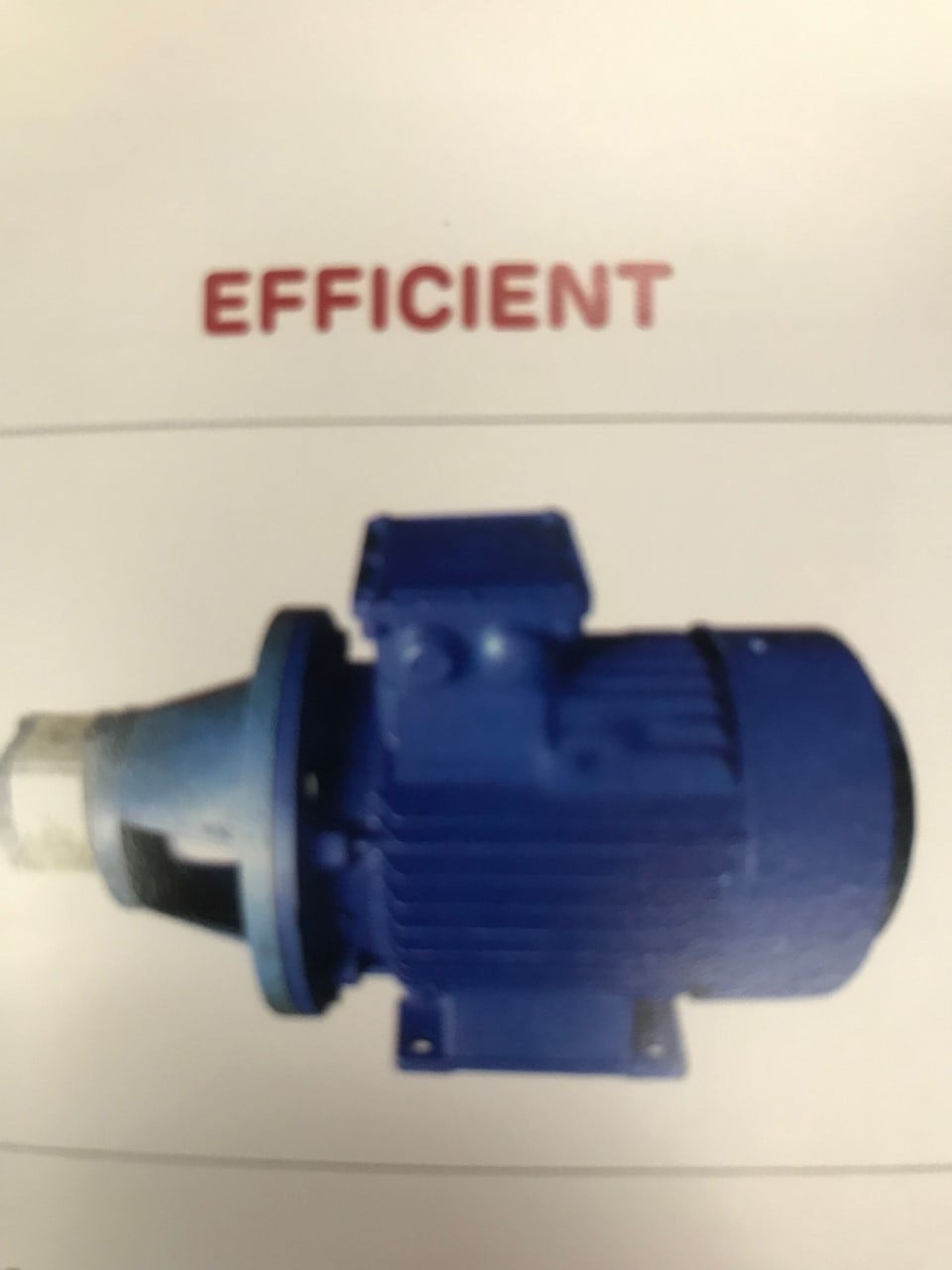

40% Energy saving with servo motor package

High speed beam movements with less power

Silent operations and NO oil heating

CONTROL TECHNOLOGY

The CNC Press Brake is a modern press brake with precise automation & state of the art technology for achieving best results on fabrication jobs. It eliminates the need of adjusting bending degrees & marking of bending positions on the job.

The operator can make program with different degrees & different gauge position. In turn, we can save the time on material handling & job marking. The operator can finish the complete job in one sequence even if different bending degrees & different edge dimensions are required.

Hence it is enhancing the productivity of machine. It can save total 200 product programs & each program having 24 bends. These programs can be saved & recalled again for future use.
