Manufacturer: Arburg
Model: ALLROUNDER 470E 1000-170
Year: 2016
Ton: 110.0
Oz.Shot: 2.700
Stock # 8078096
1 / 6
Click to zoom in
1 / 6
For Sale by KD Machinery
Surplus Record Dealer Since 2026
Location: Scottsdale, AZ
Contact Sales Dept.
Phone Number: 480...> Show Phone Number 480-565-7310
Let the seller know you found their listing on Surplus Record!
Description

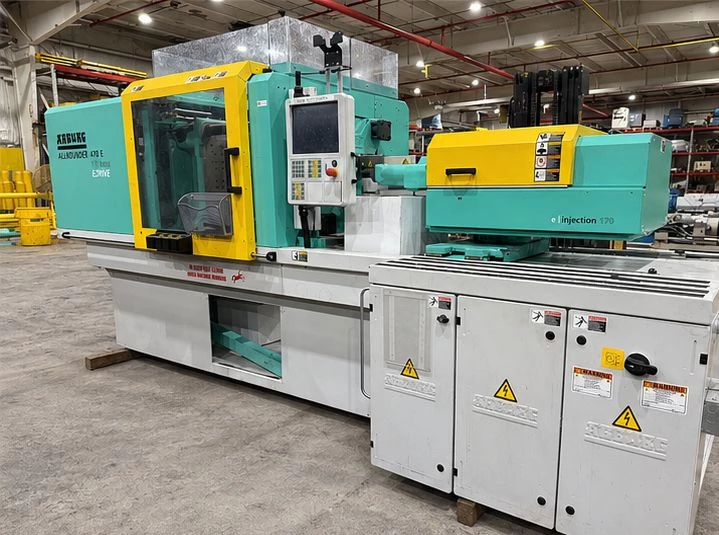

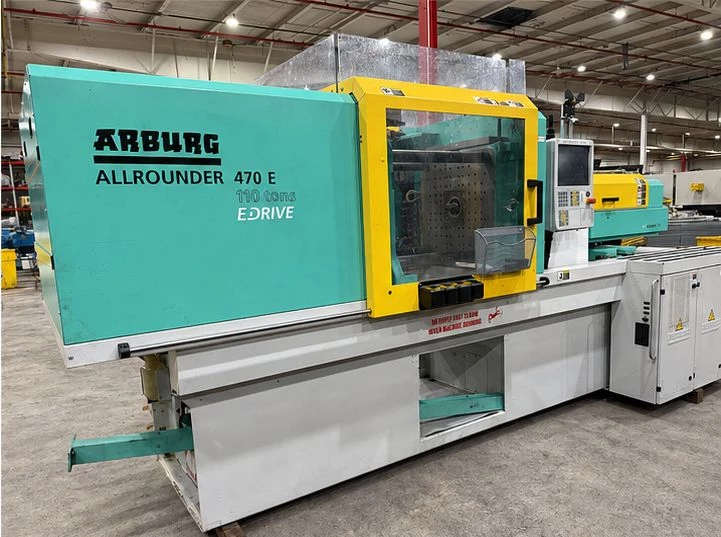

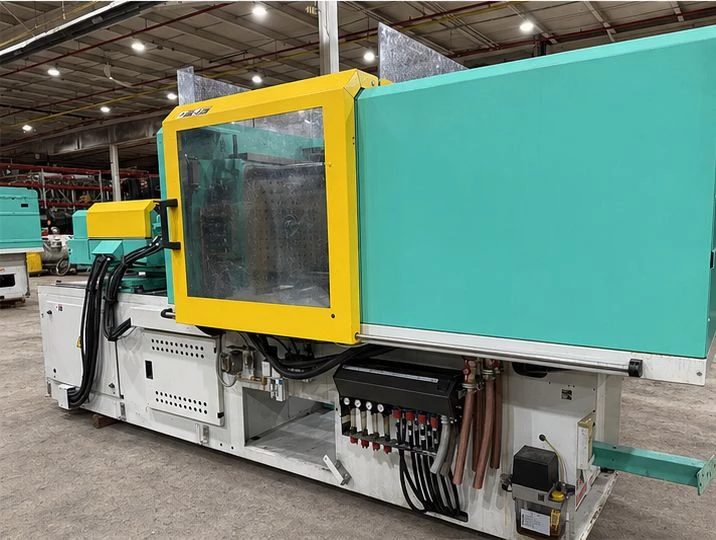

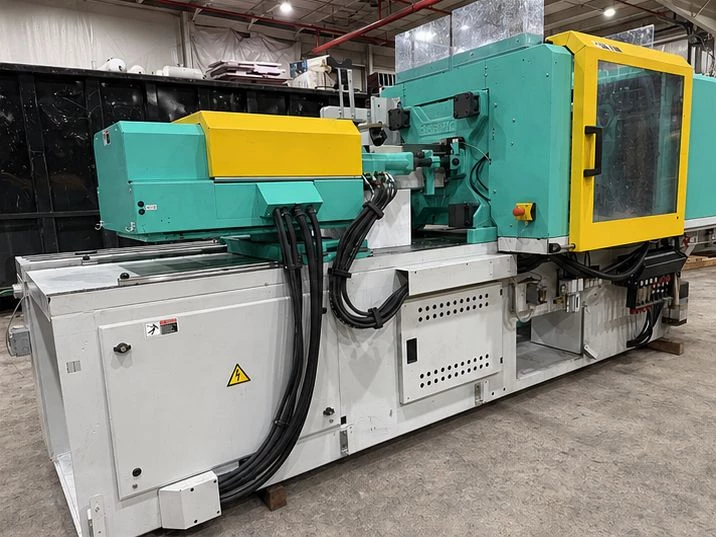

Used Arburg Allrounder 470E 1000-170 (2016) Injection Molding Machine for Sale. This electric Arburg press is rated at 110 ton clamp force with a 2.7 oz shot size. Tie bar spacing is 18.5″ x 18.5″ with 25″ x 25″ platens, 33.4″ maximum daylight, and a minimum/maximum mold height of 9.84″ to 19.6″. It runs a Selogica control on 460V power and measures 172″ x 65″ x 83″. Equipped with air blow and a robot interface. The machine is under power and can be inspected running. Additional plastic injection molding machines are available.
| Capacity | 110 Ton |
|---|---|
| Shot Size | 2.7 oz |
| Tie Bar Spacing | 18.5" x 18.5" |
| Platen Size | 25" x 25" |
| Max Daylight | 33.4" |
| Min /Max Mold Height | 9.84"/19.6" |

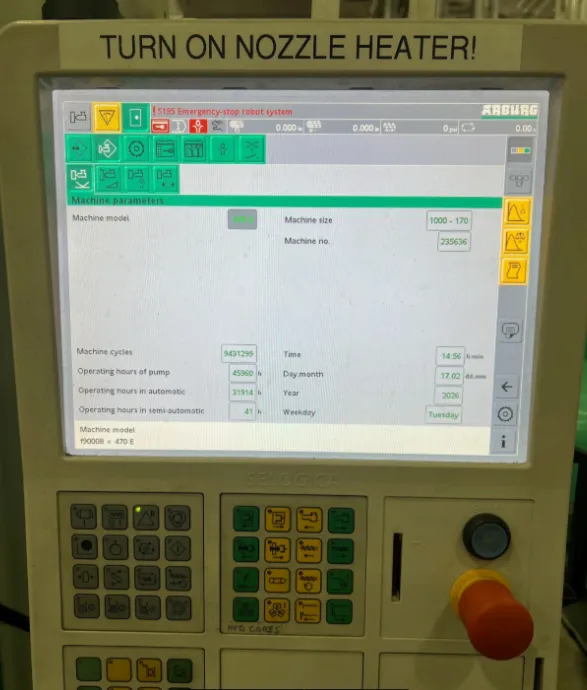

| Control | Selogica |

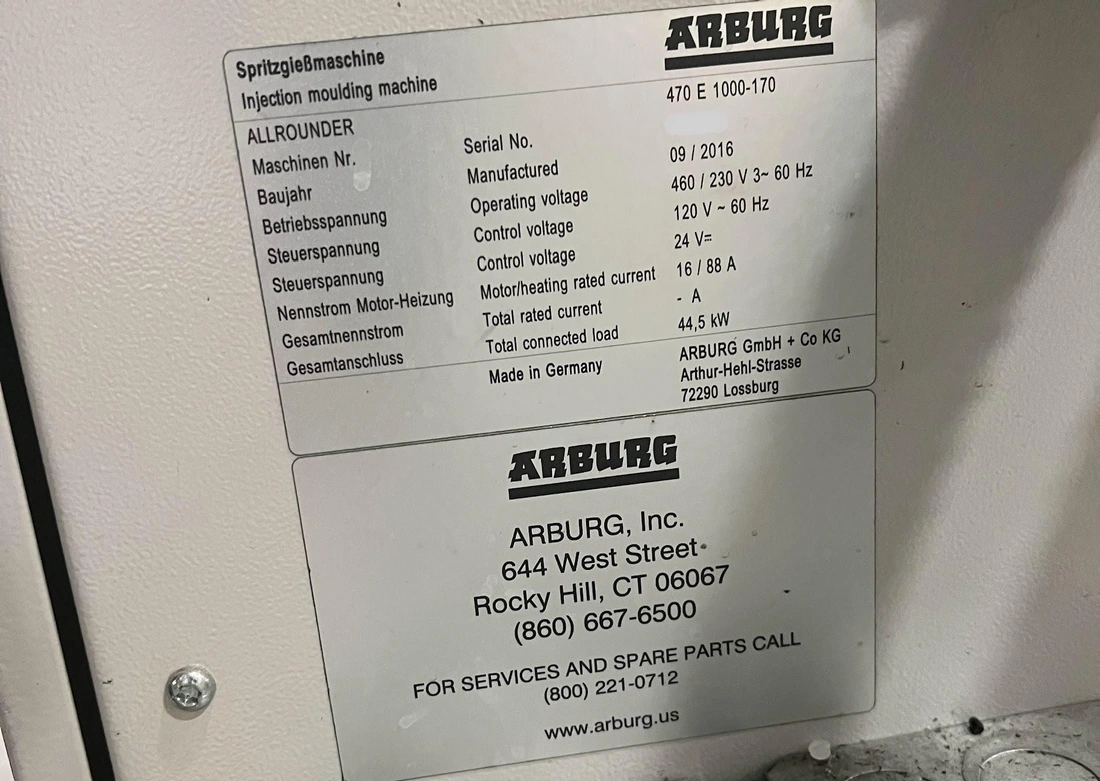

| Power Requirement | 460V |
| Dimensions | 172" x 65" x 83" |
Get Your Price from KD Machinery!
