11" x 18" Sharp #1118H, High Precision Tool Room Lathe, 9" Carriage, 6" Cross Slide, 130-4000 RPM Variable, 5 HP, 220 V, new

Description

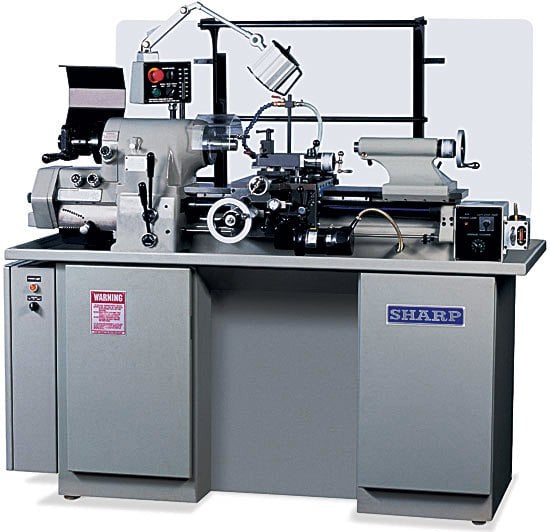

Sharp 11″ x 18″ High Precision Tool Room Lathe, 1118H

Inventory # 2146

Model: 1118H

Specifications:

Capacity:

Swing Over Bed: 11″

Swing Over Carriage: 9″

Swing Over Cross Slide: 6″

Distance Between Centers: 18″

Spindle:

with Round 5C Collets: 1 1/16″

with Hexagon 5C Collets: 3/4″

with Expanding Chucks: 3″

with Step Chucks: 5″

Spindle Speed: 130 – 4,000 RPM (Variable)

Spindle Taper (Inside): 5C (10°)

Spindle Taper (Outside): 4°

Travel and Feed Range:

Cross Slide Travel: 6″

Compound Slide Travel: 3″

Quick-Action Compound Slide Travel: 0.1″

Carriage Power Feed Range: 5/16″ – 7″

Cross Slide Power Feed Range: 4/16″ – 4″

Threading:

Leadscrew Pitch, Diameter: 8 TPI, 1″

Inch Threads: 11″ – 108″ (36)

Metric Threads: 0.275 – 2.7mm (36)

Tailstock:

Tailstock Spindle Diameter: 1.358″

Tailstock Spindle Taper: M.T. # 2

Tailstock Spindle Travel: 3 3/4″

Motor: 5 HP / 220v / 3ph OR 1ph (Please Specify Desired Motor at Time of Order)

Standard Features:

Digital variable speed (DVS)

Super quiet and vibration free

High-speed spindle

Accuracy within 50 millionths TIR

Hardened and ground spindle

Independent electric feed control on carriage and cross slide

Quick-change inch/metric gearbox with 36 changes

Double angular compound slide for threading

Hardened and ground bed ways

Turcite coating on carriage and bed

Adjustable thread length control stops with fine adjustment

Hardened and ground lead screws

Standard Equipment:

Splash Guard

Coolant System

Halogen Work Light

5C Collet Closer and Collet Holder

Mechanical Specifications:

Dimensions: 73″ x 30″ x 75″ H

Weight: approx. 2,300 lbs.

Contact us for special pricing and availability

FOB Factory
