Description

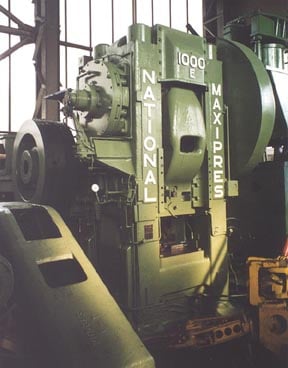

1000 TON NATIONAL E-12 MAXI-PRESS, Mfg. 1967 Serial No. 26468
Stroke length 12" (305 mm)
Strokes per minute 45
Shut height 26" (660 mm)
Die seat (F-B) 38-1/4" (971 mm)
Die seat (R-L) 33" (838 mm)
Ram face (F-B) 30" (762 mm)
Ram face (R-L) 30" (762 mm)
Floor space (F-B) 9' 6" (2.9m)
Floor space (R-L) 9' 4" (2.85m)
Height above floor 10' 10" (3.9m)
Motor 75 Hp (55 kW)
Net weight 112,000 Lbs. (47,000 kg)
Additional Information:
Good condition.
Located in Kehl, Germany
Stroke length 12" (305 mm)
Strokes per minute 45
Shut height 26" (660 mm)
Die seat (F-B) 38-1/4" (971 mm)
Die seat (R-L) 33" (838 mm)
Ram face (F-B) 30" (762 mm)
Ram face (R-L) 30" (762 mm)
Floor space (F-B) 9' 6" (2.9m)
Floor space (R-L) 9' 4" (2.85m)
Height above floor 10' 10" (3.9m)
Motor 75 Hp (55 kW)
Net weight 112,000 Lbs. (47,000 kg)
Additional Information:
Good condition.
Located in Kehl, Germany
