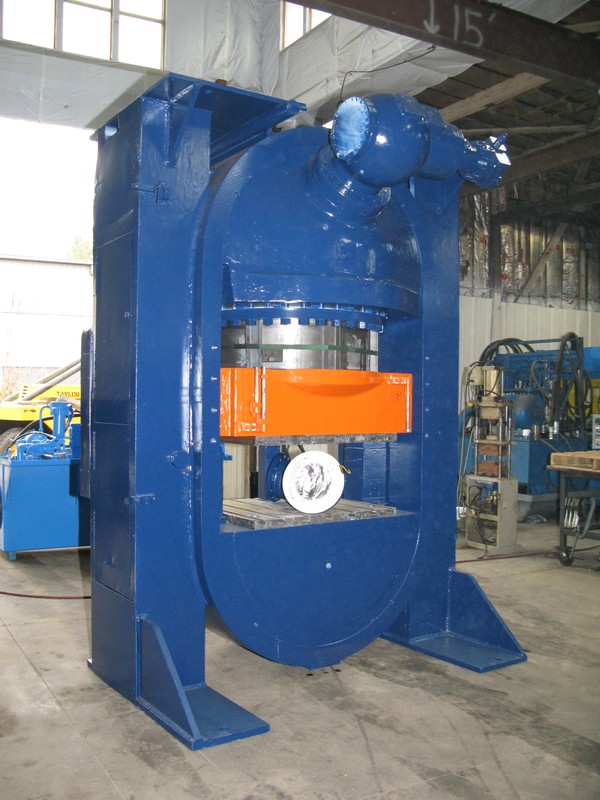

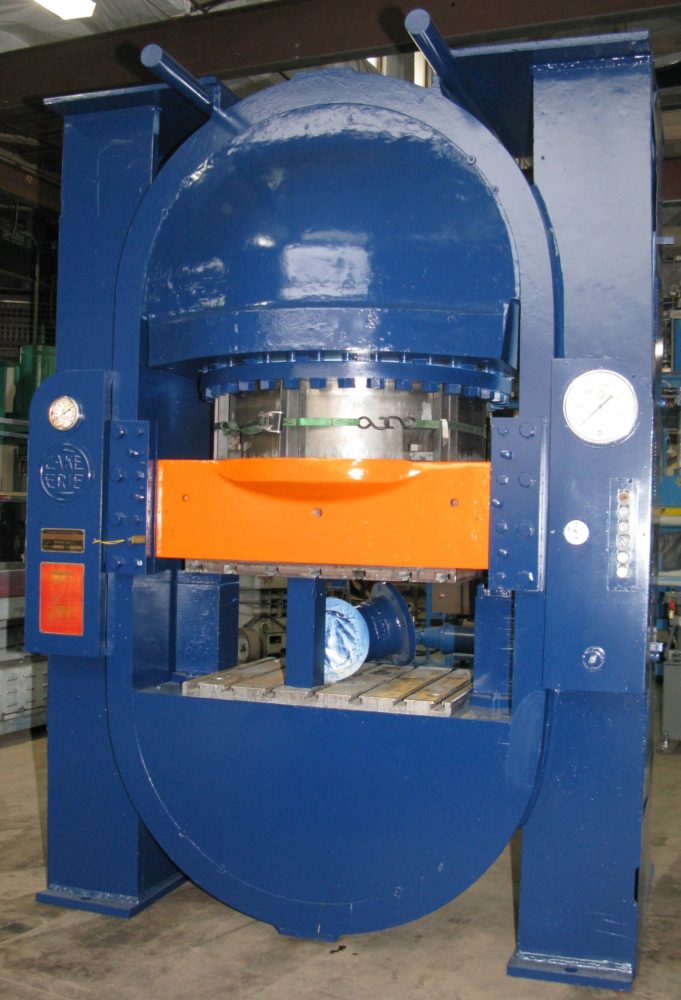

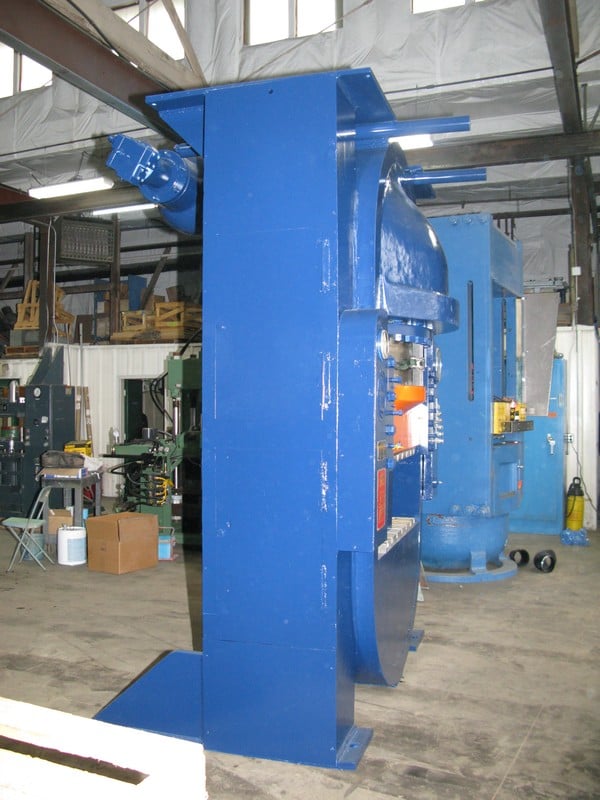

1000 Ton, Lake Erie, 37.5" x32", down-acting, 20" daylight, 7" stroke, frame-style, hydraulic tank, #2330

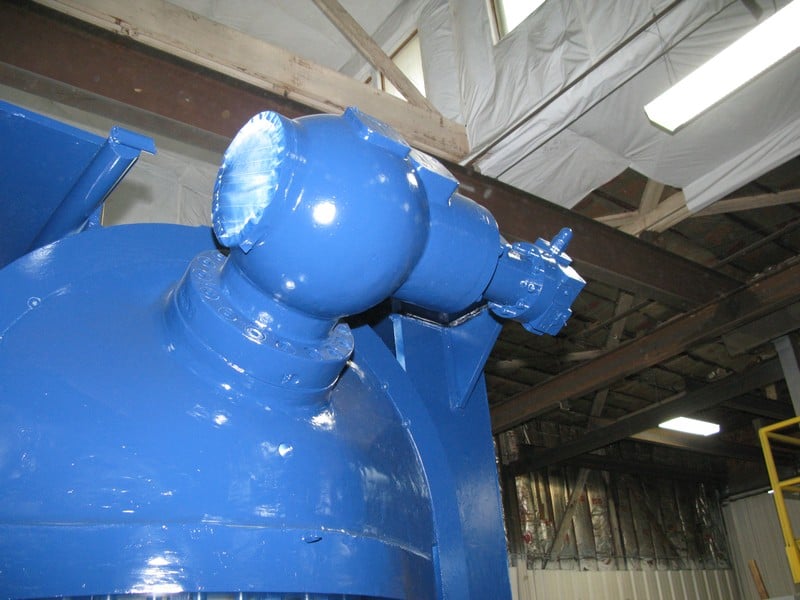

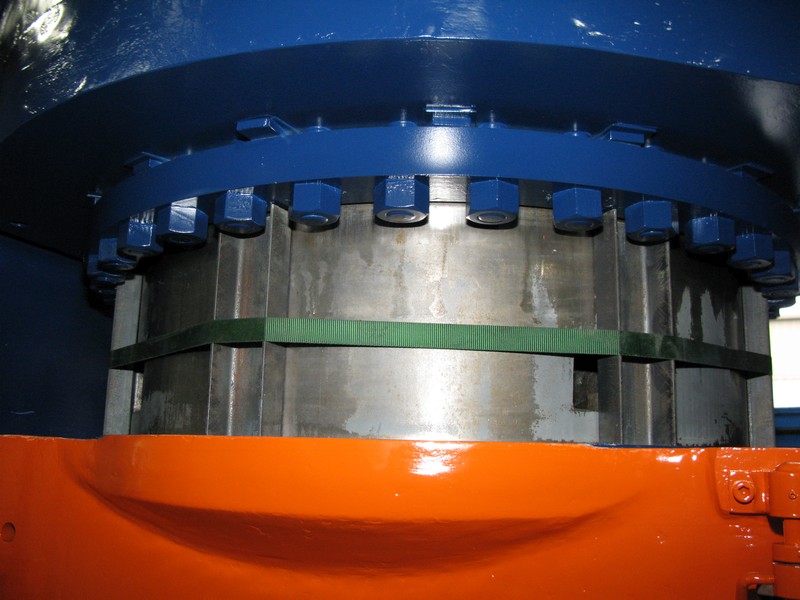

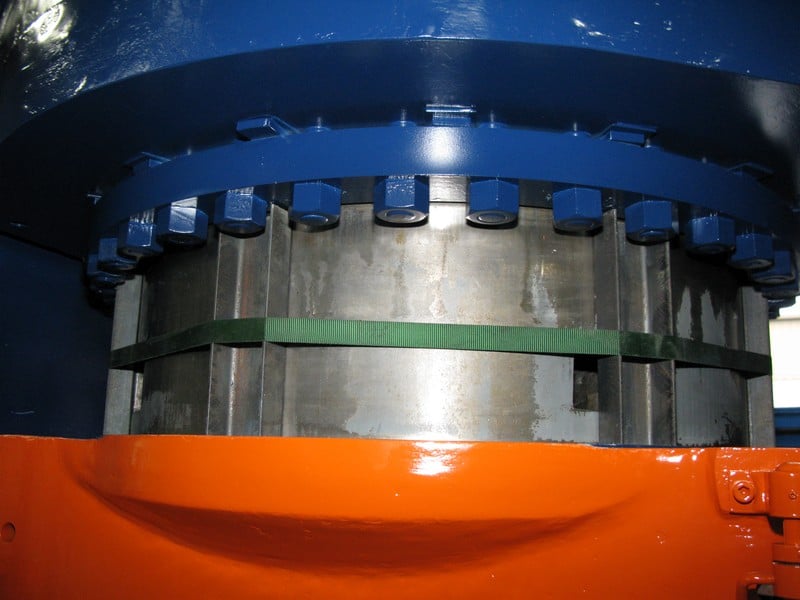

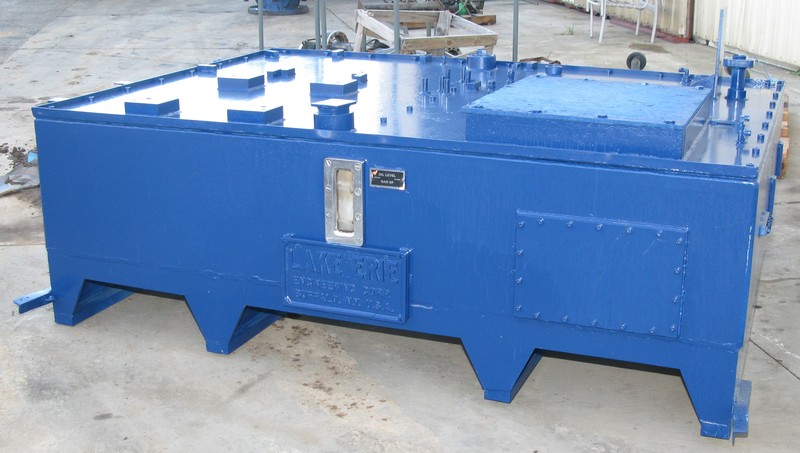

SERIAL #3364. FLOOR-STANDING. SINGLE ACTING 37.5" DIAMETER MAIN RAM WITH 7" MAX STROKE. 1000 TONS AT 1800 PSI. TWO SINGLE-ACTING CYLINDERS WITH 4.5" DIAMETER RODS WITH 7" STROKE THAT CAN CONTROL DESCENT AND USED TO PUSH THE PRESS OPEN. TWO 37.5" X 32" X 2" T-SLOTTED PLATES (BED AND SLIDE). MAX DAYLIGHT IS 20" WITH THE PLATES; 24" WITH THE PLATES REMOVED. OPERATOR HEIGHT WITH PLATE IS 35". FOUR ADJUSTABLE GIB-GUIDES (2 ARE MISSING; NEW ONES CAN BE FABRICATED USING EXISTING ONES AS A PATTERN). TOP MOUNTED 300 GALLON RESERVOIR. OILGEAR PREFILL VALVE (8"; S/N 61691; L43198). OVERALL DIMENSIONS APPROX 90" X 66" X 152" TALL (HEIGHT CAN BE REDUCED TO 120" WITH HYDRAULIC RESERVOIR AND ELBOW REMOVED). PRESS WEIGHS APPROX 50,000 POUNDS. HYDRAULIC UNIT WEIGHS APPROX 3,000 POUNDS AND IS APPROX 96" X 72" X 32" TALL NOTE: ADDING MOTOR, PUMPS, ETC, WHICH ARE NOT INCLUDED, TO TOP OF RESERVOIR WOULD ADD TO THE TOTAL HEIGHT. ITEM #2330.
