1000 KVA 12470GY/7200 Primary, 480Y/277 Secondary, Giga Energy, Pad Mount Transformer, 3PH, 2024

FOB: Green Industrial, 281 Commerce St, Belgium, WI 53004

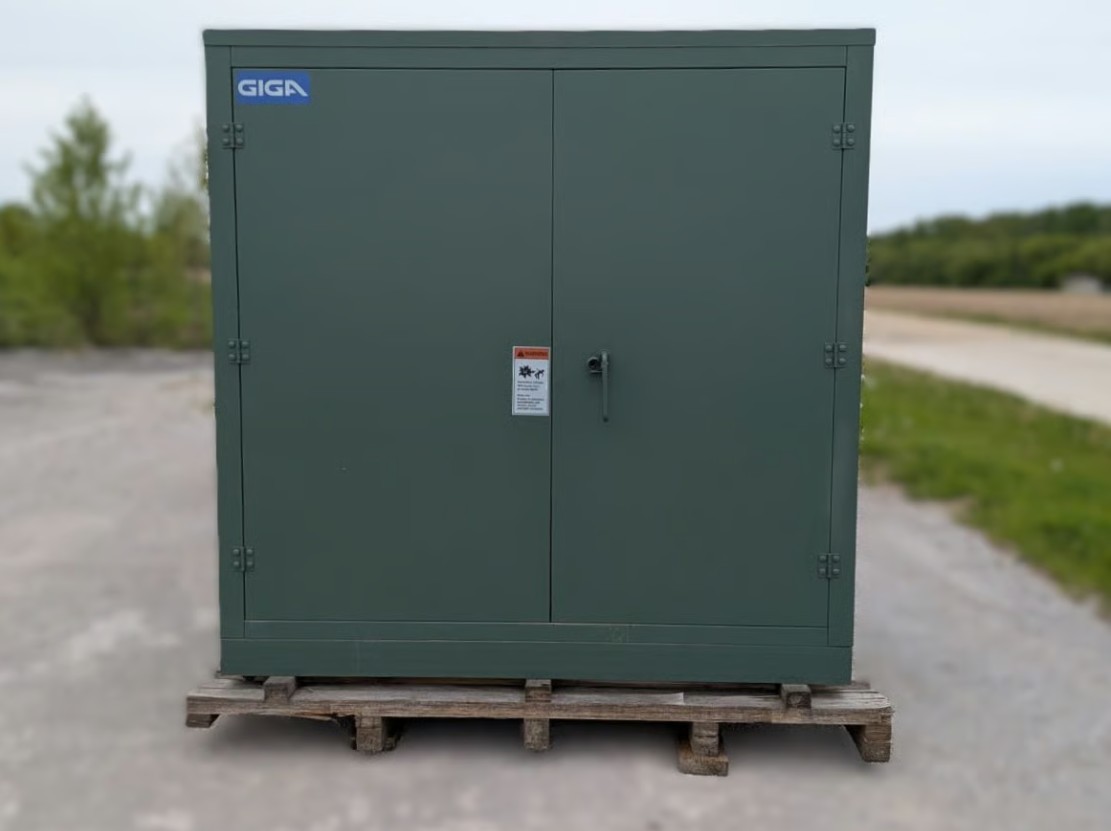

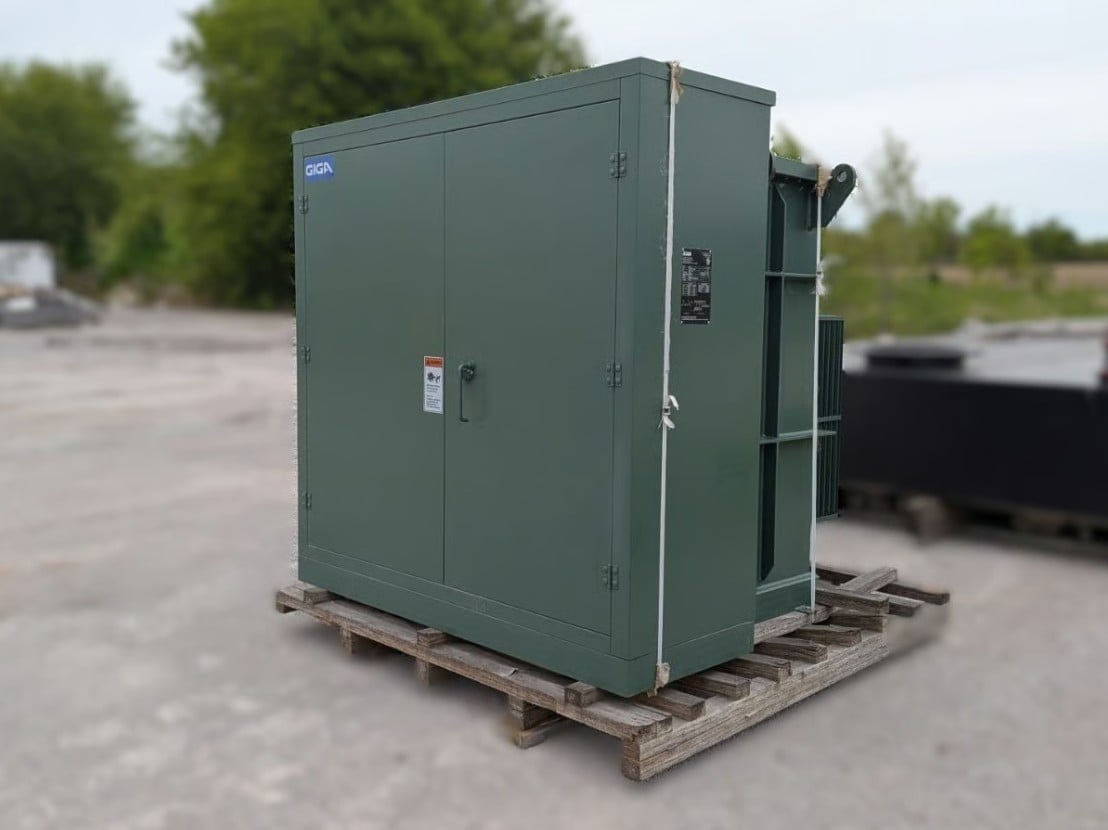

*1000 KVA Pad Mount Three-Phase Transformer HV:12470GY/7200 LV 480Y/277

CONDITION: NEW SURPLUS

Manufacturer: Giga Energy
YEAR: 2024
Serial#:Varies by Transformer
TYPE: Three-Phase Pad Mount Transformer
KVA: 1000
Enclosure: Pad Mount Outdoor Rated
Phase: 3
Hertz: 60
Primary Voltage: 12470Y/7200
Secondary Voltage: 480Y/277
Impedance: 5.35%
Degree Temp Rise: 65 Degree C Rise
Winding Material: Copper

Actual Transformer Dimensions:
Width: 79"
Length: 83"
Height: 79"
WEIGHT: 9920 lbs.

Shipping Dimensions & Weight:
Width: 87"
Length: 83"
Height: 85"
WEIGHT: 10220 lbs.

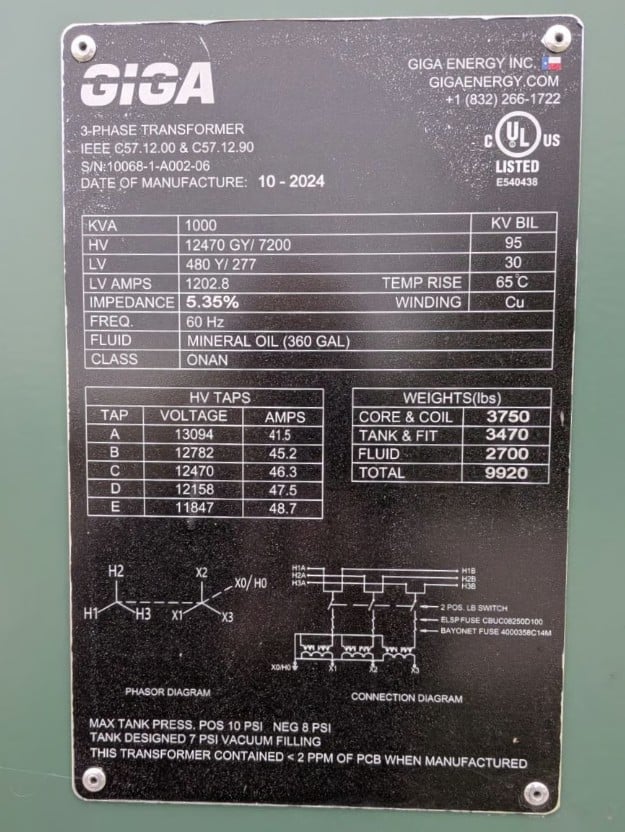

1000 KVA, 3PH, 12470GY/7200 - 480Y/277

-RATED CAPACITY: 3 PHASE

-HIGH VOLTAGE: 12470 GY/ 7200

-LOW VOLTAGE: 480 Y/ 277

-BIL: HV 95KV; LV 30KV

-HV TAPS: 2 ABOVE, 2 BELOW @ 2.5% EACH

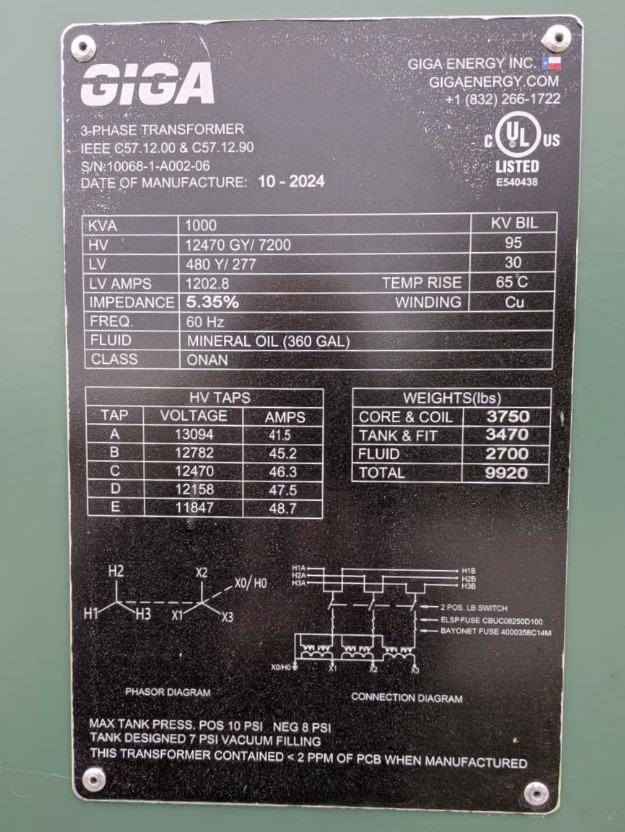

TAP VOLTAGE AMPS

A 13094 41.5

B 12782 45.2

C 12470 46.3

D 12158 47.5

E 11847 48.7

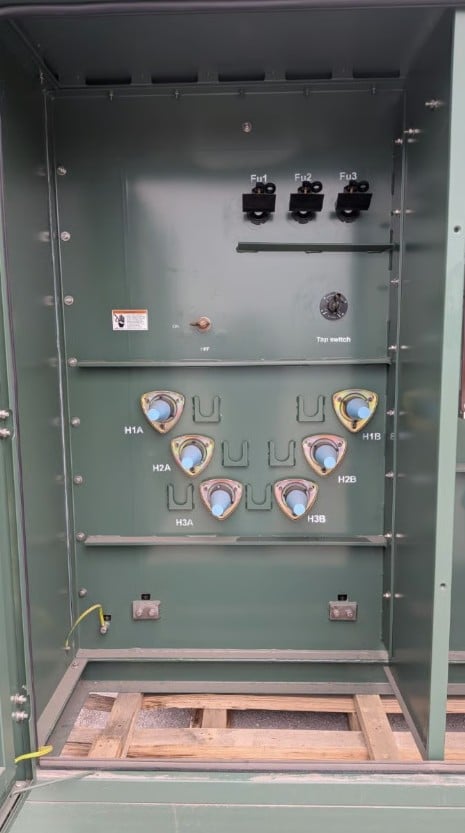

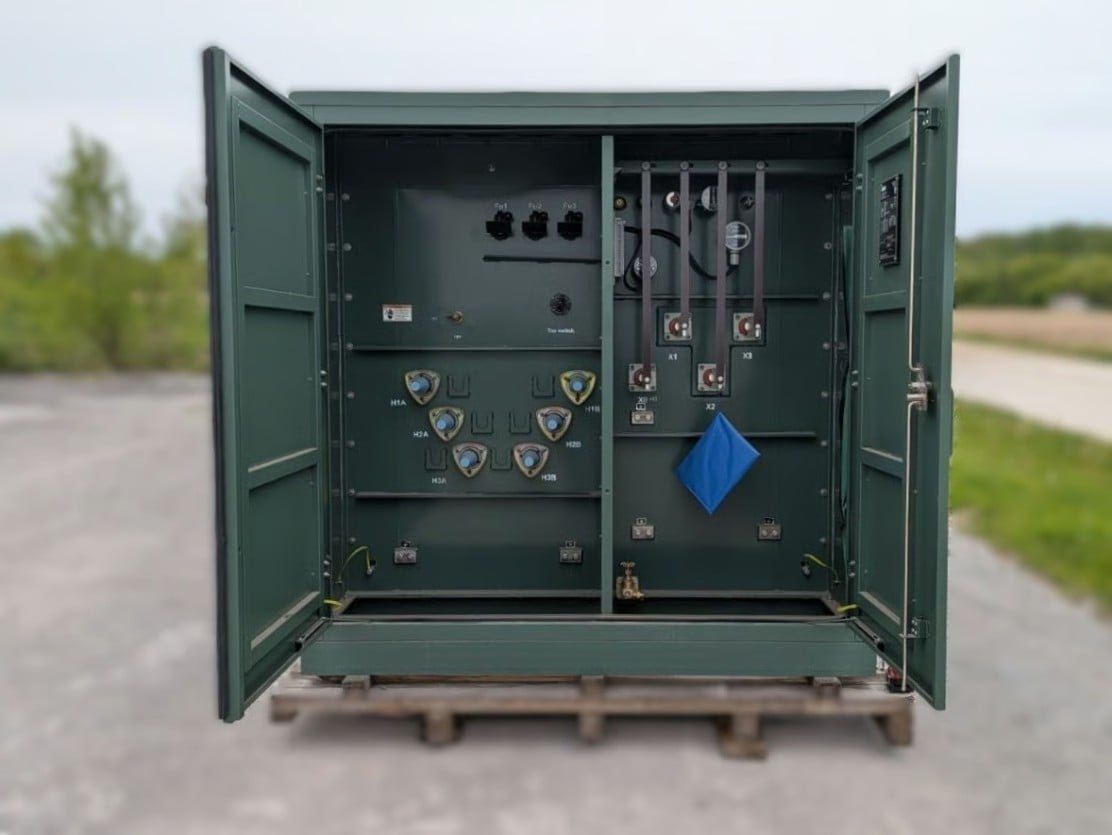

-HV BUSHINGS: (6) 200 A 25 KV LOADBREAK

-DEAD FRONT LOOP FEED

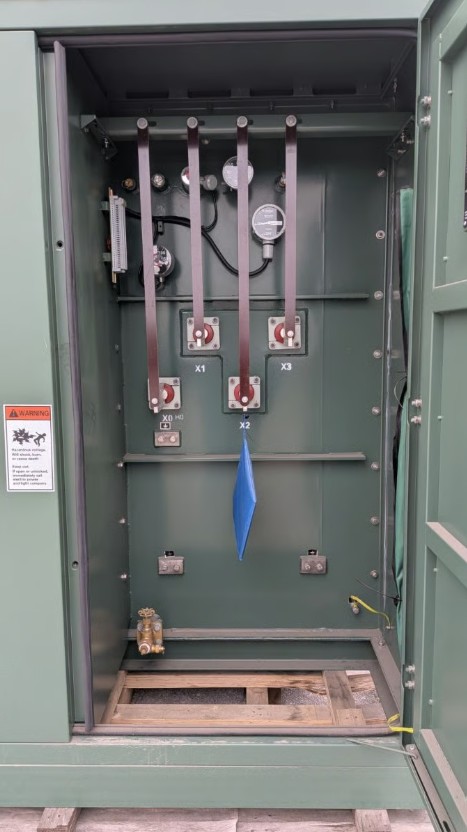

-LV BUSHINGS: (4) 8

-HOLE WITH SUPPORTS

-FLUID: MINERAL OIL

-COOLING CLASS: ONAN

-FREQUENCY: 60 HZ

-TEMPERATURE RISE: 65C

-WINDING MATERIAL: COPPER

-TANK MATERIAL: MILD STEEL

-FUSING: BAYONET W/ CLFS-SWITCH: (1) 2-POS. LBOR

-LIQUID LEVEL GAUGE

-PRESSURE VACUUM GAUGE

-DIAL TYPE THERMOMETER-DRAIN AND SAMPLE VALVE

-cUL LISTED

-IEEE C57.12.00 & C57.12.90

-LIFTING LUGS POSITIONED FOR AND CAPABLE OF LIFTING ENTIRE PAD MOUNT UNIT

-PROVISIONS FOR GROUNDING ON THE TRANSFORMER TANK IN BOTH THE PRIMARY AND SECONDARY COMPARTMENTS SHALL BE COPPER.

-OIL FILL PLUG-TOP FILTER PRESS CONNECTION

-COMBINATION ONE-INCH OIL DRAIN VALVE, LOWER FILTER PRESS CONNECTION, SAMPLING DEVICE LOCATED IN THE PRIMARY COMPARTMENT-OIL LEVEL PLUG

GIBUYS #: GV0002
