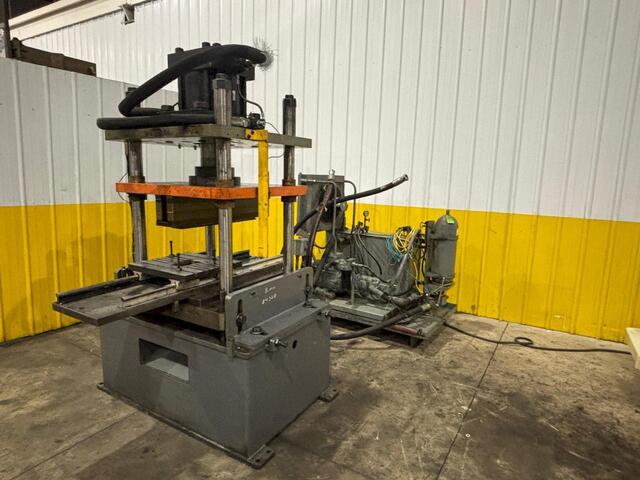

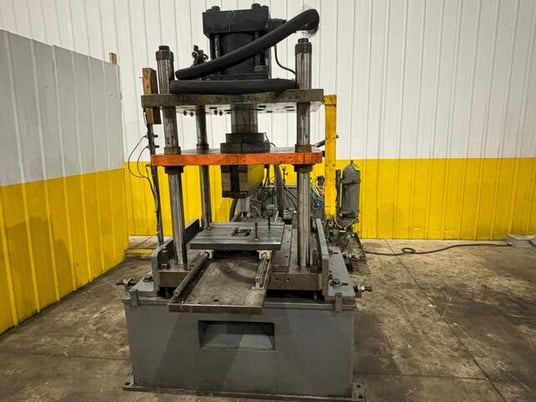

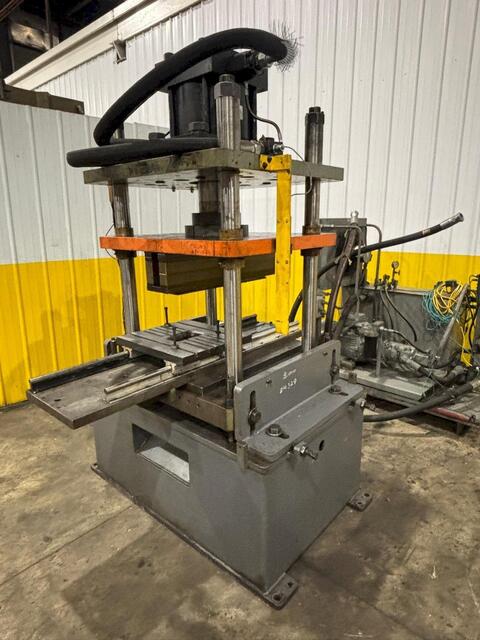

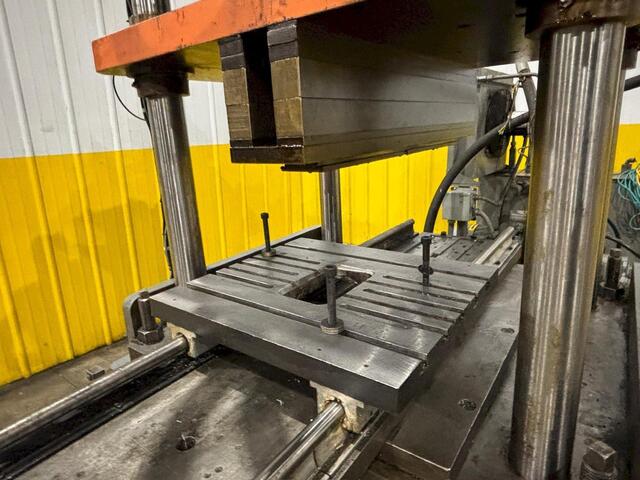

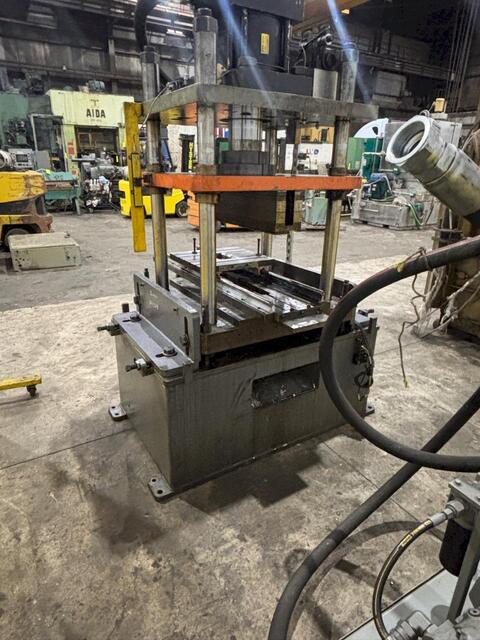

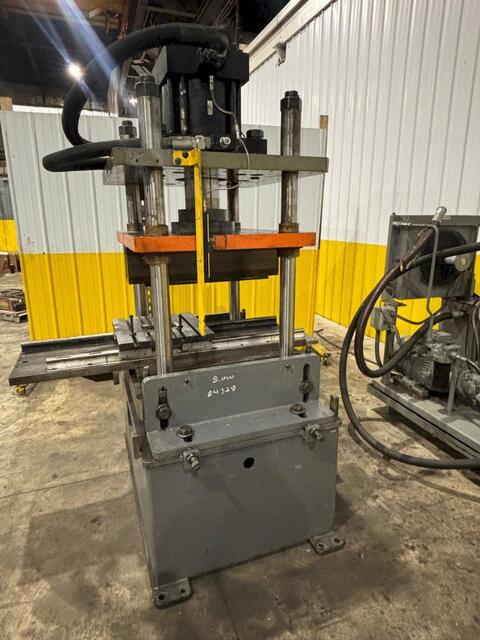

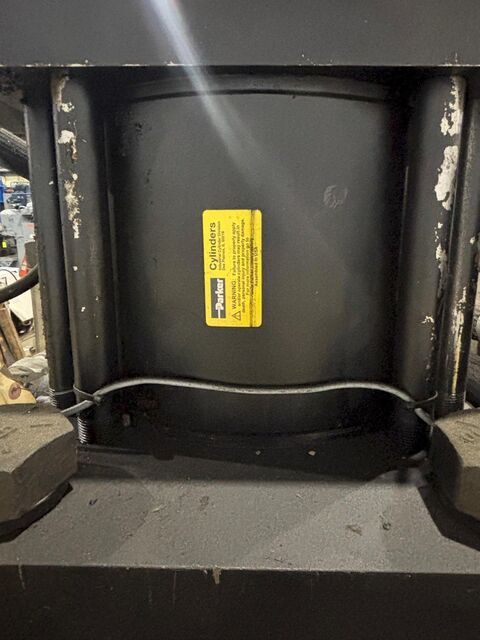

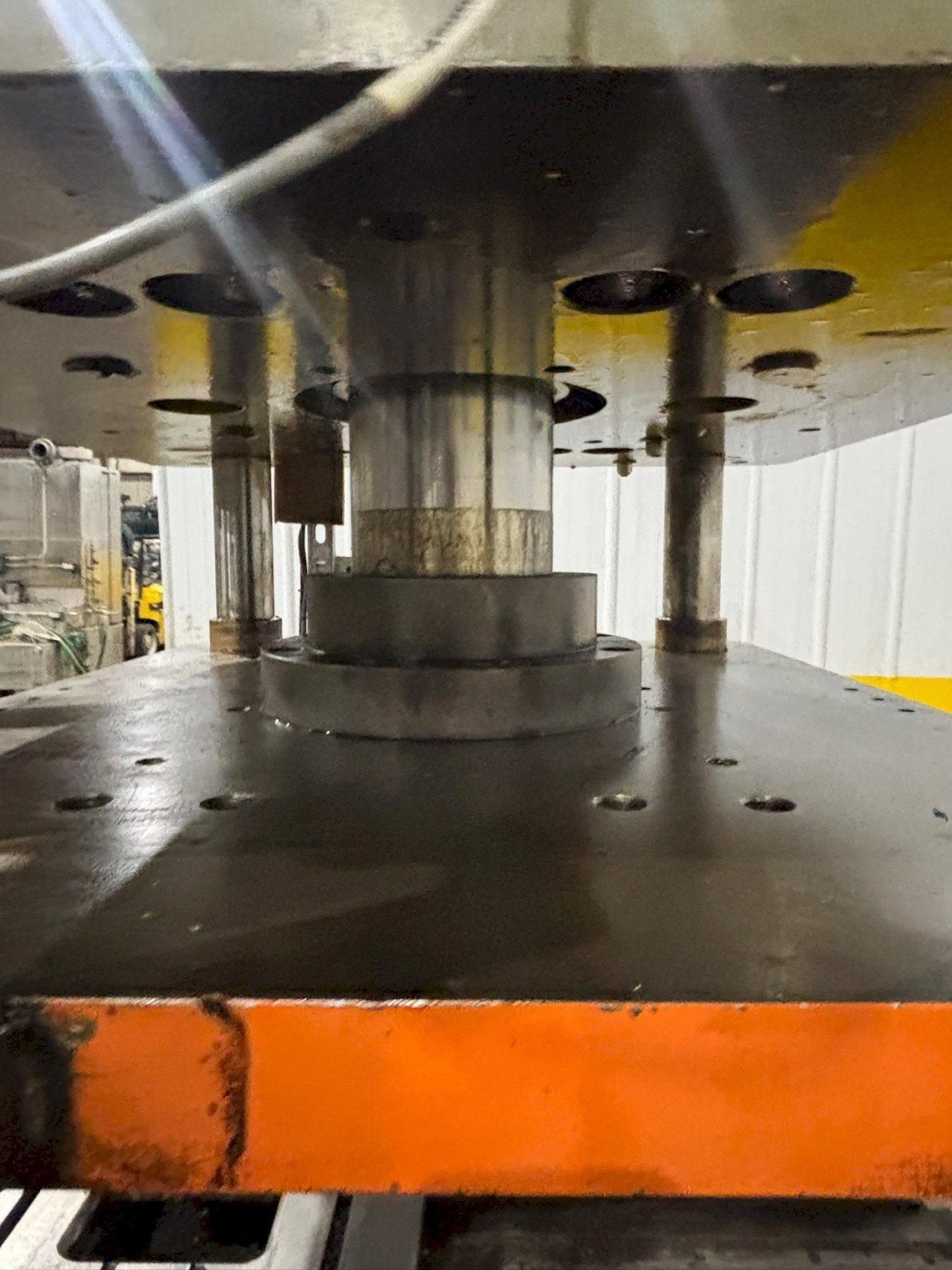

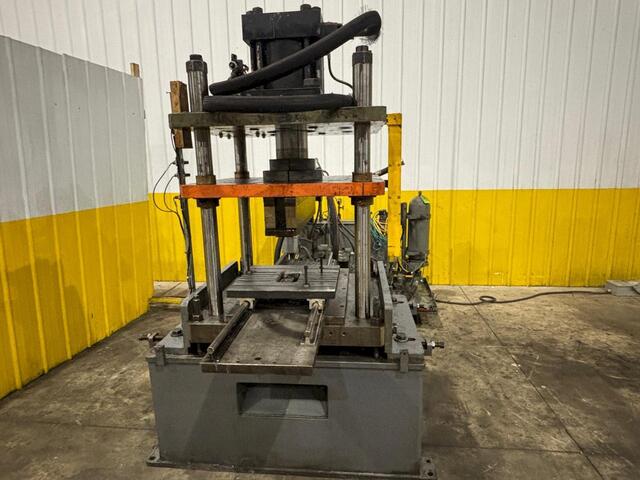

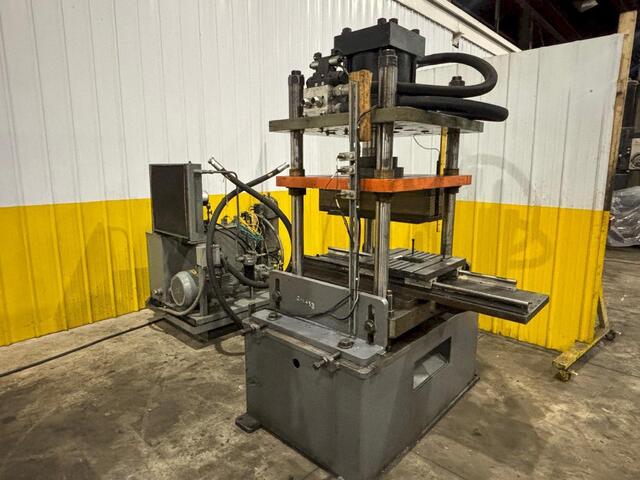

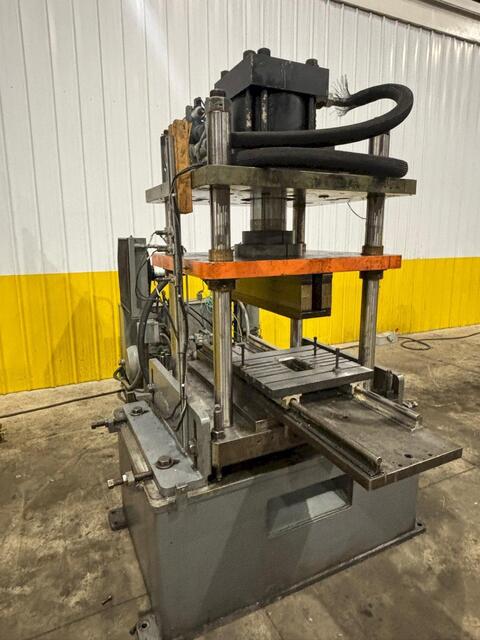

Description This listing is for a 100-ton Rollform Inc. hydraulic 4-post cutoff with power unit. PRESS BETWEEN POSTS 27" RAM 32" X 38" X 2.375" THICK BED 35" X 38" X 4" THICK 4 WAY ADJUSTABLE BED RAILS 58" LONG OPEN HEIGHT 28" ADJUSTABLE SLUG CHUTE HYDRAULIC CYLINDER PART 1H000146770 SERIAL K2612530001C MODEL 12.00JJ3HKP355N4.000 PRESSURE 3,000 PSI HOUSING 14" DIAMETER CYLINDER 7" DIAMETER STROKE 12" ESTIMATE HYDRAULIC UNIT PARKER BLADDER ACCUMULATOR OIL COOLER MOTOR 20 HP LOCATION OH Spec Sheet ROLLFORM UNKNOWN SPECIFICATIONS: Weight... 999 lbs
