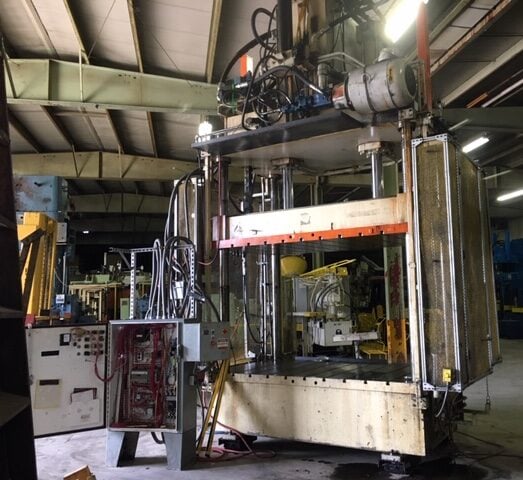

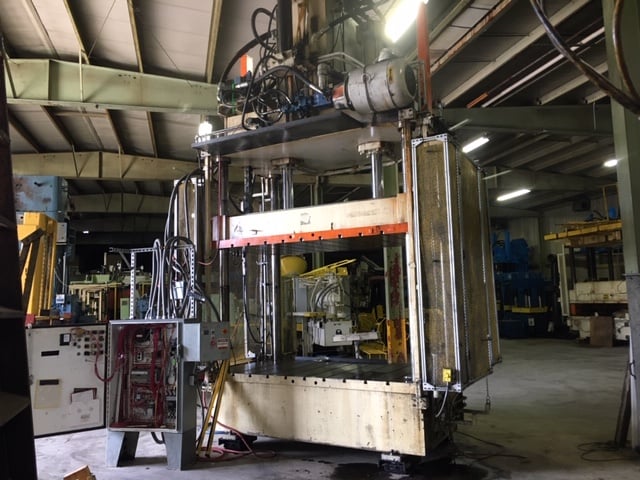

100 Ton, Hamilton, 96" LR x 60" FB, down-acting 4-post, 48" stroke, 87" daylight, 60 HP, #2699

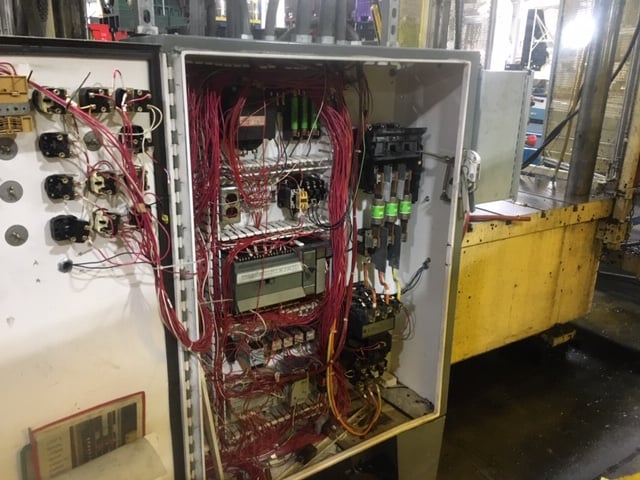

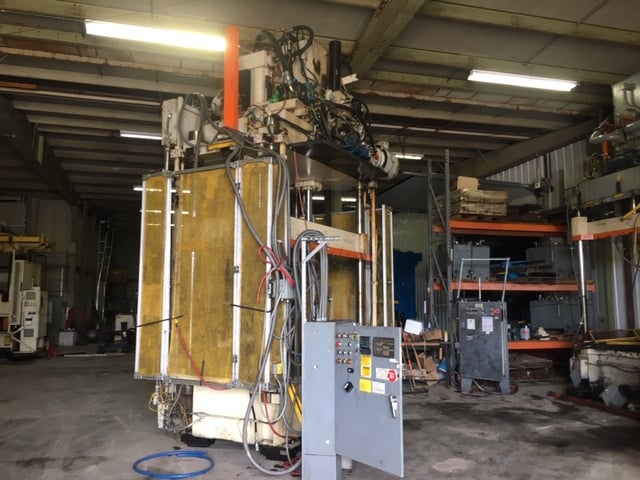

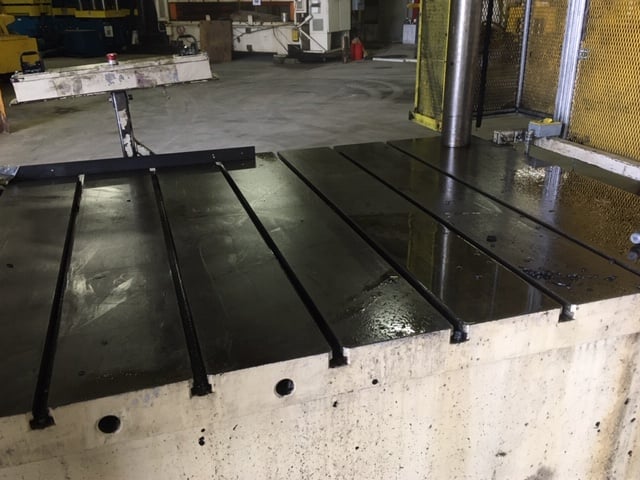

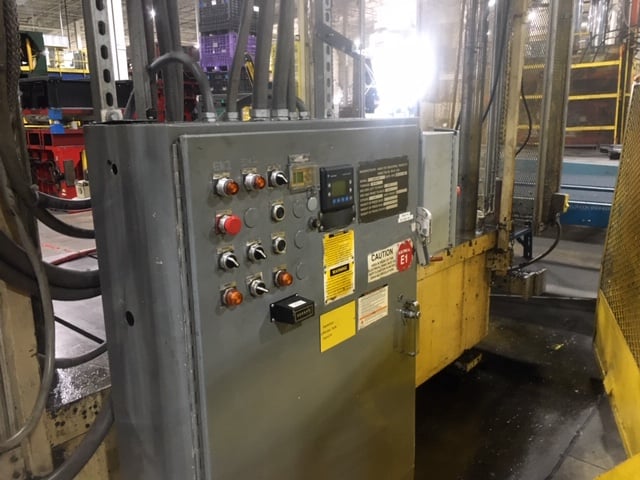

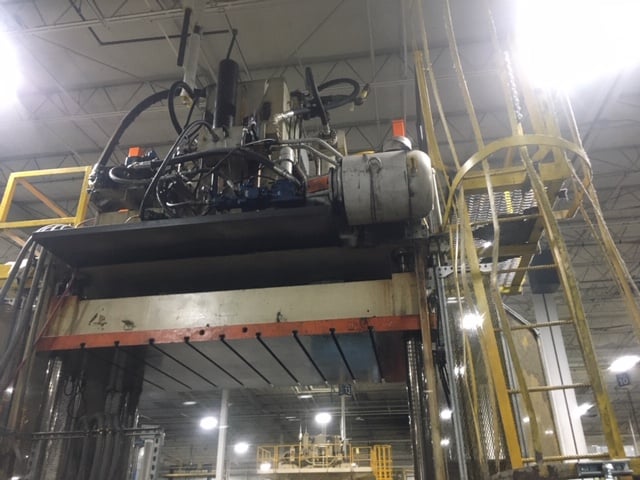

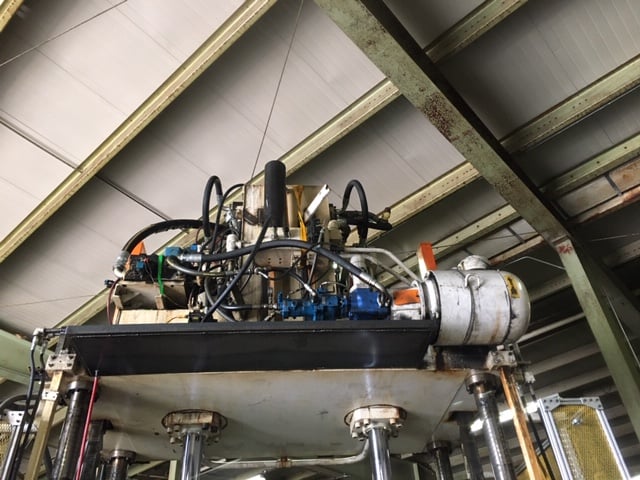

Hamilton. Serial #090696-22068. Overall bed L to R is approx. 115". F to B between the posts is 42". The nominal bed size is 96" x 60". Max daylight is approx 87". Two 8" bore cylinders with approx. 5.5" diameter rods and 48" max stroke. Shut height of 39". Operator height is approx. 31". Posts are 5" diameter with approx. 17.5" guide bushings. Nine 0.825" t-slots front to back full length on bed and slide ( 10" spacing). Two saw-tooth ratchet type safeties. Top-mounted hydraulic system: approx. 250 gallon tank; Two 5" prefill valves; 60 HP motor; Vickers pumps; PVQ40-B2R-A9-SS35-10-CG-11 (90 GPM) and 45VTBS60A-2203AA22R; (19 GPM) 1.5 HP kidney circuit. Water type heat exchanger; etc… Electrical controls include: 60" x 38" x 12" enclosure; Allen-Bradley SLC 500; AB Panelview 300; palm buttons; adjustable limit switches; etc… Mesh guards with interlocks; 48" light curtains on front (angled); 78" safety blocks with interlocks; Approx overall dimensions: 146" L to R x 90" F to B x 20' tall. Approx 45,000 pounds. Some drawings. Item #2699.
