Ton: 100.0
Stroke: 20.0
Daylight: 36.0
Stock # 1903
1 / 3
Click to zoom in
1 / 3
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

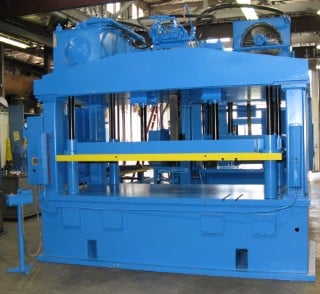

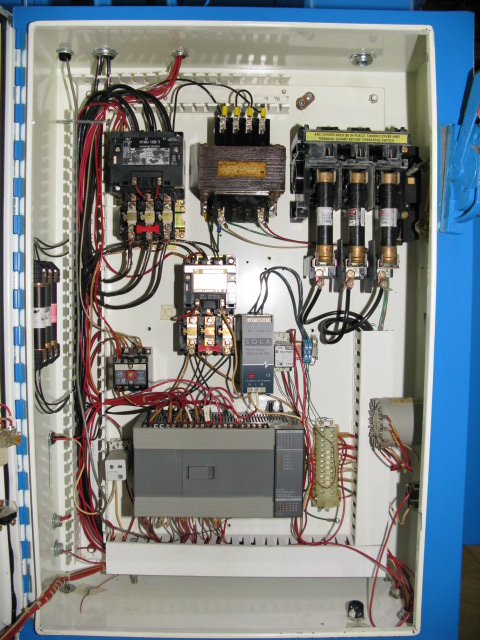

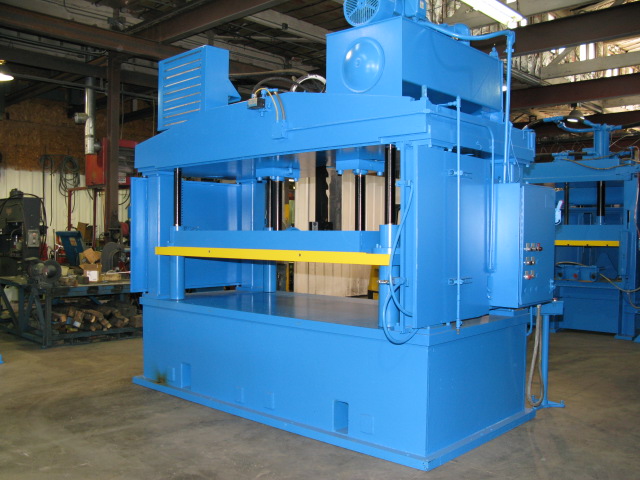

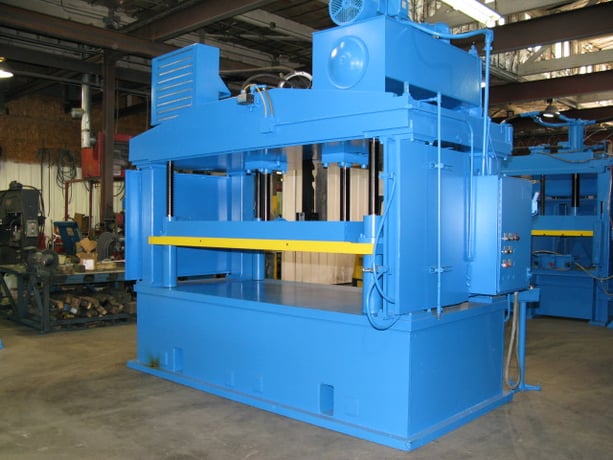

97.5" L TO R BETWEEN THE POSTS (BUSHINGS ON MOVING BOLSTER REDUCE L TO R CLEARANCE TO 95"); 46" F TO B BETWEEN THE POSTS AND 43" BETWEEN THE BUSHINGS. OVERALL BED SIZE L TO R IS 136". APPROX 38" F TO B BETWEEN "FRAMES". NOMINAL BED SIZE IS 95" X 62". MAX DAYLIGHT IS APPROX 36". TWO CYLINDERS APPROX 8" BORE, 4" DIA ROD AND 20" MAX STROKE. FULLY GUIDED WITH 28" BUSHINGS ON 3" DIA POSTS AND TWO 24" RACK AND PINIONS. OPERATOR HEIGHT IS APPROX 35.25". SAFETY CATCH. BED AND SLIDE HAVE T-SLOTS. 24" SHADOW V LIGHT CURTAINS ON FRONT; SIDES ARE PROTECTED; REAR IS NOT. TOP MOUNTED HYDRAULIC SYSTEM: 25 HP MOTOR (1800 RPM; 230/460 VOLTS); APPROX 90 GALLON RESERVOIR; VICKERS PUMP (3520V25A121CC20282); AIR COOLER; ETC… ELECTRICAL CONTROLS INCLUDE: ALLEN BRADLEY SLC 500 PLC; MOTOR STARTER; DISCONNECT; MANUAL/AUTO SELECTOR; PRESS CLOSE/OPEN; E-STOP; OPERATOR PEDESTAL WITH A PALM BUTTON AND E-STOP; ETC… APPROX OVERALL DIMENSIONS: 156" X 75" X 134" TALL. APPROX 45,000 POUNDS. SOME ELECTRICAL PAPERWORK. (P48). ITEM #1903.
Get Your Price from Icon Industries, Inc!
Buyers Who Viewed This Listing Also Viewed:
100 Ton, Greenerd, hydraulic press, 18" stroke, 24" daylight, 28" x 20" bed, 13" throat, 60 HP
Category: Hydraulic Presses
Seller: Timco Inc
Location: Columbia, TN
Mfr: Greenerd
GREENERD 100 TON HYD PRESS, STOCK# 14401J, 18" STROKE, 24" DAYLIGHT, 22" X 9.5" RAM, 28" X 20" BED, PALM BUTTONS, 13" THROAT, 8" CYLINDER, NEEDS CONTROL BUILD HAVE PANEL, SPEEDS, ADVANCE 102 IPM, PRESSING 95 IPM, RETURN 202 IPM, 60 HP 230/460/60/3, 69" X 44" X 102", 42" X 72" X 112", 15,000 LBS APROX, FOB: MONCLOVA ...more
100 Ton, Greenerd #H-100-45, hydraulic press, 18" stroke, 24" daylight, 28" x20"bed, 13" throat, 8" cylinder
Category: Hydraulic Presses
Seller: D & D Industries Inc
Location: Monclova, OH
Mfr: Greenerd
Model: H-100-45
ORDER 100, 18" STROKE, 24" DAYLIGHT, 22" X 9.5" RAM, 28" X 20" BED, PALM BUTTONS, 13" THROAT, 8" CYLINDER, NEEDS CONTROL BUILD HAVE PANEL, SPEEDS, ADVANCE 102 IPM, PRESSING 95 IPM, RETURN 202 IPM, 60 HP 230/460/60/3, 69" X 44" X 102", 42" X 72" X 112", 15,000 LBS APROX.
100 Ton, Machine Technologies, hydraulic downacting, 36" x 36" die, 18" stroke, 12" SH, 1989
Category: Hydraulic Presses
Seller: Inter-Plant Sales
Location: Hugo, MN
Mfr: Machine Technologies
Year: 1989
Machine Technologies 100 Ton Hydraulic Down Acting, S# 88-75201-01, Date Mfg. 1/19/89, 100 Ton capacity, 36" x 36" Die area, 4.5" Dia. top center hydraulic cylinder, 18" Est. stroke, 12" Shut height, Top platen 36"W x 32"FB x 4.25"H, Bottom platen 36"W x 35"FB x 4.25"H, 100 Gal. Hydraulic tank, 20hp 220/440v 3ph ...more

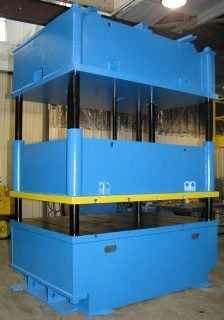

100 Ton, St. Lawrence, 84" x70", down-act, 4-post, 20" stroke, 40" daylight, floor standing, #2307
