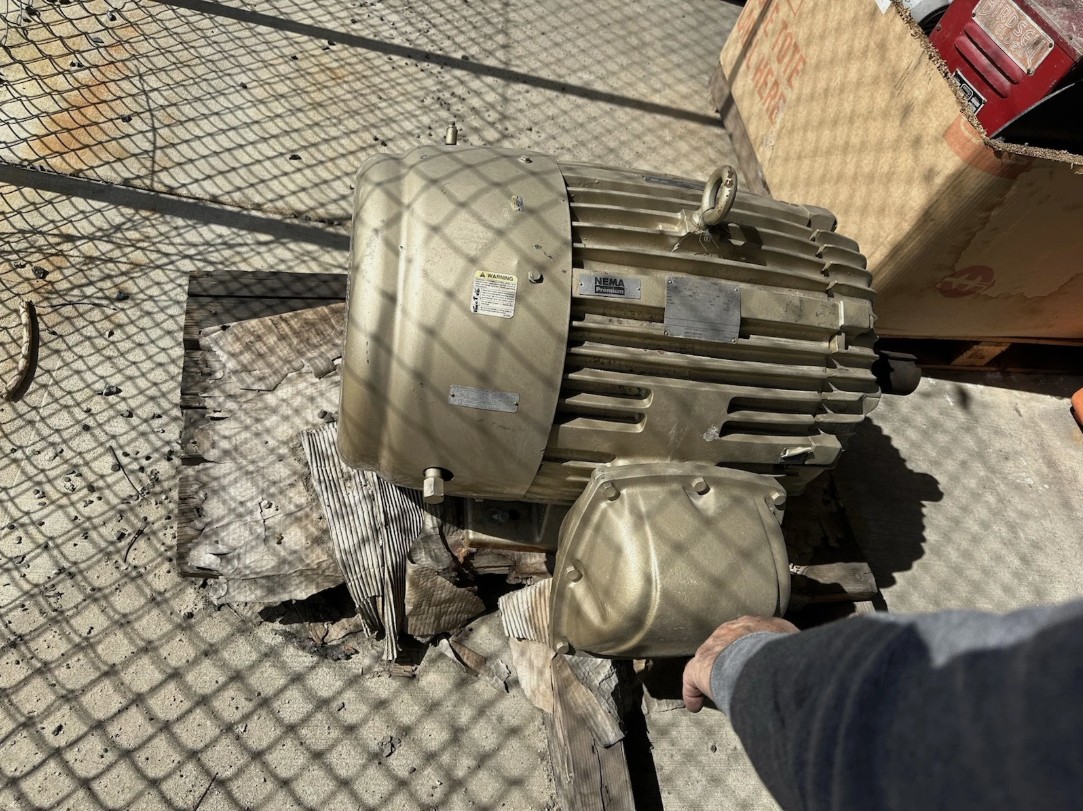

100 HP 1780 RPM U.S. Motors, Frame 405T, AC Electric Motor, 230/460 Volt, 3PH

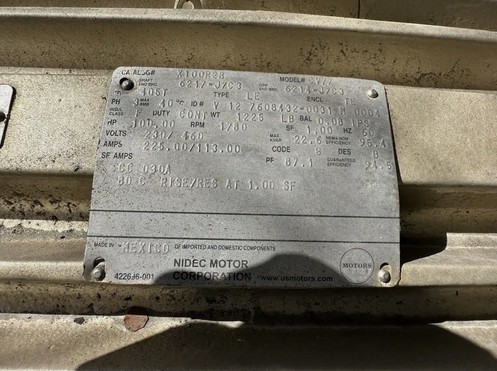

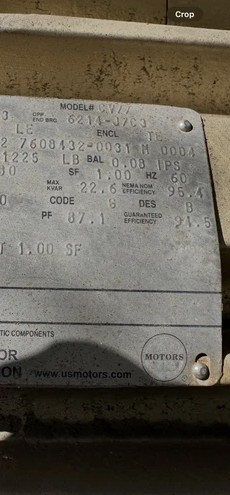

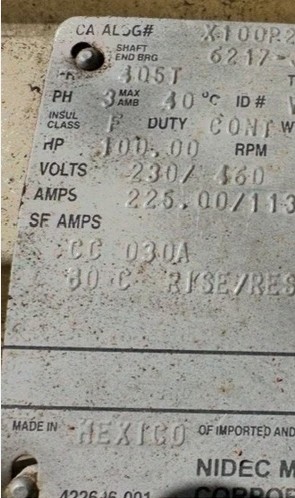

This Nidec 100HP electric motor, model CV77, catalog #X100P2B, is engineered for demanding industrial applications, offering robust performance and reliability.

Specifications:

• Horsepower: 100 HP
• Voltage: 230/460V
• Speed: 1780 RPM
• Phase: 3-phase
• Frame Size: 405T
• Weight: 1,225 lbs
• Motor Type: LE
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Shaft End Bearing: 6217-J/C3
• Opposite End Bearing: 6214-J/C3
• Efficiency: 95.4%
• Service Factor: 1.00
• Insulation Class: F
• Ambient Temperature Rating: 40°C
• Mounting: Horizontal foot mount

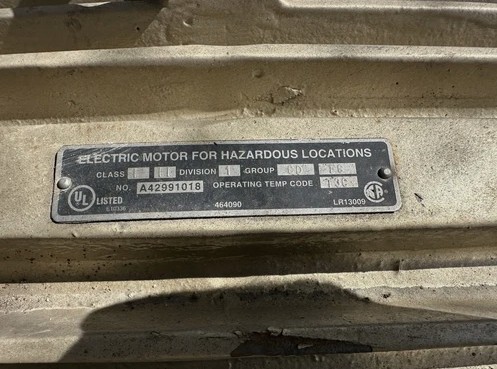

• Hazardous Location Rating: Class I, Groups C & D; Class II, Groups F & G; Temperature Code T3C

Features:

• Construction: Durable cast iron frame, end brackets, and conduit box
• Bearings: Regreasable shielded bearings for extended service life
• Design: NEMA Design B performance
• Protection: Explosion-proof design suitable for hazardous locations, containing internal explosions and preventing external ignition

Applications:

Ideal for use in pumps, compressors, fans, conveyors, and tools within hazardous environments such as oil and gas, industrial paint and coating, and grain processing.
