10" x 24" Landis #CH, universal cylindrical grinder, 4" work rest capacity, 12" x 1" x 5" grinding wheel, 2-240 IPM, 2 HP, 2005/2533 RPM, 1951

1951 Landis 10 x 24 CH Universal Cylindrical Grinder. Features nominal 10" work swing, 24" distance between centers, 12" grinding wheel, and 18,000 RPM internal spindle speed. Ideal for precise metalwork applications.

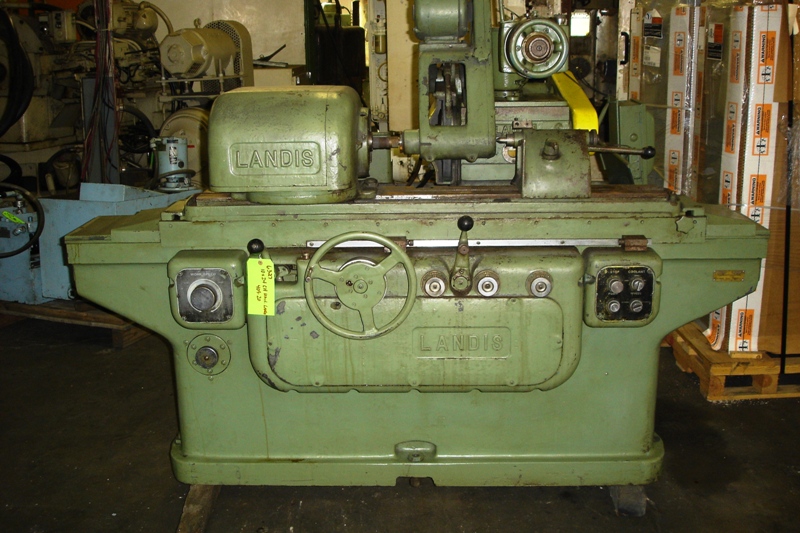

10 x 24 LANDIS CH UNIVERSAL CYLINDRICAL GRINDER
S/N 409 20 Year: 1951
STANDARD CATALOG SPECIFICATIONS
Nominal work swings............................. 10
Nominal distances between work centers.......... 24
Maximum work swing diameter standard machine will grind with full size standard wheel....................... 10 31/32
Minimum diameter wheel to grind zero diameter work on centers........................................ 9 Degrees
Coolant tank capacity, gallons.................. 28
Hydraulic tank capacity, gallons................ 25 1/2
Height from floor to work centerline............ 42
WORK CARRIAGE
Traverse speed, inches per minute............... 2 to 240
Traverse per turn of hand wheel slow.......... 0.100
fast.......... 1.000
Center rest capacity............................ 1/4 2
Work rest capacity.............................. 1/4 4
WHEEL HEAD WHEEL FEED
Grinding wheel size............................. 12 x 1 x 5
Grinding wheel head swivel range upper........ 180 Deg.
- lower........ 60 Deg. CW
30 Deg. CCW
Grinding wheel spindle speeds, RPM.............. 2005 2533
Automatic infeed at table reversal on dia...... 0.0002 to 0.004
Maximum distance wheel centerline to work
centerline......................................... 10 15 1/2
Minimum distance wheel centerline to work
centerline......................................... 1 1/2
Work diameter reduction per revolution of
hand wheel......................................... 0.100
Work diameter reduction per revolution of fine feed knob (Hydraulic Infeed Machines)....................... 0.001
Maximum hydraulic feed on diameter for hydraulic infeed machines.......................................... 0.090
Rapid infeed stroke for hydraulic infeed
machines.......................................... 1 1/2
Internal spindle speed, RPM........................ 18,000
HEAD STOCK FOOT STOCK
Head stock work center............................. #10 Jarno
Foot stock work center............................. # 6 Jarno
Foot stock center movement by...................... Lever only
Work speeds RPM Low Range........................ 30 to 150
High Range....................... 120 to 600
Diameter hole through head stock spindle........... 1
Head stock swivel range............................ 120 Degrees
Head stock spindle nose............................ 5A 2
LENGTHS BETWEEN CENTERS 24
Swivel table graduated, inches per foot............ 4 1/2
Swivel table graduated, degrees included angle..... 20 Degrees
ELECTRIC MOTORS
Wheel drive motor.................................. 2 HP
Work drive motor................................... 1/3 HP
Hydraulic oil pump generator drive motor......... 1/4 HP
Internal fixture motor............................. 1 HP
Wheel spindle lubrication pump motor............... 1/4 HP
EQUIPMENT FEATURES
Swing down internal grinding attachment.
Head stock, 2 speeds.
Hydraulic table travel.
L-R Tarry.
Live spindle.
Pick feed L-R.
