Description

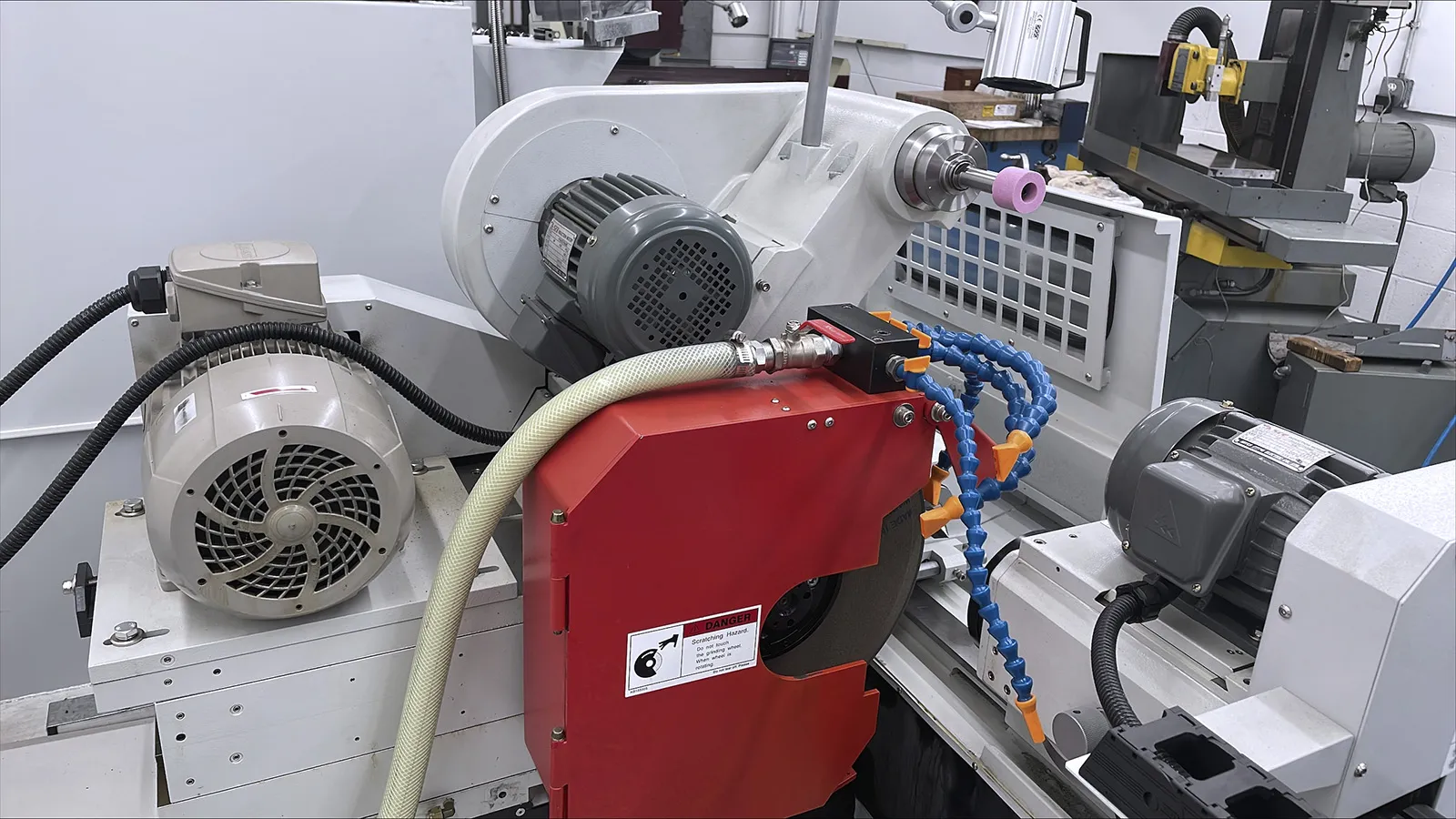

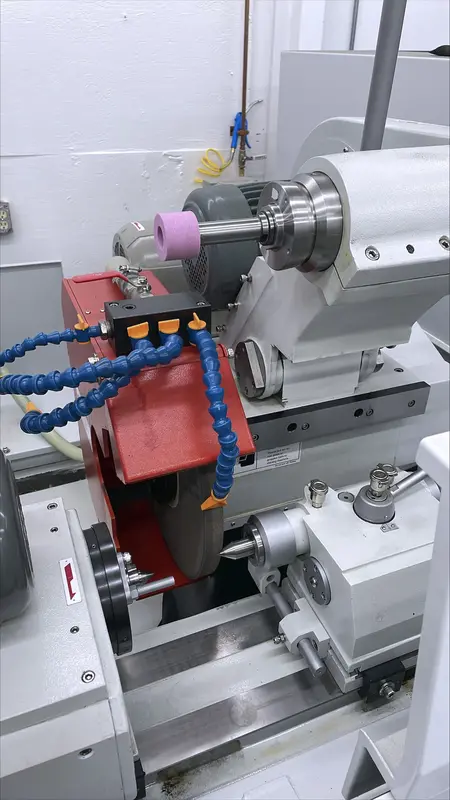

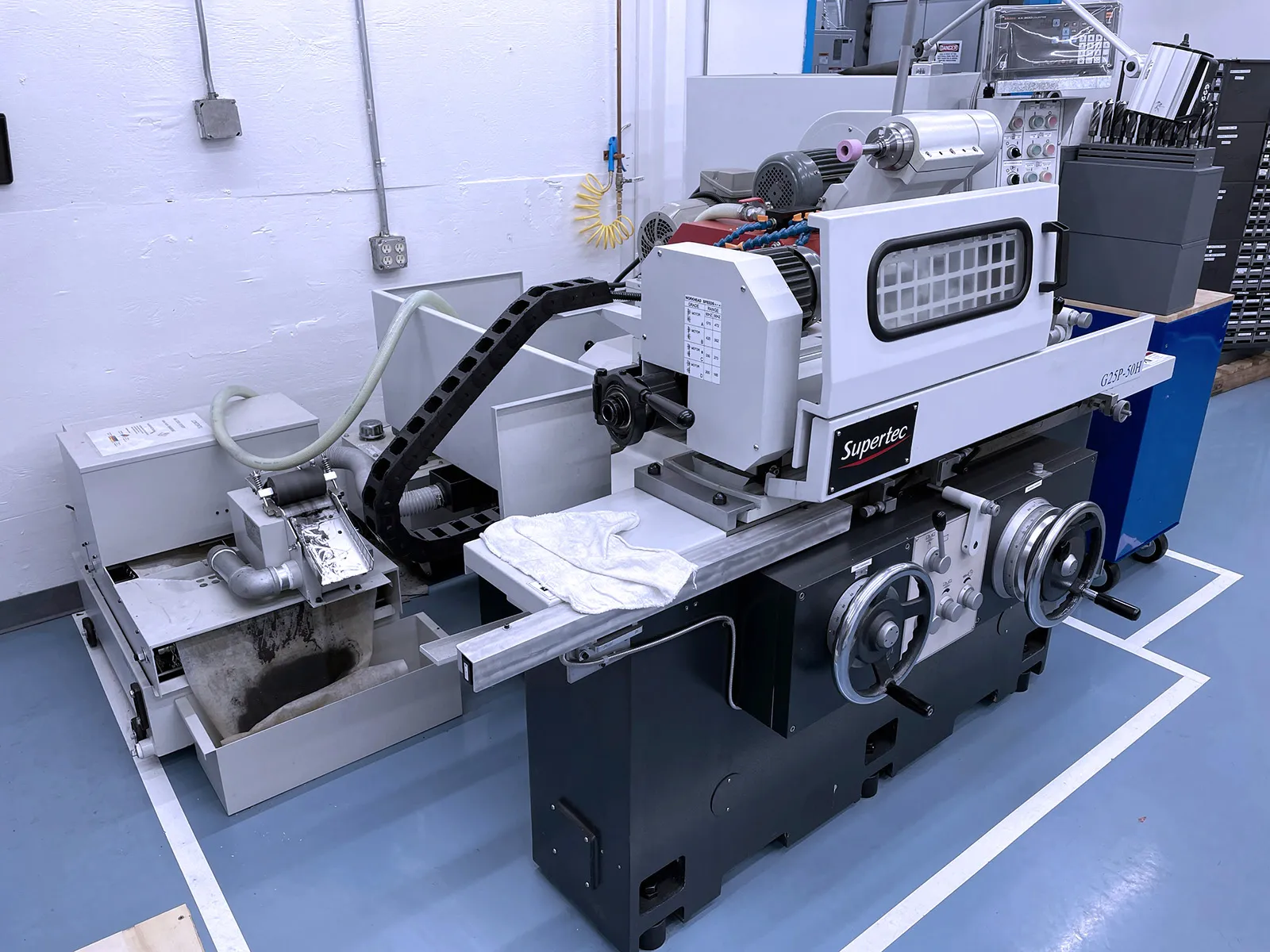

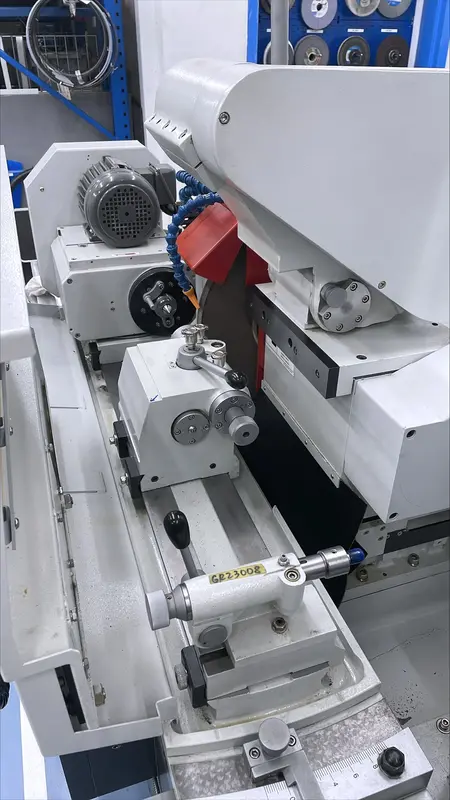

The Supertec G25P-50H Universal Cylindrical Grinder (2024) is a high-precision grinding machine engineered for exceptional OD, ID, face, and taper grinding with superior accuracy and surface finishes. Ideal for toolrooms, job shops, aerospace, automotive, and precision manufacturing, it delivers outstanding performance for shafts, hydraulic components, mandrels, gauge blocks, valve spools, and other critical cylindrical parts requiring tight tolerances.
DISTANCE BETWEEN CENTERS: 20"
Swing Over Table: 10"
Max. Grinding diameter: 10"
Max. Load Held Between Centers: 176 lbs
Table Swiveling Angle (R&L): 30
Infeed/Handfeed Travel: 6.3
Hydraulic Rapid Traverse: 1-3/4
Swivelling Angle (R&L): +7o/-9o
Traverse Speed (Inf.Var.-Hydraulic): 2~40
Handwheel per Revolution: 0.39
Workhead Swiveling Angle (R&L): 45o
Spindle Speed: 2000/18000 (opt:25000)
Max. Grinding Bore: 1.18~3.94(opt. 0.79~1.97)
Max. Grinding Length: 4.33 (opt.2.17)
Max. Chucking Length: 12-2/5
Max. Chucking Diameter: 6

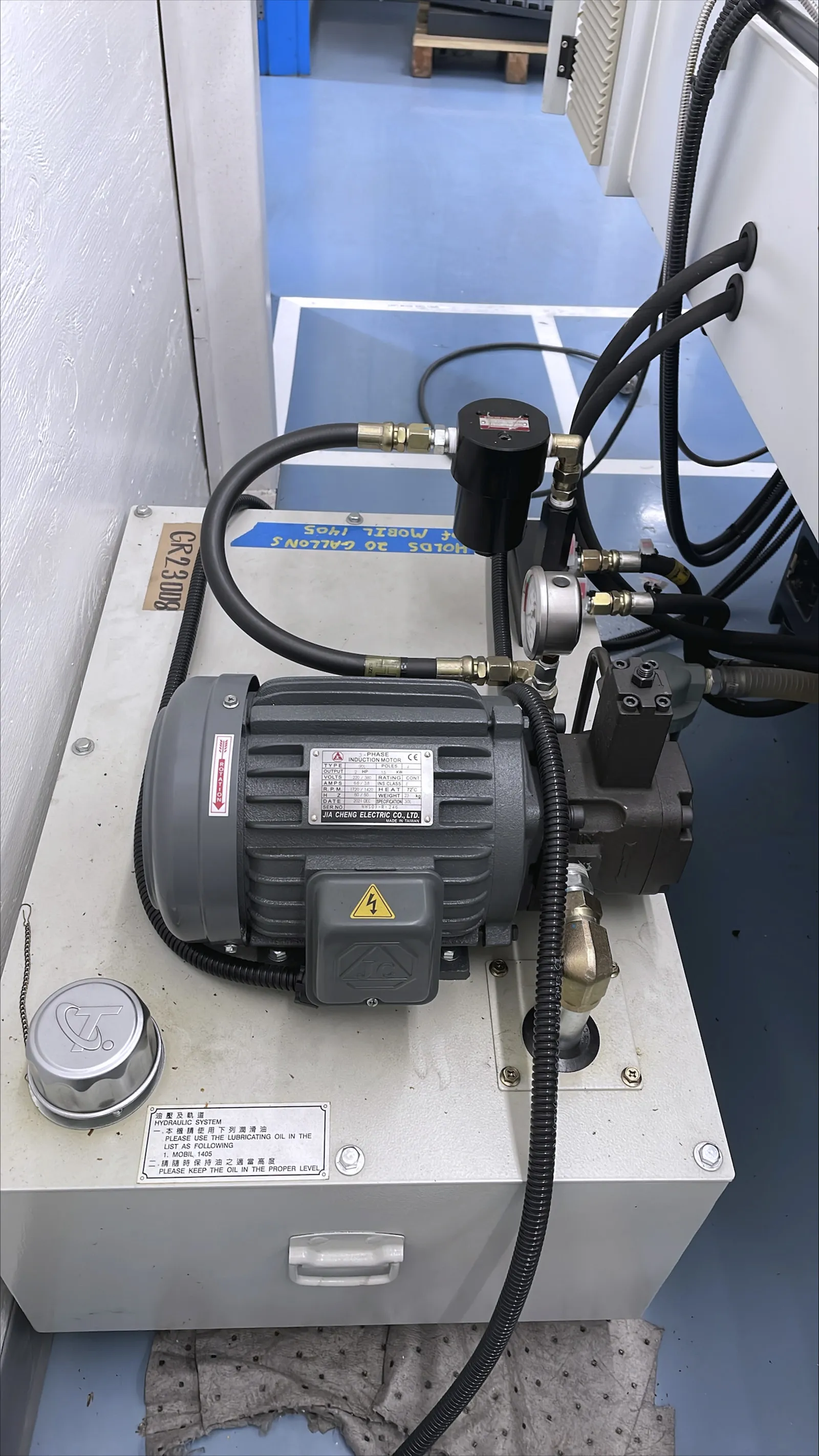

Hydraulic Pump: 1 HP
Internal Grinding Motor: 2 HP
Net weight: 4510 lbs
Gross weight: 5610 lbs
Packing dimension: 89 x 65 x 75
DISTANCE BETWEEN CENTERS: 20"
Swing Over Table: 10"
Max. Grinding diameter: 10"
Max. Load Held Between Centers: 176 lbs
Table Swiveling Angle (R&L): 30
Infeed/Handfeed Travel: 6.3
Hydraulic Rapid Traverse: 1-3/4
Swivelling Angle (R&L): +7o/-9o
Traverse Speed (Inf.Var.-Hydraulic): 2~40
Handwheel per Revolution: 0.39
Workhead Swiveling Angle (R&L): 45o
Spindle Speed: 2000/18000 (opt:25000)
Max. Grinding Bore: 1.18~3.94(opt. 0.79~1.97)
Max. Grinding Length: 4.33 (opt.2.17)
Max. Chucking Length: 12-2/5
Max. Chucking Diameter: 6
Hydraulic Pump: 1 HP
Internal Grinding Motor: 2 HP
Net weight: 4510 lbs
Gross weight: 5610 lbs
Packing dimension: 89 x 65 x 75
Get Your Price from Machinery Marketing International!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

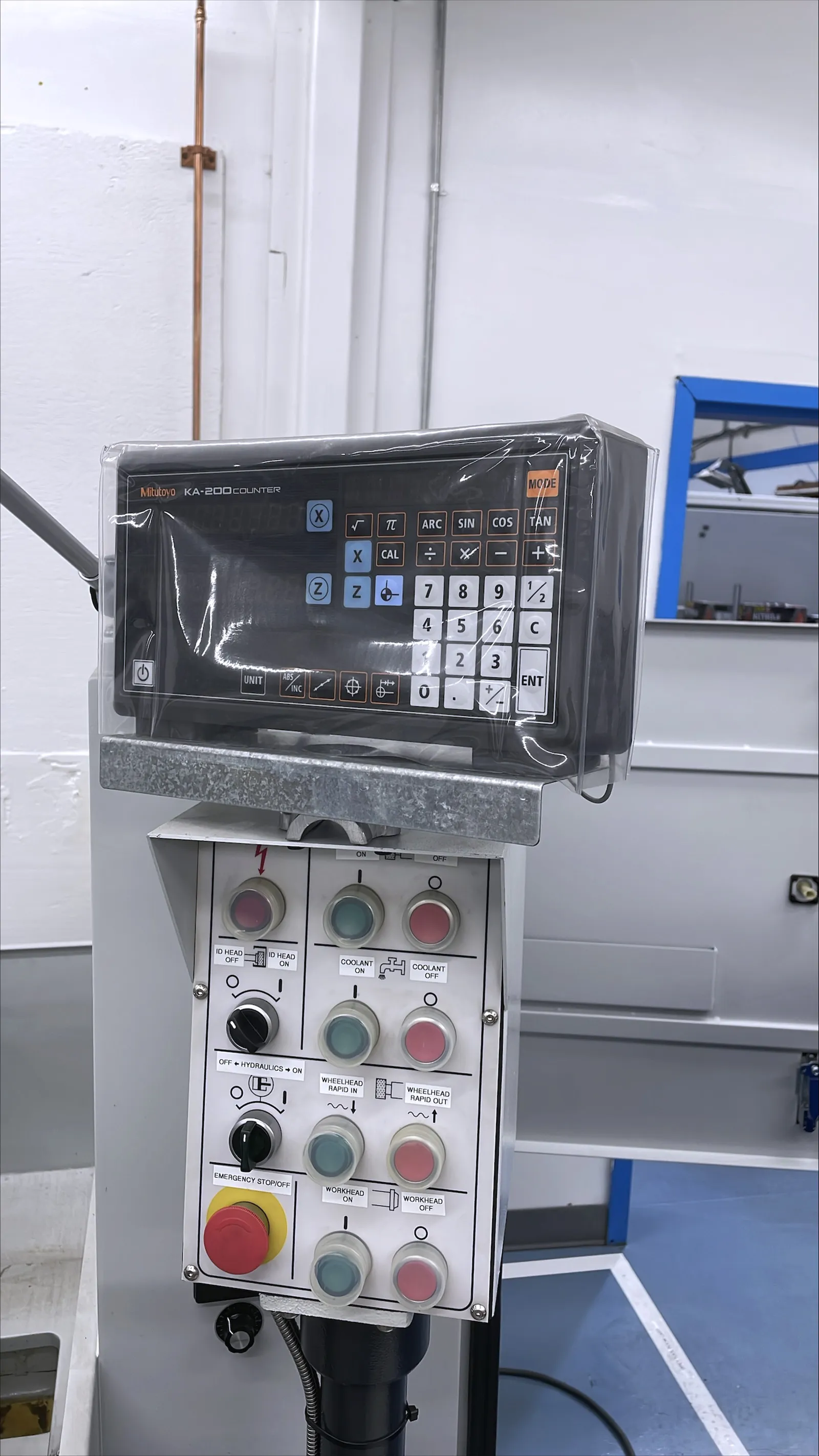

10" x 20" Supertec #G25P-50H, Cylindrical Grinder, 10" max. grinding diameter, 12-2/5" max. chucking length, 1 HP hydraulic pump, Mitutoyo KA-200 2-axis digital read out, 2024
