Manufacturer: Faccin
Model: HAV 3145
Year: 2017
Length': 10.00
CapacityInches or Gauges: 1.56250
Stock # 8078049
Price: $249,997 USD
1 / 3
Click to zoom in
1 / 3
For Sale by KD Machinery
Surplus Record Dealer Since 2026
Location: Scottsdale, AZ
Contact Sales Dept.
Phone Number: 480...> Show Phone Number 480-565-7310
Let the seller know you found their listing on Surplus Record!
$249,997 USD
Description

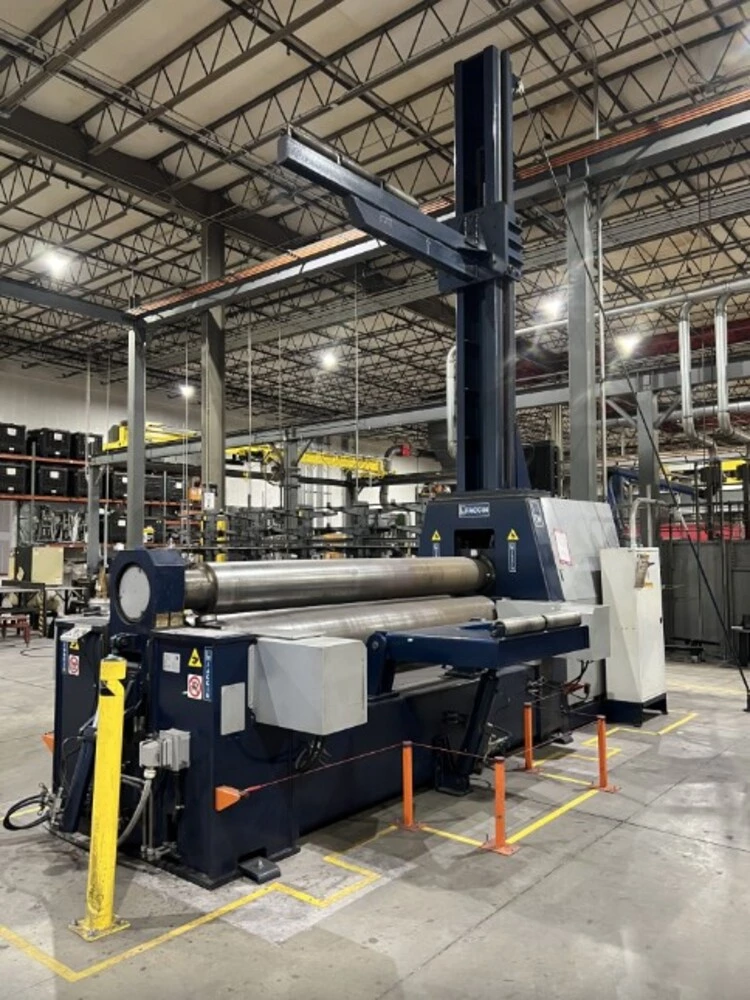

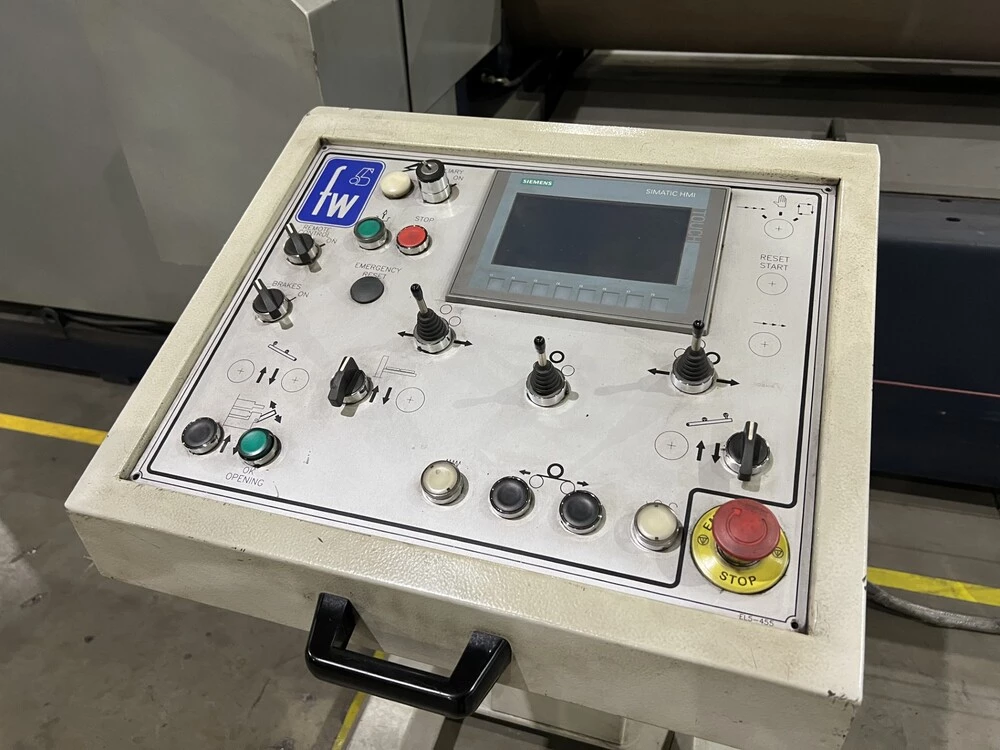

Used Faccin HAV 3145 (2017) Plate Rolls for Sale. This four-roll style hydraulic plate roll handles a maximum plate width of 120″, with a 17.72 top roll diameter and 15.75 side rolls diameter. Ton bending force on the top roll is listed at 3336 PSI, and maximum rotation speed is 23 FT/MIN. Full-length capacity at 37.7 KSI is 1.58″ bending thickness with 89″ ID and 1″ pre-bending thickness with 89″ ID. At 52.2 KSI, capacity is 1.34″ bending thickness at 8″ ID and .8″ pre-bending thickness with 89″ ID. Equipped with hardened and polished rolls and Siemens control. The machine can be seen under power for an inspection. Request a Quote for further details and availability.
| Maximum Plate Width | 120" |
|---|---|
| Top Roll Diameter | 17.72 |
| Side Rolls Diameter | 15.75 |
| Ton Bending Force on Top Roll | 3336 PSI |
| Max Rotation Speed | 23FT/MIN |
| Full-Length Capacity at 37.7 KSI | 1.58" Bending Thickness with 89" ID / - 1" Pre-Bending Thickness WITH 89" ID |
| Full-Length Capacity at 52.2 KSI | 1.34" Bending Thickness at 8" ID / .8" Pre-Bending Thickness with 89" ID |
Inquire Further with KD Machinery!
