For Sale by N S Machine Corp.
Surplus Record Dealer Since 1997
Location: Granger, IA
Contact David Bryan
Phone Number: 515...> Show Phone Number 515-999-2999
Let the seller know you found their listing on Surplus Record!
Description
Details:
Features:
Specifications:

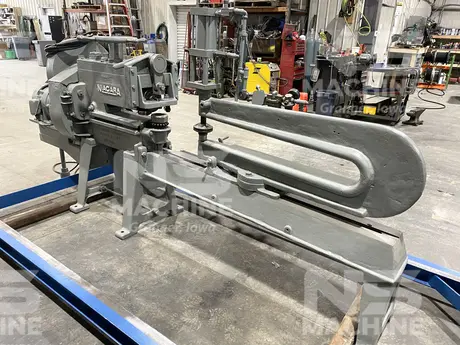

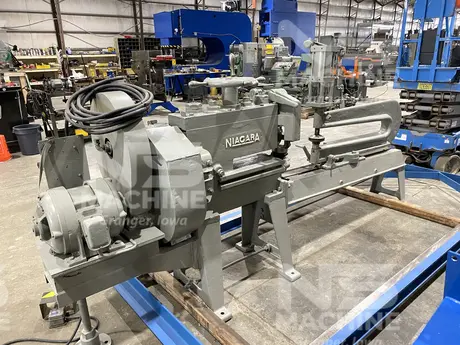

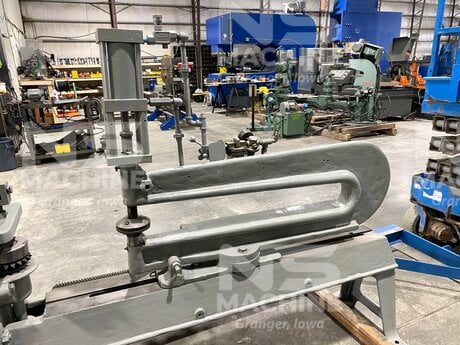

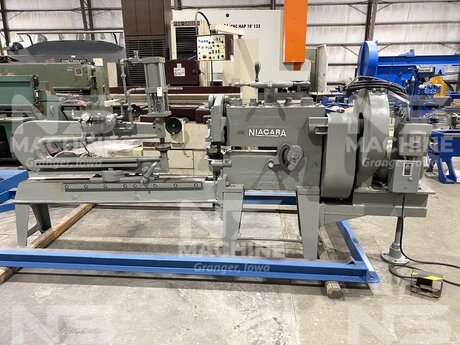

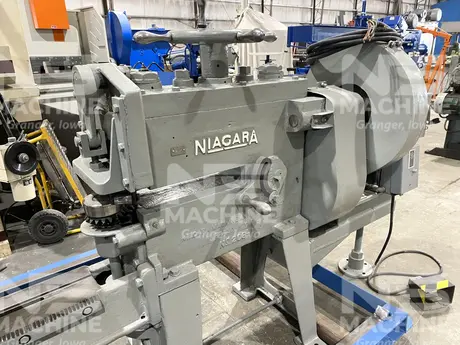

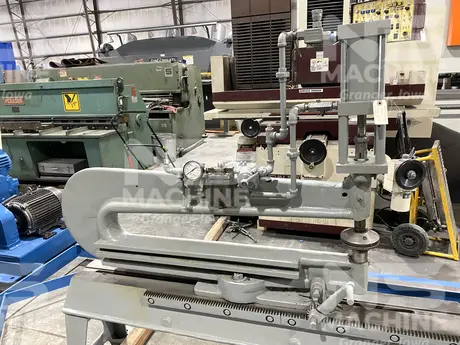

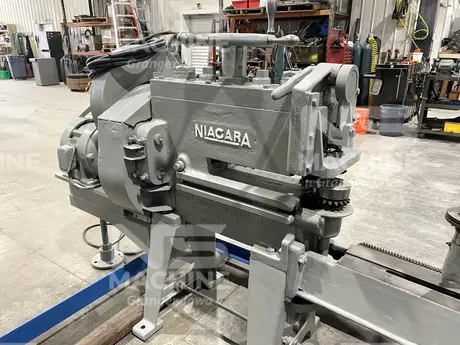

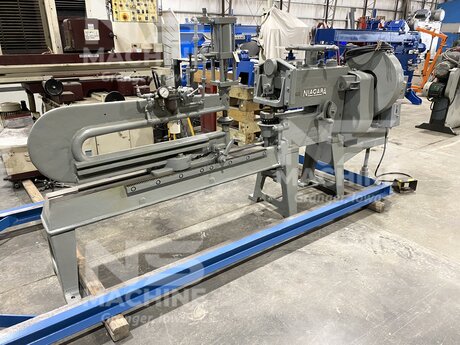

Manufacturer: Niagara
Model Number: 208-A
Serial Number: 124057
Stock Number: 13433
Features:
Foot pedal control
Pneumatic clamping
Motor wired for low voltage
Specifications:
Maximum diameter, inside flanges: 73"
Minimum diameter, inside flanges: 14"
Maximum thickness: 10 gauge
Throat of circle arm: 38-1/2"
Circumferential speed of fl. rolls: 51 FPM
Speed of drive shaft: 200 RPM
Ratio of gearing: 4-1/2 : 1
Radius of tooling: 7/32"
Motor: 3 HP
Approximate dimensions: 10’ 6” x 2’ 3” x 5’ 1” high
Approximate weight: 3,000 lbs.
Get Your Price from N S Machine Corp.!
