Description

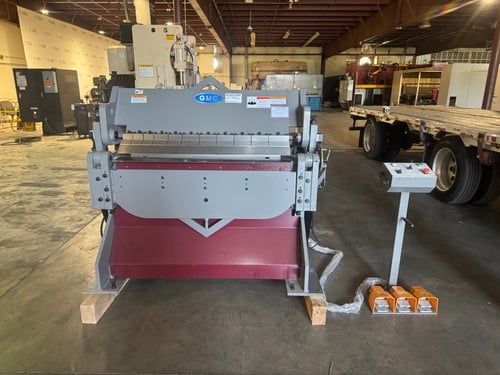

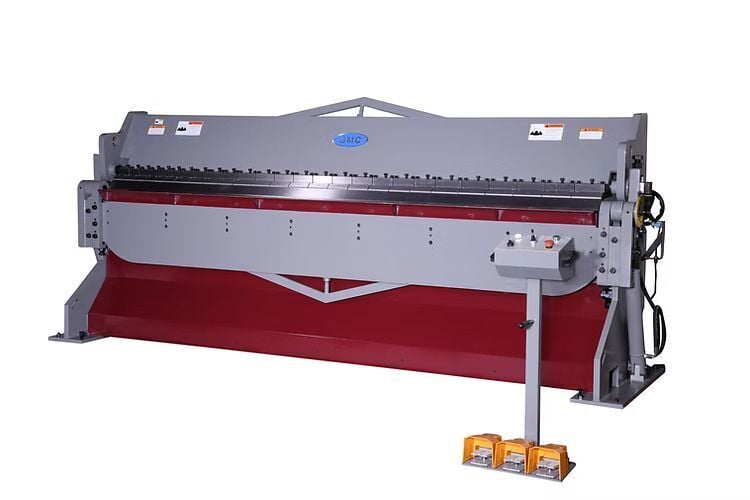

This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us. Max Bending Length: 6 Bending Capacity: Mild Steel (hot roll) 60k PSI 10 Ga. Stainless Steel 85k PSI 12 Ga. soft aluminum 28K PSI 1/4" Minimum material thickness 26Ga. Opening hem max thickness 20Ga x 6' Closing hem max thickness 22Ga x 6' Bend Degree: 135 Max. Box Depth: 153mm=6.02 Large Beam Opening: 3" Manual Back Gauge: 26 Oil Tank Gal. 12 Gal. Hydraulic Oil: Shell #68 or equivalent Main Motor 5 HP 3 Phase Prewired: 220VAC 15A Optional: 440VAC 10A Weight 5,000 lbs. Shipping Weight: 5,050 lbs. Overall Dimensions 91" x 46" x 67" Shipping Dimensions: 105 x 40 x 66 Assorted fingers 26 manual back gauge with one side handwheel operation Angle set up dial Hydraulic clamping system Foot pedal control for hydraulic clamping & auto mode This machine is not made to Hem over 22 GA. This machine can hem light duty gauge up to 24 GA. with the purchase of a one piece finger.
DISCLAIMER, Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the ...more
