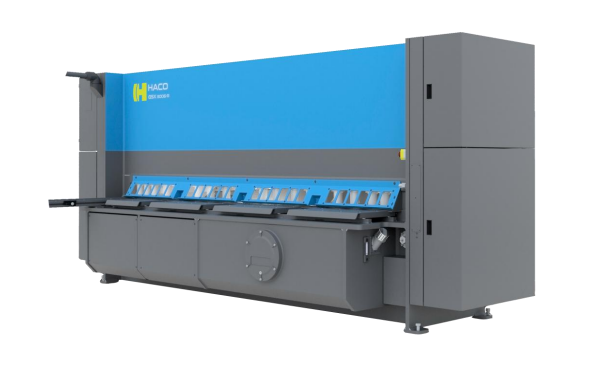

1/4" x 10' Haco #GSX-3006, Shear, 120" cut L, 5-20 SPM, 15 HP, 37" Back Gauge, SC200 Control

¼” X 10’ Hydraulic Shear with SC200 Controller Mounted on Swing Away Arm, Finger Protection with Hand Gaps, Swing Away Backgauge, Hard Clamp Hold Downs, 40” Squaring Arm and Full Table with Ball Transfers.
GENERAL SPECIFICATIONS
Max. Thickness Mild Steel: ¼”
Max. Thickness Stainless Steel: 8 Gauge
Cutting Length: 120”
Cutting Angle: 0.5° - 2.5°
# of Plate Clamps: 18
Stroke Speed w/ Sheet Supports Off (Angle Min-Max): 20-10
Stroke Speed w/ Sheet Supports On (Angle Min-Max): 5-5
Stroke of Backgauge: 37”
Working Height: 30.31”
Motor Power: 14.75 HP
Length: 170.86”
Width (w/o Safety Fence): 100.34”
Width (w/ Safety Fence): 153.54”
Height: 74.8”
INCLUDES: SC200 Controller Mounted on Swing Away Arm, Finger Protection with Hand Gaps, Swing Away Backgauge, Hard Clamp Hold Downs, 40” Squaring Arm and Full Table with Ball Transfers.
