Description
Spec
Specifications & Configurations May Vary Depending on Flexi Bend 350 Model & Automation Level
Maximum Mild Steel Tube Capacity: 35 x 3 mm
Maximum Bending Radius: 220 mm
Useful Length on Clamp: 2,500 mm
Useful Length on Mandrel: 4,000 mm
Maximum Bar Passage Diameter: 35 mm
Head Clearance Radius: 110 mm
Power Supply: 400/480 V
Operating Frequency: 50/60 Hz
Maximum Power: 15/18 kW
Approximate Machine Weight: 3,200 kg
Left or Right Bending Capability
21.5″ Multitouch B&R Control Console
i5 Processor With 16 GB RAM
Integrated 3D Part Simulation
File Import Programming Capability
Brushless Servo-Controlled Axes
Hydraulic & Pneumatic Axis Integration
Made in Italy
ISO 9001:2008 Certified System
Description

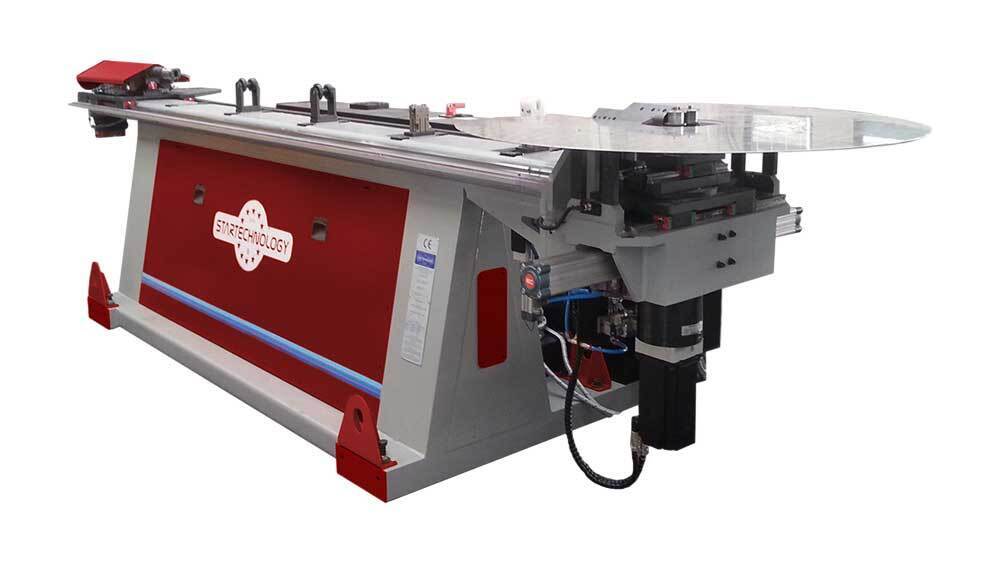

The Flexi Bend 350 Series from Star Technology is a versatile CNC tube and pipe bending solution engineered for precision bending, flexible production, and efficient manufacturing performance. Manufactured in Italy, the Flexi Bend 350 Series offers multiple automation levels and configurable machine layouts to support a wide range of industrial tube fabrication applications.
