Description

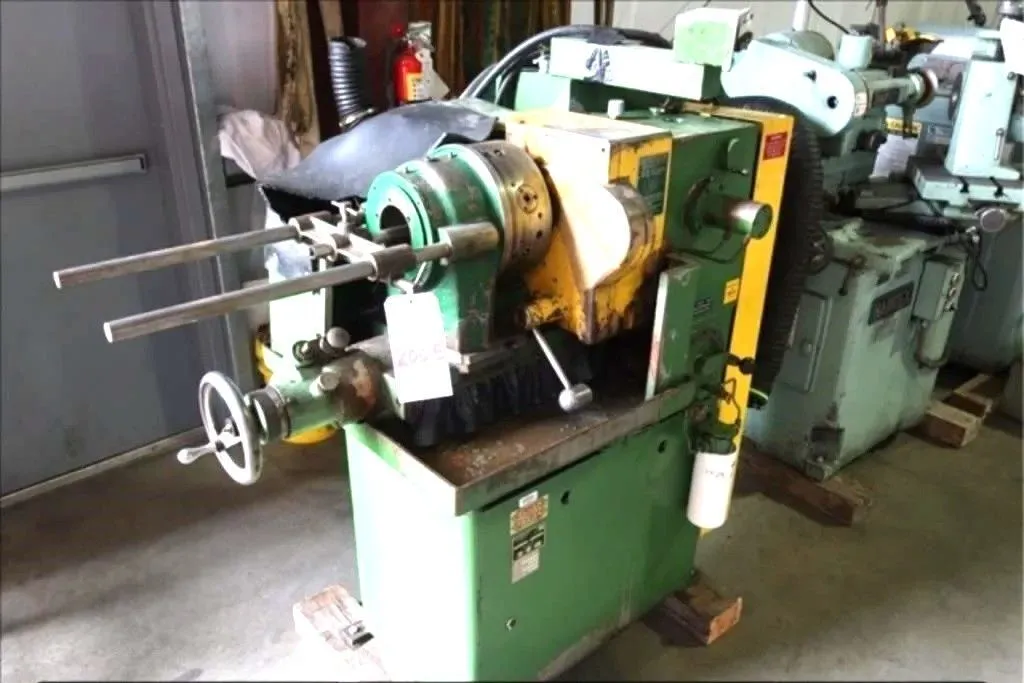

THE 1998 OLIVER MODEL 700 AUTOMATIC DRILL POINT GRINDER IS A HEAVY-DUTY MACHINE DESIGNED FOR PRECISION SHARPENING OF DRILLS RANGING FROM 0.5 INCHES TO 3.125 INCHES IN DIAMETER, WITH THE CAPABILITY TO INCREASE TO 4 INCHES FOR RIGHT-HAND SPIRAL DRILLS. IT SUPPORTS 2 TO 4 FLUTE DRILLS AND PROVIDES ADJUSTABLE POINT ANGLES BETWEEN 80 AND 160 DEGREES. THIS TOTALLY AUTOMATIC SYSTEM FEATURES A PUSHBUTTON CONTROL PANEL FOR CYCLE REGULATION AND AN AUTOMATIC INFEED TO CONTROL THE AMOUNT OF STOCK REMOVED. THE GRINDER IS CAPABLE OF PRODUCING DOUBLE ANGLE POINTS, INCLUDING SELF-CENTERING, GENERATED HELICAL, AND CORNER BEVEL POINT GRINDS. IT ALSO FACILITATES THE GRINDING OF SPADE DRILLS IN THEIR OWN HOLDERS FOR TIGHTER TOLERANCES. KEY MECHANICAL SPECIFICATIONS INCLUDE A 9 INCH X 2 INCH X 5 INCH CUP-TYPE GRINDING WHEEL AND A TWO-JAW SELF-CENTERING CHUCK THAT REVOLVES DURING OPERATION. THE MACHINE IS POWERED BY A 2 HP, 3-PHASE DRIVE MOTOR COMPATIBLE WITH 230-460 VOLTS AT 60 HZ. ADDITIONAL FEATURES INCLUDE VARIABLE CLEARANCE CONTROL, ADJUSTABLE POINT ANGLES FOR VARIOUS MATERIALS, AND AN INTEGRATED WORK LIGHT.
OLIVER MODEL 700 AUTOMATIC DRILL POINT GRINDER, The Model 700 Automatic Drill Point Grinder combines the excellent s of the Oliver 600 drill point grinder and adds a pushbutton control, making the machine totally automatic. The Model 700 can produce the popular double angle point which consists of automatic ...more
