1/2" to 3-1/8" Oliver #700, automatic drill point grinder, 9" x 2" x 5" cup type grinding wheel, 2 HP, 1998

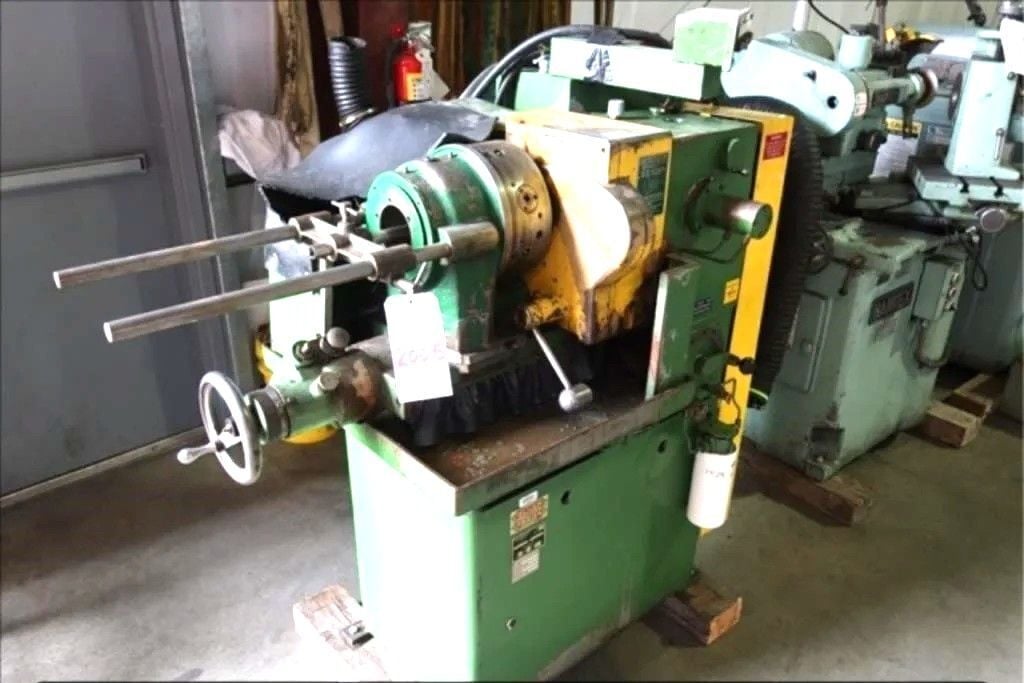

OLIVER MODEL 700 AUTOMATIC DRILL POINT GRINDER
The Model 700 Automatic Drill Point Grinder combines the excellent features of the Oliver 600 drill point grinder and adds a pushbutton control, making the machine totally automatic. The Model 700 can produce the popular double angle point which consists of automatic self-centering, generated helical and corner bevel point grinds. The operator can choose any of these three points. There is no costly setup to grind drills, no cam changes or grinding wheel changes for different type points. Closer hole tolerance, better wall finish, burr-free holes during the drill break through will be realized along with longer lasting drills because of the variable clearance and adjustable point angles for different materials. Spade drills can be ground in their own holder which gives much closer tolerances compared to conventional methods.

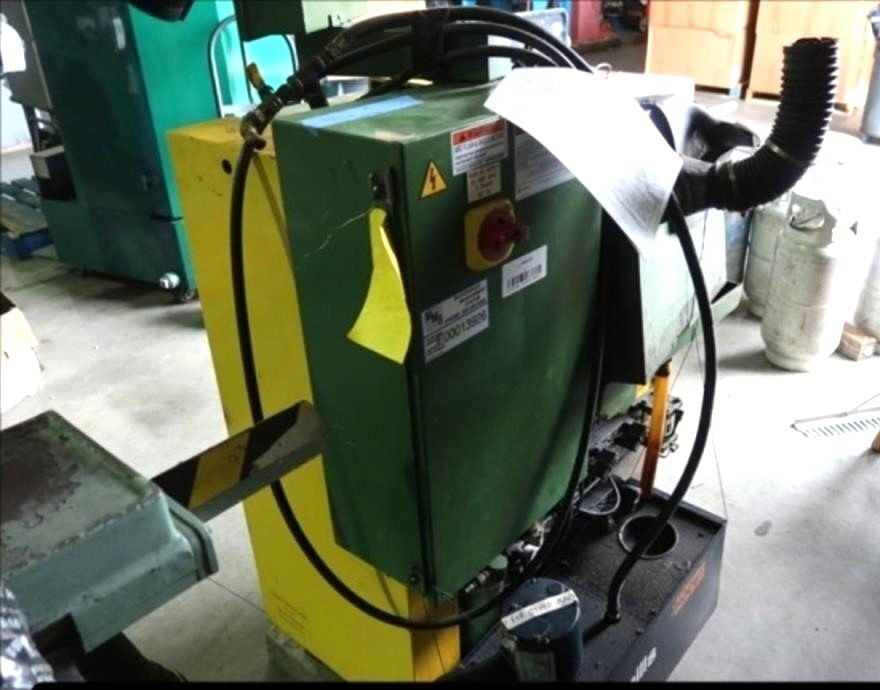

The Model 700 Automatic Drill Point Grinder is supplied with a pushbutton control panel. This operator console panel includes pushbuttons for controlling the cycle of the machine. Features also include an automatic infeed for regulating the amount of stock to be ground from the drill.

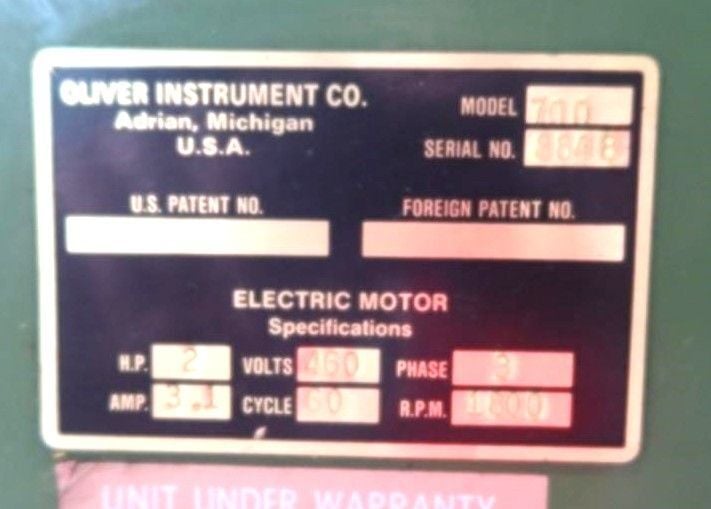

MODEL: 700 S/N: G-8848 NEW: 1998
** TOTALLY AUTOMATIC & OPERATED BY PUSHBUTTON CONTROLS.
THE MODEL #700 CAN PRODUCE THE DOUBLE ANGLE POINT
&CORNER BEVEL POINT GRINDS. SPADE DRILLS CAN BE
GROUND IN THEIR OWN HOLDER WHICH GIVES MUCH CLOSER
TOLERANCES COMPARED TO CONVENTIONAL METHODS.
CAPACITY: 1/2" TO 3-1/8" DIAMETER (CAN BE
INCREASED TO 4"
RIGHT HAND SPIRAL: 2-4" FLUTE DRILLS
INCLUDED POINT ANGLES: 80-160 DEGREES
GRINDING WHEEL SIZE: 9" X 2" X 5" CUP TYPE
EQUIPPED WITH:
FULLY AUTOMATIC OPERATION BY USE OF A PUSHBUTTON
CONTROL PANEL
AUTOMATIC INFEED FOR REGULATING THE AMOUNT OF STOCK TO BE
GROUND FROM THE DRILL
ABILITY TO PRODUCE THE DOUBLE ANGLE POINT WHICH CONSISTS OF
SELF-CENTERING, GENERATED HELICAL AND CORNER BEVEL POINT
GRINDS
ABILITY TO GRIND SPADE DRILLS IN THEIR OWN HOLDER WHICH
GIVES MUCH CLOSER TOLERANCES COMPARED TO CONVENTIONAL
METHODS
VARIABLE CLEARANCE CONTROL AND POINT ANGLES
TWO-JAW SELF-CENTERING CHUCK WHICH REVOLVES WHILE THE DRILL
IS BEING GROUND
WORK LIGHT
2 HP 3/60/230-460 VOLT DRIVE MOTOR
