1.2 kW Fanuc #A06B-0075-B203, BiS 8/3000 AC Servo Motor, 7 Nm Stall Torque, 153 Volts, 6 Amps, IP65

Product Specifications

• Manufacturer: FANUC
• MPN / Model: A06B-0075-B203
• Model Designation: BiS 8/3000
• Product Type: AC Servo Motor
• Stall Torque: 7 Nm
• Output: 1.2 kW Continuous
• Speed: 2000 min-1
• Frequency: 133 Hz
• Motor Input: 153 V
• Power Factor: 97 %
• Amplifier Input: 200 to 240 V
• Current: 6 A, 4.9 A Continuous
• Poles: 8
• Phases: 3
• Winding Connection: Y
• Ambient Temperature: 0 to 40 C
• Enclosure Rating: IP65
• Insulation Class: F
• Standard: IEC60034-1
• Weight: 7.4 kg
• Pulsecoder Type: BiA128
• Pulsecoder Part Number: A860-2020-T301
• Serial Number: C181W0D90

Product Description

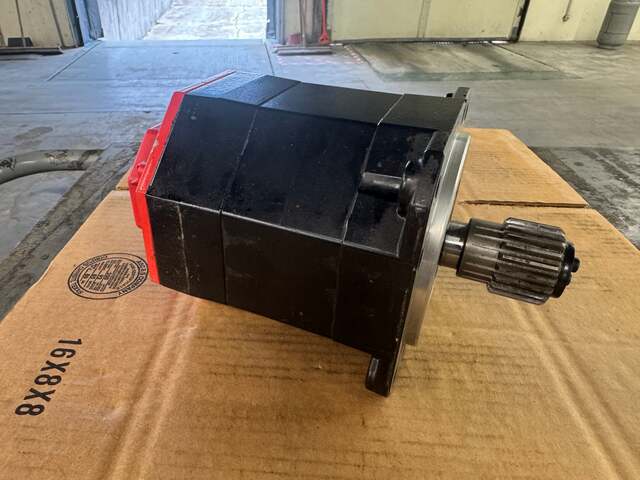

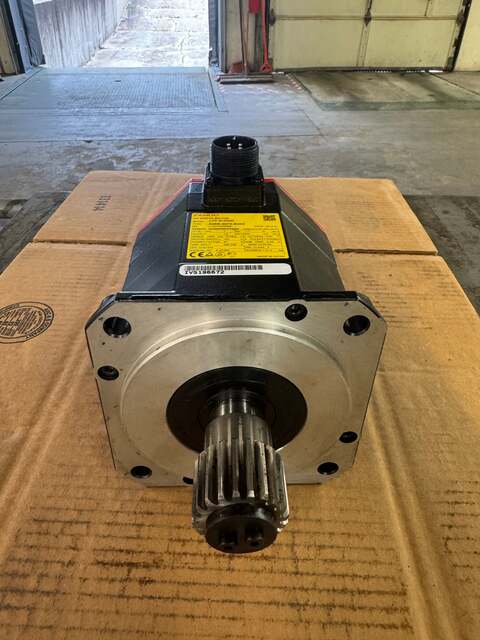

FANUC A06B-0075-B203 is an AC servo motor from the BiS 8/3000 series, identified by model designation BiS 8/3000 and rated for 1.2 kW continuous output with a stall torque of 7 Nm at 2000 min-1. This three phase, eight pole motor carries a motor input rating of 153 V with an amplifier input range of 200 to 240 V and a continuous current of 4.9 A. The motor is fitted with a FANUC BiA128 pulsecoder, part number A860-2020-T301, mounted to the rear of the unit.

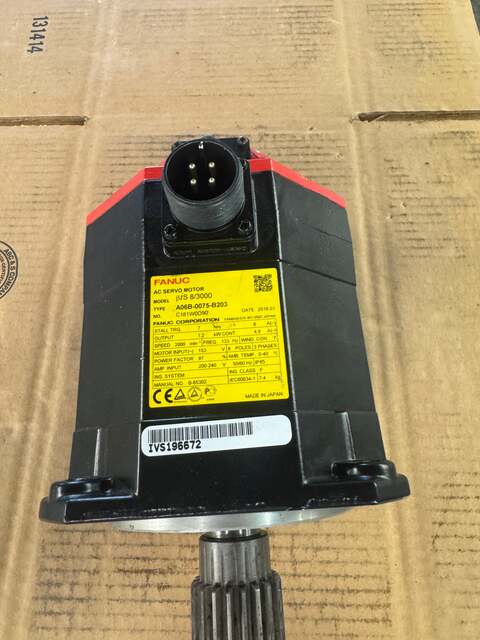

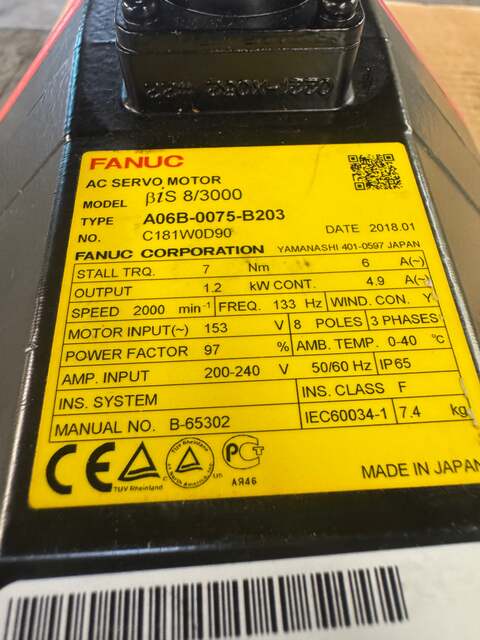

Confirmed nameplate identifiers include MPN A06B-0075-B203, serial number C181W0D90, IP65 enclosure rating, insulation class F, and a unit weight of 7.4 kg. Buyers matching an exact FANUC catalog number for spindle, axis, or rotary applications can use the visible nameplate data and the attached pulsecoder model to confirm the part against existing equipment or maintenance sourcing requirements.
