Manufacturer: Hansford Davis
Model: 5
Max Keyway Width: 1.50
Max Keyway Length: 17.00
Stock # 2463
Price: $9,500 USD
1 / 8
Click to zoom in
1 / 8
For Sale by Machinery Central
Surplus Record Dealer Since 2020
Location: Louisville, KY
Contact Denis Frankenberger
Phone Number: 502...> Show Phone Number 502-219-7311
Let the seller know you found their listing on Surplus Record!
$9,500 USD
Description
Spec Sheet:

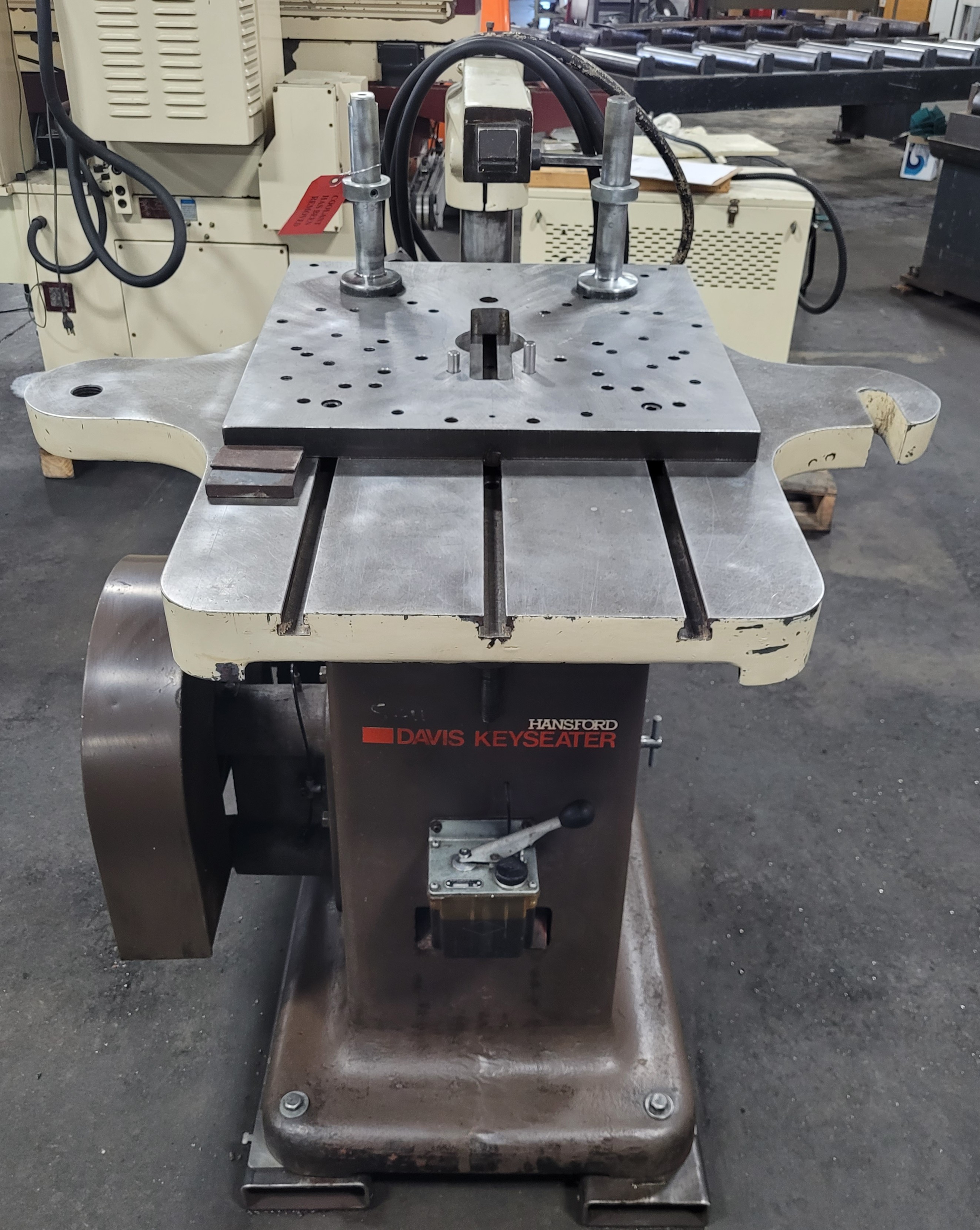

Hansford Davis Model 5 Keyseater
Cutting and Performance Specs
Keyway Width Capacity: 1/16" to 1-1/2"
Maximum Keyway Length: Up to 17" (depending on tooling/cutter setup)
Throat Depth (Face of cutter to arm post): 18-3/4"
Stroke: 4-1/2
Strokes Per Minute (SPM): 48
Power Drive: 2 HP motor
Max included taper cut/foot: 3
Table and Dimensions
Table Size: 21x31 inches
Table Movement: 1-3/8"
T Slots in Table: 3
Wired: 480V
Operation Type: Manual
Machine Dimensions (L x W x H): 30" x 48" x 55"
Machine Weight: 1,800 lbs
Specifications Subject to Verification
Hansford Davis Model 5 Keyseater
Cutting and Performance Specs
Keyway Width Capacity: 1/16" to 1-1/2"
Maximum Keyway Length: Up to 17" (depending on tooling/cutter setup)
Throat Depth (Face of cutter to arm post): 18-3/4"
Stroke: 4-1/2
Strokes Per Minute (SPM): 48
Power Drive: 2 HP motor
Max included taper cut/foot: 3
Table and Dimensions
Table Size: 21x31 inches
Table Movement: 1-3/8"
T Slots in Table: 3
Wired: 480V
Operation Type: Manual
Machine Dimensions (L x W x H): 30" x 48" x 55"
Machine Weight: 1,800 lbs
Specifications Subject to Verification
Inquire Further with Machinery Central!
