0.66 kW B & R #8LSA35.DB030S200-3, Synchronous Servo Motor, 2.1 Nm Torque, 400 Volts, 1.4 Amps, IP64, w/ Brake

Product Specifications

• Manufacturer: B&R
• MPN / Model: 8LSA35.DB030S200-3
• Product Type: Servo Motor
• Nominal Power: 660 W
• Voltage: 400 V
• Nominal Current: 1.40 A
• Stall Current: 1.60 A
• Nominal Torque: 2.10 Nm
• Stall Torque: 2.30 Nm
• Nominal Speed: 3000 rpm
• Frequency: 200 Hz
• Holding Brake: 4.00 Nm
• Enclosure Rating: IP64
• Insulation Class: Class F
• Mass: 5.49 kg
• Serial Number: M33Z1553288

Product Description

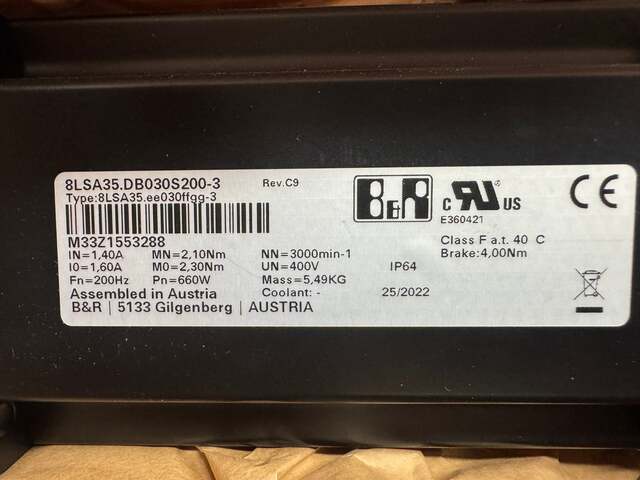

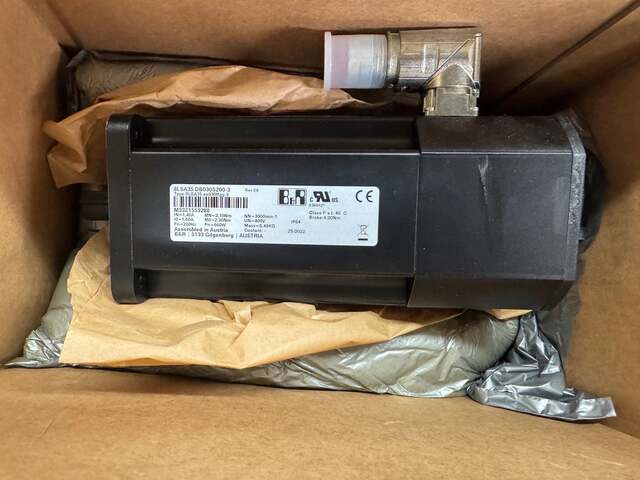

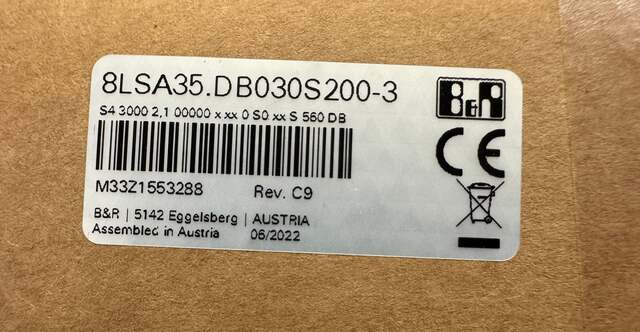

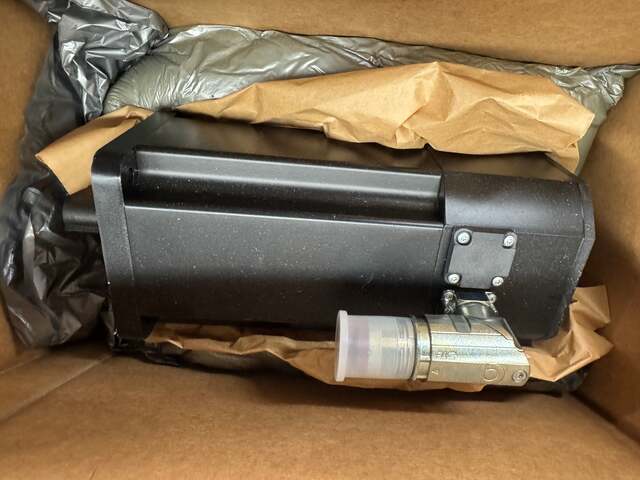

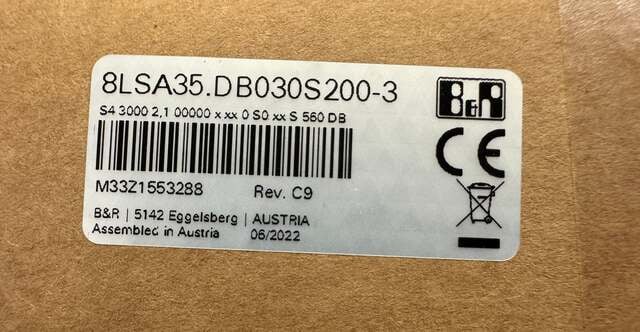

B&R servo motor 8LSA35.DB030S200-3 is a synchronous motor identified by the type designation 8LSA35.ee030ffgg-3 and serial number M33Z1553288. The nameplate confirms a nominal power of 660 W, 400 V supply, nominal current of 1.40 A, nominal torque of 2.10 Nm, stall torque of 2.30 Nm, and a nominal speed of 3000 rpm, with a 200 Hz rated frequency. This is the holding brake variant, with a brake holding torque of 4.00 Nm, an IP64 enclosure rating, and Class F insulation rated at 40 C. The unit carries CE and cULus (E360421) markings and has a listed mass of 5.49 kg. Buyers sourcing this part should match the exact B&R catalog number 8LSA35.DB030S200-3 and Rev. C9 marking, along with the angled single cable connector shown, to confirm fit against existing equipment or spare inventory.
