Choosing the Right Electric Transformer: Factors & Considerations

Selecting the appropriate electric transformer is crucial for ensuring efficient and reliable power distribution across various applications. From residential and commercial settings to industrial and renewable energy systems, the right transformer can optimize performance, enhance safety, and reduce energy costs. In this guide, we will explore the key factors and considerations to help you make an informed decision when choosing an electric transformer, ensuring it meets your specific needs and operational requirements.

Type of Transformer You Need

Before you begin your search, you’ll at least want to know if you need a single or three phase transformer. From there, you will need to know what physical type of transformer you actually need. Does it need to be mounted up on a telephone pole? Is it a padmount transformer in a locked cabinet outside? Or maybe its just a dry transformer you need in your manufacturing plant.

Phase Requirement

• Single Phase Transformer:
  • Suitable for residential applications and light commercial use.
  • Ideal for small equipment and low-power applications.
  • Common in rural or remote areas where three-phase power is not available.
• Three Phase Transformer:
  • Necessary for industrial and large commercial applications.
  • Required for heavy machinery, large motors, and high-power loads.
  • Provides better efficiency and load balancing for large electrical systems.

Transformer Types and Their Applications

• Dry Type Transformer:
  • Applications: Indoor environments, schools, hospitals, commercial buildings.
  • Advantages: Low maintenance, safer (no oil), better fire resistance.
  • Scenarios: When fire safety and reduced environmental risk are priorities.
• Oil-Filled Transformer:
  • Applications: Outdoor installations, industrial plants, substations.
  • Advantages: Better cooling and higher efficiency for large power loads.
  • Scenarios: When high power capacity and efficient cooling are required.
• Substation Transformer:
  • Applications: Utility and large industrial power distribution.
  • Advantages: High capacity, robust design, reliable power distribution.
  • Scenarios: Central points in electrical grid systems or large industrial facilities.
• Pole-Mounted Transformer:
  • Applications: Rural or suburban power distribution.
  • Advantages: Cost-effective, easy to install, ideal for overhead lines.
  • Scenarios: When servicing residential or light commercial areas via overhead power lines.
• Pad-Mounted Transformer:
  • Applications: Urban areas, commercial complexes, residential subdivisions.
  • Advantages: Secure, tamper-resistant, aesthetically pleasing.
  • Scenarios: When underground power distribution is used and a secure, ground-level transformer is needed.

Voltage Rating and Regulation

Voltage rating and regulation are critical factors when choosing an electric transformer. The voltage rating indicates the transformer’s capacity to handle specific input and output voltages, ensuring it meets the requirements of your application. Accurate voltage regulation is essential for maintaining a consistent output voltage despite variations in the input voltage or load conditions.

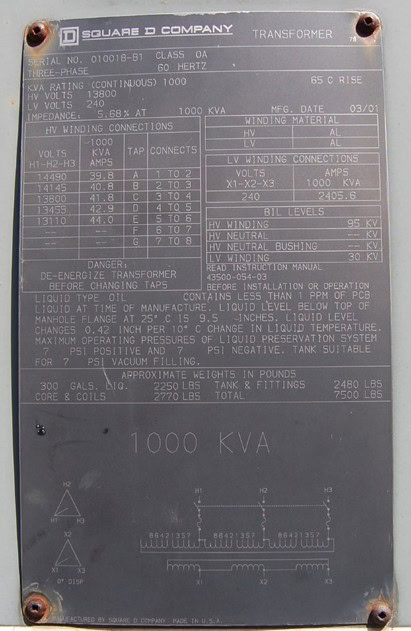

This stability is crucial for the safe and efficient operation of electrical devices, preventing damage and ensuring optimal performance. When selecting a transformer, consider the primary (also called the “High Voltage” or “H.V.”)  as well as the secondary voltage (also called the “Low Voltage” or “L.V.”) ratings to match your system’s needs. Additionally, evaluate the transformer’s voltage regulation capabilities to ensure it can maintain stable voltage levels under varying operational conditions, thus enhancing the reliability and longevity of your electrical equipment.

Power Rating (kVA)

A transformer’s power rating, measured in kilovolt-amperes (kVA), is a crucial consideration when selecting the right transformer for your needs. The kVA rating indicates the maximum amount of electrical power the transformer can handle. Choosing a transformer with an appropriate power rating ensures it can manage the load requirements of your application without overheating or suffering performance degradation. To determine the correct kVA rating, calculate the total power demand of all connected devices and add a margin for future expansion or unexpected load increases.

kVA rating can be calculated using the following formula:

Where V is the voltage (in volts), and I is the current (in amperes)

Selecting a transformer with a suitable power rating not only enhances efficiency and reliability but also extends the lifespan of the transformer by preventing overload conditions, ensuring your electrical system operates smoothly and safely.

Frequency Rating

The frequency rating of a transformer is a key factor that defines its compatibility with the electrical system’s operating frequency, typically measured in Hertz (Hz). Common frequency ratings are 50 Hz and 60 Hz, aligning with the standard frequencies used in various regions worldwide. Ensuring that the transformer’s frequency rating matches your system’s frequency is crucial for optimal performance and efficiency.

Using a transformer with an incorrect frequency rating can lead to reduced efficiency, overheating, and potential damage to both the transformer and connected equipment. When selecting a transformer, verify its frequency rating to ensure it aligns with your power supply’s frequency. This alignment is essential for maintaining the reliability, safety, and longevity of your electrical system and the transformer itself.

Overload Capacity

Overload capacity is a crucial consideration when selecting an electric transformer, as it indicates the transformer’s ability to handle temporary increases in load beyond its rated capacity. This capacity is essential for maintaining system reliability and preventing unexpected shutdowns during peak demand periods. Transformers with a higher overload capacity can manage short-term overloads without sustaining damage or significantly reducing their lifespan.

When evaluating a transformer, consider the typical load conditions and potential peak demands of your application. Ensure that the transformer can safely accommodate these peaks, especially in industrial settings where equipment may draw higher power intermittently. A transformer with adequate overload capacity helps ensure continuous, stable operation and reduces the risk of overheating and failure during periods of high electrical demand.

Energy Efficiency

Energy efficiency is a vital factor when choosing an electric transformer, as it impacts both operational costs and environmental footprint. High-efficiency transformers minimize energy losses during voltage conversion, ensuring more of the input power is effectively delivered to the load. This not only reduces electricity consumption but also lowers the heat generated, extending the transformer’s lifespan and reducing cooling requirements.

Look for transformers with high efficiency ratings, such as those meeting or exceeding industry standards like DOE or IEC. Additionally, consider transformers with advanced core materials and optimized designs that reduce hysteresis and eddy current losses. Investing in an energy-efficient transformer can lead to significant cost savings over time, enhance system reliability, and support sustainability initiatives by reducing overall energy consumption and greenhouse gas emissions.

Cooling Methods

Cooling methods are crucial in determining the performance and longevity of an electric transformer. Effective cooling ensures that the transformer operates within safe temperature limits, preventing overheating and potential damage. Common cooling methods include oil-immersed and dry-type systems. Oil-immersed transformers use mineral oil or synthetic fluids to dissipate heat, offering excellent cooling efficiency and are suitable for high-capacity applications.

Dry-type transformers, on the other hand, use air or forced air to cool the coils and are ideal for indoor and environmentally sensitive locations due to the absence of flammable liquids. When selecting a transformer, consider the cooling method based on your specific application, environmental conditions, and safety requirements. Proper cooling enhances transformer efficiency, reliability, and lifespan, ensuring optimal performance under varying load conditions.

Insulation Class and Temperature Rating

Insulation class and temperature rating are critical factors in the selection of an electric transformer, as they determine the transformer’s ability to withstand operating temperatures and ensure long-term reliability. The insulation class indicates the maximum temperature the insulation material can endure without degrading. Common insulation classes include Class A (105°C), Class B (130°C), Class F (155°C), and Class H (180°C).

Choosing the appropriate insulation class is essential to match the transformer’s expected operating environment and load conditions. Higher insulation classes allow for higher operating temperatures, which can accommodate greater power loads and more demanding applications. Ensuring the transformer operates within its temperature rating prevents insulation breakdown, maintains efficiency, and extends the transformer’s lifespan, thus ensuring safe and reliable performance in your electrical system.

Harmonic Distortion

Harmonic distortion is an important consideration when selecting an electric transformer, especially in environments with significant non-linear loads such as variable frequency drives, computers, and other electronic equipment. Harmonic distortion occurs when these loads draw current in abrupt pulses rather than smooth sine waves, creating higher frequency harmonics that can lead to overheating, increased losses, and reduced efficiency in transformers.

Transformers designed to handle harmonic distortion, often labeled as K-rated, are built with enhanced insulation and cooling capabilities to manage these additional stresses. When evaluating transformers for such environments, consider their ability to mitigate harmonic effects to ensure reliable and efficient operation. Addressing harmonic distortion helps maintain the stability and longevity of the transformer, reducing maintenance costs and preventing potential failures due to overheating and excessive wear.

Cost and Maintenance

Cost and maintenance are key considerations when selecting an electric transformer, impacting both initial investment and long-term operational expenses. While upfront costs can vary based on the transformer’s type, capacity, and features, it’s essential to consider the total cost of ownership. High-efficiency transformers may have a higher initial price but can lead to significant savings through reduced energy consumption and lower operational costs over time.

Maintenance requirements also play a critical role in ensuring reliable performance and longevity. Regular inspections, timely servicing, and proper cooling and insulation maintenance are crucial to prevent failures and extend the transformer’s lifespan. Investing in a high-quality transformer with manageable maintenance needs can result in long-term financial benefits, enhanced reliability, and reduced downtime for your electrical system.

Where You Buy Electric Transformers

Choosing the right source for purchasing electric transformers is crucial for ensuring quality, reliability, and value. Surplus Record is a trusted marketplace for sourcing high-quality electric transformers, offering a vast selection of new, used, and surplus equipment from reputable manufacturers.

With decades of industry experience, Surplus Record provides detailed listings, competitive pricing, and comprehensive support to help you find the perfect transformer for your specific needs. Whether you’re looking for step-up, step-down, pad mount, or any other type of transformer, Surplus Record’s extensive inventory and knowledgeable team make it easier to make informed purchasing decisions. Explore their Advanced Transformer Search to discover top-notch transformers that meet your operational requirements and budget.

Need Help Finding the Right Transformer for your Needs?

 If you’re overwhelmed by the choices available online, you can easily find a local transformer dealer near you for expert guidance. Surplus Record collaborates with a variety of dealers who specialize in transformers, allowing you to search for dealers in your area or by name to ensure you receive the best advice and products.
