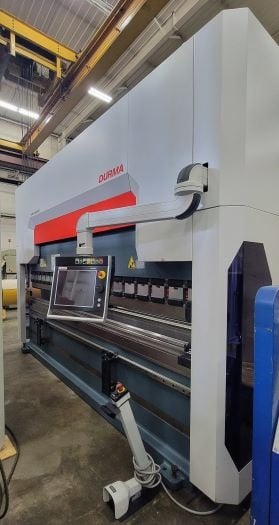

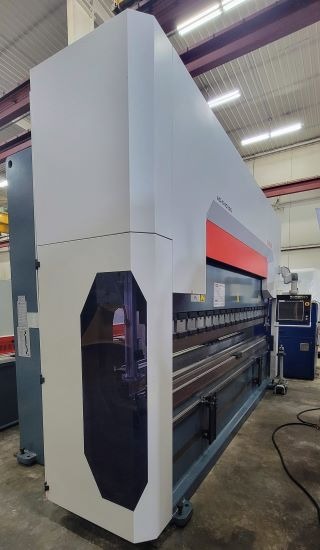

352 ton, Durma #AD-S-40320, CNC Hydraulic Press Brake, 13' 3" L, 1428" between housing, 14.3" stroke, 24.8" daylight, 17.7" throat, 49 HP, DA-66T Control, 25.5" Back Gauge, new, 2023

DURMA (NEW) MODEL AD-S 40320 CNC HYDRAULIC
PRESS BRAKE WITH DA-66T CONTROL
352 US TONS
13' 3" BENDING LENGTH
11' 9" BETWEEN COLUMNS
35.4" TABLE HEIGHT
6" TABLE WIDTH
14.3" STROKE
24.8" DAYLIGHT
17.71" THROAT DEPTH
378"/MINUTE Y-AXIS RAPID SPEED
24"/MINUTE Y-AXIS WORKING SPEED
331"/MINUTE Y-AXIS RETURN SPEED
0.0004" RAM REPEATABILITY
1200"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
25.5" BACKGAUGE (X-AXIS) WORKING DISTANCE
827"/MINUTE R-AXIS WORKING SPEED
9.8" BACKGAUGE (R-AXIS) WORKING DISTANCE
49 HP MOTOR

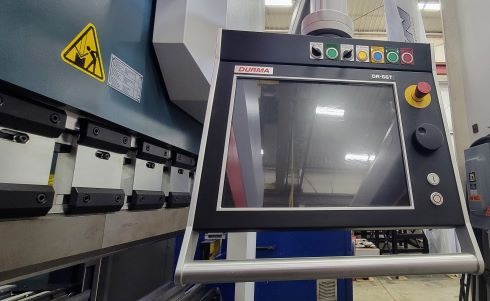

DELEM DA-66T CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- 3D VISUALIZATION IN SIMULATION & PRODUCTION
- 17.5" HIGH RESOLUTION COLOR TFT
- DELEM MODUSYS COMPATIBILITY
- USB PERIPHERAL INTERFACING
- USER SPECIFIC APPLICATION SUPPORT
- SENSOR BENDING AND CORRECTION INTERFACE
- PROFILE-TL OFFLINE SOFTWARE
STANDARD FEATURES
- 4-AXIS CNC Z1, Z2, X, R
- FIESSLER LASER FINGER SAFETY - MANUAL HT ADJUST
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN AND EUROPEAN STYLE DIES)
- PRECISION GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P135.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- 2 BACKGAUGE FINGER BLOCKS
- CNC CONTROLLED MOTORIZED CROWNING
- LED WORK LIGHT ON TOP RAM
OPTIONS INCLUDED
- 4-AXIS BACKGAUGE X=25.6" X, R, Z1, Z2
HYDRAULIC OIL REQUIRED
