Quality #LTSG-45KVA, Laser Welding System w/Chiller, Water Cooled, 11.81" x 11.81" x 11.81" Table, 300 Watts Ave. Power, 40 Joules, 1-200 Hz, 380 V

Description

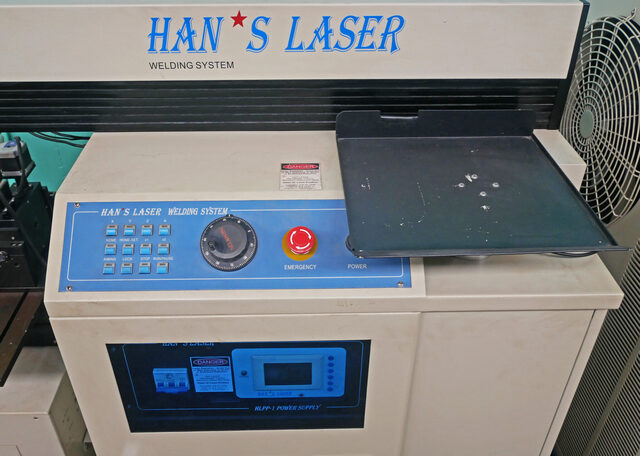

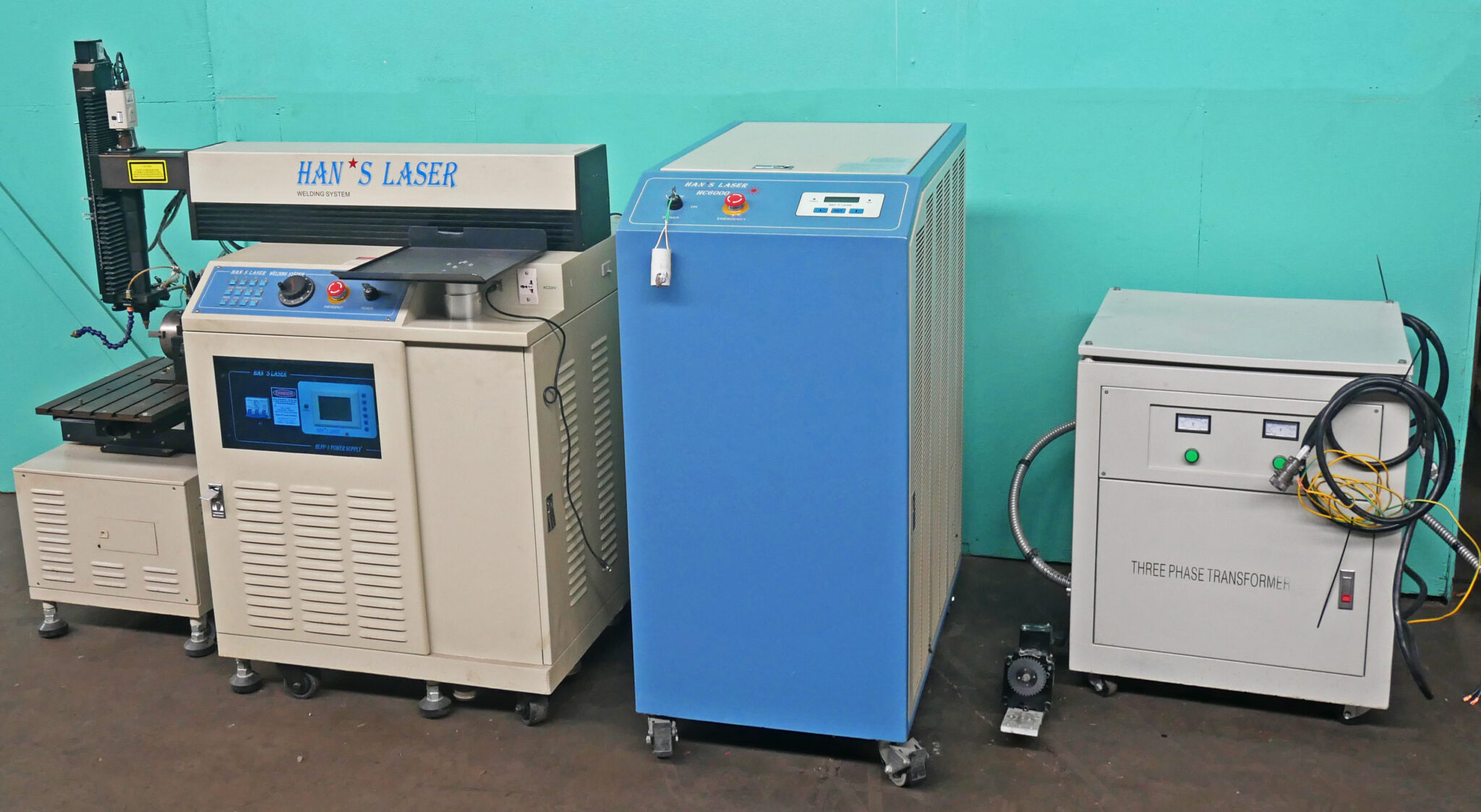

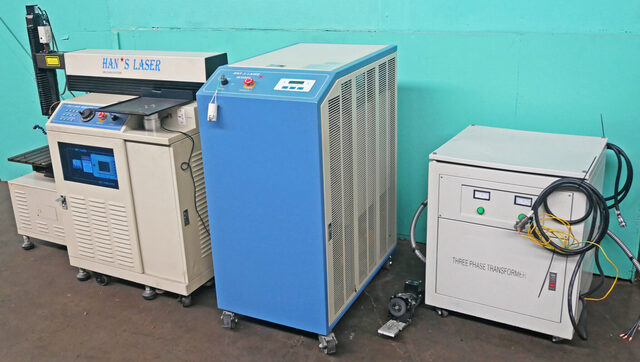

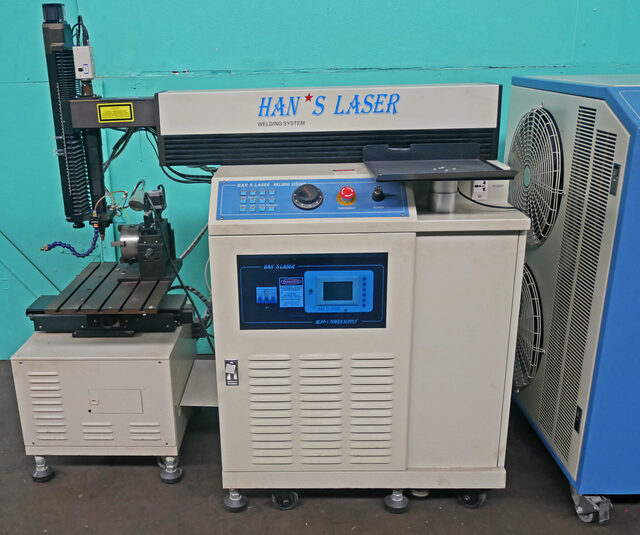

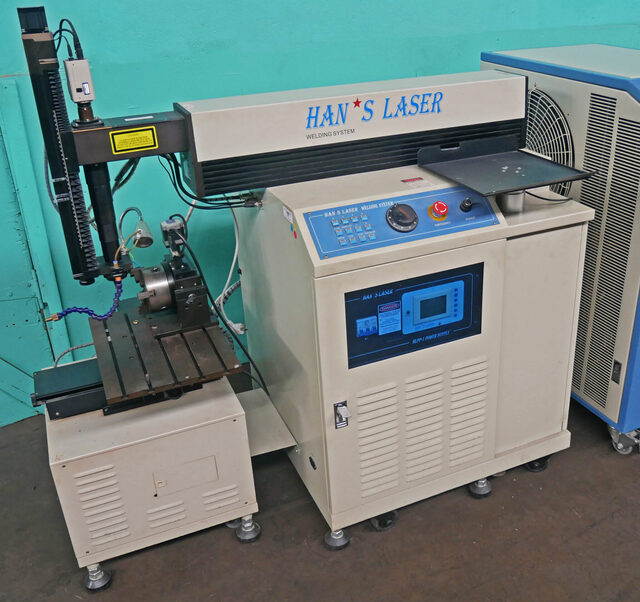

Hans Laser 300 Watts Laser Welding System with Chiller, W200B

Inventory # 9854-C

Model: W200B

S/N: HYI070910061

PLEASE NOTE: This system is being sold as-is, as-inspected with no warranty and no return privilege. There is no computer included with this system and a standard computer could not be used at this point, as the system requires not only the software, but a dongle and control card, all of which have been discontinued by the manufacturer and can no longer be purchased new

Specifications:

Laser:

Max. Average Power: 300 Watts

Pulse Power: 0.1 – 8 Kw

Max. Pulse Energy: 40 Joules

Pulse Frequency: 1 – 200 Hz

Laser Pulse Width: 0.1 – 20 mS

Spacing of Welding Spots: 0.003937″

Cooling: Water Cooled

Work Table:

Motion Limits: 11.81″ x 11.81″ x 11.81″

Travel Speed: 3.94″ /Second

Travel Acceleration: 39.37″ /Second

X/Y Repeatability Accuracy: 0.0011811″

Tracking Patterns: Line, Intermittent Line, Circle, Arc

Locomotion: Automatic, X-Y-Z

Overall System Dimensions: 63″ x 32″ x 51″ H

System Weight: approx. 1,110 lbs.

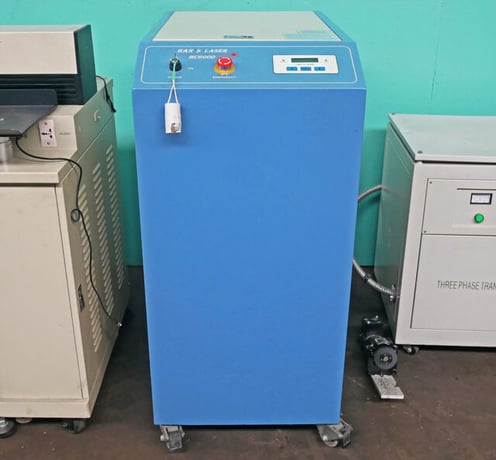

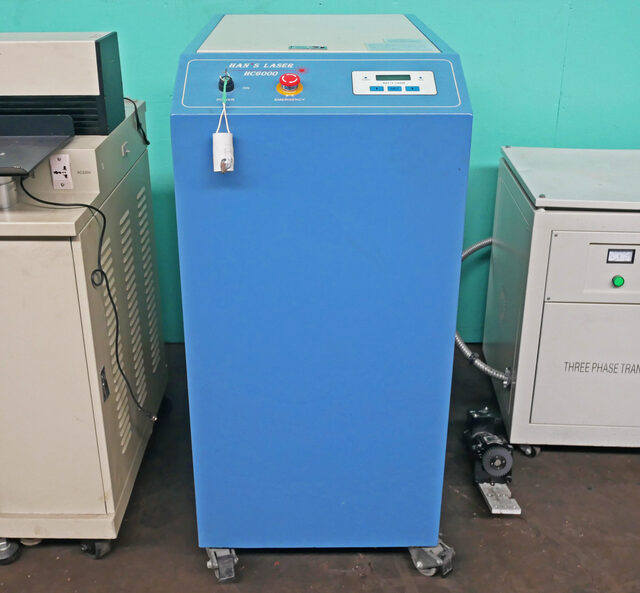

Cooling System:

Cooling Medium: Distilled or De-Ionized Water

Circulating Water Flow Rate: 7.93 Gallons per Minute

Water Chiller Cooling: Air-Cooled Heat Exchange

Chiller Dimensions: 35.83″ x 22.05″ x 47.24″

Chiller Weight: approx. 450 lbs.

Power Requirements:

Laser Input Power: 380 VAC, 60Hz, 3ph @ 40A, 4 Wire

Wiring Configuration: Wye, with Neutral

Cooling System: 220VAC, 60Hz, 1ph @ 20A, 3 Wire

Voltage Tolerance: < +/- 5%

Environmental Conditions:

Nominal Operating Temperature: 24° C / 75° F

Operating Temperature Range: 15° to 30° C / 59° to 86° F

Humidity: 45 to 75%, non-condensing

Barometric Pressure: 86 Kpa to 106 Kpa / 860mbar to 1060 mbar / 645mmHg to 795mmHg (torr)

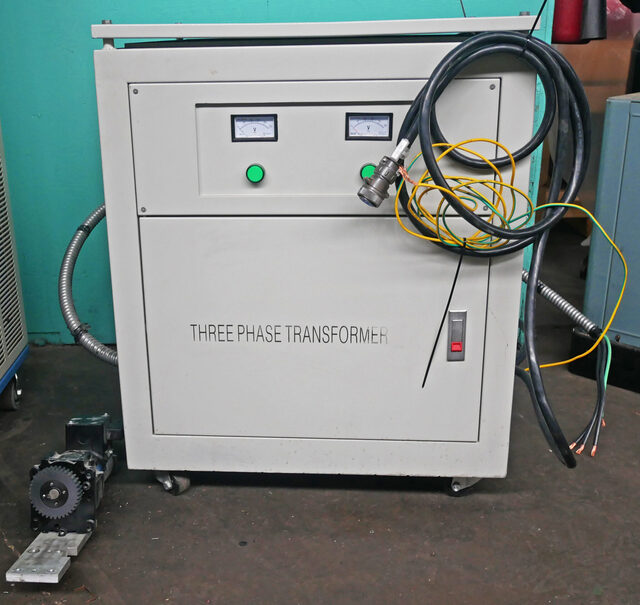

Three-Phase Dry Transformer:

Model: LTSG-45KVA

S/N: LTSG1104001

Rated Capacity: 160VA / 16 KVA

Transformer Weight: approx. 530 lbs.

Mechanical Specifications:

Shipping Weight: approx. 2,090 lbs.

FOB Our Baltimore, MD Warehouse

PLEASE NOTE: This system is being sold as-is, as-inspected with no warranty and no return privilege. There is no computer included with this system and a standard computer could not be used at this point, as the system requires not only the software, but a dongle and control card, all of which have been discontinued by the manufacturer and can no longer be purchased new
