Okuma #Genos-L300M, CNC Turning Center, 20.5" swing, 14.6" swing over cross slide, 20" centers, 11.8" diameter x 17.7" L max, 10" chuck, 12 tool, 3.15" bore, 3k RPM, 15 HP, 230 V., OSP P300L cnc, 2011

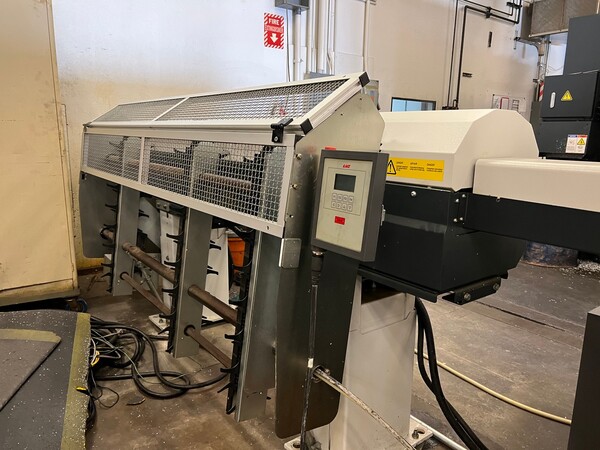

11.81" X 17.7" CNC Turning Center with Okuma OSP P300L CNC Control, LNS Move 2 Barfeeder, Live Tooling, Tool Setting Probe, Programmable Tailstock, 10" 3 - Jaw Power Chuck, 12 Position ID/OD Tool Turret, Chip Conveyor and Coolant System
GENERAL SPECIFICATIONS
Max Swing Over Slant Bed: 20.47"
Max Swing Over Cross Slide: 14.57"
Max Distance Between Centers: 20"
Maximum Cutting Diameter: 11.81"
Maximum Turning Length: 17.7"
Chuck Size: 10"
Cross Travel (X-Axis): 9.25"
Longitudinal Travel (Z-Axis): 20.47"
Rapid Traverse Rate: 787 IPM
Number of Turrets: 1

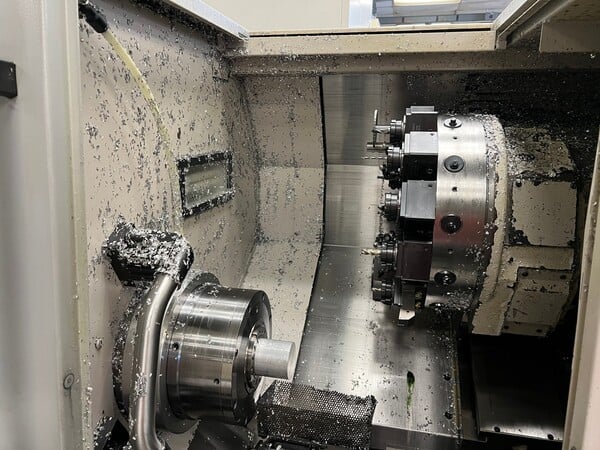

Turret Positions: 12
Spindle Nose: A2-8
Spindle Bore: 3 15"
Spindle Speed: 25 - 3000 RPM
Spindle Drive Motor: 15 HP
Milling Spindle Speed: 100-4500 RPM
Milling Spindle Motor: 9 HP
Electrical: 230/3/60
Approximate Machine Dimension: 70" X 100"
Approximate Machine Height: 68"
Approximate Machine Weight: 9000 LBS
INCLUDES: Okuma OSP P300L CNC Control, LNS Move 2 Barfeeder Live Tooling, Tool Setting Probe, Programmable Tailstock, 10" 3 - Jaw Power Chuck, 12 Position ID/OD Tool Turret, Chip Conveyor and Coolant System

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
