Mazak #Multiplex-4200 CNC Turning Center w/Gantry, 12.5" swing, 2" bar, 10.24" cutting diameter, 7"/21" Machining length, 2.4" bore, 2004

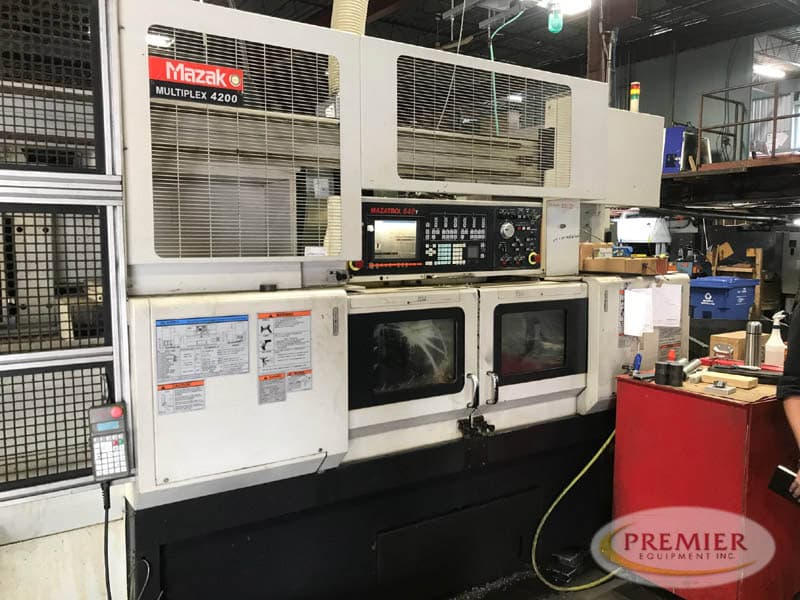

Mazak Multiplex 4200 with Gantry
CNC Turning Center
Specifications (subject to buyer verification):
Maximum Swing ……………………….. 12.5″
Standard Cutting Diameter……………… 10.24″
Maximum Bar Diameter………………….. 2.0″
Maximum Machining Length For Chuckwork….. 7.0″
Maximum Machining Length For Shaftwork….. 21.0″

MAIN SPINDLE (L&R)
Distance Between Spindle Faces:
Max.(Both Heads @ Home Position)…… 46.85″
Min…………………………….. 10.15″
Spindle Nose………………………… A2-6″
Spindle Bore………………………… 2.4″
Spindle Speed/Ranges…………………. 35-5,000 RPM/1
Spindle Horsepower (Cont/30 Mins)………. 20/30 HP (A.C.)
Spindle Torque……………………….. 258.2 ft.-lbs.

TURRET (L&R)
Type of Turrets………………………. Dodecagonal/Drum
Non-Lift
Tool Holder Shanks……………………. Modified VDI
Turret Index Time (1 Step)…………….. 0.2 sec.
Total Number of Tools…………………. 24 (12×2)
Tool Size (Turning & Facing)…………… 1″ x 1″
Tool Size (Boring Bar Max. Dia.)……….. 1-1/2″

AXIS
Travel X-Axis (L&R)…………………… 9.06″
Travel Z-Axis (L)…………………….. 17.25″
(R)…………………….. 19.37″
Rapid Traverse: X-Axis……………….. 1200 IPM
Z-Axis……………….. 1300 IPM

MACHINE
Machine Floor Space (W x L)
W/O Automation or Bar Feeder, etc…… 81.54″ x 140.6″
Machine Height……………………….. 82.3″
Total Power Required (Machine Only)…….. 77.4 KVA
Air Requirements……………………… 71 PSI / 14 CFM
Total Weight (For Machine only)………… 16,060 lbs.

Equipped With (subject to buyer verification):
Mazatrol Fusion 640T Control
EIA/ISO Option Package
PCMCIA Interface (2-Slot)
Network Interface (For LAN & Modem)
Main Spindle Motor 30 HP L&R
Spindle Speed 5000 RPM L&R
Automatic Tool Eye L&R
High Power Coolant 105 PSI / 5.3 GPM x 2
GL100F Robot
Prep Only for Work Measuring System LP2 Optical
Jorgensen Magnetic Slider Bed Conveyor
