Description
Here We Have:

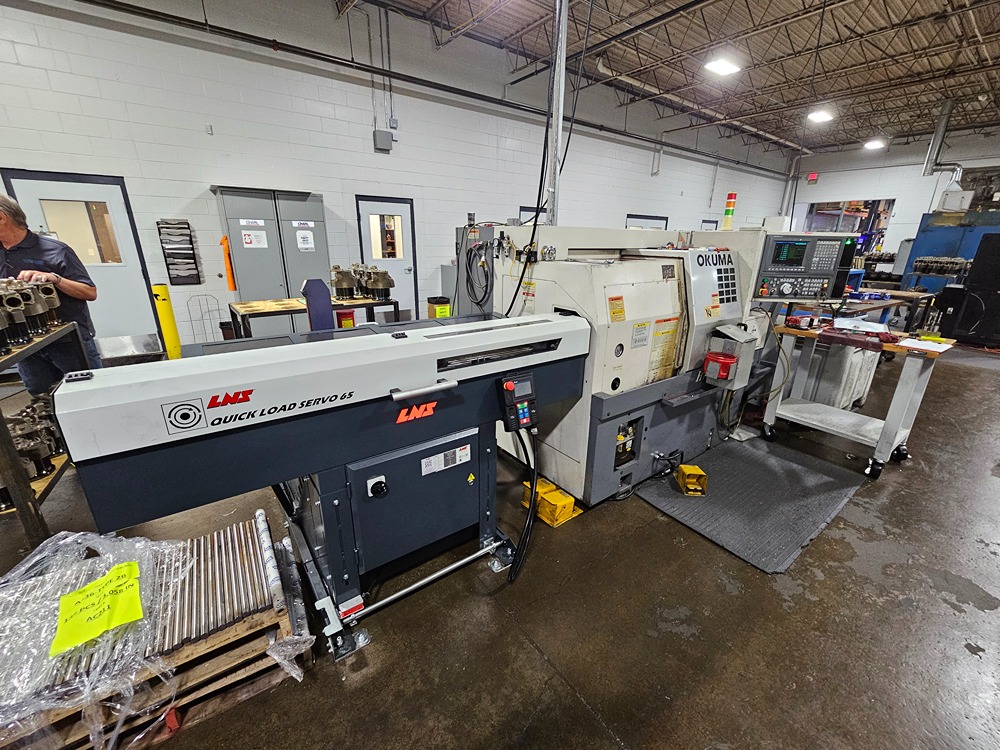

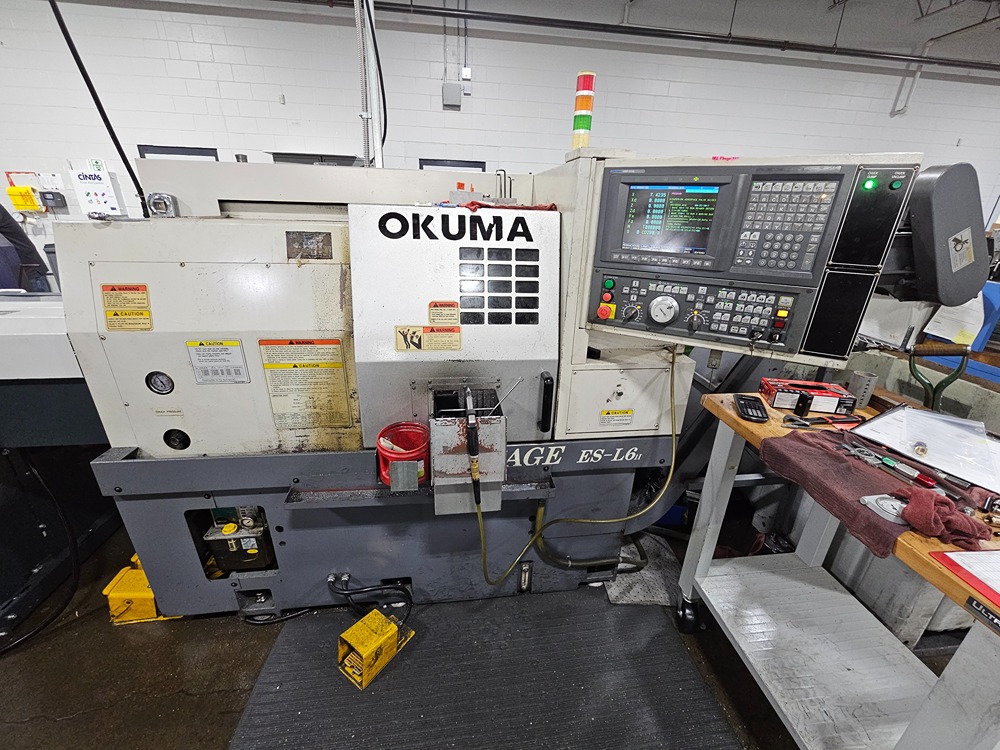

2006 Okuma 2-Axis CNC Lathe With 2024 LNS Quick Load Servo Bar Feed & Chip Conveyor
Make: Okuma
Model: Heritage ES-L6II
S/N: D0903
Year: 2006
CATALOG SPECIFICATIONS:
Swing/Carriage: 13.78”
Swing/Cross Slide: 11.81”
Max. Turning Diameter: 8.27”
Max. Turning Length: 11.81”
X Axis Travel: 6.1”
Z Axis Travel: 12.6”
Sindle Bore: 2.09”
Bar Capacity: 1.63”
Spindle Speeds: 133-6000 RPM
Rapids: 590 IPM X Axis, 787 IPM Z Axis
Spindle Nose: Type 140 Flat
Tailstock Taper: MT #4
Tailstock Travel: 3.15”
Spindle HP: 7.5 HP
EQUIPPED WITH:

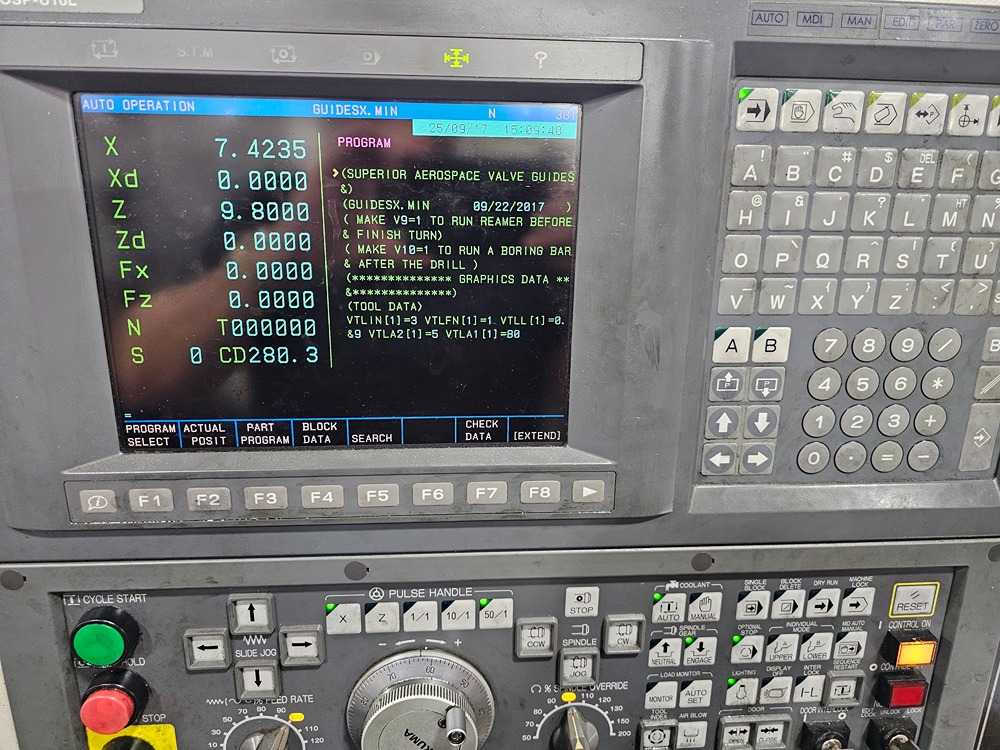

OSP -U10L CNC Control

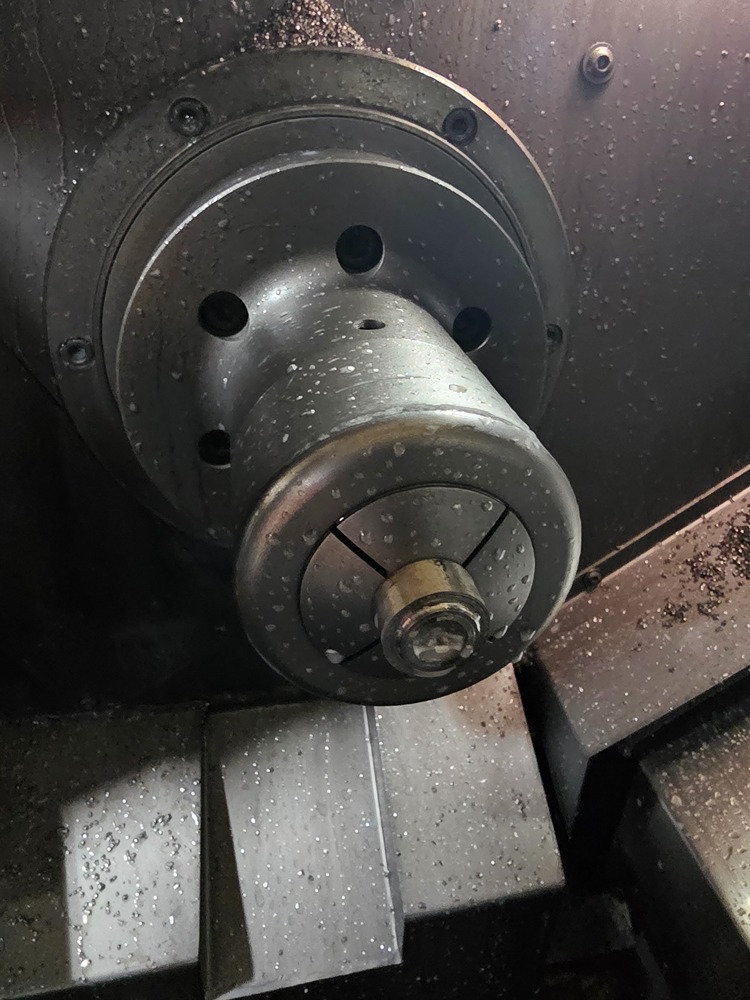

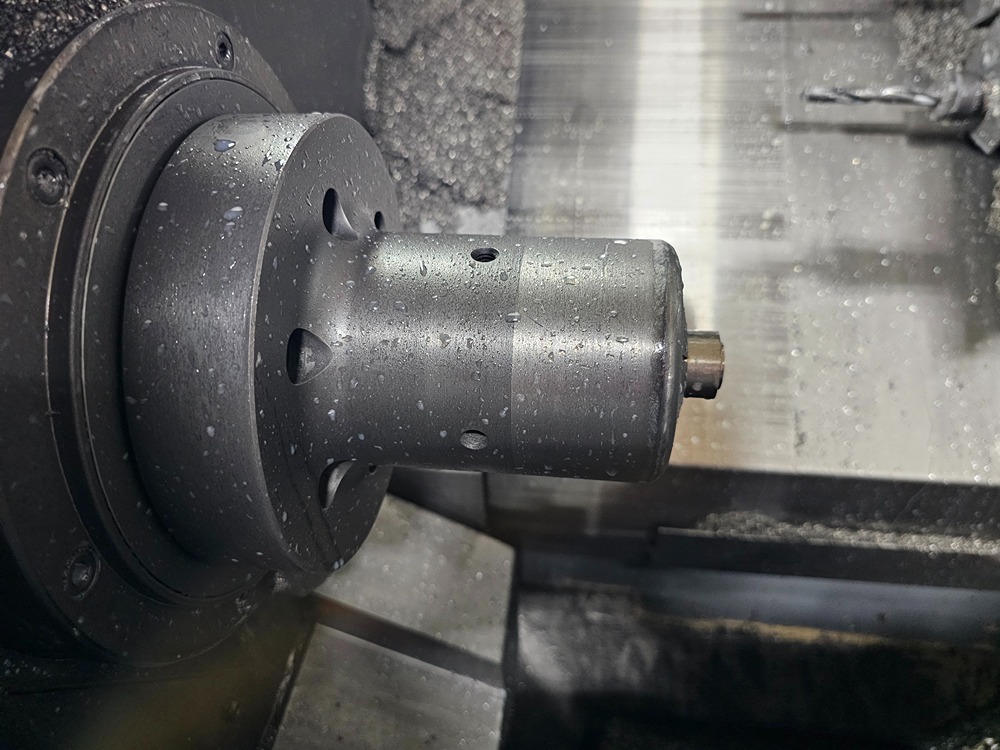

Royal 16C Collet Nose

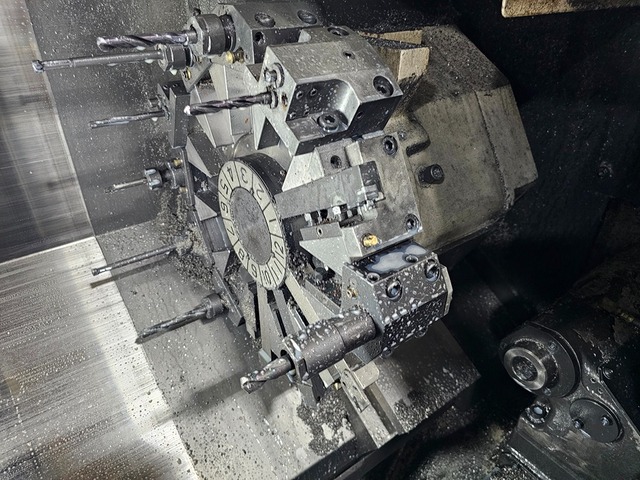

12 Position Turret

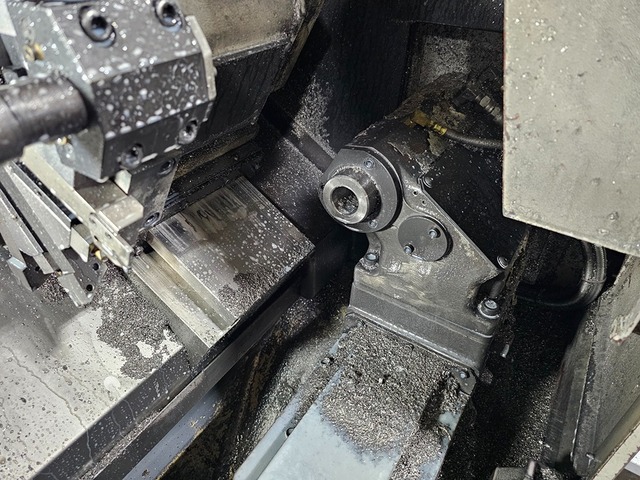

Programmable Tailstock

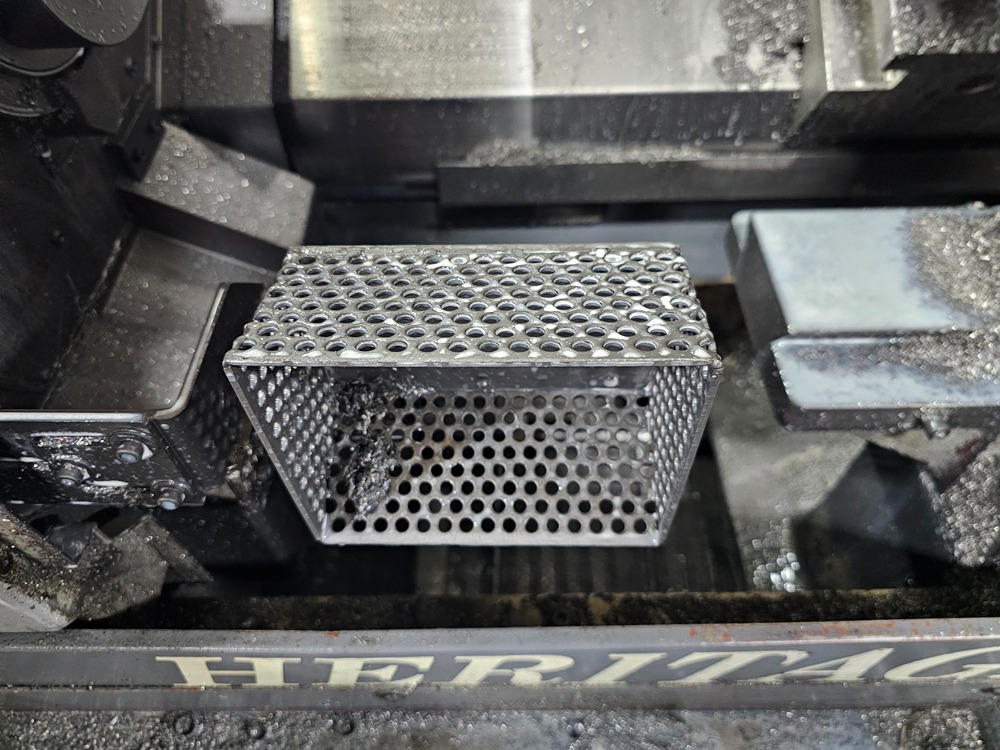

Parts Catcher
Chip Conveyor

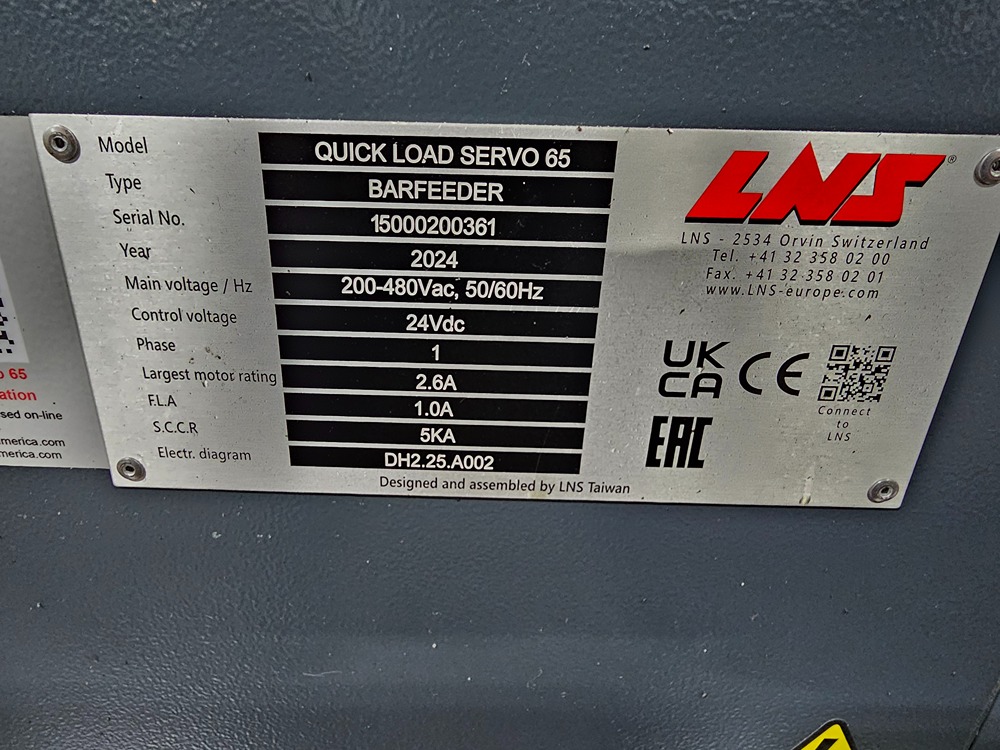

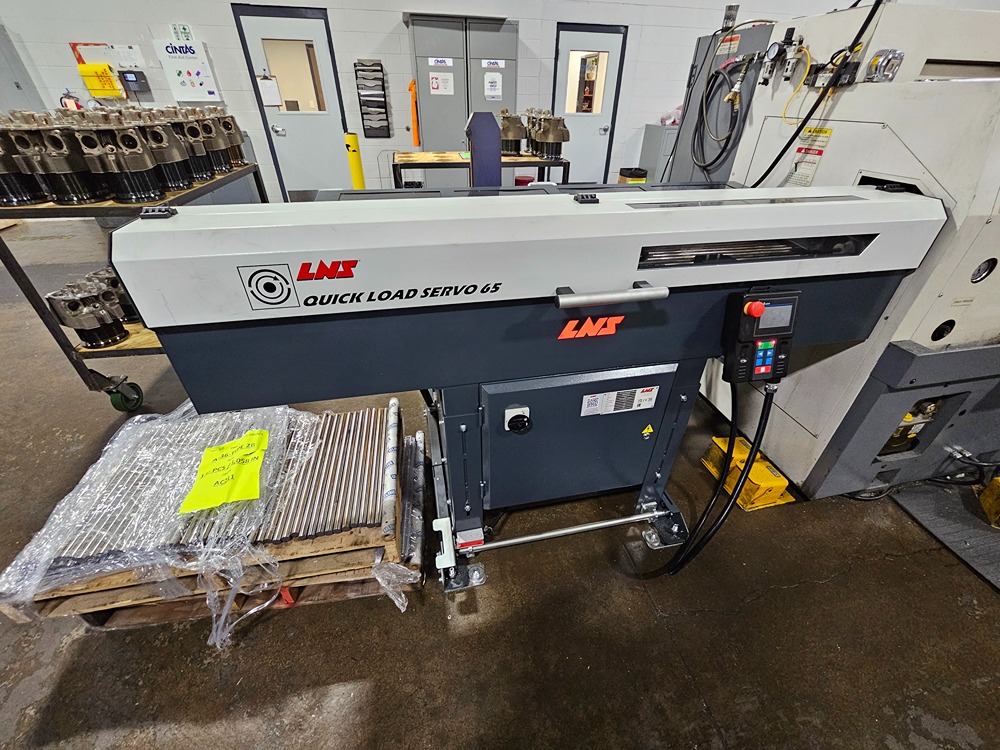

LNS Model Quick Load Servo 65 Magazine Bar Feed (*NEW 2024)
Approx. Weight: 6170 LBS.
Get Your Price from Naab Sales Corporation!
