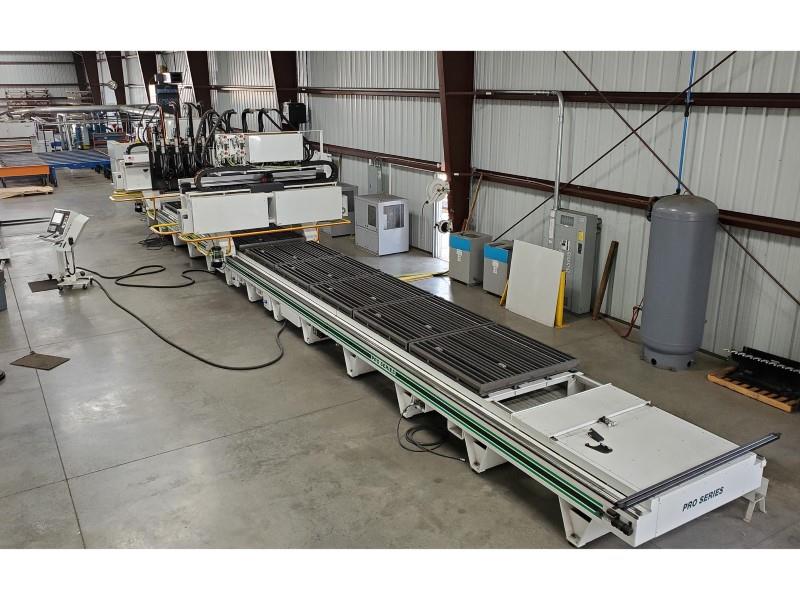

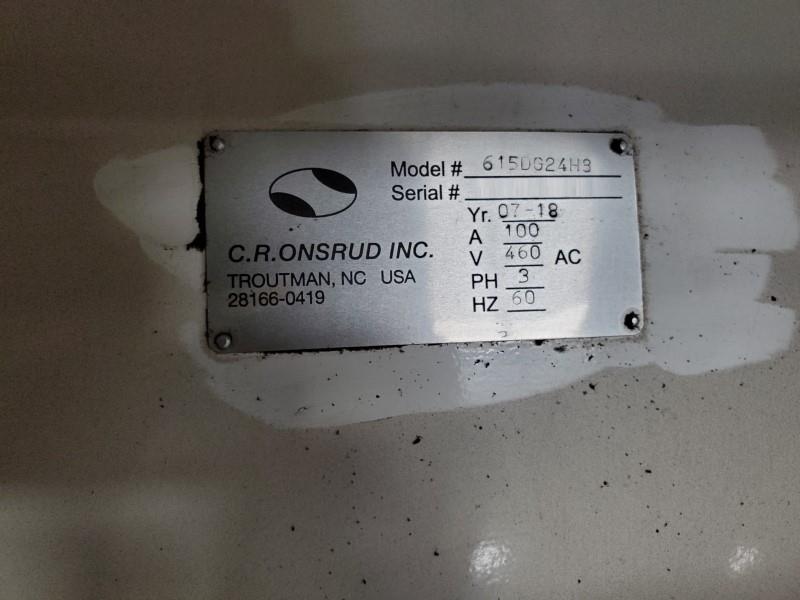

Onsrud #615DG24H8, Multiple Spindle CNC Router, dual gantry w/ 4 spindles each, 24 HP, 240000 RPM, 5' x 51' table, 2018

$474,050 USD

Request Formal Quote

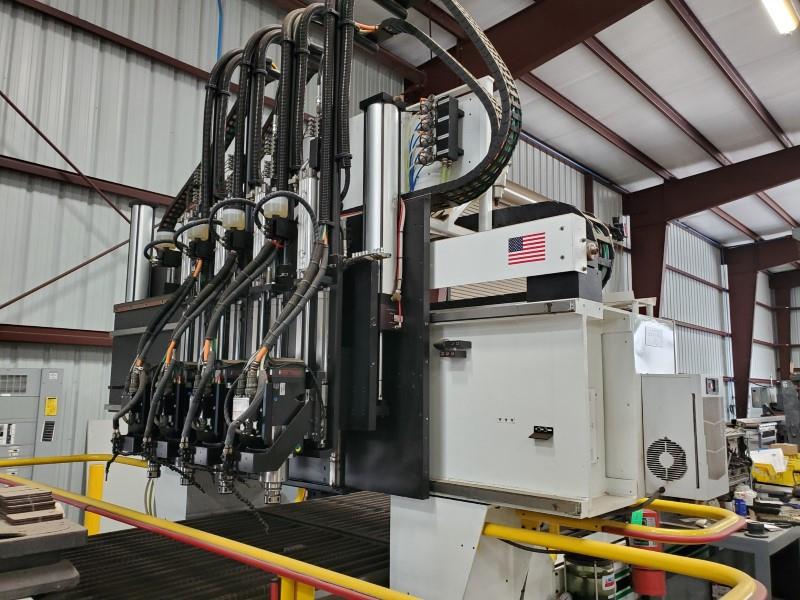

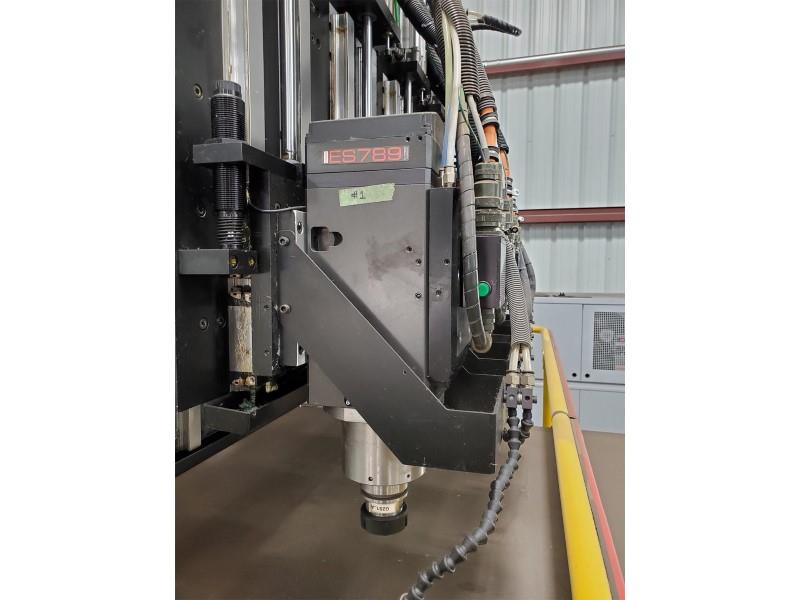

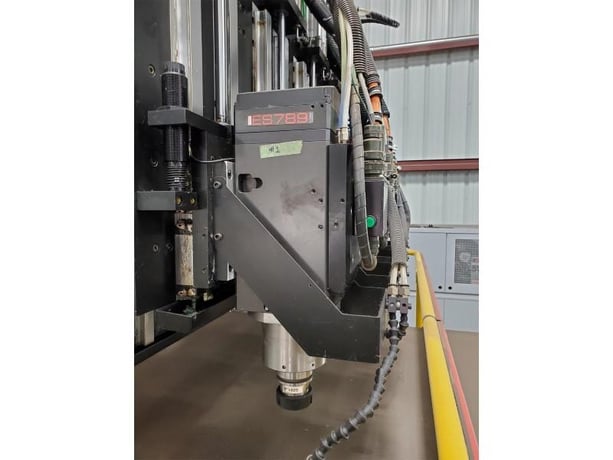

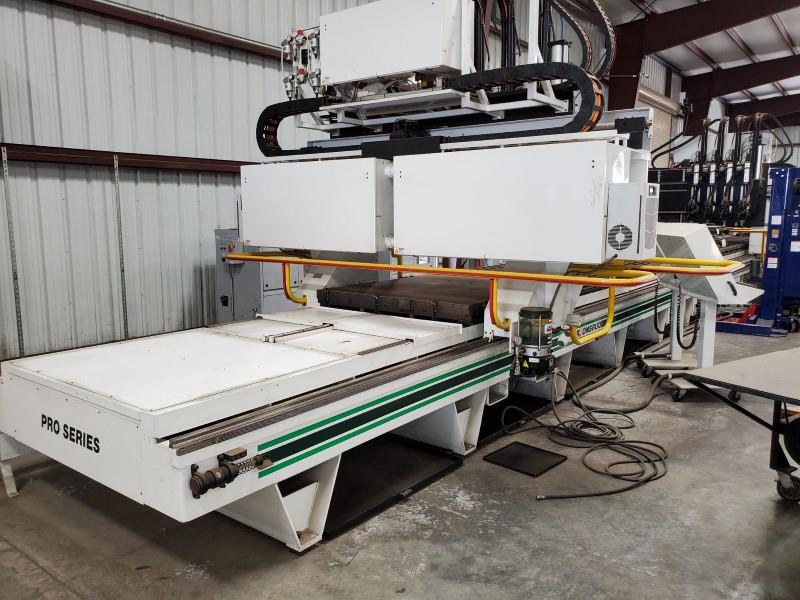

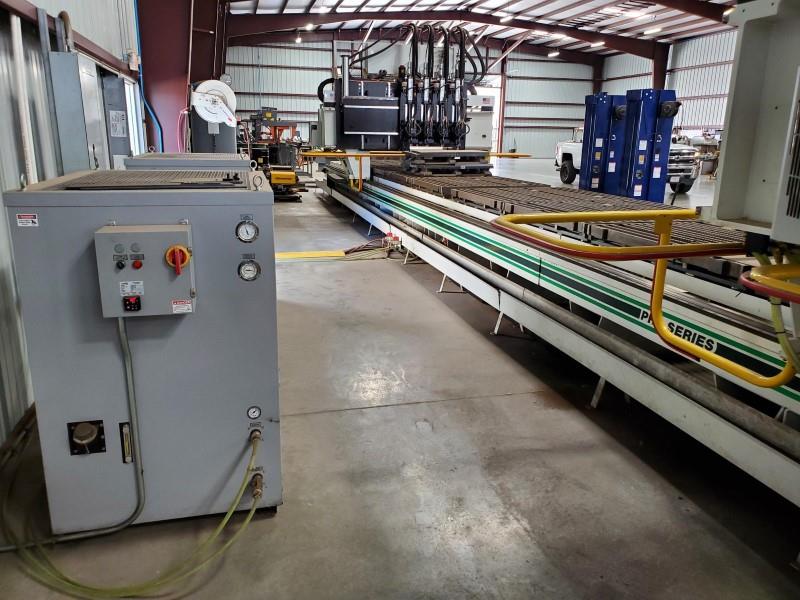

C.R ONSRUD - Pro Series 615DG24H8 "Dual Gantry Series" CNC router with ATC Multi spindles:5' X 51' working table with Multi spindles and Dual Gantry aluminum non-vacuum table. -- Features:Dual Gantry each with (4) spindles, each gantry has its own 12 position hide away tool changer. -- Thermal Heat Treated:Stress Relieved, & Normalized One-Piece, Steel Frame Base, & Thermal Heat Treated, Stress Relieved, & Normalized Steel Bridge; Dual Support, Dual Drive, Moving Gantry, Fixed Table Design with standard 2,500"; per minute machining speed, full 3-D capability, precision ball screw drives for Z & Y axis, case-hardened, precision ground, helical rack & pinion drives for X axis with forced-air continuous rack cleansing system & anti-contamination shielding, precision linear profile guide ways, centralized manual lubrication system, 11-inches of Z stroke - 14"; under bridge clearance & 11"; Z axis stroke.. -- Spindles:Total of (8), (4) per gantry, 18kW, 24HP "QTC" – 24,000 RPM Liquid cooled Long Nose Spindle w/ HSK-63F Spindle Taper, fully programmable & reversible, variable speed, liquid-cooled, quick-change spindle, capable of routing, drilling and ridged tapping, programmable feed rates w/override capability supported with a 12 hideaway tool changer on each gantry total of 24, Automatic Oil Mist Lubricator for each spindle. -- Spindle adjustments:Servo Adjustment of Spindle Center Distance. -- Controls:(2) FANUC 31i-B5 Machine Controller With Integrated PC Interface one for each gantry Fanuc 31i-B5 is Industrial CNC Machine Controller with Fanuc Panel-i HMI w/High Res touch screen. Includes: Network capability, adds Larger FANUC Digital Drives & Servos. Includes Full remote diagnostic troubleshooting capabilities. -- Complete with:Assorted tool holders, centralized grease lubrication on Multi-Head, 63kVA Isolation Transformer, FANUC MPG Handheld Remote Jog Pendant, and manuals. -- Machine floor space required 64' by 14' 5"
