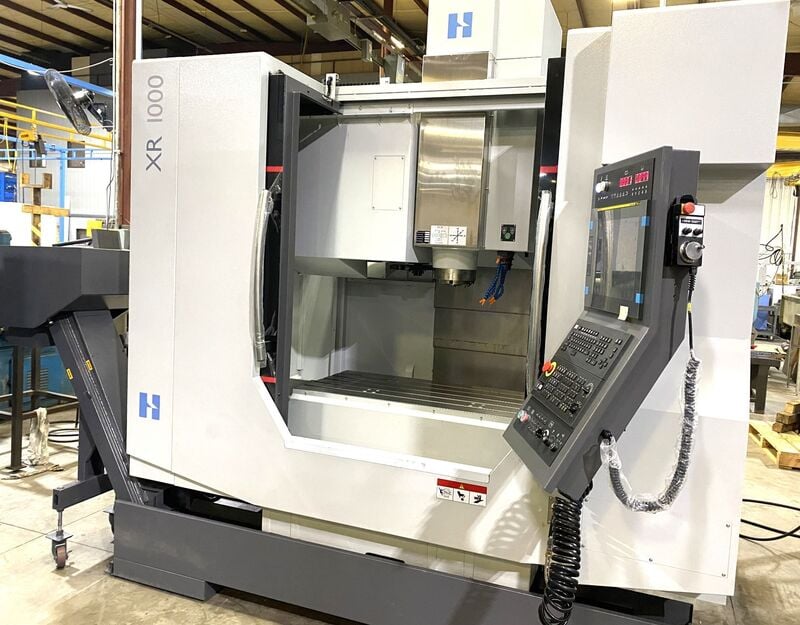

Bridgeport #XR-1000, 4-Axis CNC Vertical Machining Center, 40" X, 24" Y, 24" Z, 51.18" x 23.6" Table, 30 HP, 12000 RPM, #40 Taper, 30 Tools, New, 2023

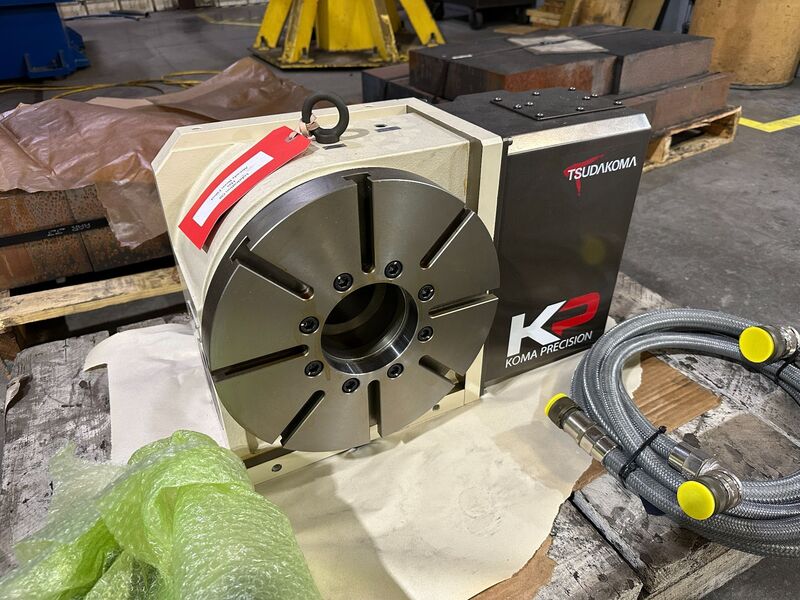

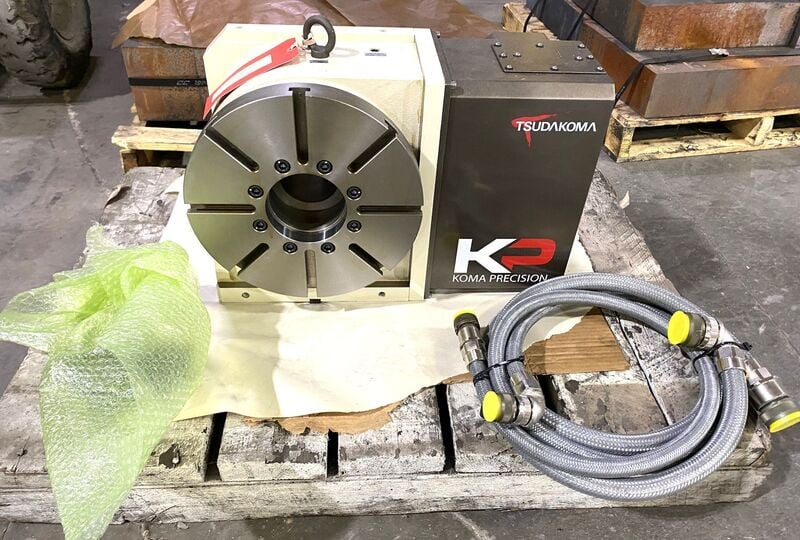

BRAND NEW BRIDGEPORT XR1000 4-AXIS CNC VERTICAL MACHINING CENTER, UNUSED, TSUDAKOMA 4TH AXIS ROTARY TABLE
XR1000
Travel (X, Y, Z) 40 x 24 x 24 in
1020 x 610 x 610mm
Table Working Surface 51.18 x 23.6 in
1300 x 600 mm
Spindle Type CT40 BigPlus
Spindle Power 30 HP
22.37 kW
Spindle 12,000 RPM (DDS) )
Feedrate 787 in/min
Spindle Taper No. 40
No. of Tools 30 standard; 48/60 optional
CNC Control FANUC Oi-MF+
Machine Size (LxWxH) 144.21 x 120 x 40.55 in
3663 x 3048 x 1030mm
AICC with 200 block look ahead
Thermal Compensation
12K Air Oil Direct Drive Spindle
Big Plus CAT 40
12,000-rpm Spindle Speed
CT40 or BT40 Taper Spindles
BIG-PLUS Face Taper Spindle
High-Retention Draw Bar
Thermal Compensation
Chip Conveyor with Chip Washdown
Cutter Air Blast
Rigid Tapping
4th Axis Pre-Wiring

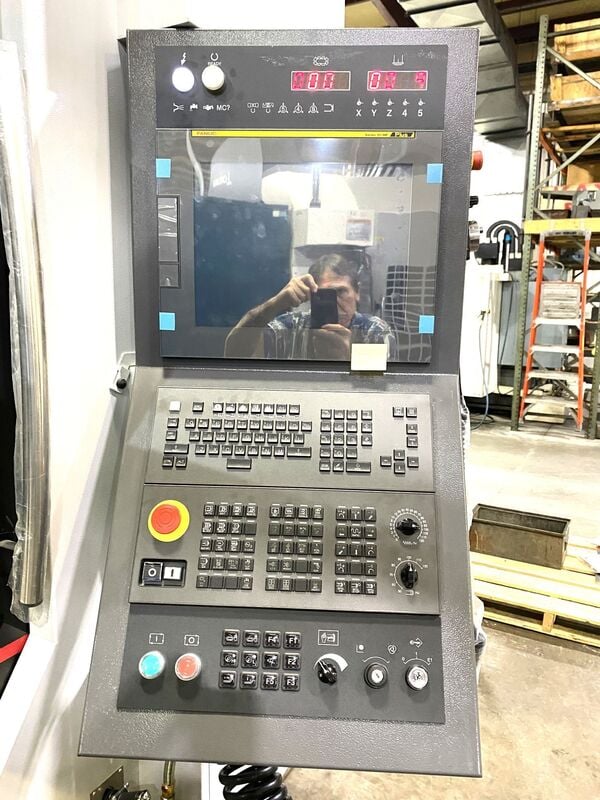

FANUC 0iMF-PLUS
15 LCD Color Display
Programmable Data Input
PCMCIA Card Slot
Workpiece Coordinate System
Manual Pulse Generator (Handwheel)
Coordinate System Rotation
Rigid Tapping
Tool Life Management
Tool Length compensation
Background Editing
Ethernet Ready/ RS232 Ready/ USB Slot
Additional Workpiece Coordinate System
Manual Guide i
Whether youre machining simple workpieces, quality molds and dies, or complex prismatic parts, Bridgeport XR- Series machining centers are ideal for your operation. Bridgeport XR machines easily satisfy the most demanding production and precision component machining requirements in the aerospace, automotive, mold and tool making, power engineering and oil/gas sectors, and more. When more X-axis travel is needed, then the XR1000 satisfies. These robust machines offer exceptional stiffness and rigidity to deliver outstanding results in the most demanding production environments. They are particularly well-suited to machine exotic metals, such as Titanium and Nimonics (nickle- based alloys). To further increase productivity, XR-Series VMCs are configured for 4-axis machining with an optional interface and rotary table.
