6 Results
Italpresse #GL/190-PS, hydraulic hot press, 500 ton est., 5-daylight, 75" x 51" platens, thermal oil heated, 2000
Revelation Machinery | Chicago, IL
Category: Woodworking Hot Presses
Seller: Revelation Machinery
Location: Chicago, IL
Mfr: Italpresse
Model: GL/190-PS
Year: 2000
Make: Italpresse, Model: GL/190‑PS, Year: 2000, Machine Location: Upon Request, Application: High‑temperature hydraulic hot press for wood, composite, and similar panel/forming applications, EST TONNAGE IS 500, Plate 75 1/2″ long 23 1/2 ” wide, 4 cylinders 101/2″ wide, Heating system: ...more
Italpresse #GL/190-PS, High Temp Hot Press, 74-3/4" x 23-1/2" Platens, 800 Ton, 300 Deg C (572 F), 4 Cylinders, 12-3/4" Stroke, 2000
Ex-Factory | Charlotte, NC
Category: Woodworking Hot Presses
Seller: Ex-Factory
Location: Charlotte, NC
Mfr: Italpresse
Model: GL/190-PS
Year: 2000
ITALPRESSE - GL/190-PS: High Temperature Hot PressHeavy hydraulic Press for: Forming, compression molding, stamping of wooden, and non-wooden materials & SHeavy construction weld-free steel ring frame; CNC machined.Top, down platen movement.Platen Dimensions: 1,900 mm (74-3/4") Long x 600 mm (23-1/2") Wide.Solid ...more

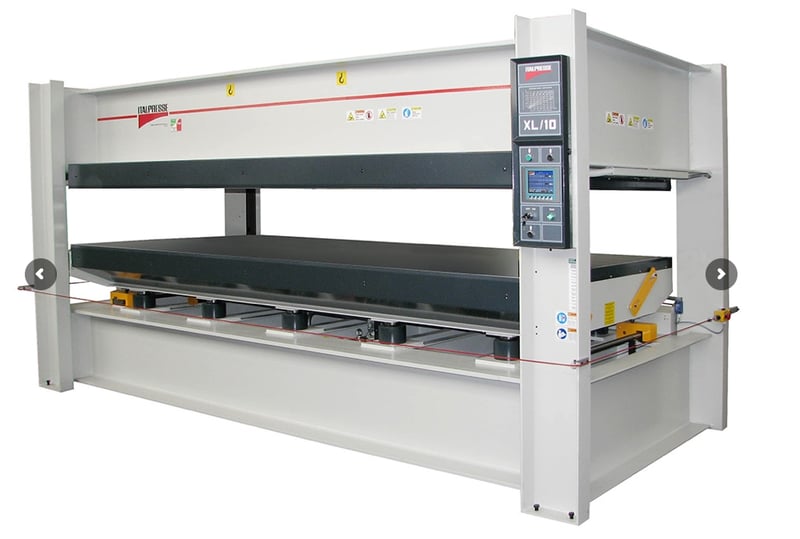

Italpresse #XL/10-38-16, PMBO Hydraulic Hot Press, 149" x 63" platens, 209 Ton, 15-3/4" stroke, 10 cyl, 4 HP, new
RT Machine | Hughesville, PA
Category: Woodworking Hot Presses
Seller: RT Machine
Location: Hughesville, PA
Mfr: Italpresse
Model: XL/10-38-16
Italpresse Model XL/10 38-16 PMBO Hydraulic Hot Press Platen dimensions: 3,800 x 1,600 mm (149 x 63 in.) Number of daylights: 1 Total cylinder stroke: 400 mm (15-3/4 in.) Number of pressing cylinders: 10 Diameter of pressing cylinders: 85mm each Total thrust: 190 metric tons (418,878 lbs) Max. laminating pressure on ...more
Italpresse #XL/6-25-13, PABO Hydraulic Hot Press, 98" x 51" platens, 132 Ton, 15-3/4" stroke, 6 cyl, 3 HP, new
RT Machine | Hughesville, PA
Category: Woodworking Hot Presses
Seller: RT Machine
Location: Hughesville, PA
Mfr: Italpresse
Model: XL/6-25-13
Italpresse Model XL/6 25-13 PABO Hydraulic Hot Press Platen dimensions: 2,500 x 1,300 mm (98 x 51 in.) Number of daylights: 1 Total cylinder stroke: 400 mm (15-3/4 in.) Number of pressing cylinders: 6 Total thrust: 120 metric tons (264,554 lbs) Max. laminating pressure: 4.56 kg/cm2 (66 psi) Hydraulic pump: 2.1 kw (3 ...more

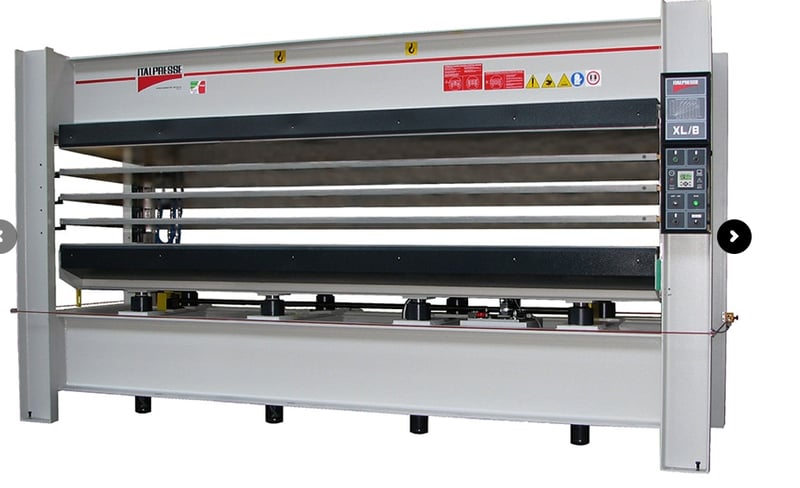

Italpresse #XL/8-33-13, PABO Hydraulic Hot Press, 126" x 63" platens, 176 Ton, 15-3/4" stroke, 8 cyl, 4 HP, new
RT Machine | Hughesville, PA
Category: Woodworking Hot Presses
Seller: RT Machine
Location: Hughesville, PA
Mfr: Italpresse
Model: XL/8-33-13
Italpresse Model XL/8 33-13 PABO Platen dimensions: 3,300 x 1,300 mm (126 x 63 in.) Number of daylights: 1 Total cylinder stroke: 400 mm (15-3/4" in.) Number of pressing cylinders: 8 Total thrust: 160 metric tons (352,739 lbs) Max. laminating pressure 100% OF PLATEN AREA 3.3 kg/cm2 (47 psi) Max. laminating pressure ...more
Get email updates for newly added Woodworking Hot Presses
Woodworking hot presses are machines used to bond layers of wood or veneer with heat and pressure, creating strong, durable panels. These machines ensure uniform curing and high-quality finishes through adjustable temperature controls and hydraulic systems. Hot presses are essential in woodworking for efficient and consistent lamination, making them vital for producing doors, panels, and other laminated products.
Italpresse #XL8-32-16, PABO Hydraulic Hot Press, 126" x 63" platens, 176 Ton, 15-3/4" stroke, 8 cyl, 4 HP, new
RT Machine | Hughesville, PA
Category: Woodworking Hot Presses
Seller: RT Machine
Location: Hughesville, PA
Mfr: Italpresse
Model: XL8-32-16
Italpresse Model XL8 32-16 PABO Hydraulic Hot Press Platen dimensions: 3,200 x 1,600 mm (126 x 63 in.) Number of daylights: 1 Total cylinder stroke: 400 mm (15-3/4 in.) Number of pressing cylinders: 8 Total thrust: 160 metric tons (176,000 lbs) Max. laminating pressure: 3.9 kg/cm2 (55 psi) Hydraulic pump: 3 kw (4 hp) ...more
