12 Results
20" x 120" Lehmann #20-8, 7" spdl bore, taper, air kick outs, 555 RPM, front & rear chucks, 25 HP, steady rest, tool post
HTR Global Inc. | Houston, TX
Category: Oil Field and Hollow Spindle Lathes
Seller: HTR Global Inc.
Location: Houston, TX
Mfr: Lehmann
Model: 20-8
LEHMANN HOLLOW SPINDLE OIL COUNTRY ENGINE LATHE :, Model 20--8, Serial number 200715--180, Swing over bed 20 ", Swing over cross slide 11 ", Distance between center 120 ", Tool post Aloris type, 2 sided, Bed width 16", Chuck F&R 18" 4-jaw chucks with 7" bore, Spindle bore 7", Spindle step 16 steps, Spindle speed ...more
27" x 120" Lehmann #2516, oil field & hollow spindle lathe, automatic threading, 4-jaw chucks
Harris Machine Tools, Inc. | Houston, TX
Category: Oil Field and Hollow Spindle Lathes
Seller: Harris Machine Tools, Inc.
Location: Houston, TX
Mfr: Lehmann
Model: 2516
Swing: 27.5" inches, Centers: 120" inches, Spindle Bore: 12" inches, Power: 30 horsepower, RPM: 793, CNC Control: yes, Weight: 14000 pounds, SWING OVER BED: 27.5", SWING OVER CARRIAGE: 18.5", DISTANCE BETWEEN CENTERS: 120", SPINDLE SPEED RANGES: 16, SPINDLE SPEEDS: 10 - 397, RPMSPINDLE MOTOR: 30 HP, SPINDLE BORE: 12" ...more
27" x 226" Axelson #A-20, hollow spindle engine lathe, 19-1/2" swing over cross slide, 8-5/8" spindle hole, 4-jaw 20" chuck, #5MT, 20 HP, 1954
N & R Machine Sales | Navasota, TX
Category: Oil Field and Hollow Spindle Lathes
Seller: N & R Machine Sales
Location: Navasota, TX
Mfr: Axelson
Model: A-20
Year: 1954
27.5" x 120" Lehmann #2516, hollow spindle engine lathe, 4-jaw front & rear chuck, 12" hole
Thoroughbred Machinery Co. | Houston, TX
Category: Oil Field and Hollow Spindle Lathes
Seller: Thoroughbred Machinery Co.
Location: Houston, TX
Mfr: Lehmann
Model: 2516
LEHMANN MODEL 2516 HOLLOWSPINDLE ENGINE LATHE Late Model ( Ballscrew on Cross-Slide ) ( Linear guide ways on Taper ), SWING OVER BED: 27.5", SWING OVER CARRIAGE: 18.5", DISTANCE BETWEEN CENTERS: 120", SPINDLE SPEED RANGES: 16, SPINDLE SPEEDS: 10 - 397 RPM, FORWARD SPEEDS: 10, 13, 16, 21, 29, 35, 44, 56, 75, 93, 115 ...more

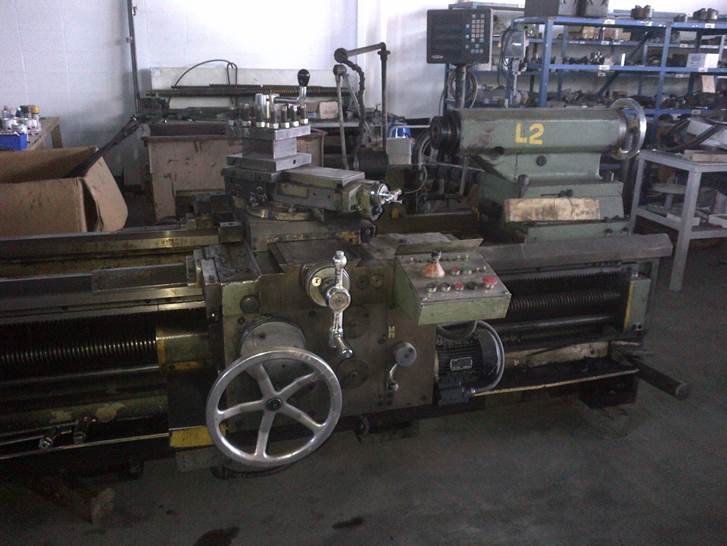

32" x 80" Stanko #1A983-3, 12" hollow spindle lathe
Esco Machine & Supply | Sugar Land, TX
Category: Oil Field and Hollow Spindle Lathes
Seller: Esco Machine & Supply
Location: Sugar Land, TX
Mfr: Stanko
Model: 1A983-3
Item: 1305GSUCE/UDF.FG, Stanko 32" x 80" ″ (840mm x 2,000mm) 12.2" ″ Hollow Spindle Lathe Model 1A983, Condition: Good, Spindle hole diameter, 300mm (12", Max. pipe threading diameter, 299mm, Min. pipe threading diameter, 73mm, Max. work piece diameter, 840mm, Distance between centers, 2000mm (80" ...more
Get email updates for newly added Oil Field and Hollow Spindle Lathes
Oil Field and Hollow Spindle Lathes (also known as oilfield lathes or deep hole lathes) are specialized machines designed for machining large and long cylindrical parts, often with hollow spindles for handling long, heavy materials like pipes and rods. Commonly used in oil and gas, aerospace, and heavy machinery industries, they are ideal for producing components such as drill pipes and shafts. These lathes are essential for precise machining of large, complex parts with tight tolerances.
34" x 100" Broadbent Stanley #3380, 30" 4-jaw chuck, 16.25" spindle bore, 30 HP, 350 RPM, #5MT, 2-Axis digital read out, 1980, #L410628
N & R Machine Sales | Navasota, TX
Category: Oil Field and Hollow Spindle Lathes
Seller: N & R Machine Sales
Location: Navasota, TX
Mfr: Broadbent
Model: 3380
Year: 1980
Swing Over Bed Ways 34", Swing Over Cross Slide 20", Swing In Gap 56", Length Of Gap 17", Center Distance 100", Spindle Hole 16-1/4", Spindle Speeds 4 To 350 Rpm's, Chuck Size With 16-1/4" Hole Front 30" 4 - Jaw, Feeds Cross.050 To 1.575 IPR, Feeds Long.101 To 3.101 IPR, Threads Inch 4 To 96 TPI, Threads Metric 1 ...more

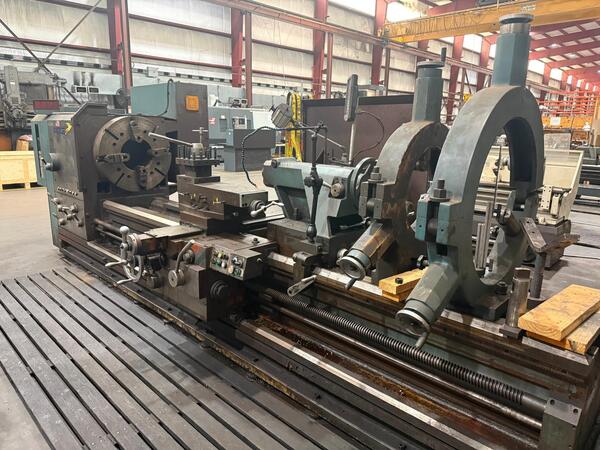

35" x 120" Vantage #PA-35, Hollow Spindle Oil Country Lathe, 12.5" spindle bore, 300 RPM, 2006
Harris Machine Tools, Inc. | Houston, TX
Category: Oil Field and Hollow Spindle Lathes
Seller: Harris Machine Tools, Inc.
Location: Houston, TX
Mfr: Vantage
Model: PA-35
Year: 2006
Hollow Spindle Oil Country Lathe, Swing over bed: 35", Swing over cross slide: 24", Distance Between Centers: 120", Spindle Bore: 12.5", Spindle speed: 300 RPM Max, Inch / Metric Threading, Taper Attachment, Front and Rear 4 Jaw Chucks, 2 Speed Tailstock, (2) Steady Rests, 440 VOLT, NEW 2006.
36.6" x 118" Poreba #TRP-90, hollow spindle, 12.5" hole, taper attach, tailstock, Steady Rest, inch/metric threading
HTR Global Inc. | Houston, TX
Category: Oil Field and Hollow Spindle Lathes
Seller: HTR Global Inc.
Location: Houston, TX
Mfr: Poreba
Model: TRP-90
POREBA Hollow Spindle Engine Lathe :, Model TRP-90, Serial number SN: 7402-06-09018-05, Maximum Swing Over Bed ways 36.6", Maximum Swing Over Carriage 24.8", Gap, Length of 25", Maximum Swing In Gap 45.2", Spindle Hole 12.59", Distance Between Centers 118", Spindle Speeds 3-315 RPM, Spindle Nose A 2-20", Weight ...more
42" x 120" Lansing #G-42-16.5, 16.5" hollow spindle engine lathe, twin 40" chucks, 1986
Sunwest Trading Group | Dallas, TX
Category: Oil Field and Hollow Spindle Lathes
Seller: Sunwest Trading Group
Location: Dallas, TX
Mfr: Lansing
Model: G-42-16.5
Year: 1986
53" x 120" Vantage #PA-35, Oil Country Lathe, 26.4" cross travel, 22" bed width, 9" spindle bore, 30 HP, 428 RPM, 2006
Harris Machine Tools, Inc. | Houston, TX
Category: Oil Field and Hollow Spindle Lathes
Seller: Harris Machine Tools, Inc.
Location: Houston, TX
Mfr: Vantage
Model: PA-35
Year: 2006
Swing over Bed: 35", Swing over Cross: 24", Swing over Gap: 53", Gap Width from Headstock: 24", Distance between Centers: 120", Bed Width: 22", HEADSTOCK, Spindle Nose: A2-15, Spindle Bore: 9", Spindle Step: 18 Steps, Spindle Speed: 4 - 428 RPM, Main Spindle Motor: 30HP, CARRIAGE, Cross Slide Travel: 26.4", Compound ...more
CRI Dan #HT24, CNC hollow spindle Oil Counbtry lathe, Fanu Control, front & rear chucks, 24" bore, 1989
Harris Machine Tools, Inc. | Houston, TX
Category: Oil Field and Hollow Spindle Lathes
Seller: Harris Machine Tools, Inc.
Location: Houston, TX
Mfr: Cri
Model: HT24
Year: 1989
Front & Rear Chucks, Extended Stroke, Front Chuck is self-centering.
Weiler #E90, Oil country hollow spindle CNC lathe, 14" bore, 120" cc, 4-jaw 32" chuck, mint, 2007
Harris Machine Tools, Inc. | Houston, TX
Category: Oil Field and Hollow Spindle Lathes
Seller: Harris Machine Tools, Inc.
Location: Houston, TX
Mfr: Weiler
Model: E90
Year: 2007
CNC Control: yes, Type of CNC Control: WEILER D3 Generation Controller, Chuck Size: 32" inches, Swing: 36" inches, Center Distance: 120" inches, Bar Capacity: 14" inches, Spindle Bore: 14" inches, Z Axis Travel: 120" inches, Spindle Speed (RPM): 500, Main Motor: 60 HP, Tailstock: yes, Power: 60 horsepower, # Axis: 2.
