24" x 120" x 17" D The Challenge Manufacturing Co., layout table
Vander Ziel Machinery Sales | Alto, MI
Category: Layout Tables
Seller: Vander Ziel Machinery Sales
Location: Alto, MI
Mfr: The Challenge Manufacturing
The Challenge Manufacturing Co. Layout Table 24″x120″x17″ deep, Asset # 17220.
35" x 216" Cast Iron T-slotted work table
Peterson Machinery Sales | Casa Grande, AZ
Category: Layout Tables
Seller: Peterson Machinery Sales
Location: Casa Grande, AZ
FOB.Casa Grande, AZ.
36" x 36" Portage, Rotary Layout Machine
G-2000 | Toledo, OH
Category: Layout Tables
Seller: G-2000
Location: Toledo, OH
Mfr: Portage
MODEL: A, SERIAL: 50664, 36" X 36" TABLE, Machine Type.Layout Machines Manufacturer.PORTAGE Model.N/A Year.N/A Condition.Used.
40" x 42" x 6" Numerex, granite inspection table
G-2000 | Toledo, OH
Category: Layout Tables
Seller: G-2000
Location: Toledo, OH
Mfr: Numerex
WIDTH.: 40", LENGTH.: 42", THICKNESS.: 6", Machine Type.Tables, Granite Manufacturer.NUMEREX Model.N/A Year.N/A Condition.Used.
43-1/2" x 59" x 4" T-slotted steel layout plate
Yoder Machinery Sales | Holland, OH
Category: Layout Tables
Seller: Yoder Machinery Sales
Location: Holland, OH
LENGTH OF PLATE. 59", WIDTH OF PLATE. 43-1/2", PLATE HEIGHT. 4", LONGTUDINAL T SLOTS. 5, CROSS T SLOTS. 1, T SLOT CENTERS. 6", T SLOT WIDTH AT TOP. 1", T SLOT DEPTH. 1-1/2", T SLOT WIDTH AT BOTTOM. 2".
Get email updates for newly added Layout Tables
Layout Tables (also known as layout inspection tables or surface plates) are flat, durable surfaces used for measuring, marking, and inspecting workpieces during manufacturing processes. Commonly used in industries like metalworking, automotive, and aerospace, these tables provide a stable reference for precise layout work and quality checks. Layout tables ensure accuracy and consistency, making them essential for high-precision machining and assembly tasks.
45" x 36" x 6.5" Microflat Black Granite Layout Table
G-2000 | Toledo, OH
Category: Layout Tables
Seller: G-2000
Location: Toledo, OH
Machine Type.Tables, Granite Manufacturer.N/A Model.N/A Year.N/A Condition.Used.
48" x 96" x 3/4" Layout Table, steel
Wheeler Machinery Sales | Pomona, CA
Category: Layout Tables
Seller: Wheeler Machinery Sales
Location: Pomona, CA
3/4" Thick Steel Layout Table 4' x 8' #7825 #1.
48" x 120" x 6" T-slotted layout plate with steel stand
Yoder Machinery Sales | Holland, OH
Category: Layout Tables
Seller: Yoder Machinery Sales
Location: Holland, OH
LENGTH OF PLATE. 120", WIDTH OF PLATE. 48", PLATE THICKNESS. 6", NUMBER OF CROSS T SLOT. 9, NUMBER OF LONGITUDINAL T SLOT. 3, CENTER DISTANCE BETWEEN SLOTS. 12", WIDTH OF T SLOTS. 3/4", HEIGHT OF T SLOTS. 1-5/8", WIDTH OF T SLOTS AT BOTTOM. 1-1/2", LEVELERS, SCREW TYPE ON LEGS. 12.
48" x 144" x 7" Bay Cast/Level-Tite Bay Cast Plate, T-Slotted, nice
C.W. Wood Machinery Inc | Cincinnati, OH
Category: Layout Tables
Seller: C.W. Wood Machinery Inc
Location: Cincinnati, OH
Mfr: Bay Cast
BAY CAST TECHNOLOGIES/LEVEL TITE SURFACE PLATE, Width: 48", Length" 144", Thickness: 7", Number Of T-Slots: 4, F.O.B. Cincinnati, Ohio, ALL SUBJECT TO VERIFICATION BY PURCHASER.
48" x 240" Precision Layout Table with Stands
Peterson Machinery Sales | Casa Grande, AZ
Category: Layout Tables
Seller: Peterson Machinery Sales
Location: Casa Grande, AZ
Mfr: Precision
Condition Used Stock Number 3845.
48" x 288" Precision Layout Table with Stands
Peterson Machinery Sales | Casa Grande, AZ
Category: Layout Tables
Seller: Peterson Machinery Sales
Location: Casa Grande, AZ
Mfr: Precision
Condition Used Stock Number 3846.
JUST ADDED!
48" x 360" ALT #Lightning-Rail, Layout Table, 1700 IPM, 840 Watts Motors
Machine Tool Technologies | Milwaukee, WI
Category: Layout Tables
Seller: Machine Tool Technologies
Location: Milwaukee, WI
Mfr: Alt
Spec, ALT LIGHTNING RAIL.
49" x 190" x 6" Portage, slotted cast iron construction layout table
Yoder Machinery Sales | Holland, OH
Category: Layout Tables
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Portage
LENGTH OF PLATE. 190", WIDTH OF PLATE. 48", THICKNESS OF PLATE. 5-3/4", GRID LINE CENTERS. 10", GRID LINES. 3/8" WIDE X 1/4" DEEP, THROUGH HOLES. 10, SOLID CONSTRUCTION. YES.
50" x 70" x 5-3/4" Portage layout table, fabricated stand, leveling stand
Yoder Machinery Sales | Holland, OH
Category: Layout Tables
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Portage
LENGTH OF PLATE. 70", WIDTH OF PLATE. 50", PLATE THICKNESS. 6-1/4", HEIGHT ON STAND. 32", SLOTS RUNNING 70" DIMENSION. 10, SLOTS RUNNING 100" DIMENSION. 7, 4 LEVELING HOLE IN TOP. YES, FABRICATED STAND. YES, LEVELING SCREWS. YES, 16 OF THESE PLATES IN STOCK CAN BE BOLTED TOGETHER TO MAKE A LARGE PLATE.
50" x 70" x 6" Portage layout table, fabricated stand, leveling screws, #73498
Yoder Machinery Sales | Holland, OH
Category: Layout Tables
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Portage
LENGTH OF PLATE. 70", WIDTH OF PLATE. 50", PLATE THICKNESS. 6", SLOTS RUNNING 70" DIMENSION. 10, SLOTS RUNNING 50" DIMENSION.
50" x 70" Portage, steel layout table
Yoder Machinery Sales | Holland, OH
Category: Layout Tables
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Portage
LENGTH OF TABLE. 70", WIDTH OF TABLE. 50", TABLE HEIGHT. 6-1/2", WEBBED CAST CONSTRUCTION. YES, HEIGHT OF TABLE ON STAND. 31", LAYOUT SURFACE SECTIONED INTO 10" SQUARES.
60" x 48" x 8-3/4" Cast iron layout plate, keyed on edges, #4511
Yoder Machinery Sales | Holland, OH
Category: Layout Tables
Seller: Yoder Machinery Sales
Location: Holland, OH
LENGTH OF PLATE. 60", WIDTH OF PLATE. 48", HEIGHT OF PLATE. 8-3/4", SLOTS ON TOP. 2, SLOT CENTERS. 24, SLOT WIDTH. 3/4", SCRIBE LAYOUT LINES. YES, KEYED ON ENDS. YES, CONSTRUCTION. CAST IRON.
67" x 108" x 12" Layout table, fabricated steel, 24" slots, 9" x 4" slot dim., #63095
Yoder Machinery Sales | Holland, OH
Category: Layout Tables
Seller: Yoder Machinery Sales
Location: Holland, OH
LENGTH OF PLATE. 108", WIDTH OF PLATE. 67", HEIGHT OF PLATE. 12", THICKNESS OF TOP PLATE. 1-3/4", NUMBER OF SLOTS. 24", SLOT DIMENSION. 9" X 4", FABRICATED STEEL. YES.
72" x 144" x 6-1/2" Steel alyout plate, 1/2" tapped holes, #74710
Yoder Machinery Sales | Holland, OH
Category: Layout Tables
Seller: Yoder Machinery Sales
Location: Holland, OH
TABLE SIZE. 72" X 144" X 24-1/2" HIGH, TOP PLATE. 72" X 144" X 6-1/2" THICK, MACHINED WITH MISCELLANIOUS. 1/2" TAPPED HOLES, WEIGHT. 18,200 LBS.
72" x 144" Steel layout plate, #16707
F P Miller Company | Jackson, MI
Category: Layout Tables
Seller: F P Miller Company
Location: Jackson, MI
Width: 72", Length: 144", Thickness of Top Plate: 6.5", Height of Plate on Stand: 24.5".
73" x 144" Portage, key slotted layout table with stands, resurfaced & excellent
Roberts Machinery Sales | Ferndale, MI
Category: Layout Tables
Seller: Roberts Machinery Sales
Location: Ferndale, MI
Mfr: Portage
73" x 144" LAYOUT TABLEWITH TWO STANDSSTOCK NO. 6445, OVERALL SIZE: 73" x 144", TABLE THICKNESS: 8", KEY SLOTS: 10" SPACING, KEY WIDTH:.400", TABLE FLATNESS002 TIR OVERALL, CONSTRUCTION:, HEAVY DUTY RIBBED, 14 KEY SLOTS ON WIDTH x 7 KEY SLOTS ON LENGTH, TWO LEVELING STANDS, ROBERTS MACHINERY SALES LTD., 930 E. ...more
77" x 226" x 13-3/4" T-slotted layout table, 5 t-slots
G-2000 | Toledo, OH
Category: Layout Tables
Seller: G-2000
Location: Toledo, OH
77” x 226” x 13-3/4” T Slotted Layout Table Length: 226” Width: 77” Height: 13-3/4” Number of t slots: 5 Number of Leveling Holes: 25 T Slot Dimensions: Inner T Slots Distance: 15” Outer T Slots Distance: 8” Width of T Slots: 2” Depth of T Slots: 3-1/4” Width ...more
79" x 118" Precision layout table, grooves
Yoder Machinery Sales | Holland, OH
Category: Layout Tables
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Precision
LENTH OF PLATE.118", WIDTH OF PLATE. 78-1/2", HEIGHT OF PLATE. 10", GROOVES 118" DIRECTION. 4, GROOVES 78-1/2" DIRECTION. 3, GROOVE WIDTH. 1/2", GROOVES CENTER. 19-1/2" & 41-3/8", LEVELING HOLES IN TOP. 12, MACHINE TOP SURFACE. YES.
JUST ADDED!
96" x 96" x 9" Floor plate layout table, drilled & tapped, 8" center hole
Mohawk Machinery Inc | Cincinnati, OH
Category: Layout Tables
Seller: Mohawk Machinery Inc
Location: Cincinnati, OH
96" (8') X 96" (8') x 9" H FLOOR PLATE LAYOUT TABLE - Drilled & Tapped - 8" Center Hole, 96" x 96" x 9" FLOOR PLATE LAYOUT TABLE, Drilled & Tapped Mounting Holes, I-Beam Support Base, CATALOG :, Overall Dimensions, L X W 96" x 96", Overall Height 9", Center Hole Diameter 8", F.O.B. OUR WAREHOUSE.
96" x 120" x 1" Steel Plate, #1056920
G-2000 | Toledo, OH
Category: Layout Tables
Seller: G-2000
Location: Toledo, OH
Machine Type.Tables, Floor & Layout Plates Manufacturer.N/A Model.N/A Year.N/A Condition.Very Good Width.96 inches Length.120 inches Thickness.1 inches.
100" x 240" x 7" Portage layout plate, grid lines, #74115
Yoder Machinery Sales | Holland, OH
Category: Layout Tables
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Portage
LENGTH OF PLATE. 240" (20'), WIDTH OF PLATE. 100", THICKNESS OF PLATE. 7", CAST IRON CONSTRUCTION. YES, OVERALL HEIGHT. 10", GRID LINES ON PLATE. YES, CENTER DISTANCE BETWEEN LINES. 7-7/8" SQUARE, (18) LEVELERS. 3 ROWS OF 6, (4) LEVELERS-THROUGH TOP ADJUSTMENT. YES, (14) LEVELERS-SIDE (EDGE) ADJUSTMENT. YES ...more
JUST ADDED!

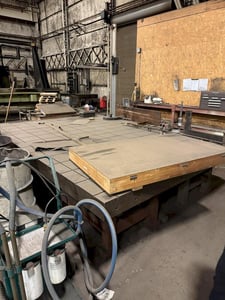

102" x 120" Portage, grid layout table
G-2000 | Toledo, OH
Category: Layout Tables
Seller: G-2000
Location: Toledo, OH
Mfr: Portage
Machine Type.Tables, Floor & Layout Plates Manufacturer.PORTAGE Model.N/A Year.N/A Condition.Used.
120" x 96" x 10" Portage layout table, 3/8" x 1/4" layout grooves, 10" groove centers
Yoder Machinery Sales | Holland, OH
Category: Layout Tables
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Portage
LENGTH OF PLATE. 120", WIDTH OF PLATE. 96", PLATE HEIGHT. 10", LAYOUT GROOVES. 3/8" X 1/4", GROOVE CENTERS. 10".
173" x 78" x 9" Portage layout plate, cast iron construction, #76744
Yoder Machinery Sales | Holland, OH
Category: Layout Tables
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Portage
LENGTH OF PLATE. 178", WIDTH OF PLATE. 78-3/4", HEIGHT OF PLATE. 9", GROOVES WIDTH DIRECTION. 21, GROOVES LENGTH DIRECTION. 10, GROVE CENTER., CAST IRON CONSTRUCTION. YES, SEE STOCK 76745 TO MAKE PLATE 178" X 157".
