9 Results
6" x 12" Boyar-Schultz #612, manual surface grinder, 7" x 5/8" x 1-1/4" wheel, electromagnetic chuck, 3450 RPM, 1 HP, Control, #A7263
Sterling Machinery Exchange | South El Monte, CA
Seller: Sterling Machinery Exchange
Location: South El Monte, CA
Mfr: Boyar-Schultz
Model: 612
Table Size 6" x 12" Longitudinal Travel 14" Cross Travel 7" Max. Work Height Under 7" Wheel 12" To Table Grinding Wheel Size 7" x 5/8" x 1 1/4" Grinding Wheel Speed 3450 RPM Horsepower 1 H.P. Voltage 220/440V ~ 3 Phase Dimensions (WxDxH) 39" x 43" x 65" WEIGHT 1,000 LBS s Electro Magnetic Chuck and Control.
6" x 12" Boyar-Schultz #612, manual surface grinder, 7" x 5/8" x 1-1/4" wheel, 3450 RPM, 1 HP, electromagnetic chuck & Control, worklight
Sterling Machinery Exchange | South El Monte, CA
Seller: Sterling Machinery Exchange
Location: South El Monte, CA
Mfr: Boyar-Schultz
Model: 612
Table Size 6" x 12" Longitudinal Travel 14" Cross Travel 7" Max. Work Height Under 7" Wheel 12" To Table Grinding Wheel Size 7" x 5/8" x 1 1/4" Grinding Wheel Speed 3450 RPM Horsepower 1 H.P. Voltage 220/440V ~ 3 Phase Dimensions (WxDxH) 39" x 43" x 65" WEIGHT 1,000 LBS s Electro Magnetic Chuck and Control Worklight.
6" x 12" Boyar-Schultz #612, surface grinder, electromagnetic chuck, 7" x .5" x 1.25" wheel, 1 HP, 3450 RPM
Alternative Machine Tool Inc | Dousman, WI
Seller: Alternative Machine Tool Inc
Location: Dousman, WI
Mfr: Boyar-Schultz
Model: 612
Maximum Grinding Chuck Size: 6.0” x 12.0” Maximum Distance under Wheel to Table: 7.0” Table Load Capacity w/Chuck: 110 lbs. Maximum Table Travel: 13.0” Maximum Cross Travel: 7.0” Grinding Wheel Size: 7.0” x ½” x 1¼” Spindle Horsepower: 1 Hp Spindle Speed: ...more

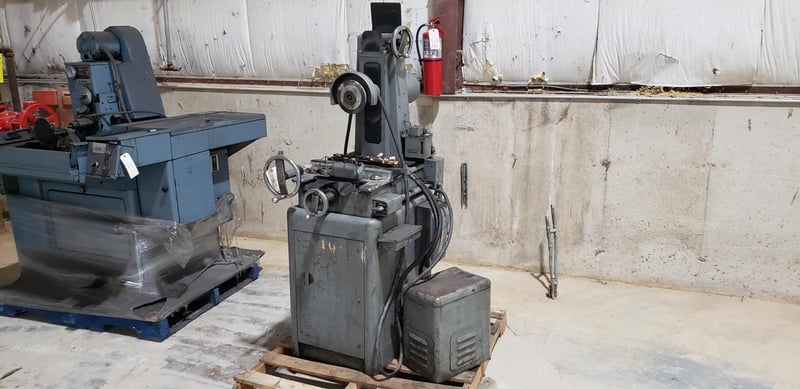

6" x 12" Boyar-Schultz #HY-6220, Hydraulic Surface Grinder
Machinery Exchange International | Posen, IL
Seller: Machinery Exchange International
Location: Posen, IL
Mfr: Boyar-Schultz
Model: HY-6220
6×12 table removed during transport but comes with machine.
6" x 18" Boyar-Schultz #6-18, Challenger Hydraulic Surface Grinder
Wheeler Machinery Sales | Pomona, CA
Seller: Wheeler Machinery Sales
Location: Pomona, CA
Mfr: Boyar-Schultz
Model: 6-18 CHALLENGER
Boyar Schultz 6-18 Challenger Hydraulic Surface Grinder #6737 #2, Table Working Surface: 18" x 5-5/8", Max Chuck Size: 6" x 18", Max Table Movement (Manual): 19-7/8", Auto Longitudinal Feed Rate: 0-50 FPM, Max Distance Spindle / Wheel to Table: 0-12" Work Height Under Wheel, Max Wheel Size : 8" x 5/8" x 1.25" Hole ...more
Get email updates for newly added Reciprocating Surface Grinders - Horizontal Spindle
Reciprocating Surface Grinders - Horizontal Spindle (also known as horizontal spindle grinders) are machines used for precision grinding of flat surfaces by moving the workpiece back and forth under a rotating grinding wheel. Commonly used in automotive, aerospace, and tool-making industries, they are ideal for achieving smooth finishes and tight tolerances. These grinders are essential for producing high-quality, flat components.

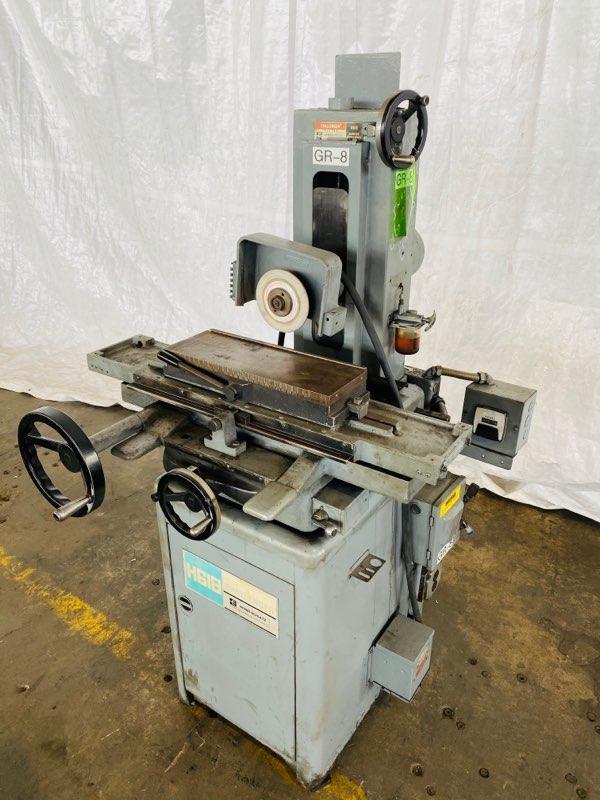

6" x 18" Boyar-Schultz #H618, surface grinder
G-2000 | Toledo, OH
Seller: G-2000
Location: Toledo, OH
Mfr: Boyar-Schultz
Model: H618
SERIAL. 2730, MODEL. H618, LONGITUDINAL. 18-1/2", CROSS. 6-3/4", VERTICAL. 12", MAGNETIC CHUCK. 6" X 18", WHEEL SIZE. 8" X 1/2", ELAVATING.0005", CROSSFEED.001", SPINDLE SPEED. 3,450 RPM., Machine Type.Grinders, Surface, Rotary Manufacturer.BOYAR SCHULTZ Model.H618 Year.N/A Condition.Excellent.
6" x 18" Boyar-Schultz #H618, surface grinder, 1 HP, 6" wheel, electro magnetic chuck
Wheeler Machinery Sales | Pomona, CA
Seller: Wheeler Machinery Sales
Location: Pomona, CA
Mfr: Boyar-Schultz
Model: H618
BOYAR-SCHULTZ H618 Surface Grinder 6" x 18" #5766 #1, Chuck Size 6" x 18", Spindle Motor 1 HP, Wheel Size 6", Electrics 220/440V, 3PH, 60Hz, 6"x18" Electro Magnetic Chuck.
6" x 18" Boyar-Schultz, Challenger #H618, reciprocating surface grinder, electromagnetic chuck, vacuum system
Perfection Global | Elk Grove Village, IL
Seller: Perfection Global
Location: Elk Grove Village, IL
Mfr: Boyar-Schultz
Model: H618
Type: ManualGrinding Surface (W x L): 6" x 18"Max. Grinding Wheel: 8" x 3/4" x 1-1/4"Max. Working Height from Table to Center of Spindle: 11-3/4"Spindle Motor: 220/440 Volts AC, 2.8 / 1.4 Amps, Electric Magnetic ChuckVacuum System.
8" x 18" Boyar-Schultz #818-A3, hydraulic surface grinder, automatic incremental downfeed, 8" wheel, automatic lube, 1985
Seminole Machinery Company | Rochester, MI
Seller: Seminole Machinery Company
Location: Rochester, MI
Mfr: Boyar-Schultz
Model: 818-A3
Year: 1985
8″ X 18″ BOYAR SCHULTZ SURFACE GRINDER W/AUTOMATIC INCREMENTAL DOWNFEED MODEL: 3A818 SERIAL NUMBER: 818-20796-3A WIDTH& LENGTH GROUND …………………8″ X 18″ MAX. HEIGHT UNDER 7″ WHEEL TO TABLE ………. 13″ LONGITUDINAL TABLE ...more
