17 Results
5 Ton, Hannifin #F50A, hydraulic C-frame press, 4" stroke, 8" throat, 16" x13" bed, 2 HP, #66471
Yoder Machinery Sales | Holland, OH
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Hannifin
Model: F50A
SERIAL. C-75609, MODEL. F50A, CAPACITY. 5 TON, STROKE OF RAM. 4", OPEN HEIGHT. 15", CLOSED HEIGHT. 11", AREA OF BED. 16" X 13", AREA OF BOLSTER. 19" X 16" X 1", DEPTH OF THROAT. 8", DIAMETER OF RAM. 2-1/2", SLOT IN BED. 2-1/2" X 7", PASSLINE HEIGHT. 36", SINGLE HAND LEVER. YES, MAIN MOTOR. 2 HORSEPOWER.
8 Ton, Hannifin #F-81-41, C-frame hydraulic press, dual palm buttons, #73454
Yoder Machinery Sales | Holland, OH
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Hannifin
Model: F-81-41-M8TON
SERIAL. E37373-4, MODEL. F-81-41-M8TON, CAPACITY. 8 TON, DUAL PALM BUTTONS. YES.
8 Ton, Hannifin #OGF-88-8-2-2-PB6B, C-frame hydraulic press, 12" stroke, 5" Shut Height, 10" throat7.5 HP
Yoder Machinery Sales | Holland, OH
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Hannifin
Model: OGF-88-8-2-2-PB6B
SERIAL.T-8322, MODEL. #OGF-8B-8-2-2-PB6B, CAPACITY. 8 TONS, STROKE. 12", SHUT HEIGHT. 5", OPEN HEIGHT. 17", RAM SPEED (ADVANCE). 480 IPM, RAM SPEED (PRESS). 235 IPM, RAM SPEED (RETURN). 464 IPM, THROAT. 10", RAM CYLINDER DIAMETER. 1-5/8", BED AREA. 16" X 14-1/2", D-SLOT IN BED (W X L). 2-1/2" X 8-1/2", OPERATING ...more
12 Ton, Hannifin #OGF-12D, hydraulic C-Frame press, 18" stroke, 24" daylight, 22" x21" bed, 14" throat
Yoder Brothers Machinery | Toledo, OH
Seller: Yoder Brothers Machinery
Location: Toledo, OH
Mfr: Hannifin
Model: OGF-12D
SERIAL. 50153-C, MODEL. OGF-12D, TYPE. FLOOR STANDING, AREA OF BED. 22" L-R x 21.5" F-B, STROKE. 0 - 18" MAX, DAYLIGHT OPENING. 24" MAX, THROAT DEPTH. 14", RAM DIAMETER. 4"/2.5" @ 1910 PSI - 12 tons, FLOOR TO TOP OF BED. 36", VICKERS HYDRAULIC PUMP POWER UNIT:, MOTOR. 5HP/1150RPM/230/460V/3PH/60CY, SPEEDS (APPROX): ...more
25 Ton, Hannifin #F250, C frame hydraulic press, 24" stroke, 25" open height, 21" x 21" table, 15" throat depth, dual palm buttons, 10 HP
Yoder Machinery Sales | Holland, OH
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Hannifin
Model: F250
SERIAL. A89433, MODEL. F250, CAPACITY. 25 TON, STROKE OF RAM. 24", OPEN HEIGHT. 25", CLOSED HEIGHT. 1", AREA OF TABLE. 21" X 21", DEPTH OF THROAT. 15", DIAMETER OF RAM. 5-5/8", RAM SPEEDS (ADVANCED). 85 IPM, RAM SPEED (RETURN). 170 IPM, DUAL PALM BUTTONS. YES, MAIN MOTOR. 10 HORSEPOWER.
Get email updates for newly added C Frame Hydraulic Press Machines (Gap Frame)
C Frame Hydraulic Press Machines (also known as gap frame presses) are machines that use hydraulic force to apply pressure for shaping, forming, or stamping materials. Featuring a C-shaped frame, these presses allow for easier access to the workpiece and are ideal for tasks like metal stamping, punching, and molding. Commonly used in industries like automotive, manufacturing, and metalworking, they are essential for producing high-precision parts in medium-duty applications.
28 Ton, Hannifin #OGF-29, C-frame Press, 12" throat, 21" daylight, 1980 psi
Peterson Machinery Sales | Casa Grande, AZ
Seller: Peterson Machinery Sales
Location: Casa Grande, AZ
Mfr: Hannifin
Model: OGF-29
(1) Used 28 Ton Hannifin Model OGF-29 C-Frame Press; S/N 50703-2.
28 Ton, Hannifin #OGP-28, C-frame hydraulic gap press, 19" stroke, 22.5"throat, 32" x22.5"bed
Great American Eqpt Co | Cincinnati, OH
Seller: Great American Eqpt Co
Location: Cincinnati, OH
Mfr: Hannifin
Model: OGP-28
28 TON HANNIFIN C-FRAME GAP PRESS, Model OGP-28, S/N T-16830-2, Stock# Q11104, Dual Palm Button, Emergency Stop Pushbutton. Light Curtain, Start and Motor Stop Pushbutton, Parts Counter, Pressure Gauge., CATALOG :Tonnage Capacity 28 Tons Stroke Length 19" Throat Depth 22.5" Main Cylinder Diameter 4" Bed Area (L-R x ...more
38 Ton, Hannifin #GF-38A, hydraulic C-frame press, 24" stroke, serial #7-16979
Yoder Machinery Sales | Holland, OH
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Hannifin
Model: GF-38A
SERIAL. 7-16979MODEL. GF-38ACAPACITY. 38 TONSTROKE. 24".

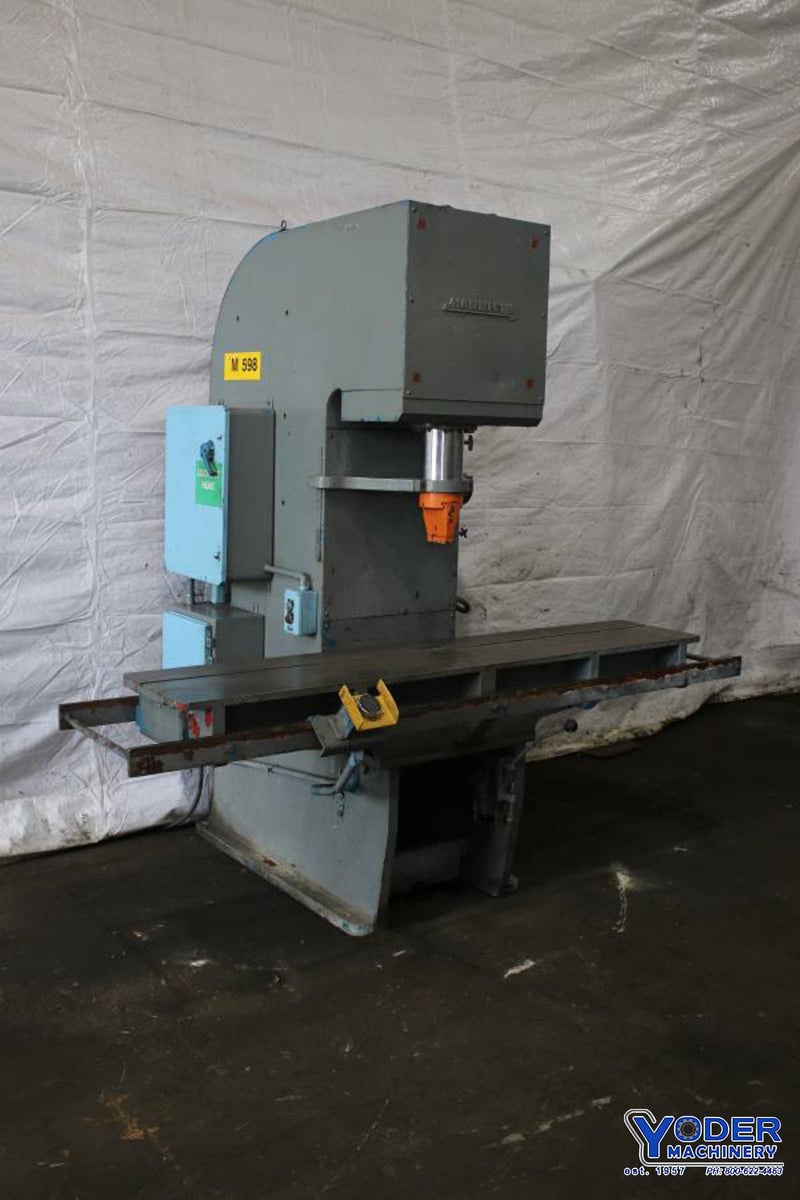

50 Ton, Hannifin #F500-41-SP, hydraulic C-frame press, 14" stroke, 16" open
Yoder Machinery Sales | Holland, OH
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Hannifin
Model: F500-41-SP
SERIAL. D-59895, MODEL. F500-41-SP, CAPACITY. 50 TON, STROKE. 14", OPEN HEIGHT. 16", CLOSED HEIGHT. 2, AREA OF BED. 84" X 17".

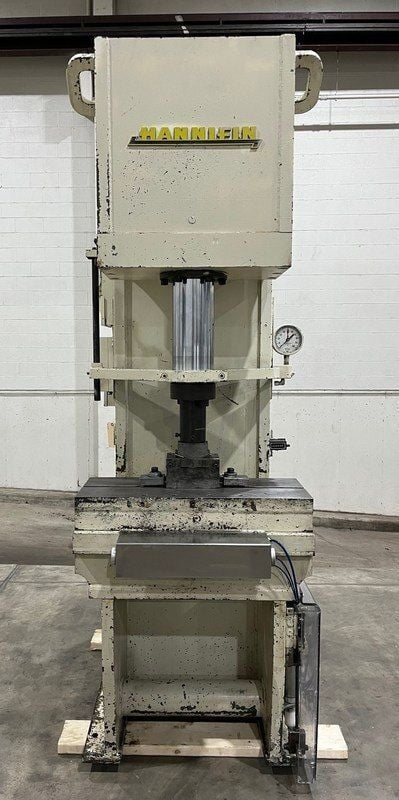

50 Ton, Hannifin #OGF-50, 24" stroke, 22" throat, 12" x30" Table, 5.5" Ram, 8" Cyl. Bore
Liberty Machinery Co | Lincolnshire, IL
Seller: Liberty Machinery Co
Location: Lincolnshire, IL
Mfr: Hannifin
Model: OGF-50
Serial No. T-6697, Tonnage.50 Tons, Table Size.12"L x 30"W, Stroke - Infeed Adjustable.0 - 24", Throat (Reach).22", Daylight (Ram Up).26", Ram Speeds:, - Feed.118 IPM, - Press.51 IPM, - Return.97 IPM, Hydraulic Pump Motor.10 HP, Ram Diameter.5.5", Cylinder Bore.8", Electrics.220/440V/3Ph/60Hz, Weight - ...more

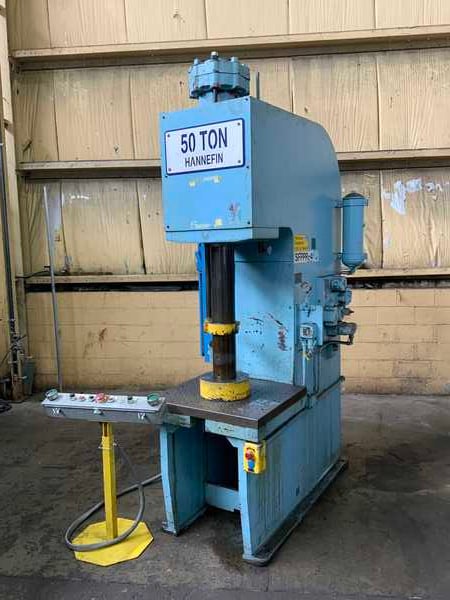

50 Ton, Hannifin, hydraulic C-frame press, 24" stroke, 15" throat, 30" x 27" bed area, 10 HP
Yoder Machinery Sales | Holland, OH
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Hannifin
SERIAL., MODEL., CAPACITY. 50 TON, STROKE OF RAM. 24", OPEN HEIGHT. 30", CLOSED. 8", AREA OF BED. 30" X 27", BOLSTER PLATE THICKNESS., DIAMETER OF RAM. 5-1/2", SLOT IN BED., DEPTH OF THROAT. 15", RAM SPEED. DOWN, RAM SPEED RETURN. 160 IPM, RUN & INCH. YES, DUAL PALM BUTTONS. YES, E-STOP. YES, MOTOR HORSEPOWER. 10.
150 Ton, Hannifin #T150, hydrauic C-frame press, 29" x 39" table area, 15 HP, single hand lever
Yoder Machinery Sales | Holland, OH
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Hannifin
Model: T150
SERIAL. 9281MODEL. T150CAPACITY. 150 TONSTROKE. 24"AREA TABLE. 29"X 39"OPEN HEIGHT OVER TOP TABLE. 9" MIN, 33" MAXDEPTH OF THROAT. 18"RAM SPEED DOWN. IPMRAM SPEED RETURN. IPMRAM DIAMETER."SINGLE HAND LEVER. YESMOTOR HORSEPOWER. 15.
150 Ton, Hannifin C-Frame, traveling gantry, 18" stroke, 18" x 20' bed, 24" DLO, very rare
Peterson Machinery Sales | Casa Grande, AZ
Seller: Peterson Machinery Sales
Location: Casa Grande, AZ
Mfr: Hannifin
Manufacturer Hannifin Model 100 Ton Condition Used Stock Number 3875 Stroke 17" Bed Area 19"x18" Distance Floor to Bed 19" Throat Depth 22" Ram Area 7.5".
200 Ton, Hannifin, gap frame, hydraulic, 36" x 72" bed/ram, 48" stroke, 65" DLO, reconditioned
Peterson Machinery Sales | Casa Grande, AZ
Seller: Peterson Machinery Sales
Location: Casa Grande, AZ
Mfr: Hannifin
Integral Hydraulic tank with Hyd. pump and motor mounted on top of machine..
200 Ton, Hannifin, C-frame Hydraulic Press
Peterson Machinery Sales | Casa Grande, AZ
Seller: Peterson Machinery Sales
Location: Casa Grande, AZ
Mfr: Hannifin
Integral Hydraulic tank with Hyd. pump and motor mounted on top of machine..
250 Ton, Hannifin #F-55410, C-frame hydraulic press brake, 42" stroke, 56" daylight, 70" x 36" bed, light curtain
G-2000 | Toledo, OH
Seller: G-2000
Location: Toledo, OH
Mfr: Hannifin
Model: F-55410
MANUFACTURER. HANNIFIN, TONNAGE. 250, STROKE. 42", DAYLIGHT. 56", OPEN HEIGHT. 14", BED SIZE. 70" (L-R) X 36" (F-B), RAM SIZE. 70" (L-R) X 36" (F-B), SPEEDS:, DOWN ADVANCE ADJUSTMENT. 125 TO 1000 IN/MIN, DOWN SLOW. 125 IN/MIN, DOWN FEED. 60 IN.MIN, UP FAST. 900 IN/MIN, UP SLOW. 450 IN/MIN, PALM BUTTON CONTROLS. YES ...more
Hannifin C-Frame Press, 96" x 21" Bed, 18" Stroke, 15" Throat, 15 HP, 1725 RPM, 440 V.
Cleveland Machinery Sales Inc | Cleveland, OH
Seller: Cleveland Machinery Sales Inc
Location: Cleveland, OH
Mfr: Hannifin
HANNIFIN C-FRAME, LARGE HANNIFIN HYDRAULIC C FRAME PRESS, Floor standing, Bed area: 96" L-R x 21" F-B, Stroke approx.: 18" maximum, Throat depth: 15", Ram diameter: 7.5", Floor to top of bed: 41", Power unit: Vickers hydraulic pump, Driven by 15 HP 1725 RPM 220/440/3/60 motor wired 440 v 3 ph at this time, Controls: ...more
