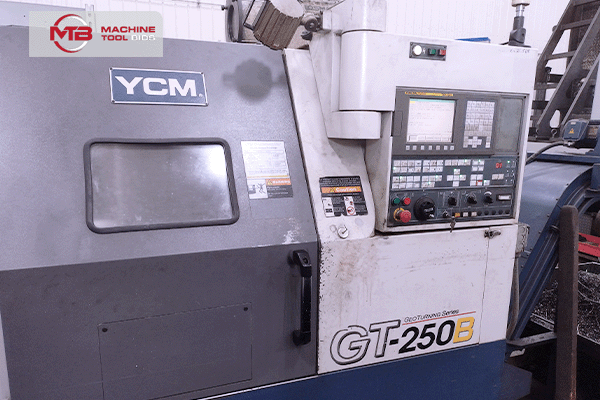

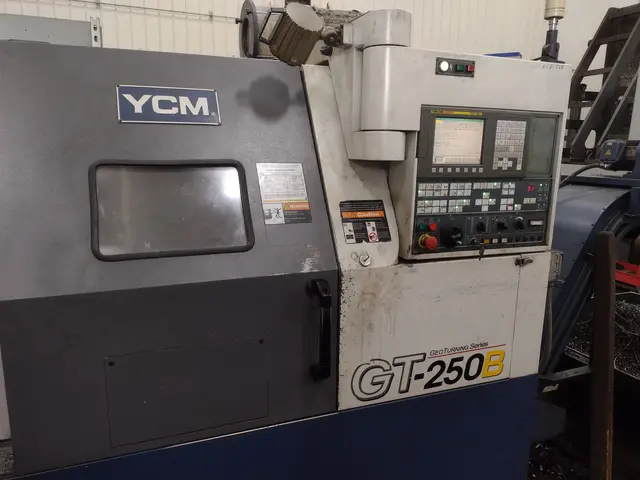

YCM #GT-250B, CNC Lathe, 21.6" Swing, 27.1" Centers, 10" Chuck, 13.7" diameter x 20.2" L Turn capacity, 20 HP, 45-3500 RPM, 10-Tool capacity, 2005

Estimated monthly payment valid upon approved credit.

Request Formal Quote

Description
Used 2005 YCM GT-250B. Machine Tool Bids offers plenty of CNC Lathes and other fabrication and CNC machines for great prices. Contact us if you have any questions about this YCM GT-250B or any of our machines.
MACHINE SPECIFICATION
Spindle Horsepower: 20 HP
Spindle Nose: A2-8 ASA
Spindle through Hole: 3.46"
SPINDLE SPEED RANGE: 45 - 3500 RPM
X Axis Travel: 6.89" / +0.79"
Z Axis Travel: 20.2"
Swing over Bed: 21.6"
Swing Over Carriage: 16.5"
Max Turning Diameter: 13.7"
DISTANCE BETWEEN CENTERS: 27.1"
Max Turning Length: 20.2"
X Axis Rapid: 787 IPM
Z Axis Rapid: 945 IPM

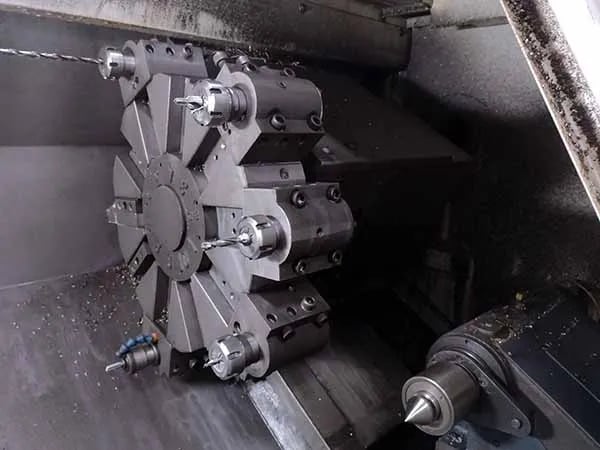

Number of Tools: 10

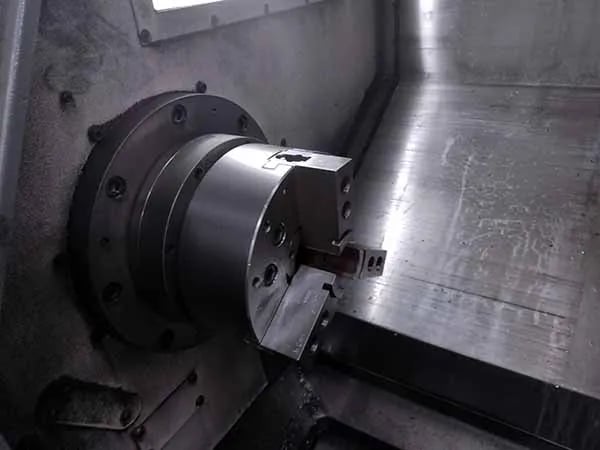

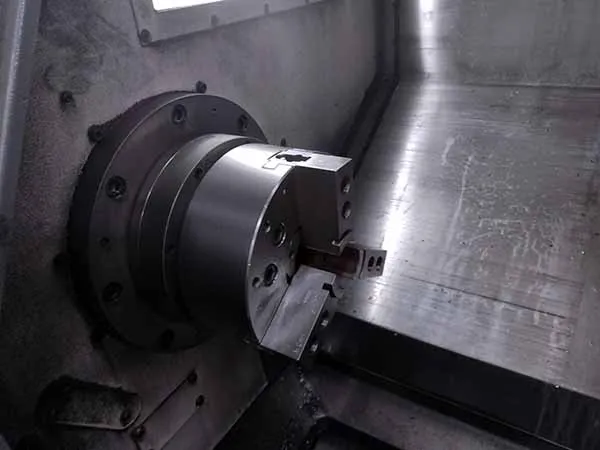

Chuck Diameter: 10"
X Axis Ballscrew: 1.23" / 32mm
Rapid Traverse (X): 787 IPM
Motor HP: 4 HP
Quill Diameter: 3.93"
Max Quill Travel: 3.93"
Quill taper: MT #5
Machine Weight: 13,228 LBS
Power Consumption: 30kVA
Bar Capacity: 2.5"
