Yaskawa #ArcWorld 6200-750, Robotic Welding Cell, AR1440 Robot, 6-axis, 26.5 lb. payload, 56.7" reach, RM2-750 positioner, (2) Miller wire feeders, 2022

System Overview
System Type: Pre-engineered robotic arc welding cell
Model: ArcWorld 6200-750
Year: 2022
Configuration: Dual-zone Ferris wheel positioner with two robots

Robot: AR1440
Axes: 6
Payload: 26.5 lbs
Max Reach: 56.7”
Repeatability: ±0.0008”
Weight: 330 lbs

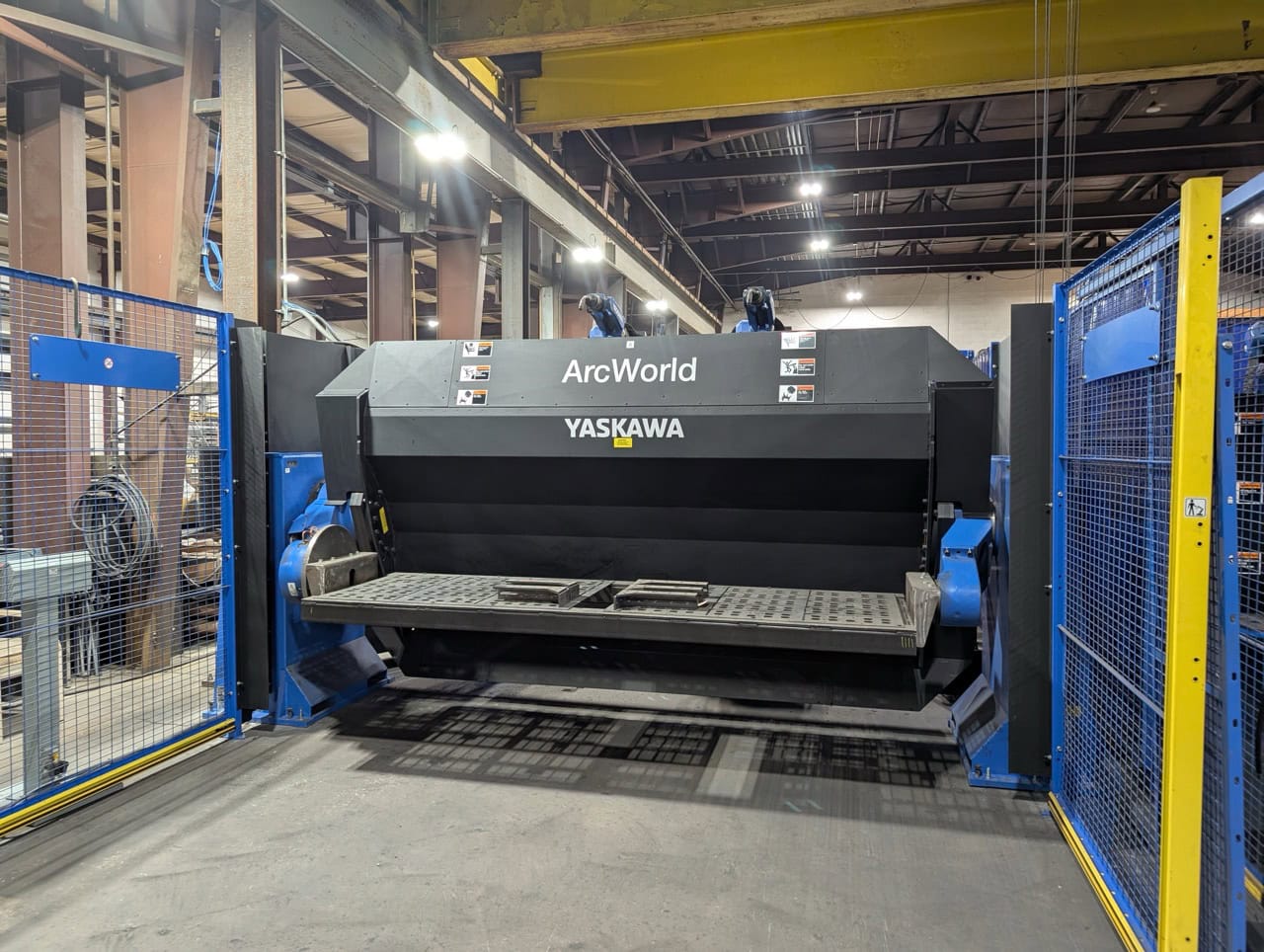

Positioner: RM2-750
Type: Ferris wheel-style, servo-driven
Payload per Side: 1,653 lbs
Rotation Clearance: Requires 96–120” front clearance
Control: 3-axis AC servocontrol
Fixture Diameter Capacity: Up to ~60” depending on tooling

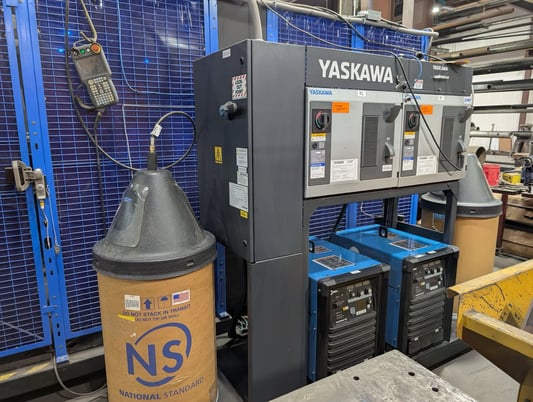

Controller: YRC1000
Dimensions: 19.7”(W) × 15.7” (H) × 7.9”(D)
Weight: 55 lbs

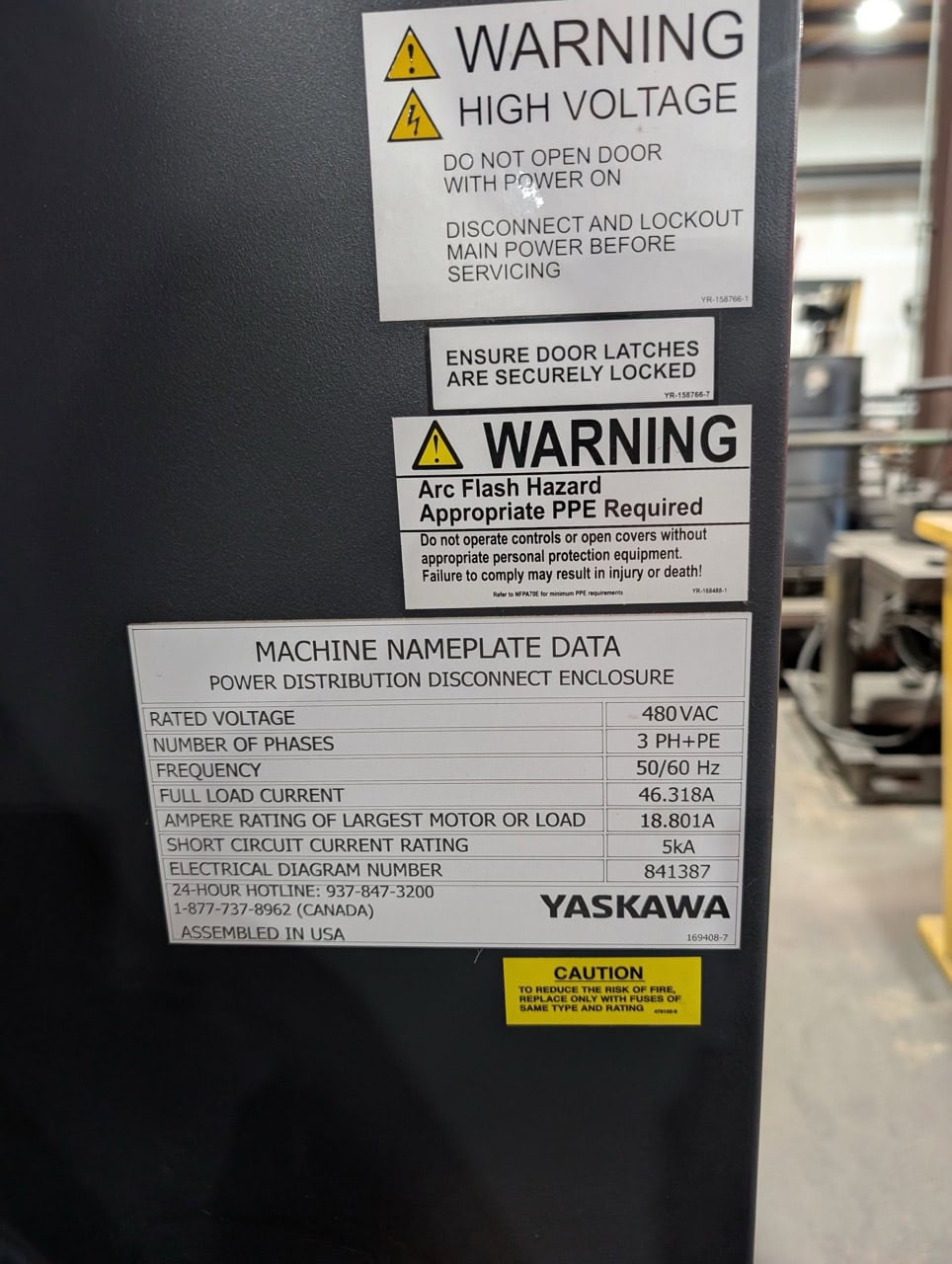

Power Supply: 200–230V AC, 3-phase, 50/60 Hz
Cooling: Forced air ventilation

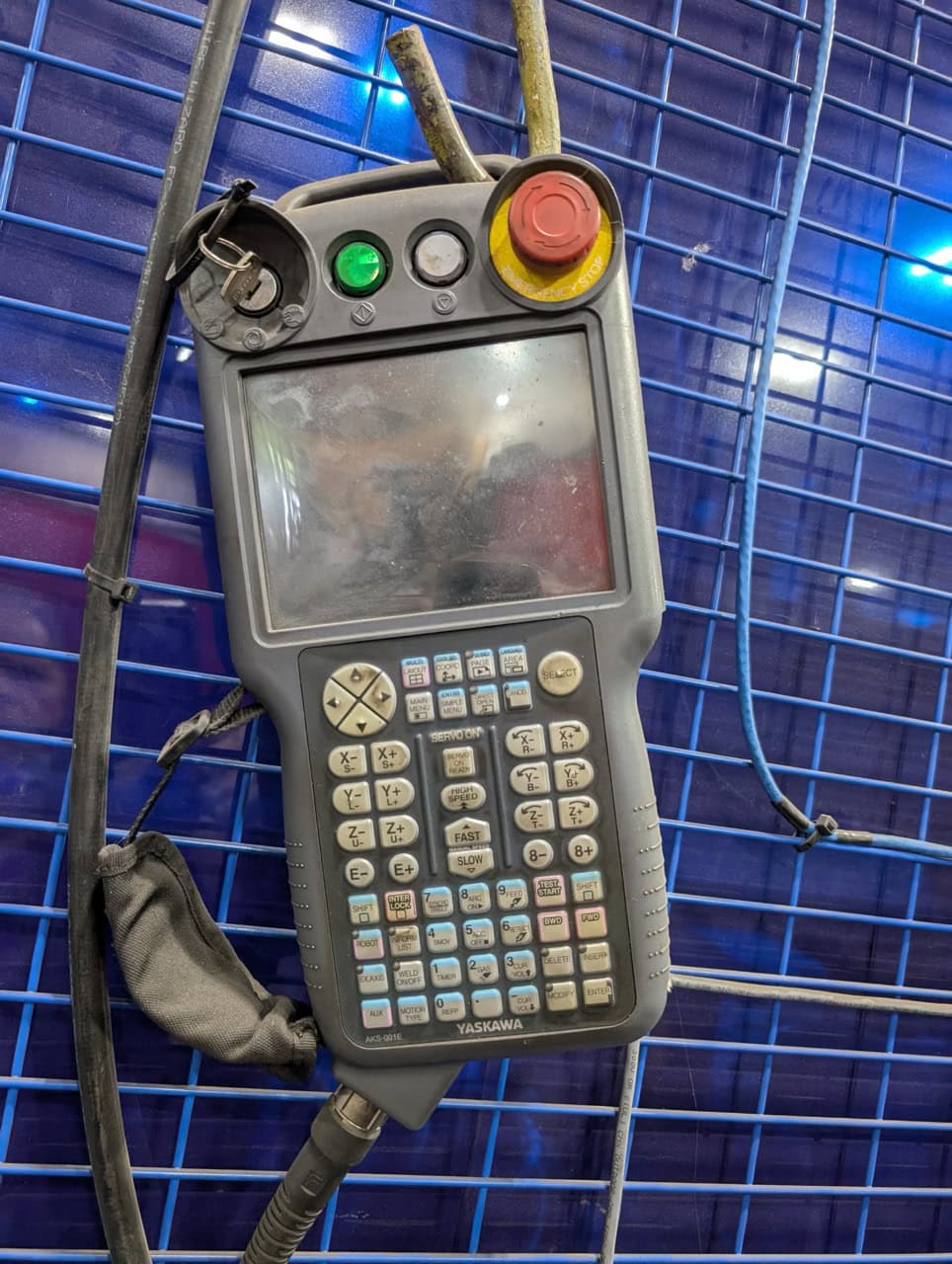

Interface: Touchscreen pendant with Ethernet, USB, and I/O ports

System Footprint & Integration
Overall Width: 240”
Depth: 120”
Height: 96–108”
Safety Features: Light curtains, interlocked doors, emergency stops
Mobility: Forklift pockets and lifting eyes for relocation

Equipped With:

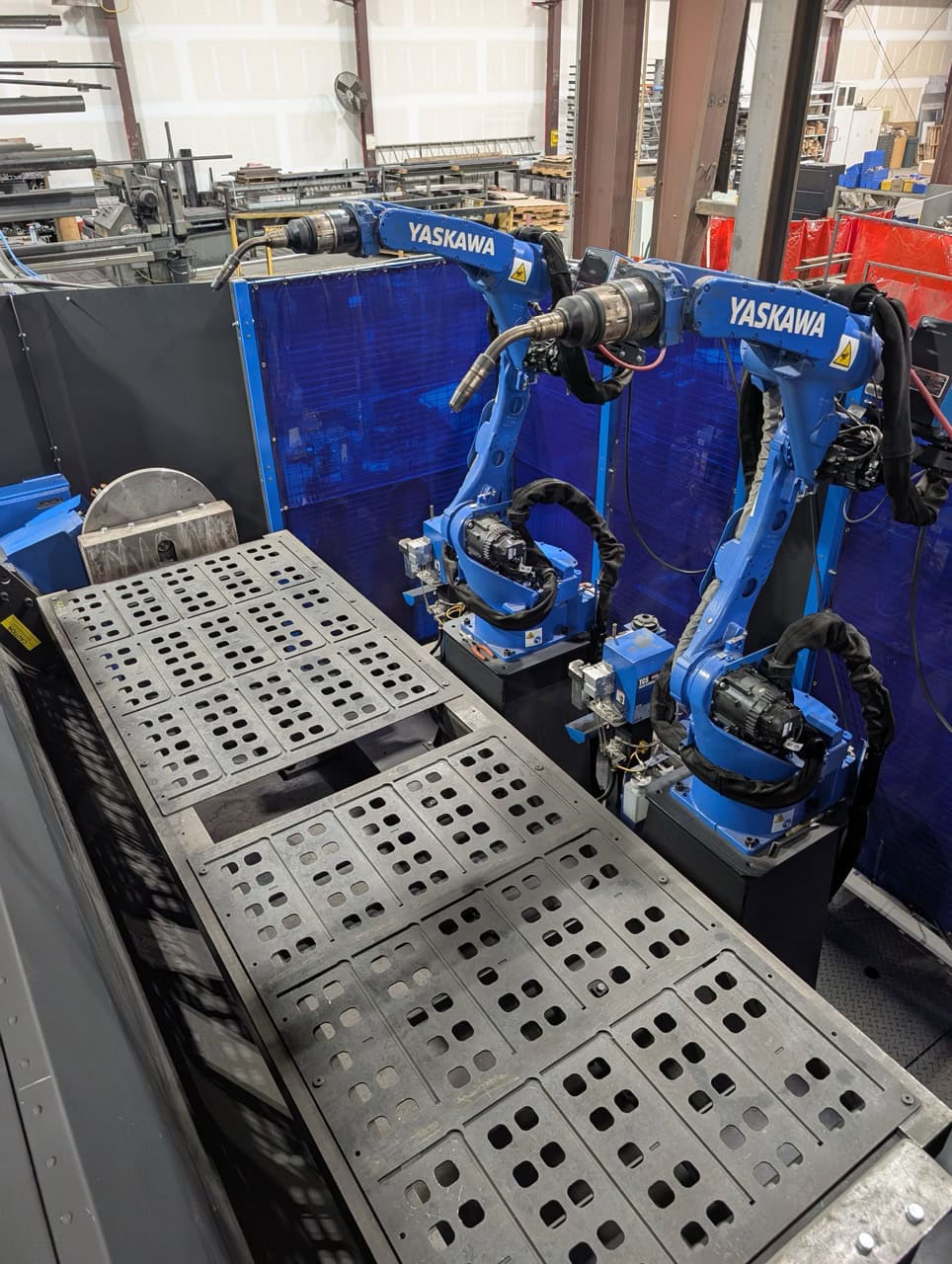

2 AR1440 Robots
RM2-750 Positioner
Fence Kit

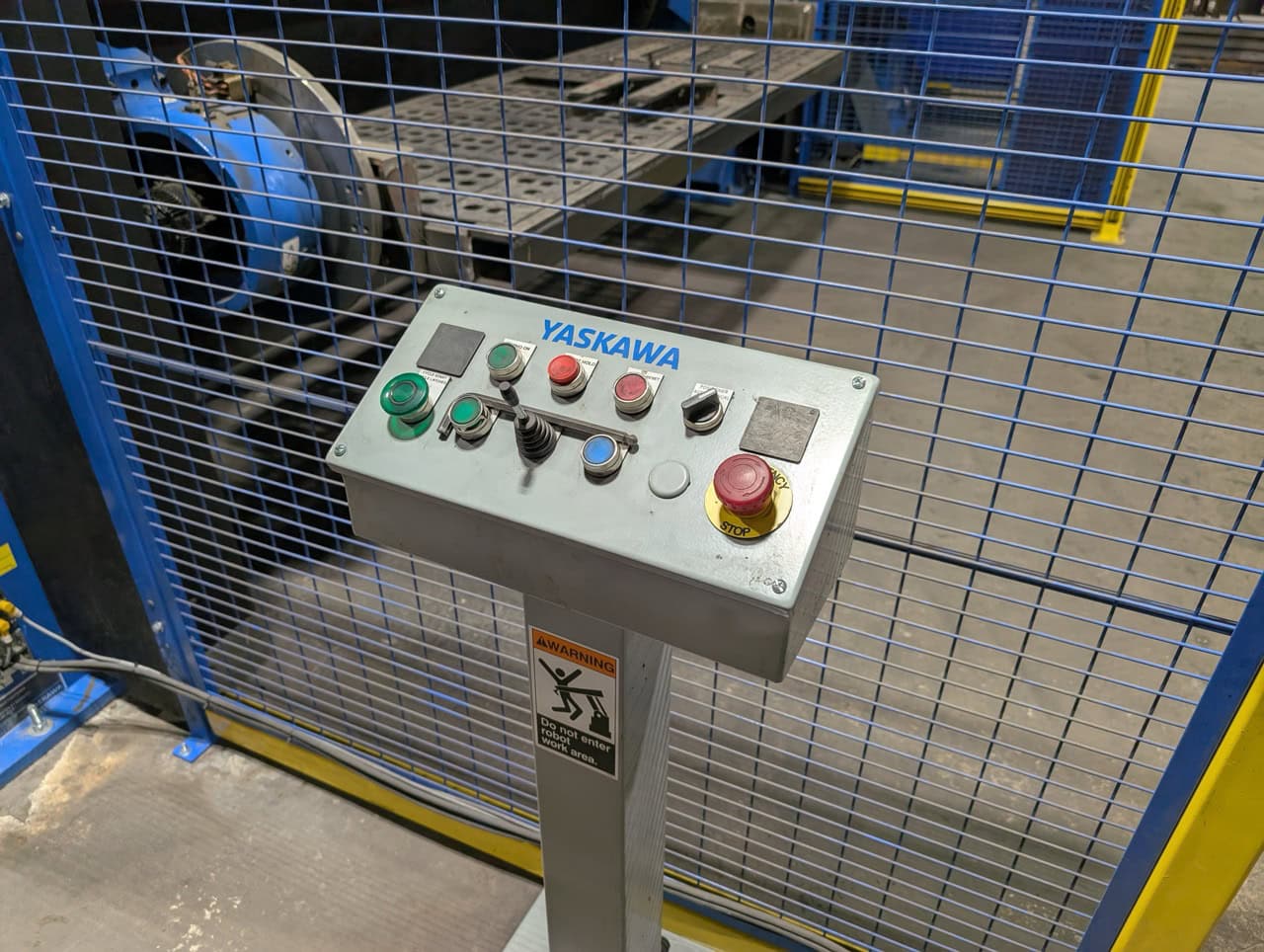

Operator Pedastal
Pneumatic Valve Kit

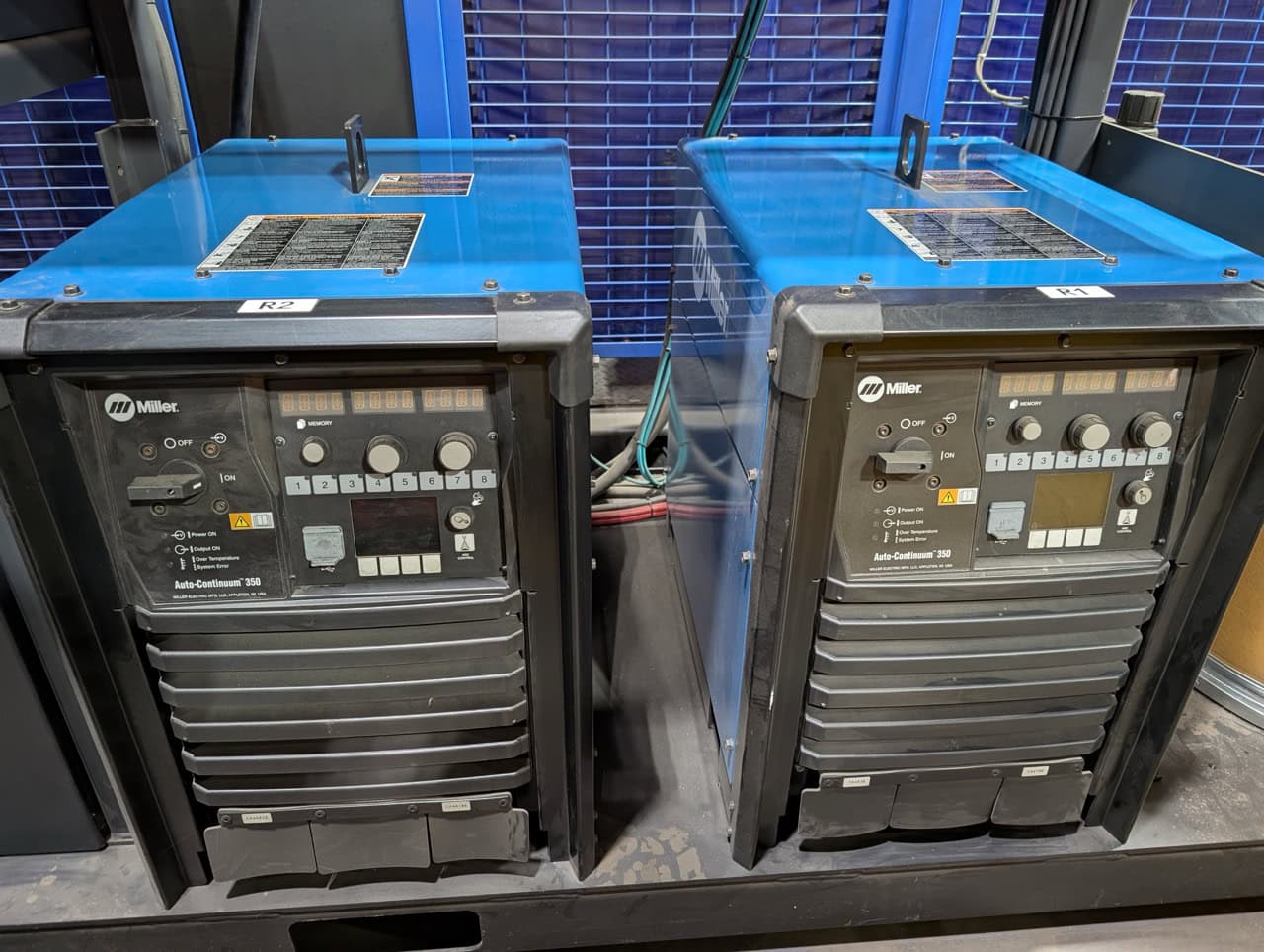

Miller Auto Continuum 350 Power Source (2)
Miller Wire Feeders (2)
Torch Cleaner
