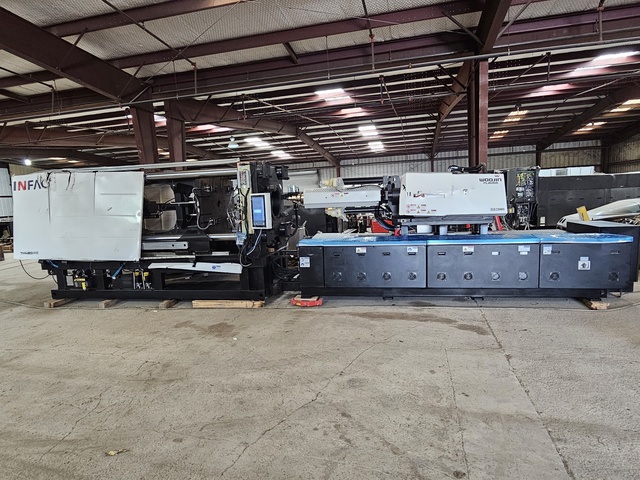

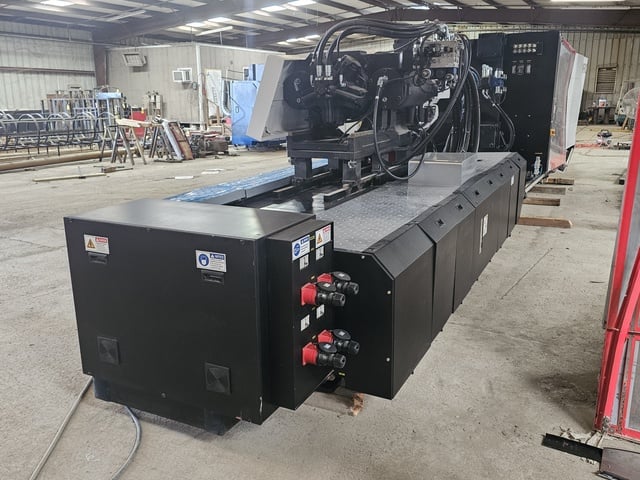

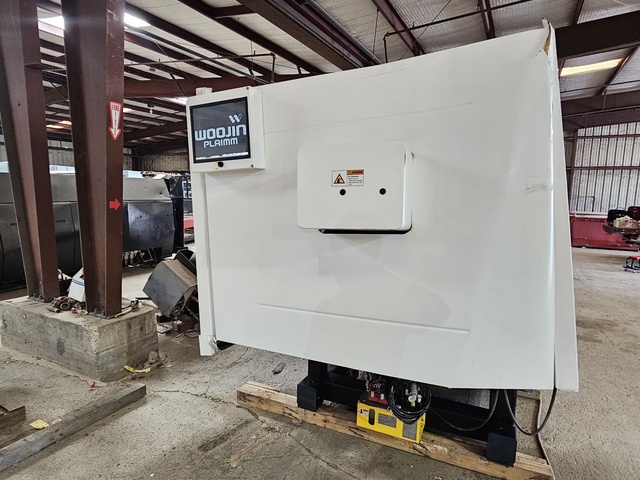

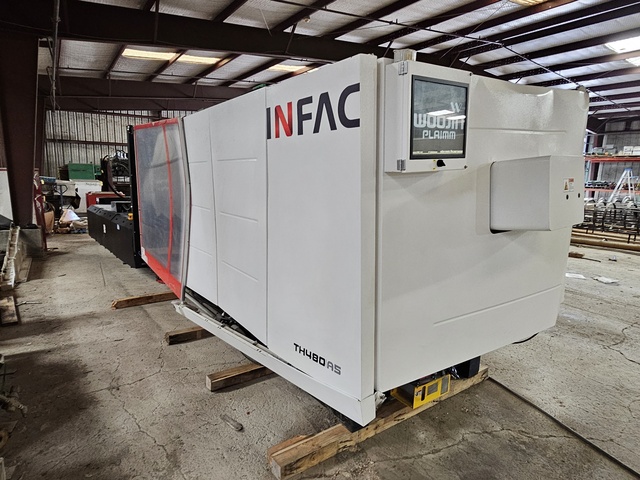

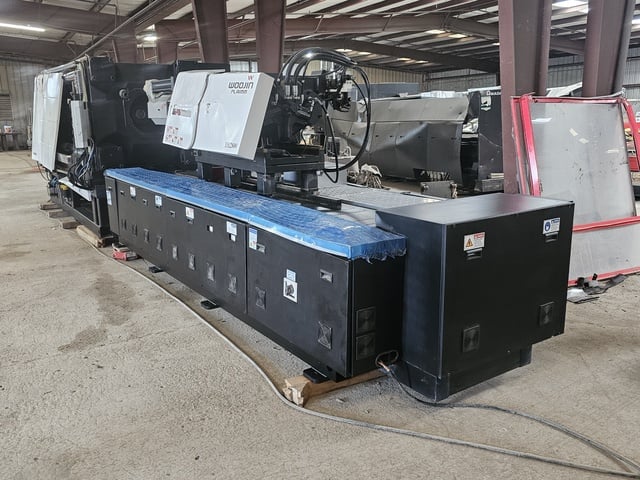

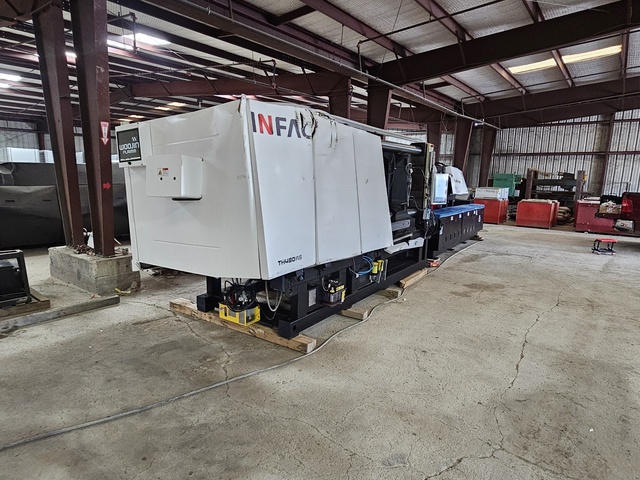

Woojin Plaimm #TH480A5, injection molder, 2023

2023 NEW WOOJIN PLAIMM (KOREA) 480 METRIC TONS TH480A5 INJECTION MOLDING UNIT
PRICE: $14,500.00,
GOING TO SCRAP MACHINE IF NOT SOLD BY JULY 17TH 2026
MACHINE LOCATED IN DALLAS, TX 75241
MAKE: WOOJIN PLAIMM0
MDL: TH480A5
S/N: 462304800518
YR: 2023
CLAMPING UNIT-
CLAMPING FORCER: 480 Metric Tons
DISTANCE BETWEEN TIE-BAR (HXV): 870 X 870 MM
PLANTEN DIMENSION (HXV: 1270 X 1190 MM
DAYLIGHT: 800 MM
MAX. DAYLIGHT: 1600 MM
MIN. MOLD HEIGHT: 350 MM
MAX. MOLD HEIGHT: 800 MM
EJECTOR FORCE: 14.9 TON
EJECTOR STROKE: 230 MM
INJECTION UNIT-
SCREW DIAMETER: 70 MM
INJECTION PRESSURE: 2048KG / 201 MPA
THEORETICAL INJECTION VOLUME: 1347 CM
SHOT WEIGHT (PS): 1240 G
INJECTION RATE: 363 CM
SCREW STROKE: 350 MM
INJECTION SPEED: 94 MM
PLASTICIZING CAPACITY: 244 KG
SCREW ROTATION SPEED: 175 RPM
GENERAL-
HEATER CAPACITY: 20.6 KW
MOTOR CAPACITY: 32.7 KW
TOTAL ELECTRIC POWER CAPACITY: 53.3 KW
HYDRAULIC OIL TANK CAPACITY: 500 L
-BRAND NEW PURCHASED FROM AN INSURANCE COMPANY CLAIM.
-MINOR TRANSIT DAMAGE, IN RUNNING CONDITION.
-THESE ARE THE MACHINES USED BY KOREAN AUTO COMPANIES
PRICE $14,500.00
SHIPPING DIMS & WEIGHT:
2PCS
206"L, X 72"W, X 80"H / 12,000 LBS
180"L, X 84"W, X 88"H / 45,000 LBS
***SPECIFICATION SHOWN ARE TO BE
USED AS A GUIDELINE ONLY. IT IS
THE CUSTOMER RESPONSIBILITY TO
CHECK FOR SIZE AND FEATURES BEFORE
PURCHASING WE WILL NOT BE RESPONSIBLE
FOR ERROR OR OMISSIONS.
