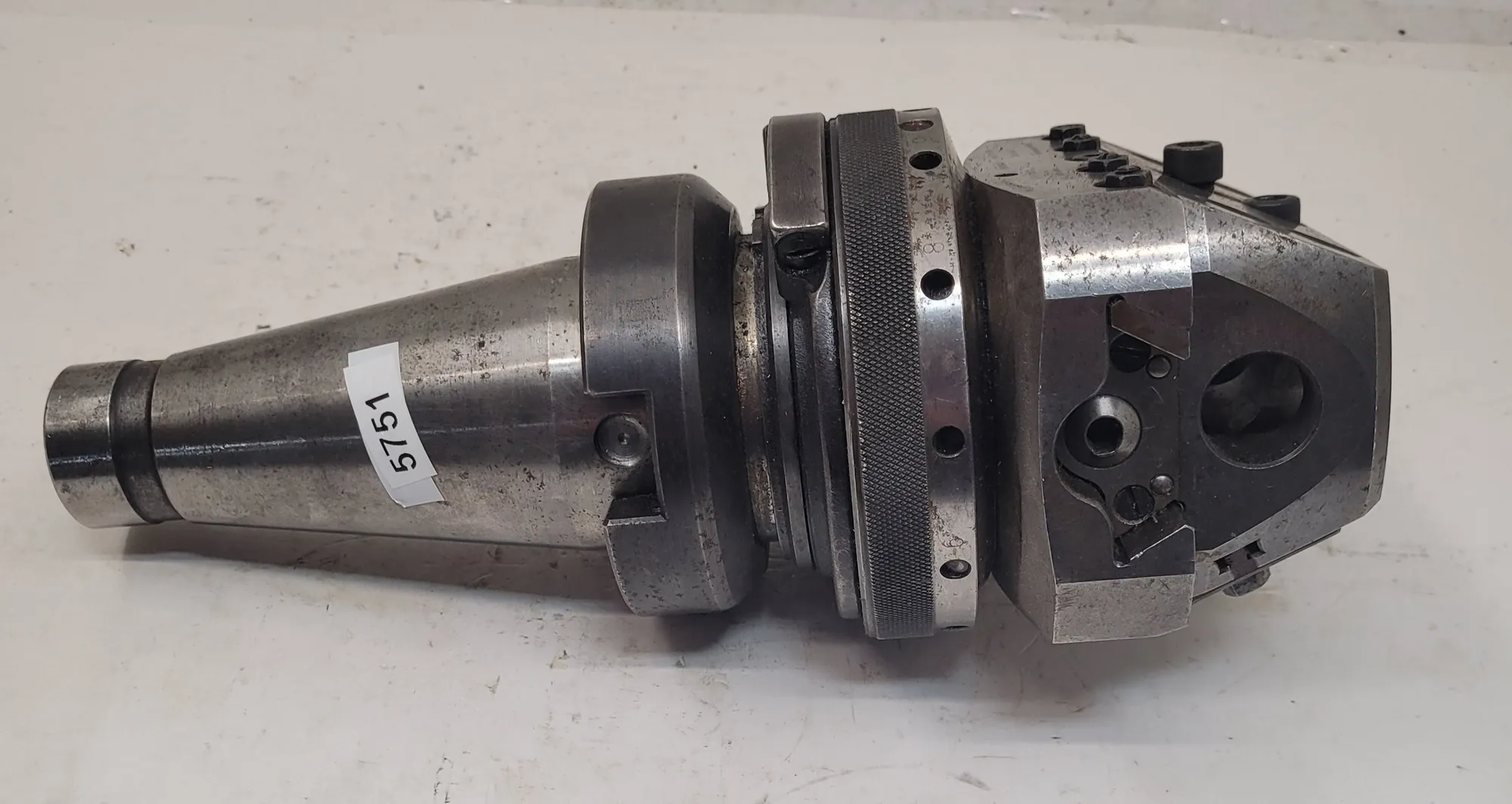

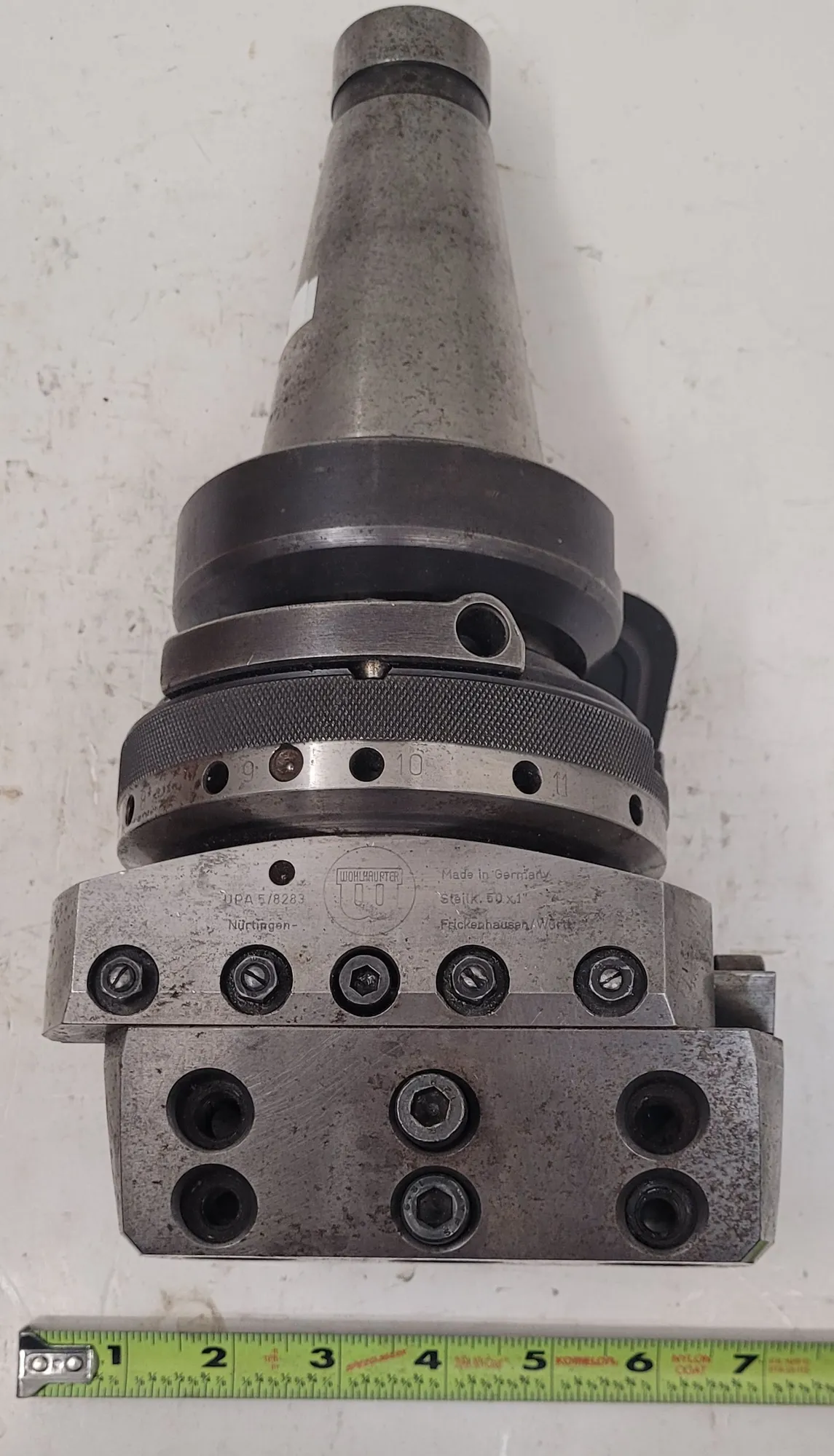

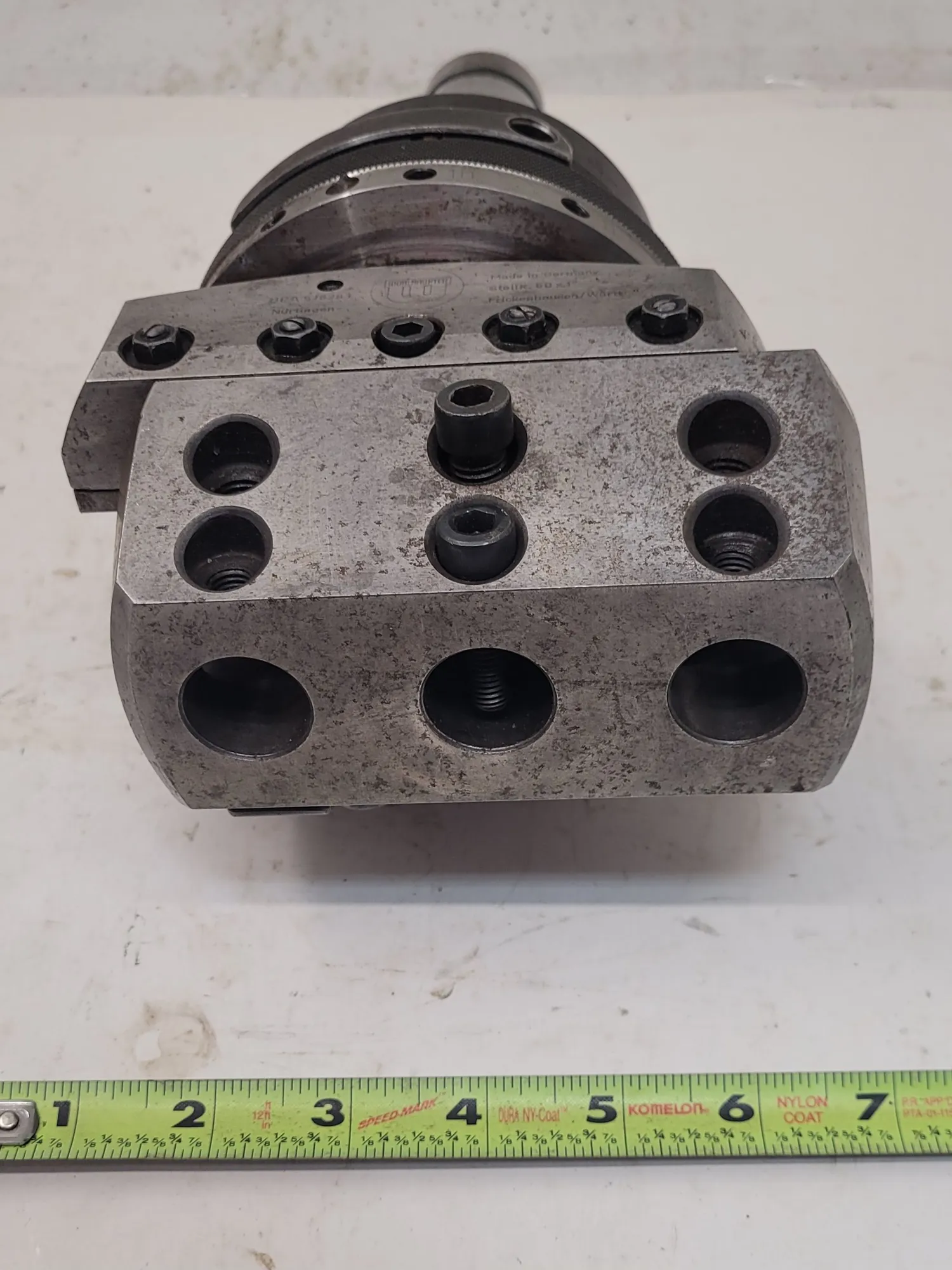

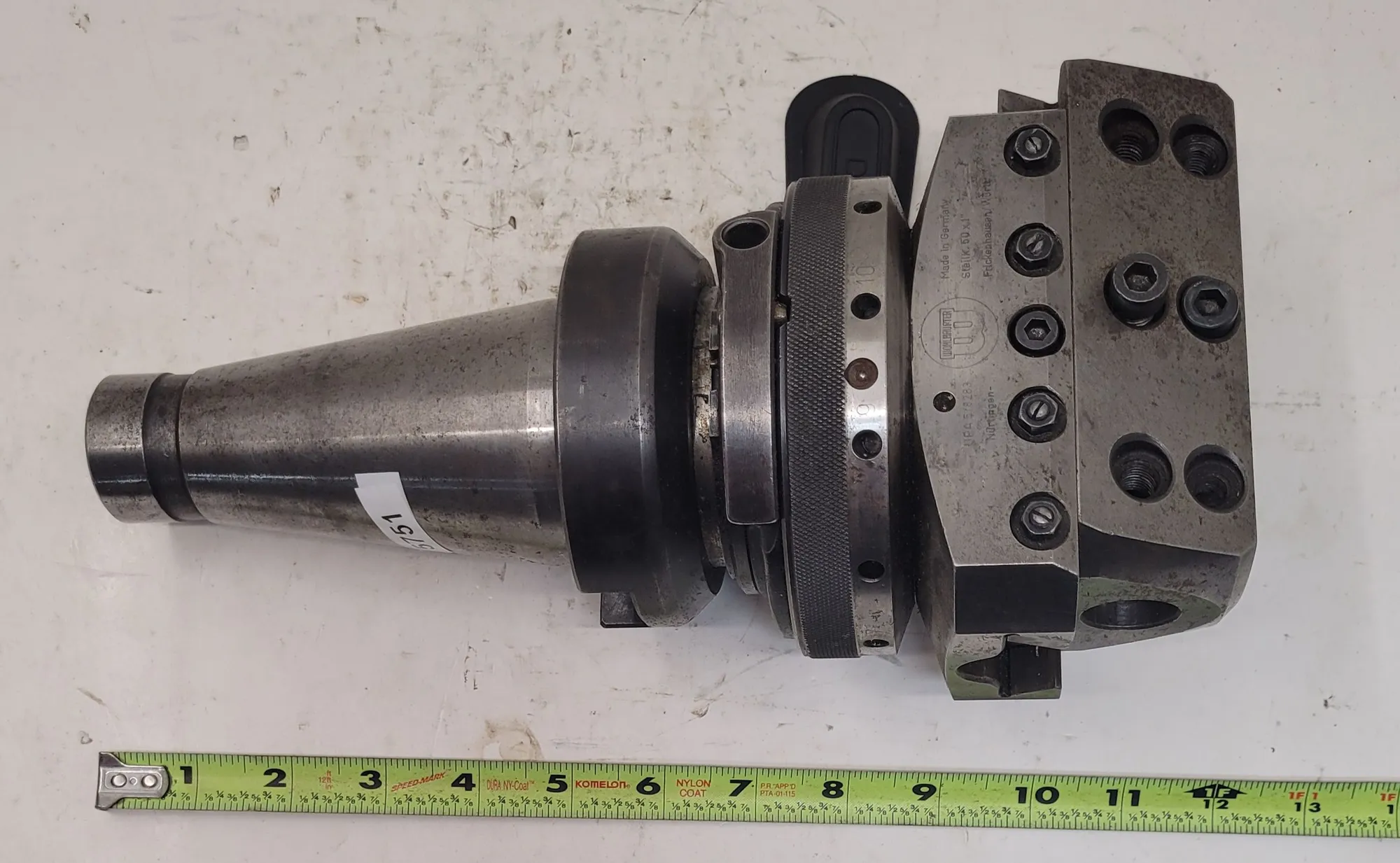

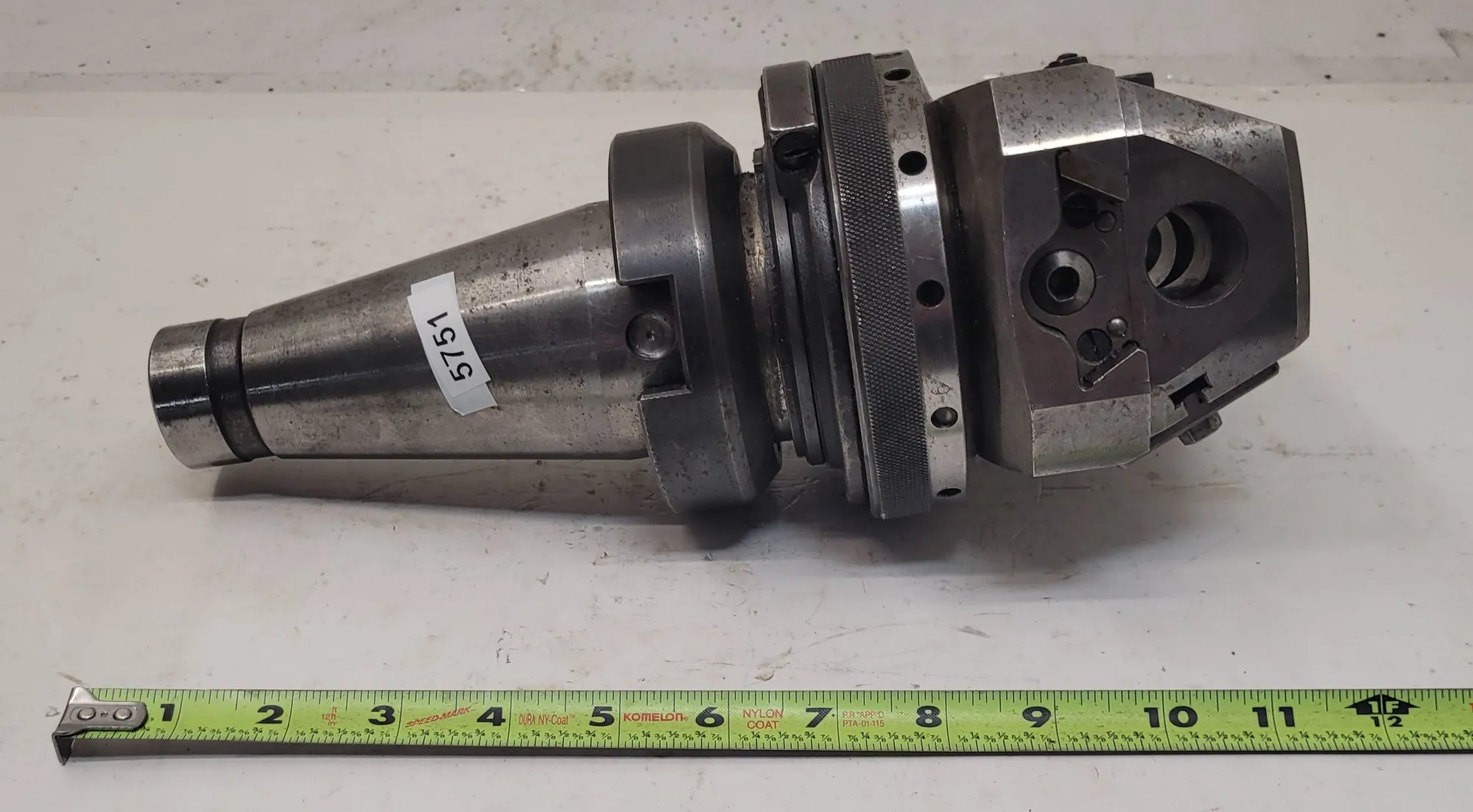

Wohlhaupter #UPA-5, Boring Head, CAT 50 Taper, 0.000"-24.409" diameter Range, 600 RPM Max

$1,499 USD

Request Formal Quote

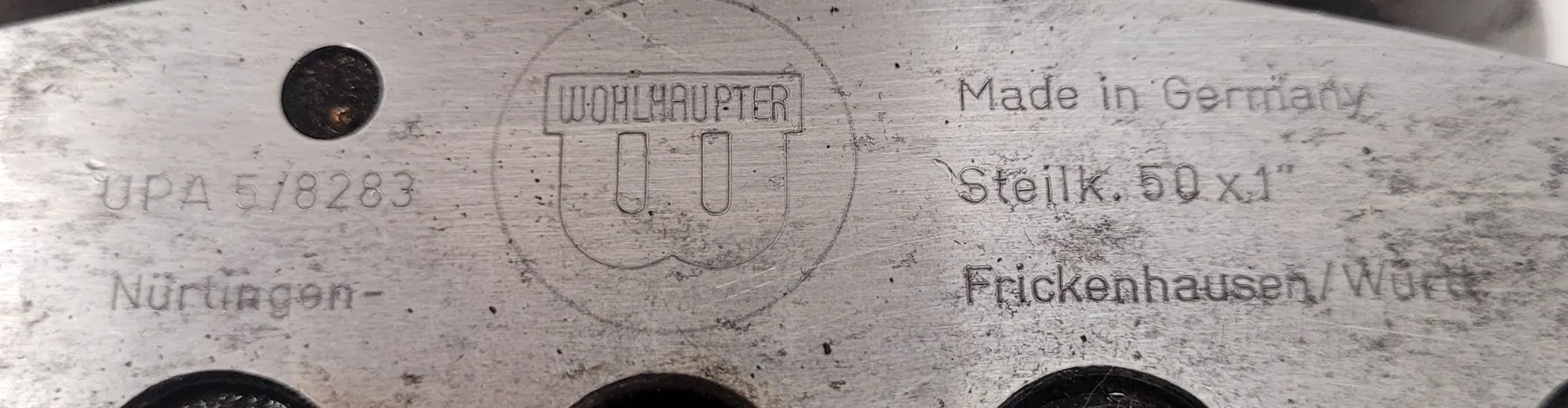

THE WOHLHAUPTER UPA 5/8283 BORING HEAD IS A PRECISION TOOLING DEVICE DESIGNED FOR HIGH-PERFORMANCE MACHINING APPLICATIONS. IT FEATURES A CAT 50 TAPER TYPE, ENSURING COMPATIBILITY WITH A WIDE RANGE OF MACHINE TOOLS. THE BORING HEAD OFFERS A DIAMETER RANGE FROM 0.000" TO 24.409" (0.00 MM TO 620.00 MM), ALLOWING FOR VERSATILE OPERATIONS ACROSS VARIOUS WORKPIECE SIZES. THE SLIDE ADJUSTMENT CAPABILITY IS 4.410" (112.00 MM), PROVIDING FLEXIBILITY IN SETTING THE DESIRED CUTTING DEPTH. THE DEVICE SUPPORTS FEED RATES OF 0.050, 0.08, 0.12, AND 0.24 MM/REV, CATERING TO DIFFERENT MACHINING REQUIREMENTS. IT CAN ACHIEVE A MAXIMUM WORKING DIAMETER OF 500 MM TO 620 MM, DEPENDING ON THE SPECIFIC APPLICATION. THE BORING HEAD OPERATES AT A MAXIMUM PERMISSIBLE SPEED OF 600 REVOLUTIONS PER MINUTE, ENSURING EFFICIENT MATERIAL REMOVAL WHILE MAINTAINING PRECISION. THE END CUT-OFF ACCURACY IS RATED AT +/- 0.05 MM, HIGHLIGHTING ITS CAPABILITY FOR PRECISE MACHINING TASKS. WEIGHING 7.9 KG WITHOUT THE SHANK, THE WOHLHAUPTER UPA 5/8283 IS A ROBUST AND RELIABLE TOOL FOR DEMANDING INDUSTRIAL ENVIRONMENTS.
