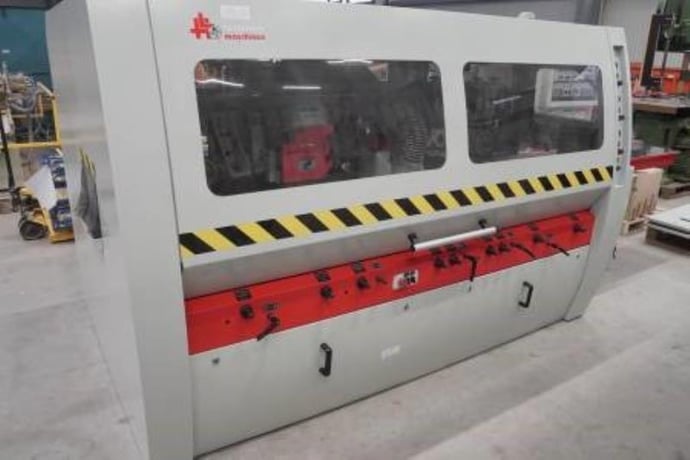

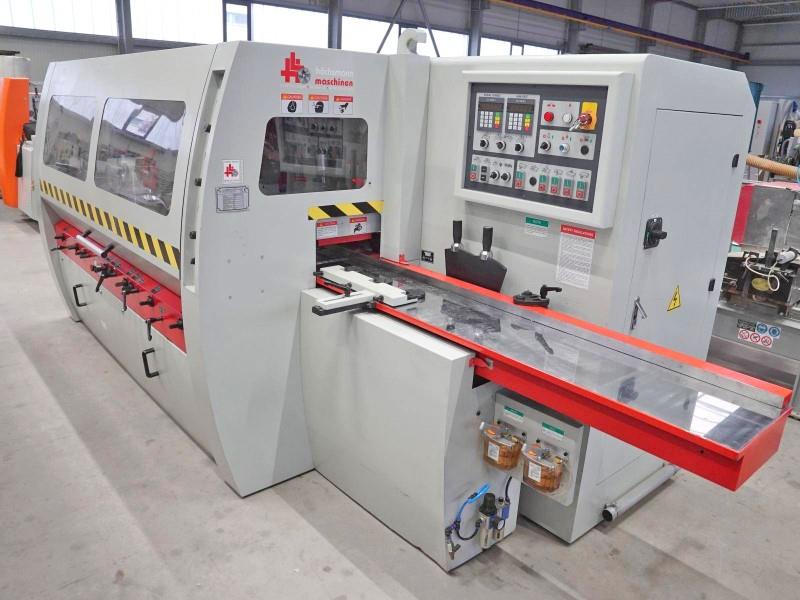

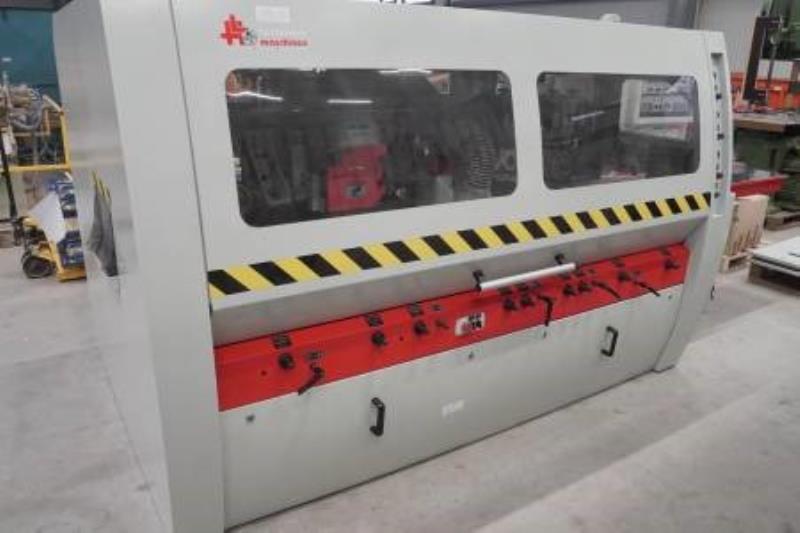

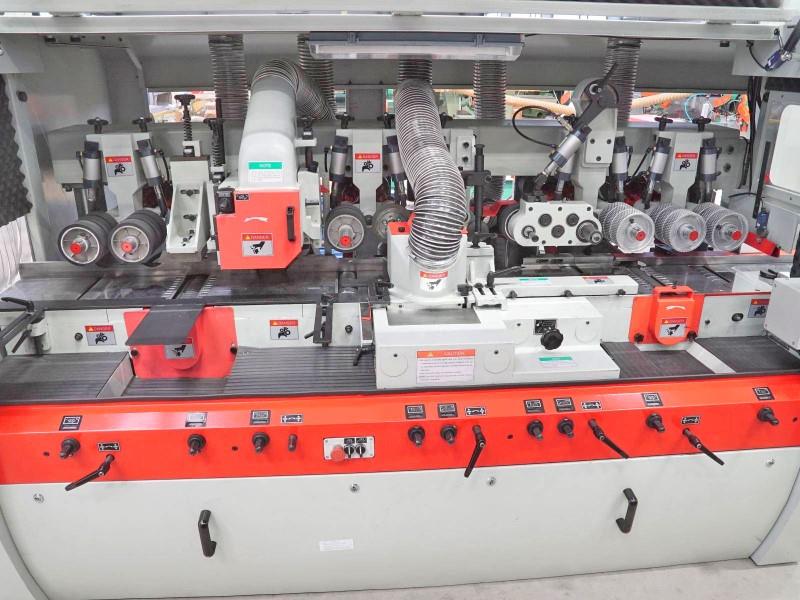

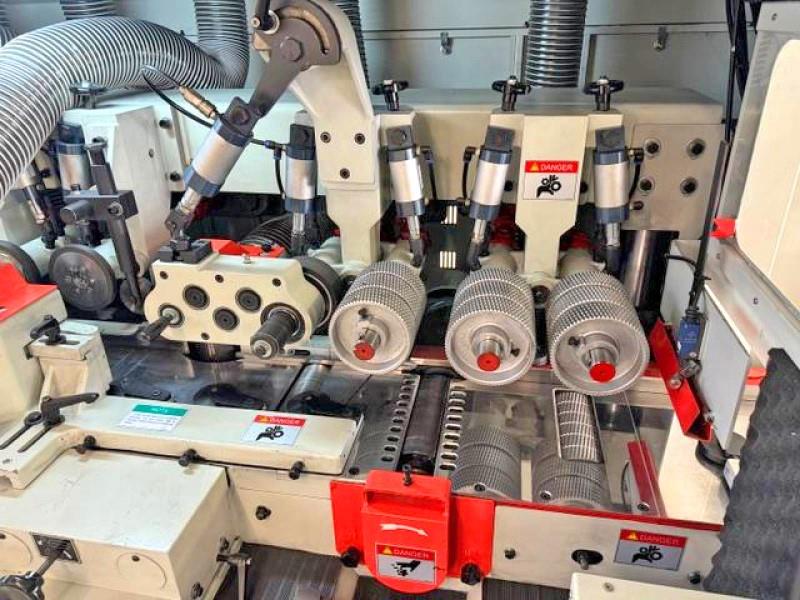

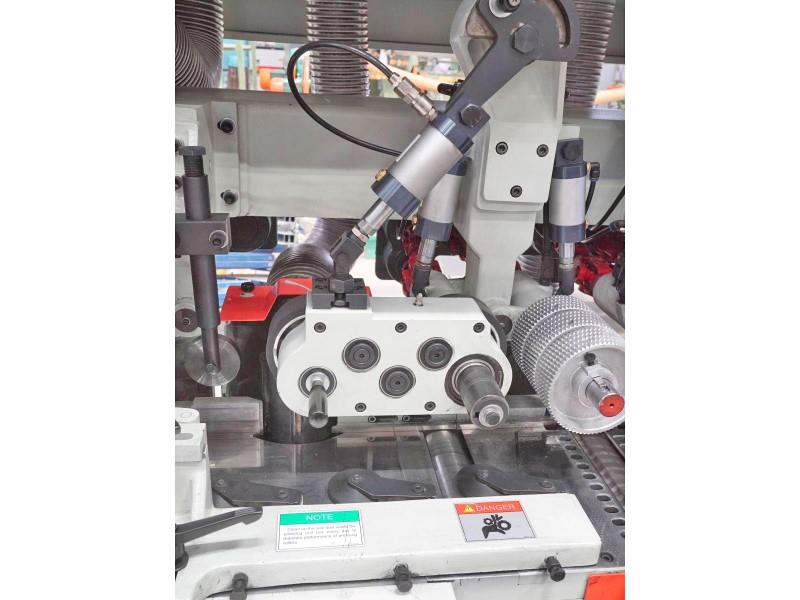

Winter #Timbermax-Deluxe-5-23, feed through moulder, 5-head, 9-1/16" x 6-5/16" capacity, 2018

Estimated monthly payment valid upon approved credit.

Request Formal Quote

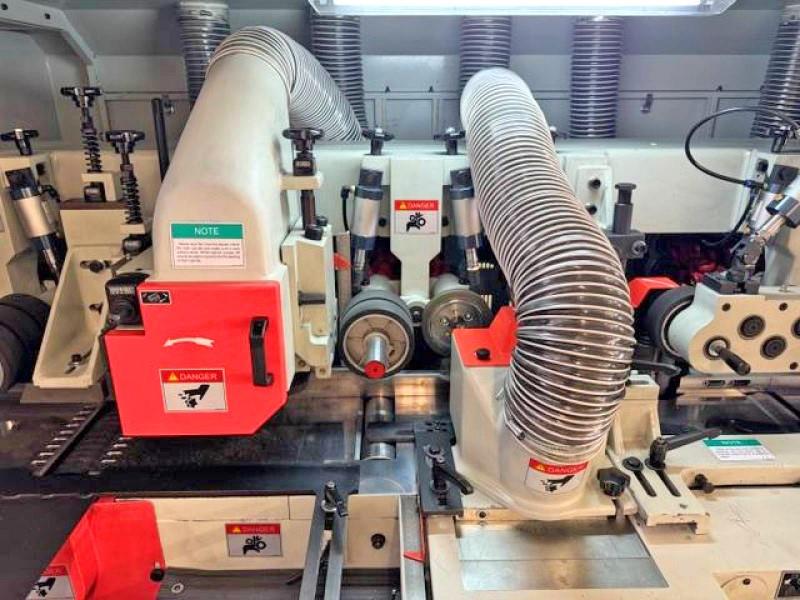

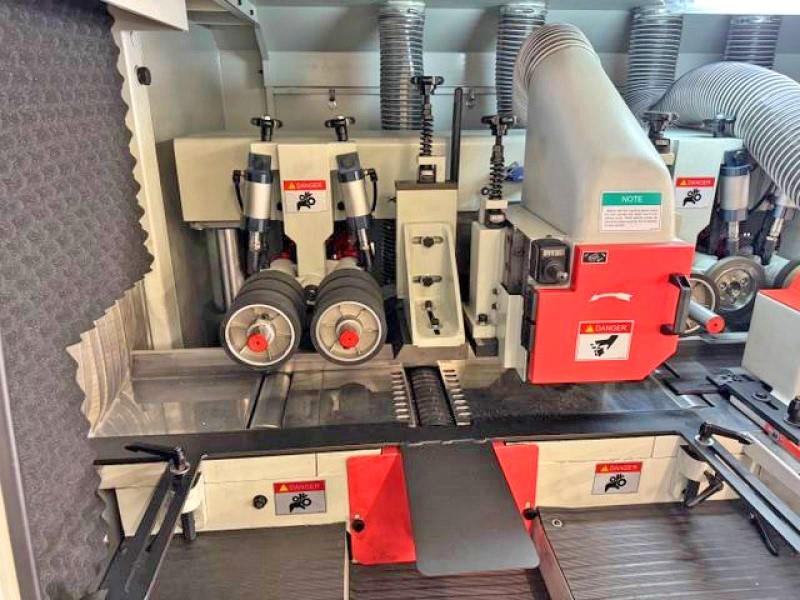

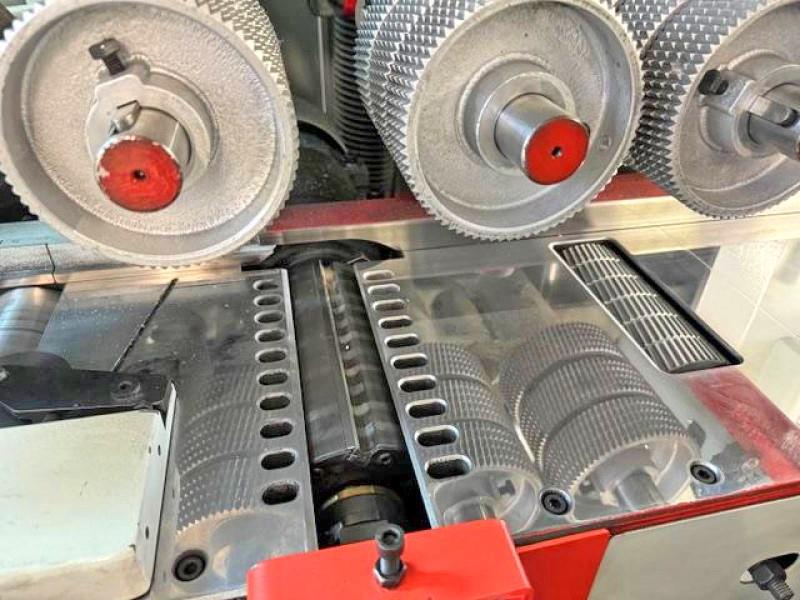

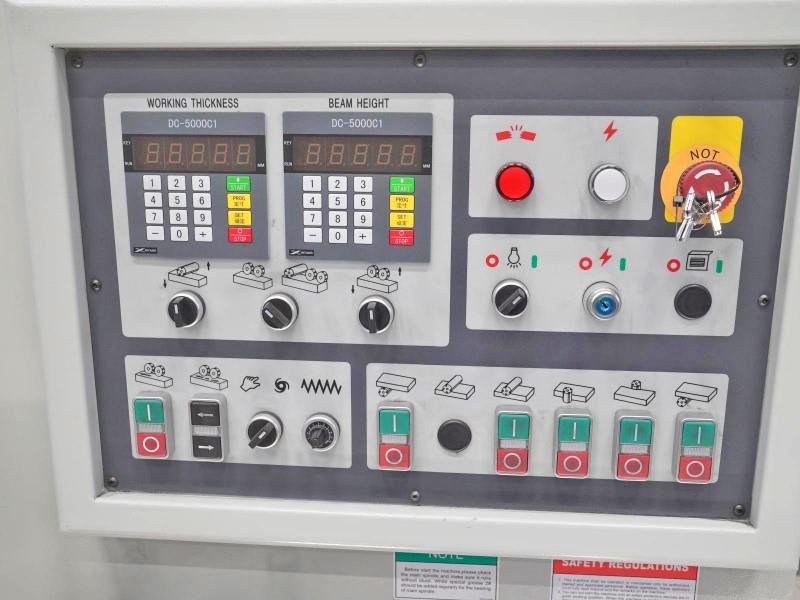

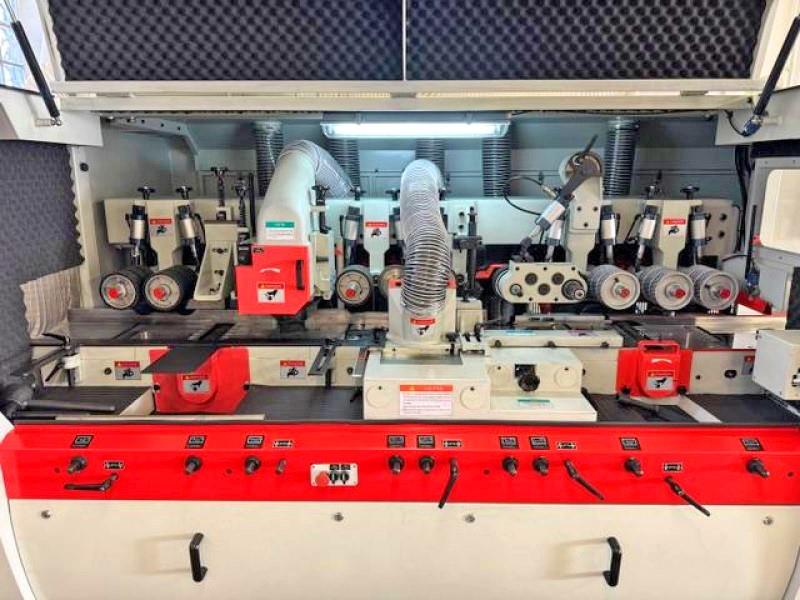

WINTER TIMBERMAX Deluxe 5-23 Feed Through Moulder, 5-head;Working width x height 230 x 160 mm (9-1/16" x 6-5/16").Specifications: -- Head configuration: 5-Head (B-R-L-T-B). -- Spindle sequence: 1. Bottom 7.5 kW (10 HP), 2. right 5.5 kW (7.5 HP), 3. left 5.5 kW (7.5 HP), 4. top 7.5kW (10 HP), 5. bottom 7.5 kW (10 HP). All spindles 6,800 RPM. -- Spindle dia. 40 mm. All spindles with mechanical digital readouts. -- Motorized feed beam adjustment with independent adjustment of top head. -- Feed system: Variable feed speed from 6 - 36 m/Min (20 - 118 FPM) with 4 kW (5.5 HP) motor. Overhead feed wheels with pneumatic pressure, multiple feed wheels, (3) powered table rollers in machine table, (1) grooved powered table roller prior to 1st planing spindle. Cardan drive, chainless, maintenance-free. -- Machine Tables: Made of hardened steel, chromed. Infeed straightening table is 2,000 mm (6') with adjustable fence & adjustable outfeed table; (1) side pressure roller mounted to infeed table. Slots in machine table prior to horizontal spindles for noise reduction. -- Complete with: ● Short stock attachment. ● Central lubrication, and table bed lubrication pump. ● Full sound/safety enclosure. ● Automatic star delta starters. ● CE Compliance. ● (2) Emergency stop buttons. -- Space requirements: Space required LxWxH 4,200 x 2,400 x 2,200 mm (14" x 7'-10" x 7'-2"), weight 4,600 Kg (10,140 Lbs.).Actual model is: WINTER TIMBERMAX Deluxe 5-23 Feed Through Moulder, 5-head Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
