Westinghouse Manual Motor Starter B100WIC 600 VAC

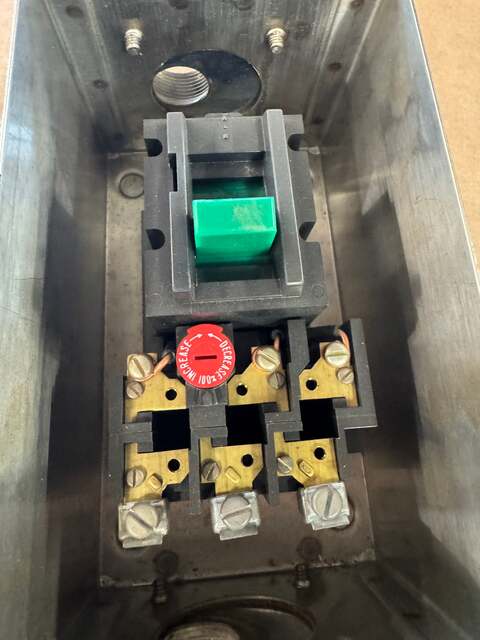

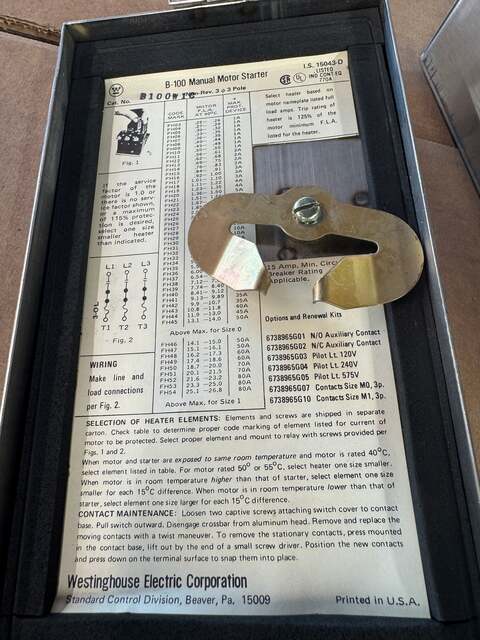

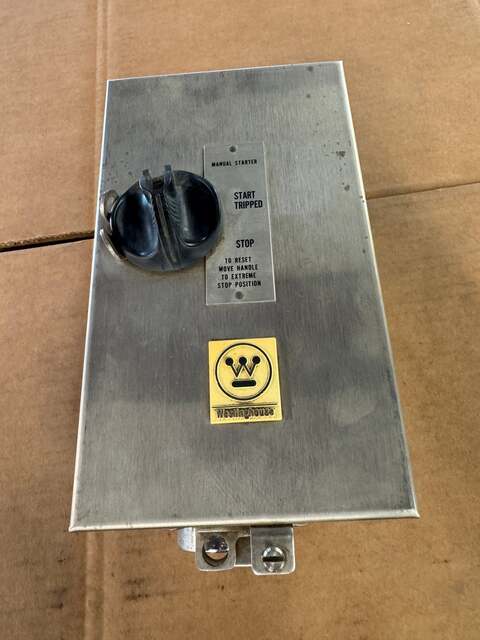

A three phase non reversing manual motor starter from Westinghouse, catalog number B100WIC, packaged as Size M-1 in a NEMA 4 watertight stainless steel enclosure. The unit is rated for 3 HP at 115 VAC, 7.5 HP at 200 VAC, 7.5 HP at 230 VAC, and 10 HP at 575 VAC, with a maximum system voltage of 600 VAC. Internal construction includes a three pole contact block with brass line and load terminals, a green operating crossbar, and a single adjustable bimetallic overload relay marked with an increase and decrease dial for trip calibration. The front cover carries a two position toggle operator labeled Start, Tripped, and Stop, with reset instructions etched on a stainless instruction plate. The brass Westinghouse logo plate is intact and the enclosure is sealed by two captive base screws. Compatible FH series heater elements ranging from FH03 through FH54 cover motor full load amperages from 0.25 A through 26.8 A, with heater selection guidance printed inside the cover per Westinghouse instruction sheet I.S. 15043 D. Renewal kit references include 6738965G01 N/O auxiliary contact, 6738965G02 N/C auxiliary contact, 6738965G03 120 V pilot light, 6738965G04 240 V pilot light, 6738965G05 575 V pilot light, 6738965G07 Size M0 three pole contacts, and 6738965G10 Size M1 three pole contacts. UL listed and CSA certified under Industrial Control Equipment 770A. Manufactured by Westinghouse Electric Corporation, Standard Control Division, Beaver, Pennsylvania. Modern Eaton equivalent is catalog number B100W1C. Carton style number 2606D83G09.

Stock # 0526-02334
