4000 Amps, Westinghouse, 1500 KVA, 240 Volts, 3PH3W, substation switchgear

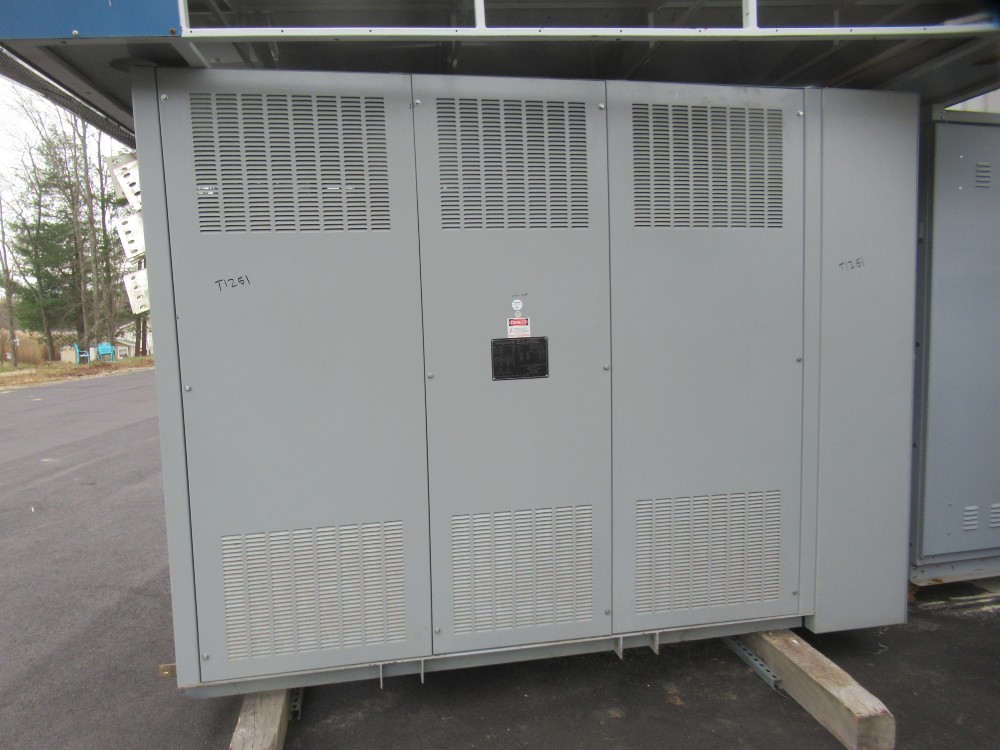

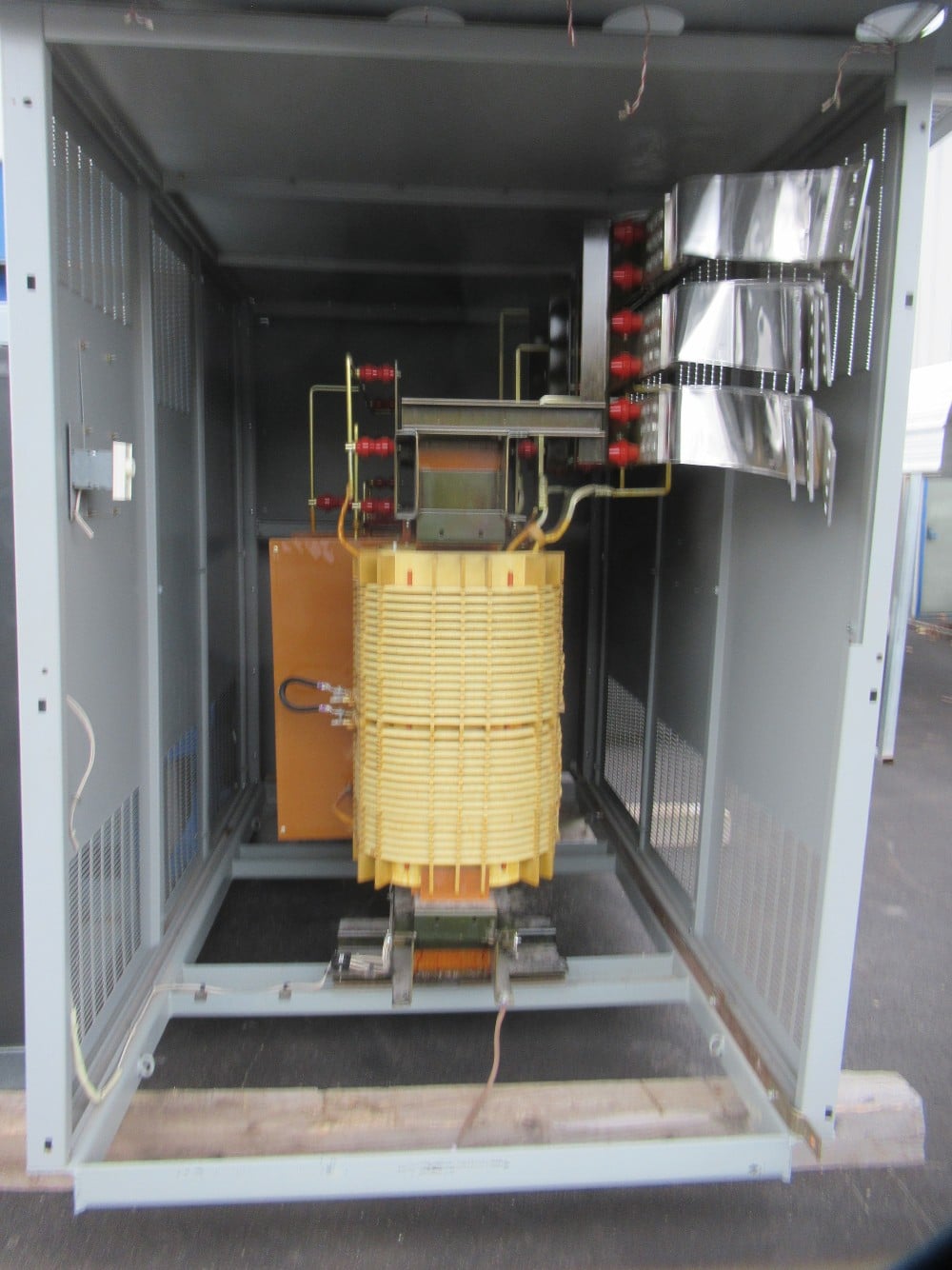

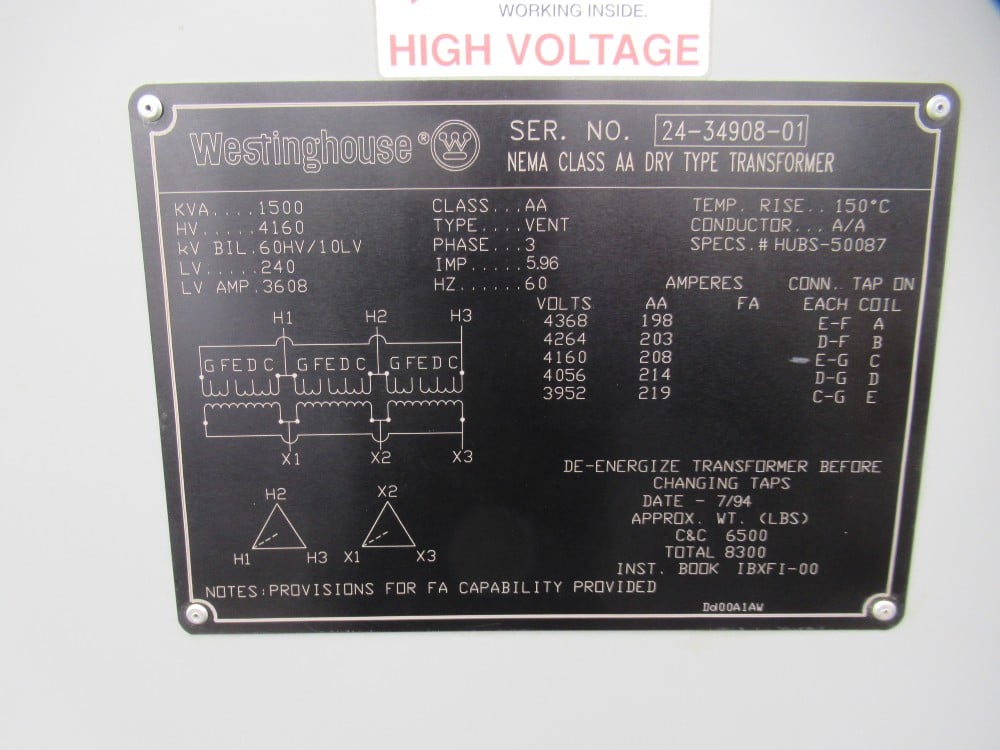

WESTINGHOUSE NEMA  CLASS AA DRY TYPE TRANSFORMER

1500 KVA, 3 PHASE, 3 WIRE

4160 HIGH VOLTAGE

240 LOW VOLTAGE

ALUMINUM WINDINGS

WEIGHT FOR TRANSFORMER - 8300 LBS

18" WIREWAY EXTENSION

APPROX DIMS FOR TRANSFORMER 120W X 66D X 90H

AND

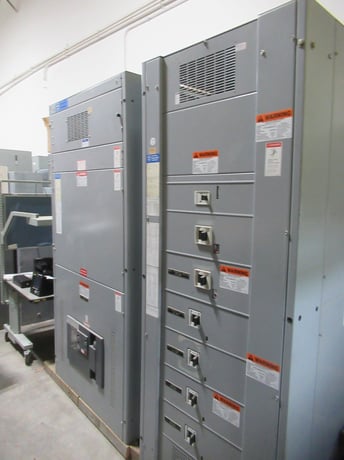

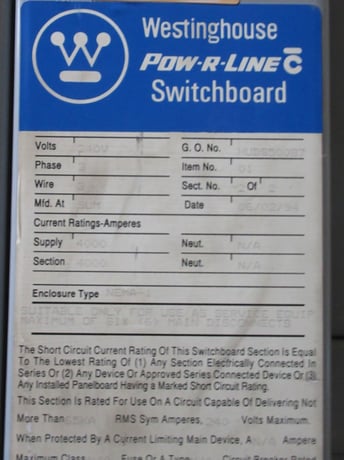

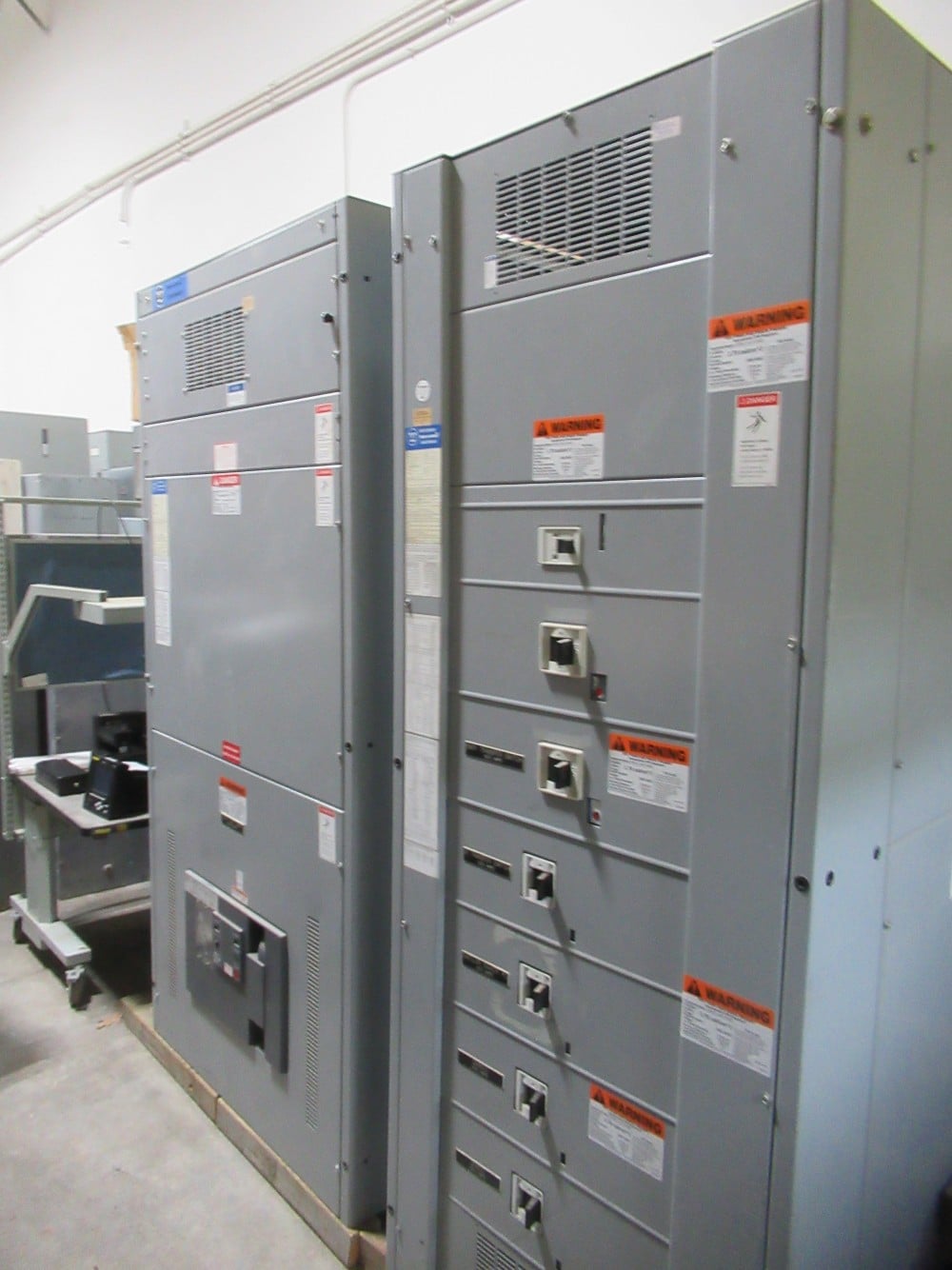

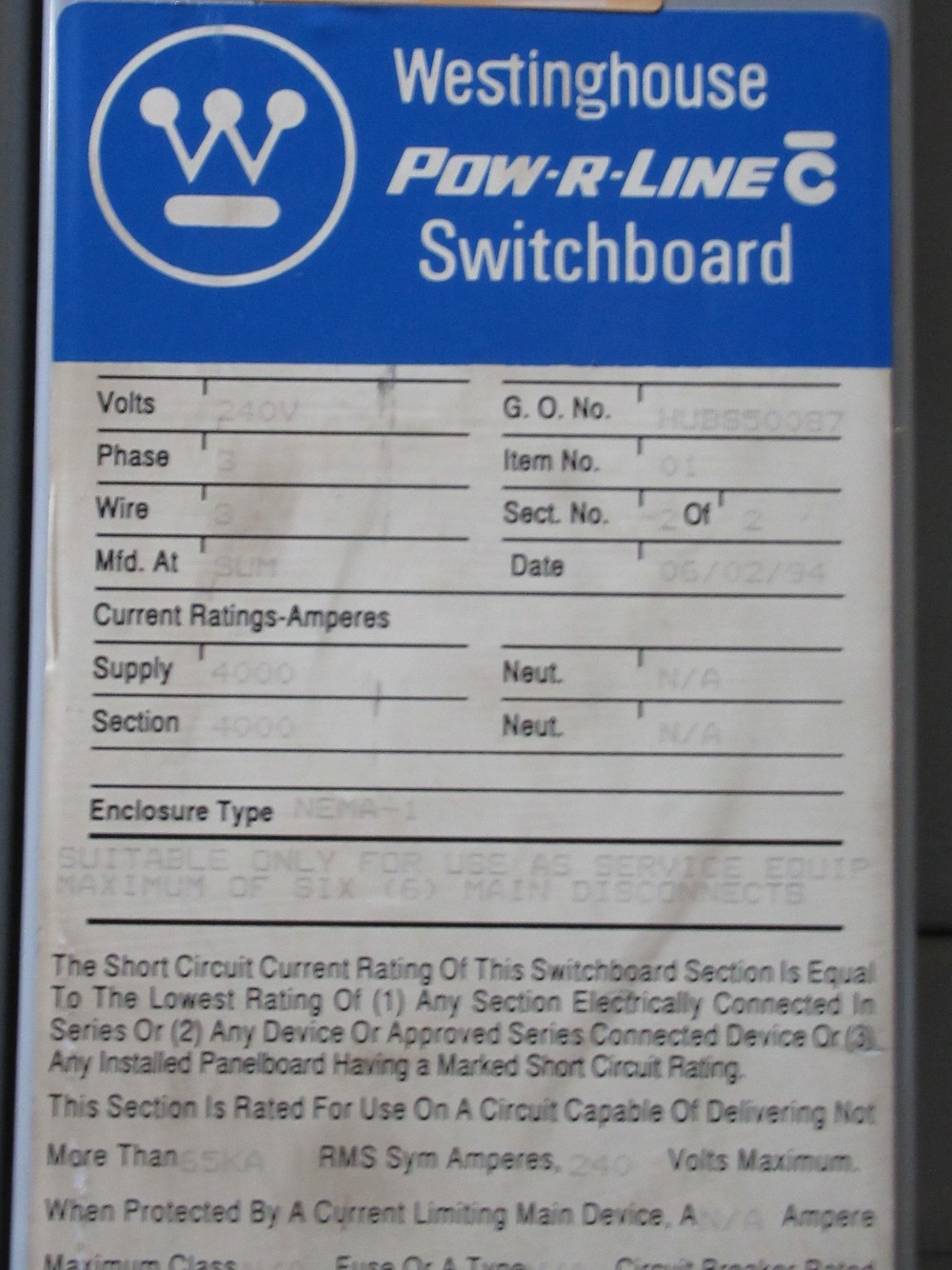

WESTINGHOUSE POW-R-LINE SWITCHBOARD

2 SECTION

4000 AMP, 240 VOLT, 3 PHASE, 3 WIRE

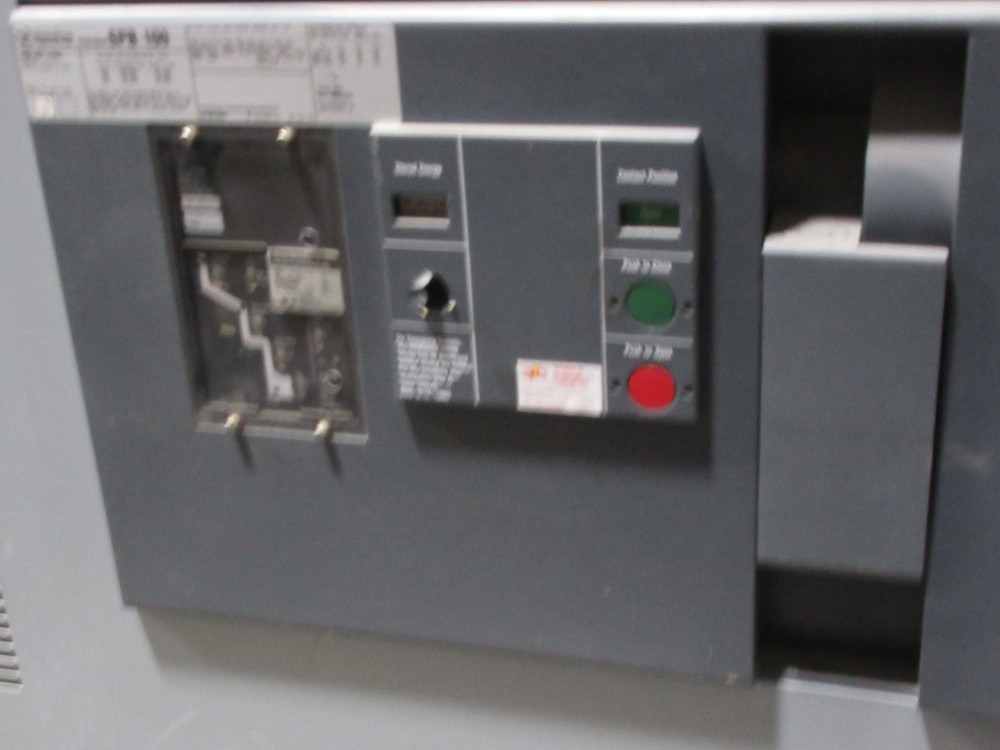

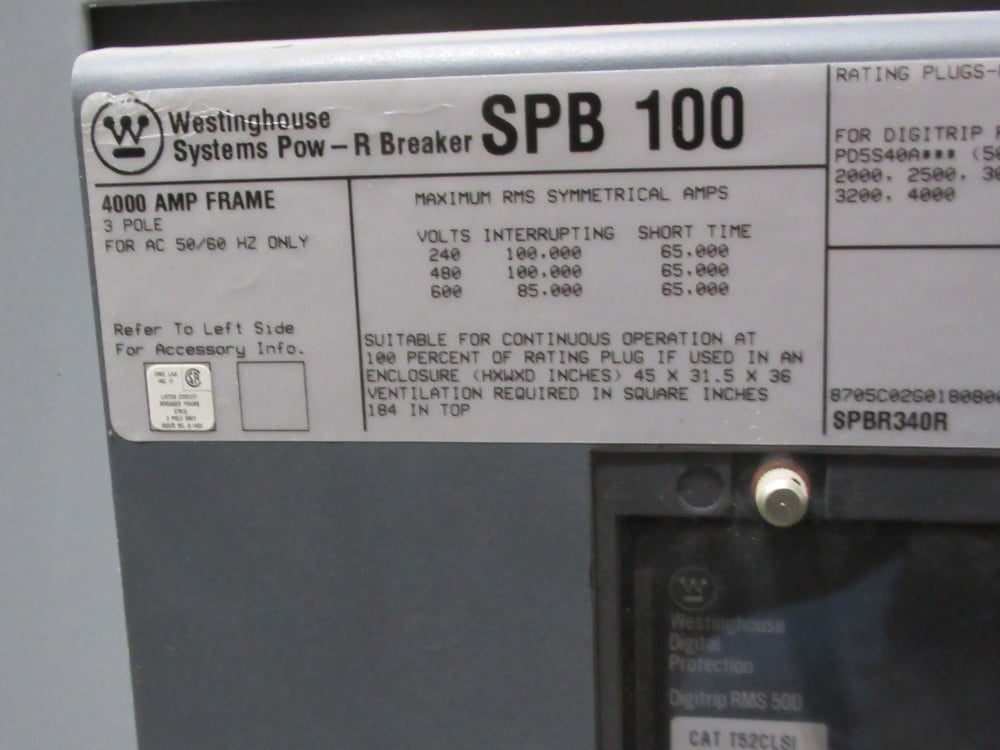

WESTINGHOUSE SPB100, 4000 AMP, 3 POLE

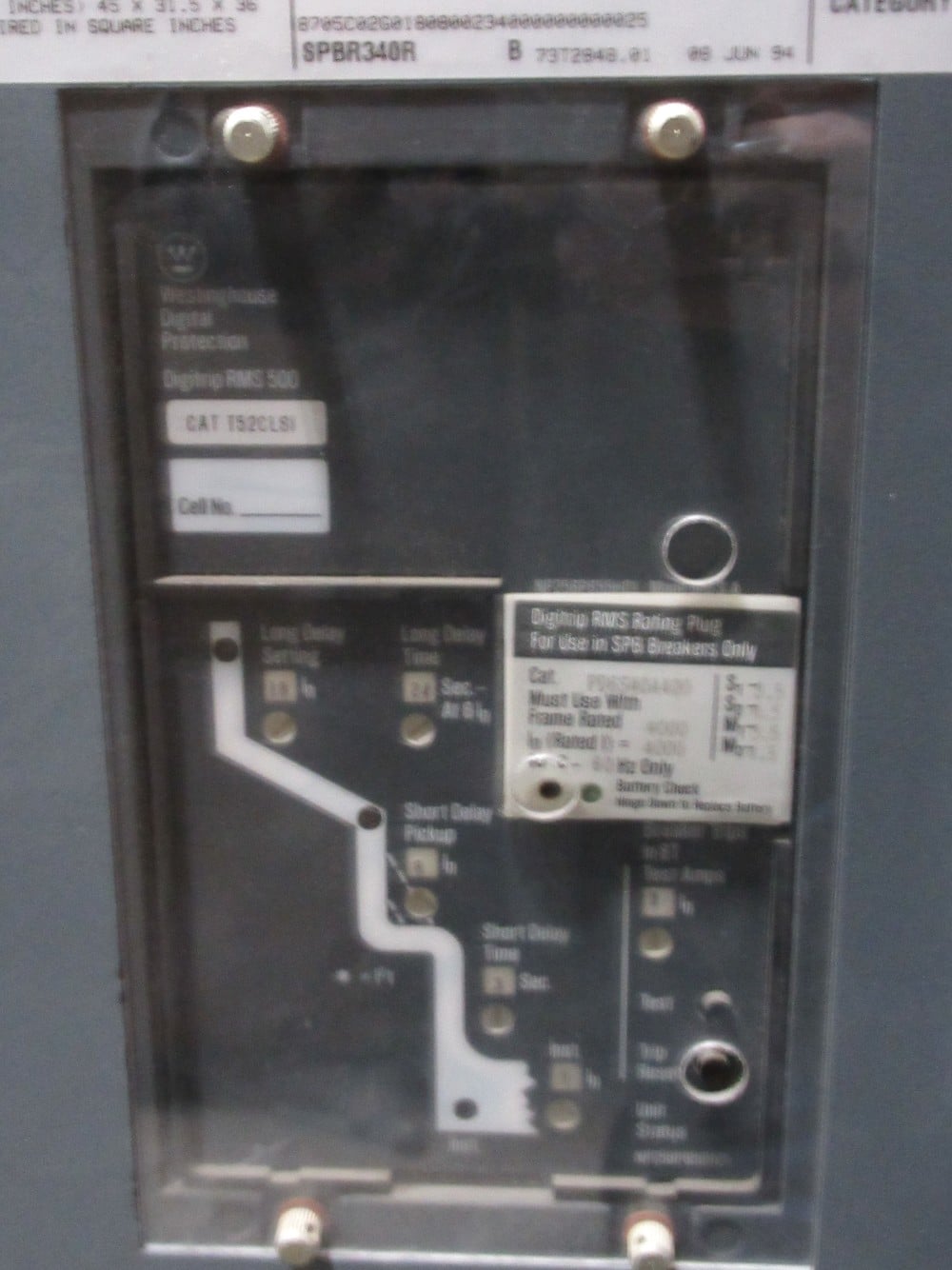

 DIGITRIP RMS 500 CAT # T52CLSI

 4000 AMP RATING PLUG

MDP SECTION

4000 AMP, 240 VOLT, 3 PHASE, 4 WIRE

BRANCH BREAKERS SOLD SEPARATELY

PROVISIONS FOR (2) KD, (4) LD, AND (2) ND 3 POLE BREAKERS

ALUMINIUM BUS

NEMA 1

APPROX DIMS FOR SWITCHBOARD- 91W X 66D X 90H

STOCK # T1251 & E1497
