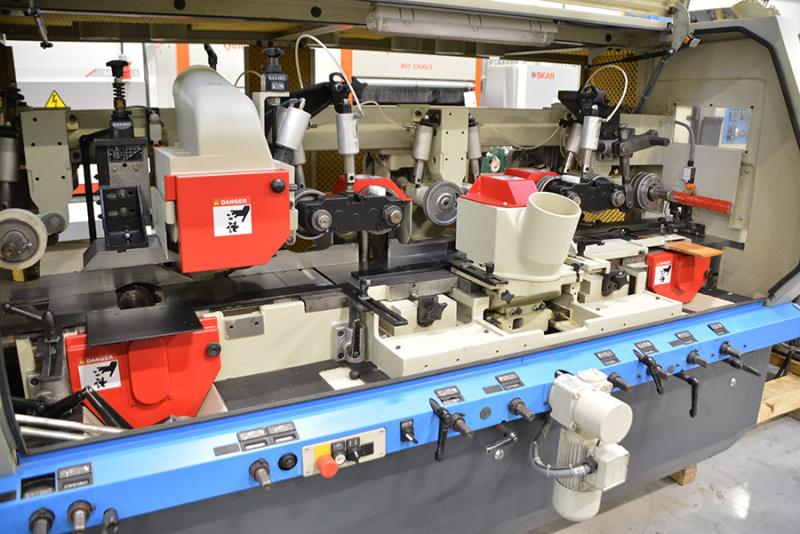

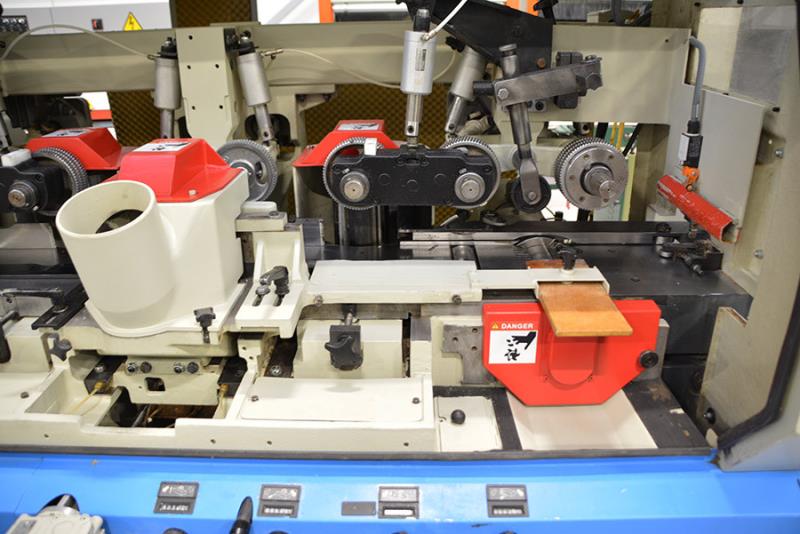

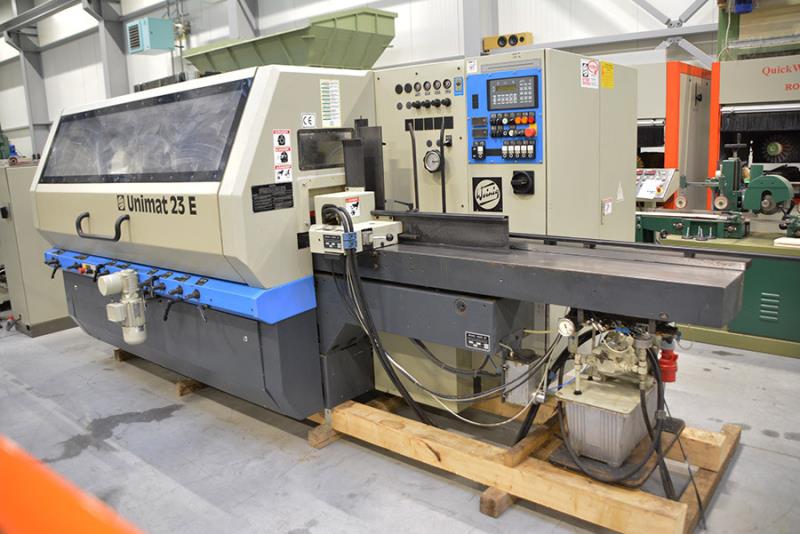

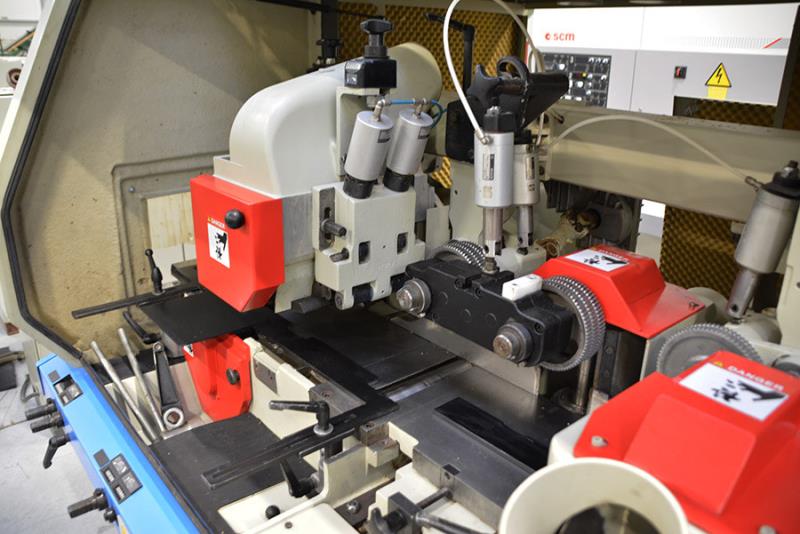

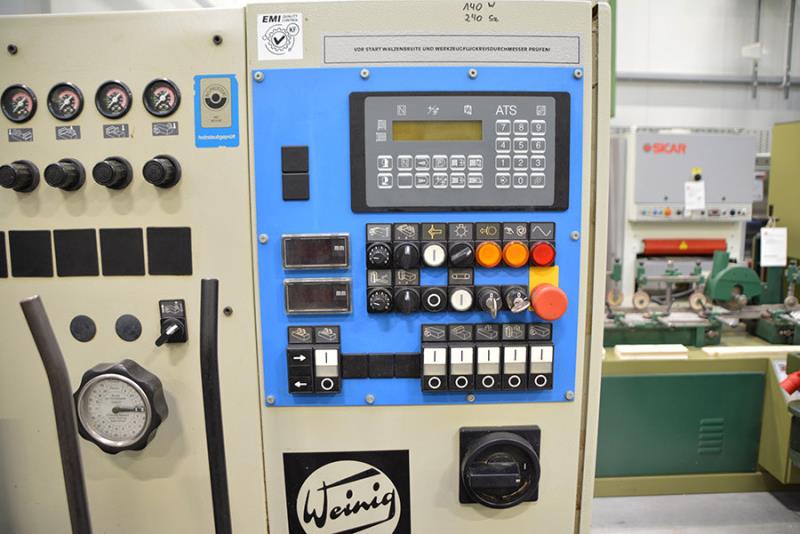

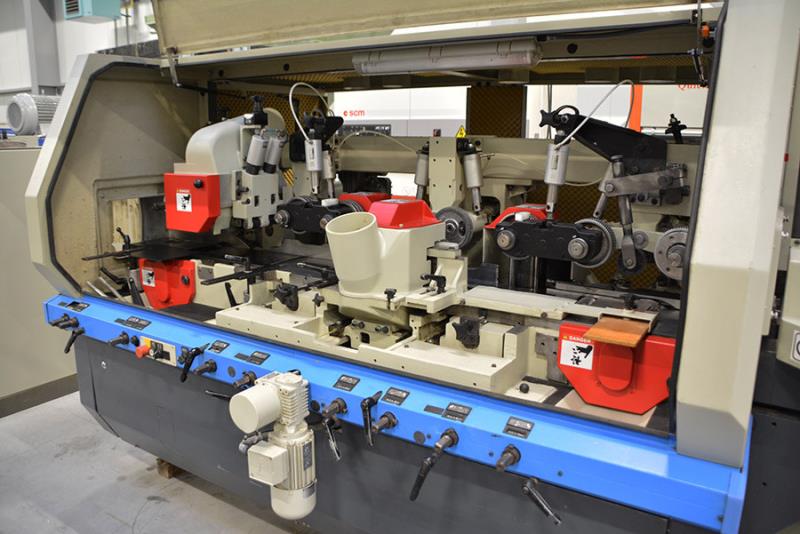

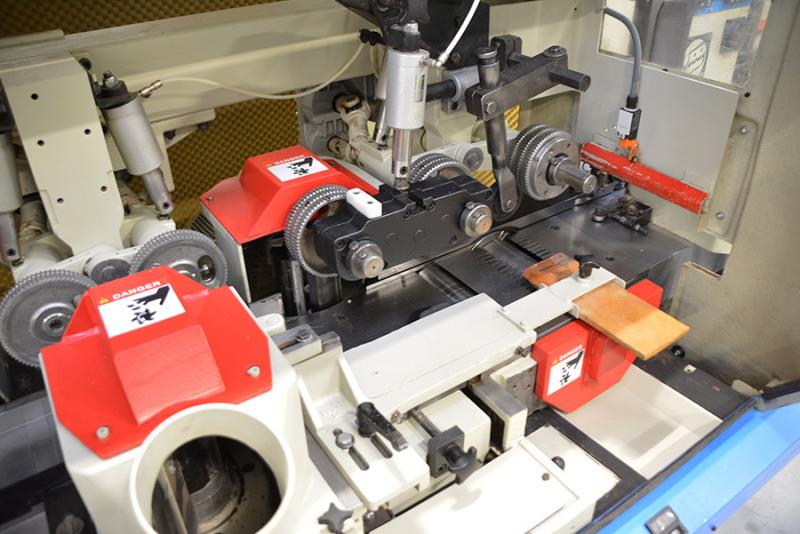

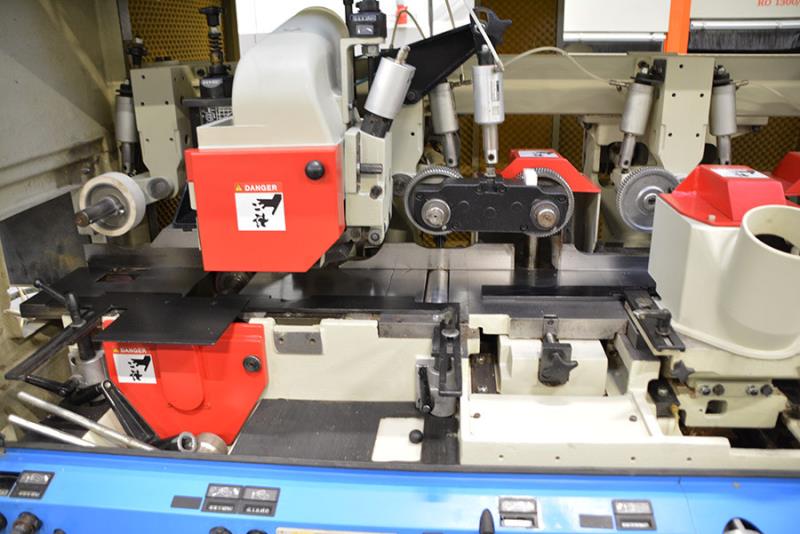

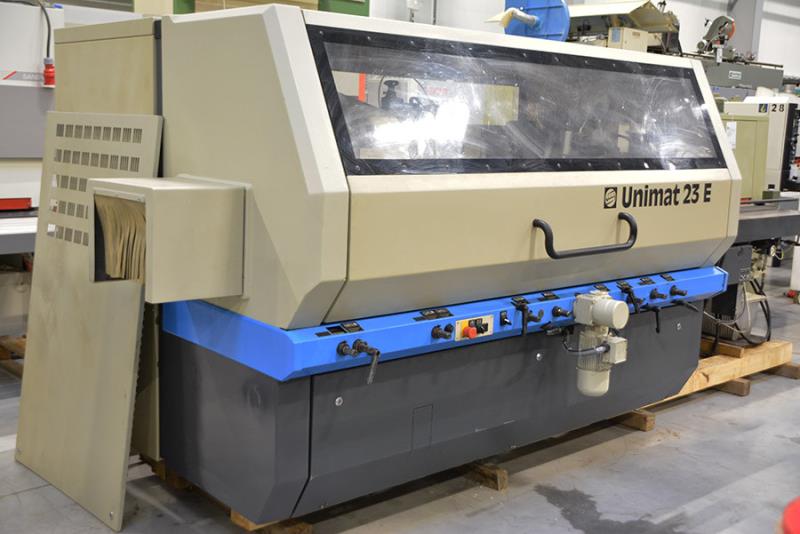

Weinig #U-23E, feed through moulder, 6-heads, 9-1/16" x 4-3/4" capacity, 1-9/16" spindle, variable speed, 2005

Estimated monthly payment valid upon approved credit.

Request Formal Quote

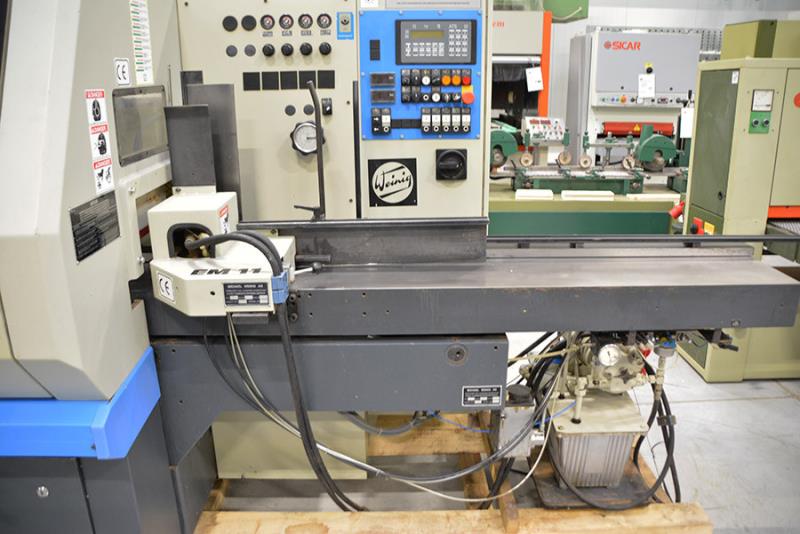

WEINIG UNIMAT 23 E 007 Feed Through Moulder, 6-head, with EM 11 infeed device;Heavy Duty cast-iron construction - reduces vibrations for optimum surface quality.Specifications: -- Head configuration: 6-Head (B-R-L-R-T-B), working capacity 230 x 120 mm (9-1/16" x 4-3/4"). -- Spindle sequence: 1. Bottom 4 kW (5.5 HP), 2. Right and 3. Left share a 7.5 kW (10 HP) motor, 4. Right 4 kW (5.5 HP), 5. Top 5.5 kW (7.5 HP), and 6. Bottom 5.5 kW (7.5 HP). -- Spindle diameters: 40 mm (1-9/16"). All spindles 6,000 RPM. Mechanical digital readouts on all heads. -- Motorized feed beam adjustment, receding chip breakers on left and top spindles. -- Variable feed speed from 5-24 m/Min (16-78 FPM) with 4 kW (5.5 HP) motor. Overhead feed wheels with pneumatic pressure, (2) powered table rollers in machine table. Cardan drive, chainless, maintenance-free. -- Machine Tables: Made of hardened steel. Infeed straightening table is 2,000 mm (6') with automatically adjustable fence & adjustable outfeed table. -- Complete with: ● Full sound/safety enclosure, with illumination inside. ● Automatic star delta starters. ● CE Compliance. ● (2) Emergency stop buttons. Actual model is: WEINIG UNIMAT 23 E 007 Feed Through Moulder, 6-head, with EM 11 infeed deviceNote: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
