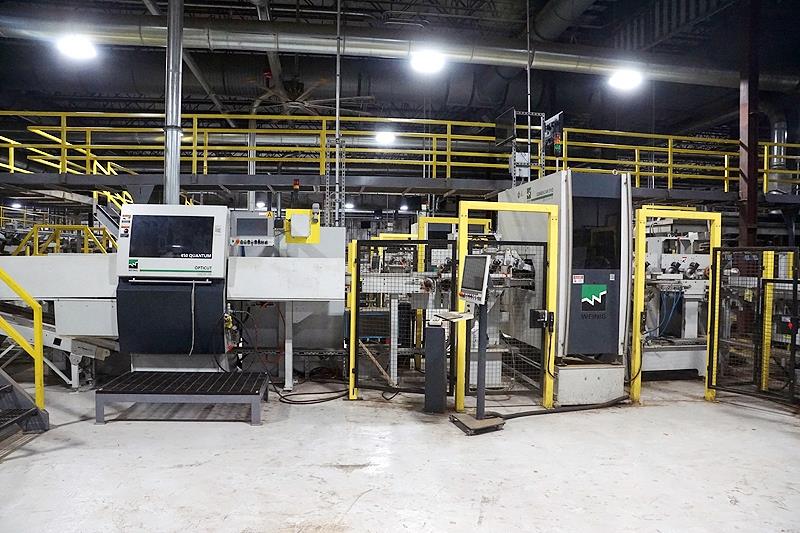

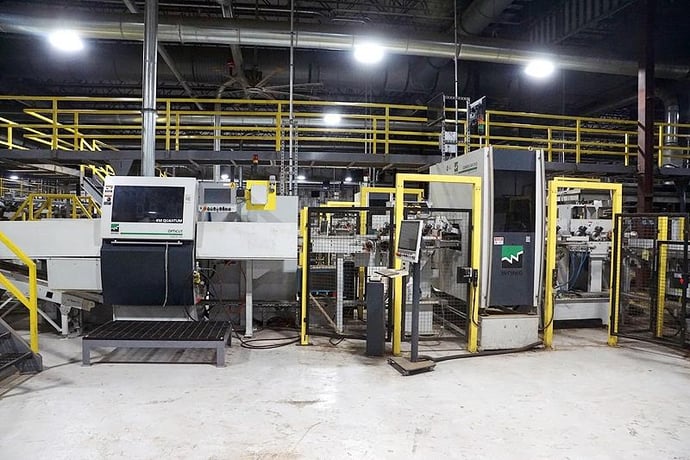

Weinig Dimter #Opticut-450, Optimizing Cross-Cut Saw w/CombiScan EVO Luxscan Scanner, 480V., 3 Ph., 2018

$419,445 USD

Request Formal Quote

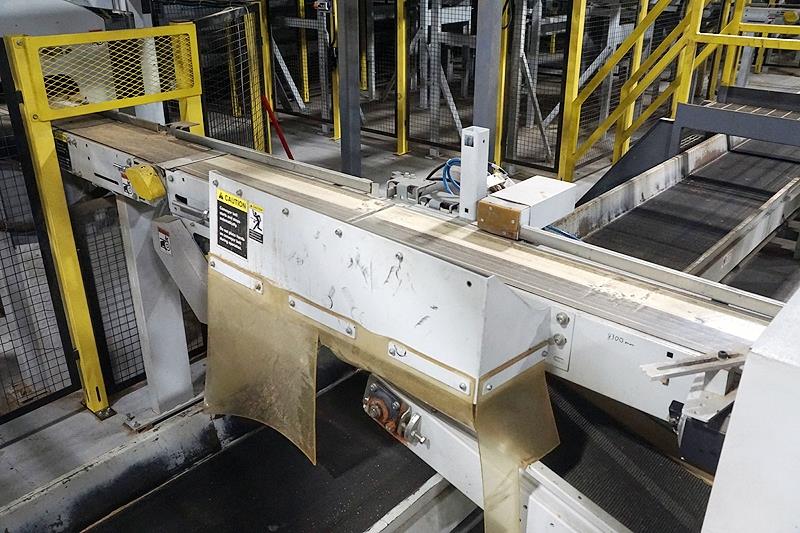

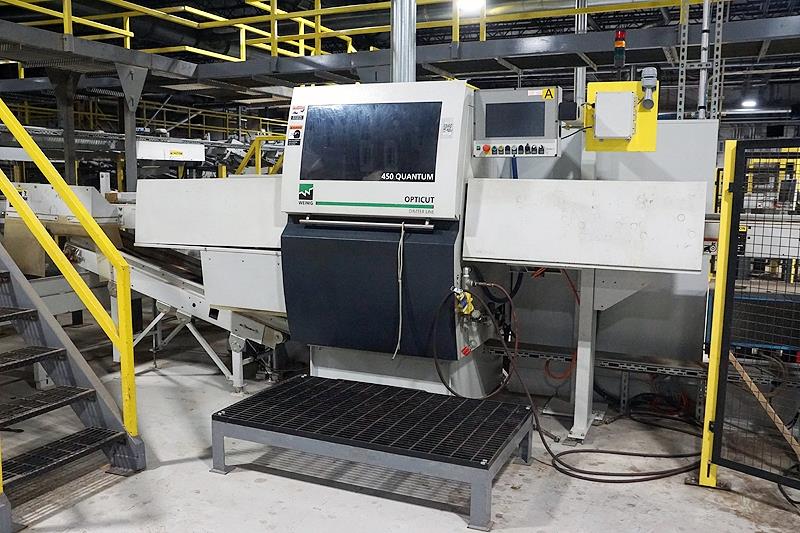

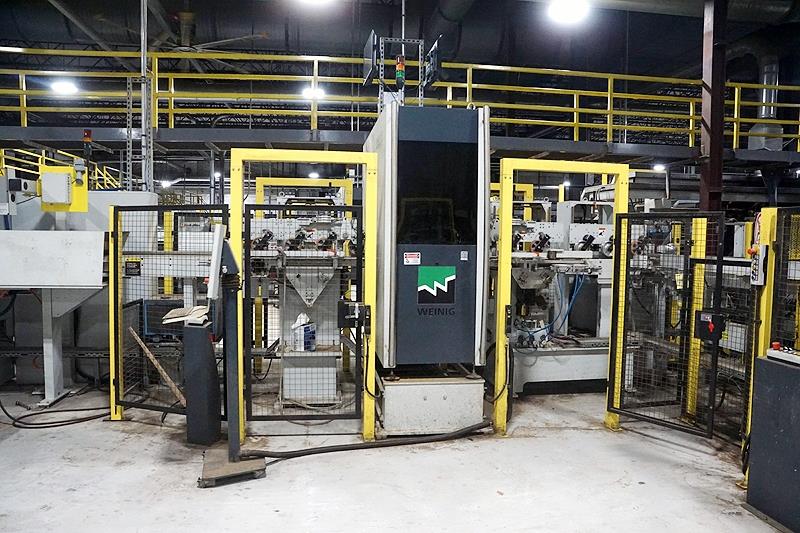

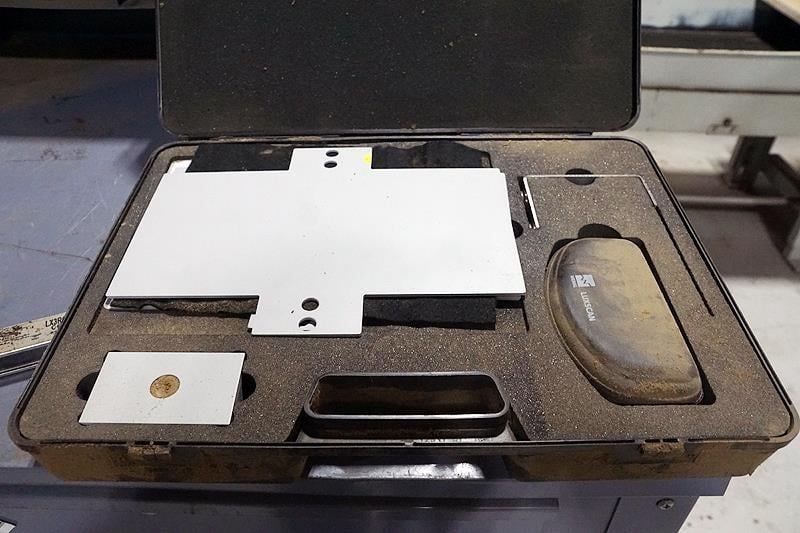

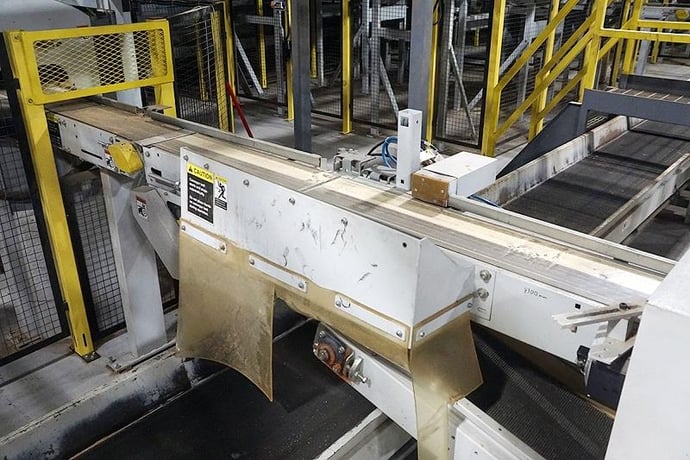

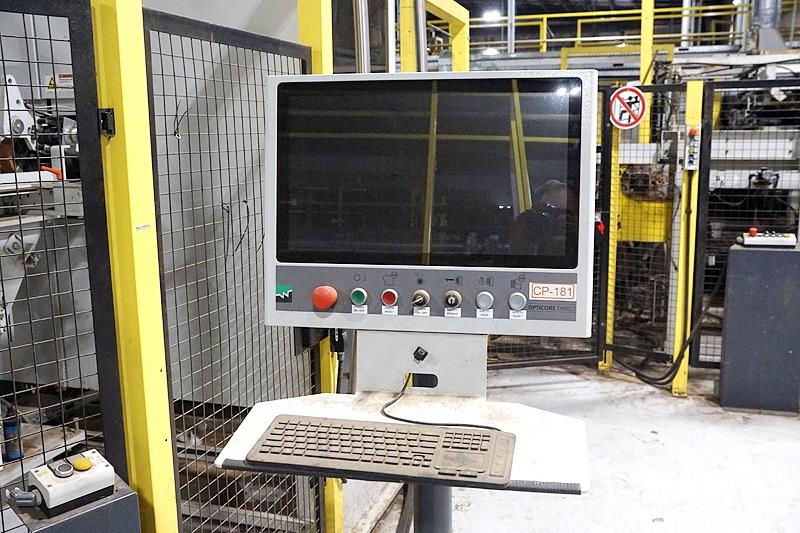

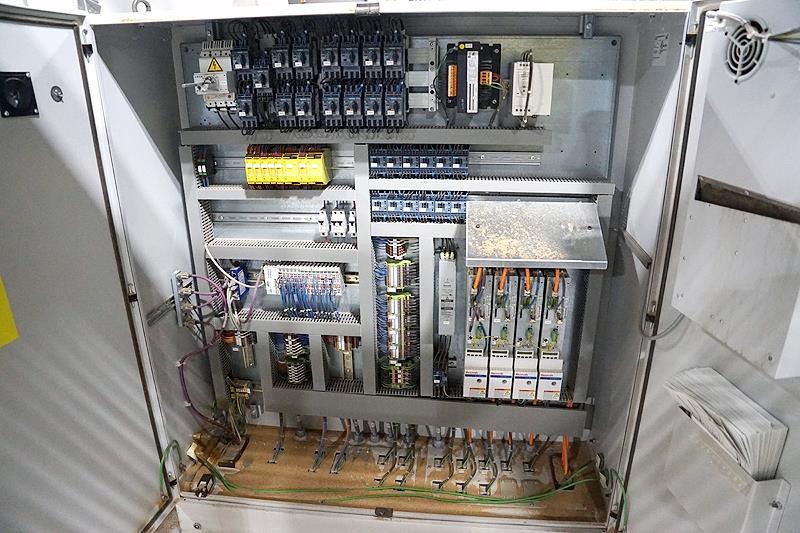

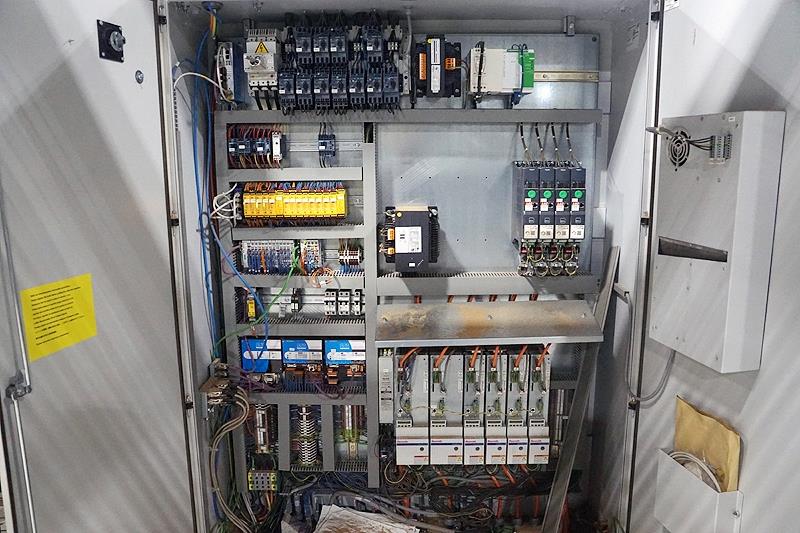

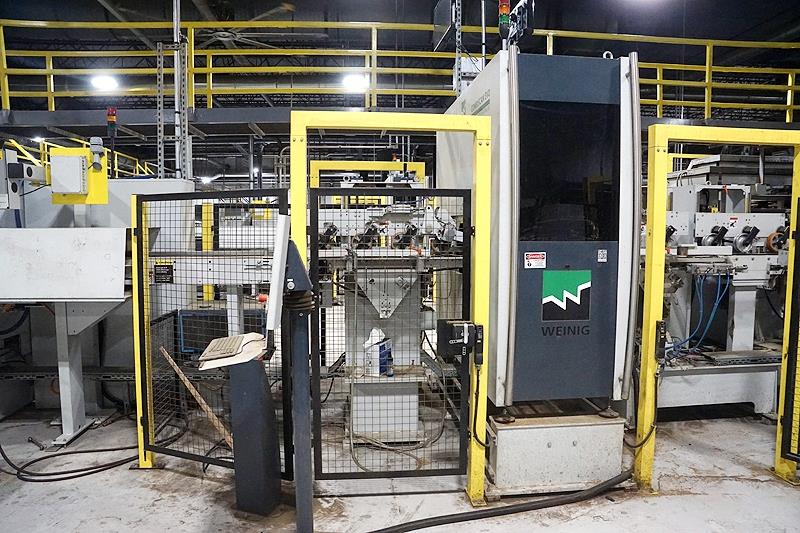

Weinig Dimter EVO Opticut 450/ Combi Scan EVO Luxscan Feed trought Lumber Scanner and Optimizing SawThis line consist of: (1) Weinig CombiScan EVO Luxscan Line Feed through lumber scanner (2018)(Installed new in 2019) -- 480 volt three phase, 60 hz, 19 amps -- Max width 310 mm (12.2") -- Min width 25 mm (0.984") -- Max length 6500 mm (255.9") -- Min length 900 mm (35.4") -- Max thickness 100 mm (3.93") -- Min thickness 12 mm (0.472") -- Speed range 80 to 300 M/min (up to 250 boards/min) -- Max throughput 200 m/min -- Luxscan combiscan EVo R with two cameras top-bottom (2 side detection laser cameras, 2 side detection color defect high resolution cameras, 2 side detection with dot laser, 2 side line scatter , angle crack detection 2 side) -- Freestanding operator computer control station -- Flat screen color display with keyboard -- Opticore direct controls -- Freestanding electrical and computer control cabinet -- Freestanding chiller unit for laser system -- Scanner infeed and outfeed table system -- Includes the machine operators manuals and scanner target kit(1) Weinig Dimter Line Opticut 450 Quantum Optimizing Cross Cutting Saw (2018) (Installed new in 2019) -- 37 Kw, 480 volt three phase, 60 hz, 62 amps -- Max cutting capacity 50 m x 150 mm (1.96" x 5.90") or 15 mm x 210 mm (0.59" x 8.26") -- Min cutting capacity 12 mm x 30 mm (0.472" x 1.18") -- Feed rate speed up to 450 m/min -- Blade capacity 450 mm (17.7") -- Arbor diameter 30 mm (1.18") -- Saw drive motor 7.5 Kw (10 HP), Optimizing criteria: -- Max number of products 16 -- Max number of grades 8 -- Max number of fixed lengths for all grades 100,000 -- Automatic infeed system -- Sound and safety enclosure with front access door -- 9-1/4" wide rubber belted outfeed conveyor table -- Outfeed conveyor has automatic kicker stations -- 1st kicker: standard pneumatic -- 2nd and 3rd kickers: Opticat stacker heads with rubber belted even enders -- 4th kicker: standard pneumatic -- 5th kicker: sweep type pneumatic -- 6th and 7th kickers: Opticut stacker heads with rubber belted even enders -- Front mounted operator Opticom Pro color touch screen display controller -- Rear mounted electrical control cabinet -- Includes the machine operators manual
