Weidmuller DIN Rail Power Supply 8951420000

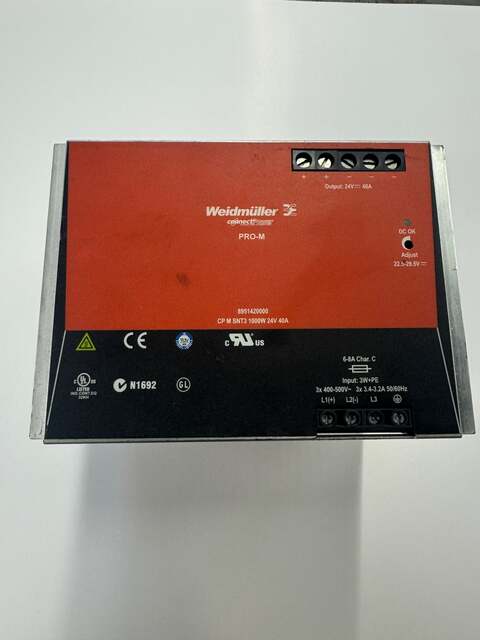

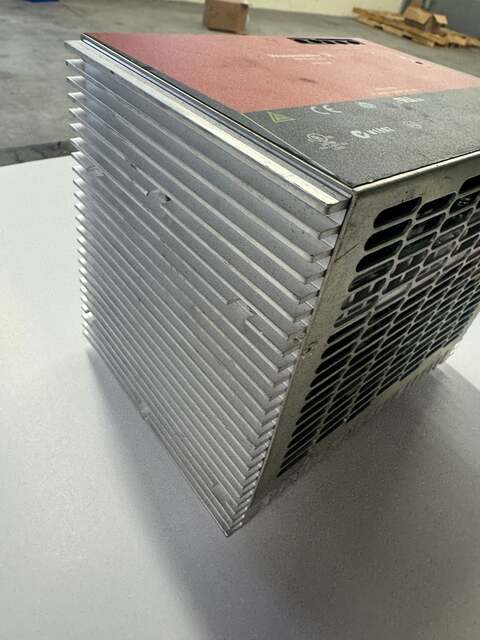

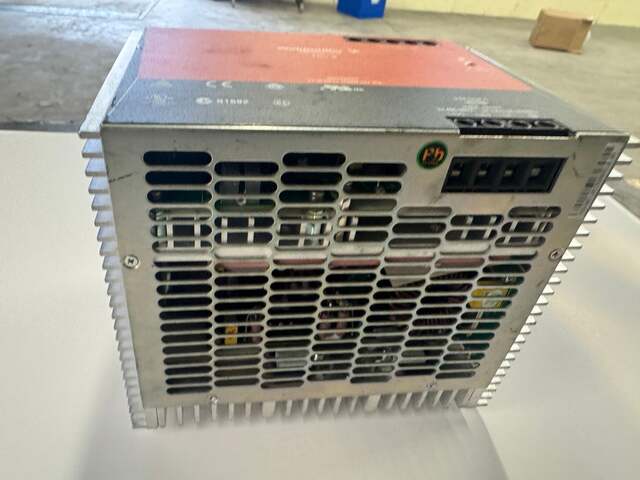

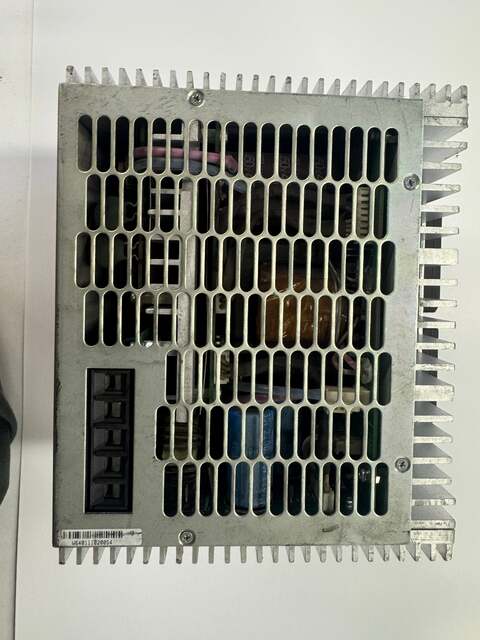

The Weidmuller PRO-M CP M SNT3 is a 1000W three-phase DIN rail power supply rated for 24V DC output at 40A. Part number 8951420000, this unit accepts a three-phase AC input of 3x 400-500V at 3.4-3.2A, 50/60Hz (3W+PE configuration). The output voltage is adjustable from 22.5 to 29.5V DC via an onboard trim potentiometer, with a DC OK status indicator on the front face. The unit is housed in a finned aluminum enclosure designed for convection and forced-air cooling. Certifications visible on the nameplate include UL Listed (Industrial Control Equipment, Ind. Cont. Eq. 32KH), CE, TUV, GL, and cULus. The N1692 mark is also present. The compact form factor is designed for zero-gap DIN rail mounting. Internal barcode label reads 9840111020054. The PRO-M series is a widely deployed platform in industrial automation, packaging machinery, and control cabinet applications where high-output, three-phase fed DC power is required. This unit is surplus and shows signs of prior installation service.

Stock # 0426-02102
