Wegoma WSA2-WPA4, Window Line, 50+ units/8hrs. shift, 2-head horizontal welder, cleaning machine, 2008

Estimated monthly payment valid upon approved credit.

Request Formal Quote

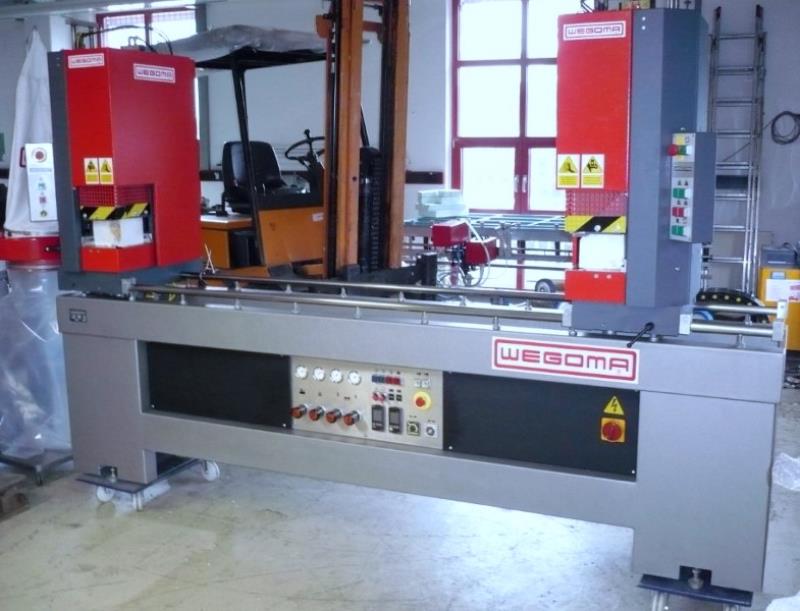

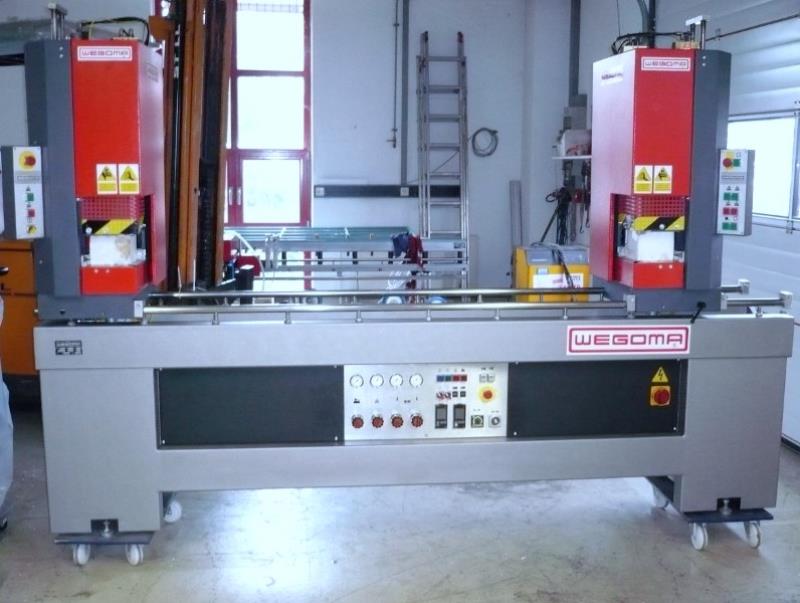

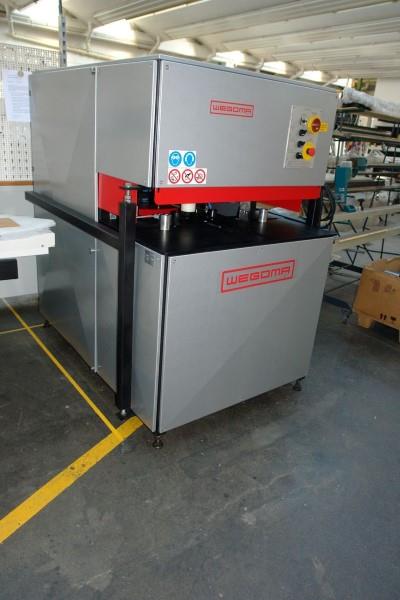

WEGOMA Complete CNC Window Profile Machining LineHigh quality German manufactured machine line for the fabrication of Aluminum and uPVC window profiles and suitable for small to medium sized fabricators. Capable of producing up to 50+ completed units in an 8 hour shift. This line is considered semi-automated with welding (2-head horizontal welder) and cleaning machines but without turning and cooling stations.The Window Machining Line Contains The Following (13) Equipment Components: ● WEGOMA "WSA2" CNC 2-Head Horizontal Welding Machine For welding PVC window frame or sash with 90 angle welding heads in one operation. User-friendly loading positions with Heated weld bead limitation 0.2 to 2 mm, PC control with online connection, Electronic function monitoring, Flexible machine for the efficient welding of PVC profiles. Heated limit knives and easy adjustment make the machine the perfect companion for medium-sized window manufacturers.Specifications: Air connection: 6 – 8 barMax. welding temperature: 300 CTemp. welding bead limitation: 65 CVariable welding angle adjustment: 30 – 180Max. profile width at 90 angle: 140 mmMax. profile height: 210 mmWeight: 610 kG ● WEGOMA "WPA4" CNC Corner Cleaning MachineClean and fast processing of the outer contours and visible surfaces. With four cutter set spaces. Semi-automatic function: After manual input of the work piece, limit switches trigger automatic processing. Automatic profile recognition and milling cutter preselection for two to four profiles. Features a blow-off device for chips and very short cycle times: between 7 and 9 seconds.Specifications:Milling speed: 3300 RPMMilling spindle diameter: 32 mmMilling disc diameter: 80 - 220 mmMin. profile height: 20 mmMax. profile height: 120 mmMin. profile width: 15 mmMax. profile width: 145 mmMin. workpiece size: 420 x 420 mmMax. workpiece size: UnlimitedAir connection: 6 - 8 barWeight: 750 kG ● WEGOMA "SD25" Double Miter Saw Specifications:Max. distance between saws at 90: 4000 mmMax. Cutting height at 90: 220 mm Cutting width: 350 mm2- HM Sawblades Ø 500 mmHydropneumatic sawfeedPneumatic clampingAutomatic tilting 90 - 45 Intermediate angle fixableRight sawhead fixed left movableSpraying deviceElectronic Positioning controlDimensions: 1250 x 1600 x 2100 mmWeight: 1500 kG ● GRAULE "AKF 5/250" End Milling / Notching Machine Simple and very robust end milling machine for right-angled notching of PVC window and door profiles for t-joint connection. Milling depth and milling height can be precisely adjusted.Specifications: Spindle speed: 2800 RPMCutter: Ø 250 mmCutter supporting device: Ø 40 mmMilling spindle length: 90 mmMilling width: 330 mmMilling depth: 80 mmSuction plant: 80 mmWeight: 95 kg ● WEGOMA "BG10D" Metal Cutting Saw Steel circular saw for reinforcement and other types of steel. Manual start of the sawing process. Rotatable head, 45 left, 45 right, Two speeds: 40 rpm and 80 rpm,
